Product Details:
|
EXTRUDER MODEL: | CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 1240MM |
---|---|---|---|
MOTOR POWER: | 55KW | RAW MATERIAL: | PVC & ADDITIVES |
HAUL-OFFS: | TWO INDEPENDENT TRACKS | CAPACITY: | 350KG/H |
Highlight: | WPC wall panel plastic extrusion Line,600mm wall panel extrusion Line,Twin Screw PVC Profile Extrusion Line |

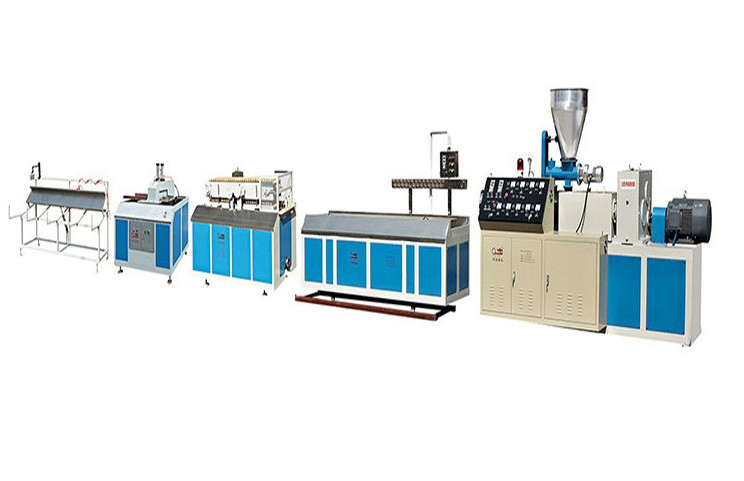

600mm WPC wall panel plastic extrusion
1. PVC wall panel extrusion line adopts exclusively designed conical twin screw extruder, with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules;
2. Gearbox: from Jiangyin Deling gearbox company, very famous brand in China, with nice outline, stable running, low noise and long service time;
3. Driving system: adopting Siemens motor, which provide stable torque output and various speed;
4. ABB frequency converter and Schneider electric control system which have wide adjustment range, high precision temperature control, simple operation and good reliability;
5. The production line is equipped with large forcing cooling device to ensure good effects of the PVC profile for wall panel;
6. Caterpillar-type haul-off unit utilizes branded reducing speed motor and ABB frequency inverter, and is featured in reasonable structure design, large and stable hauling power.
1. We are expert manufacturer of PVC wall panel making machine and can supply you turnkey solution including supplying machines, installation, training staff, material purchasing help, help send Chinese production master etc.

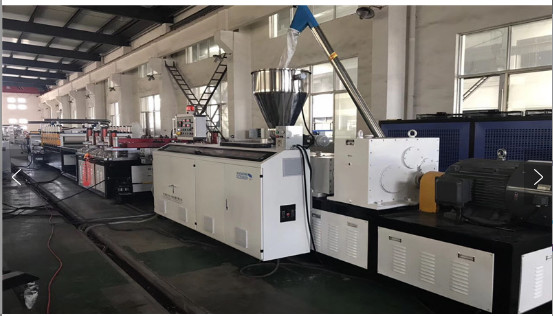

2. We can show you running PVC wall panel production line in our factory and our customer's factory.
3. The most important thing is that we have manufacturing PVC Profile for wall panel for over 20 years, we are familiar with all production process and we know how to make machines perfect and how to reduce production cost.
1 | Screw feeder | 1set |
2 | SJSZ-65/132 extruder | 1set |
3 | Vacuum calibration table | 1set |
4 | Haul off machine | 1set |
5 | Cutter | 1set |
6 | Stacker | 1set |
7 | Mould | 1set |
The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.
For customized complete production solution, please contact us.
Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
Main motor power (kW) | 15 | 22 | 37 | 55 | 90 |
Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
Capacity (kg/h) | 95 | 110 | 250 | 380 | 520 |
Central height (mm) | 1000 | ||||
Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
