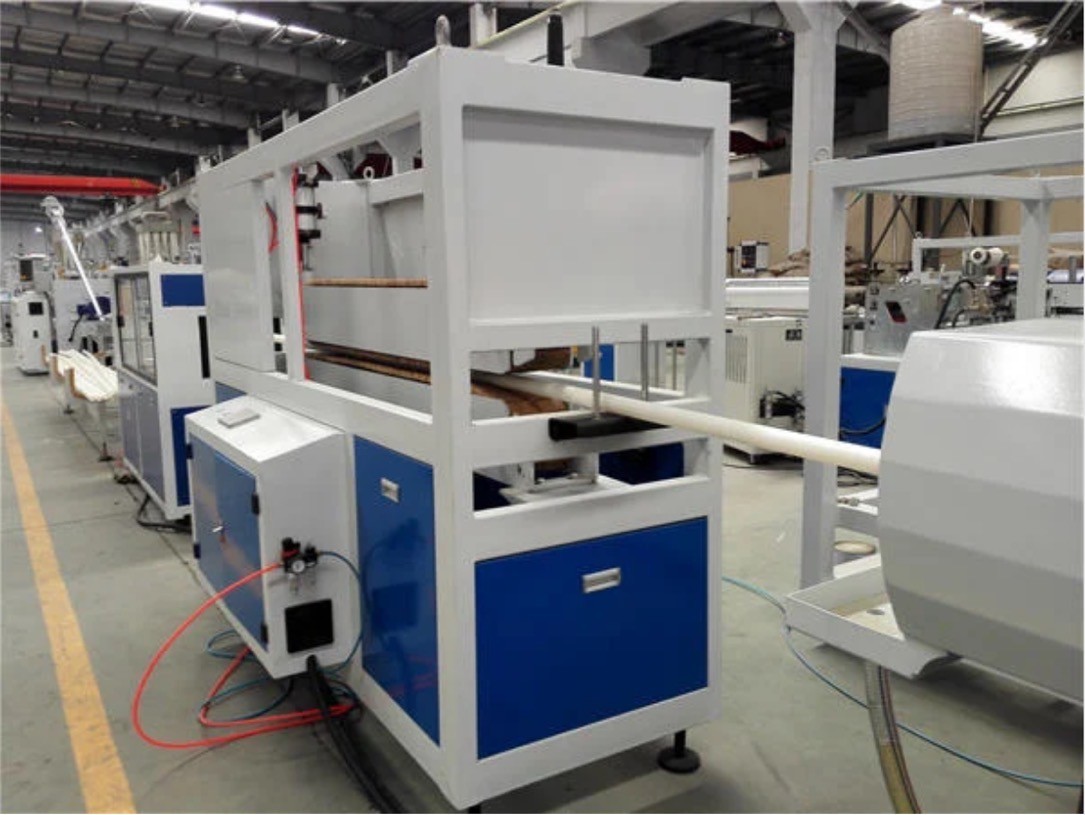

Customized 20-160mm PVC Pipe Manufacturing Machine
Product Details
| Name: | PVC Pipe Extrusion Line | Packaging Details: | Film Wraping |
|---|---|---|---|
| Plastic: | PVC | Application: | Pipe Making |
| Raw Material: | Pvc Powder | Screw Design: | Conical Twin Screw |
| Material Of Screw: | 38CrMoALA | Inverter: | ABB |
| Temperature Sensor: | Omron | ||
| Highlight |
customized PVC Pipe Manufacturing Machine,160mm PVC Pipe Manufacturing Machine,160mm PVC Pipe Extrusion Line |
||
Product Description
20-160mm PVC Pipe Manufacturing Machine
FEATURES OF PRODUCTION LINE
In order to meet the customized production plan, various design concepts for equipment will be adopted.

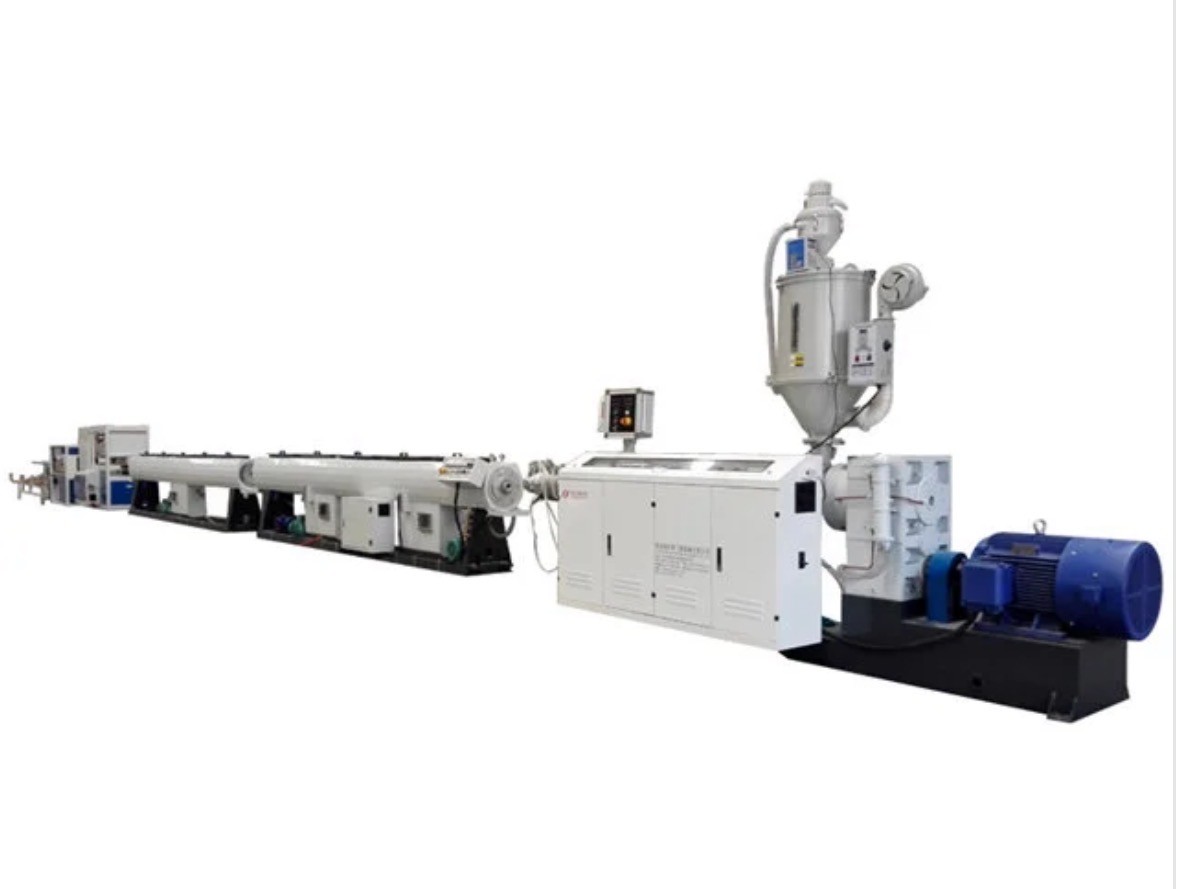

Basically feeding system, conical twin-screw extruder, mould, vacuum calibration tank, cooling tank, haul-off machine, cutter, socket forming machine (optional) and stacker build up the complete production line.
If you want a customized production plan, please contact us to get more detailed information.
For a stable production with high performance we have a mature solution package, which involves design concept, manufacturing and assembly process. It can eliminates many potential risks during production.
The Core components such as motor and frequency inverter are chosen from the world-famous brand, which guarantees a precise and reliable production.
PRODUCT FEATURES
By working synchronous with pipeline, without any human intervention, machine can take pipes from the line and then make belling.
Pipe heating degree and blowing pressure can be adjusted.
With the wide selection feature on touch screen, wastage of pipe can be prevented.
By using internal PLC system, machine can work independently from pipe line.
THE PRODUCTION IS COMPOSED OF THE FOLLOWING PARTS:

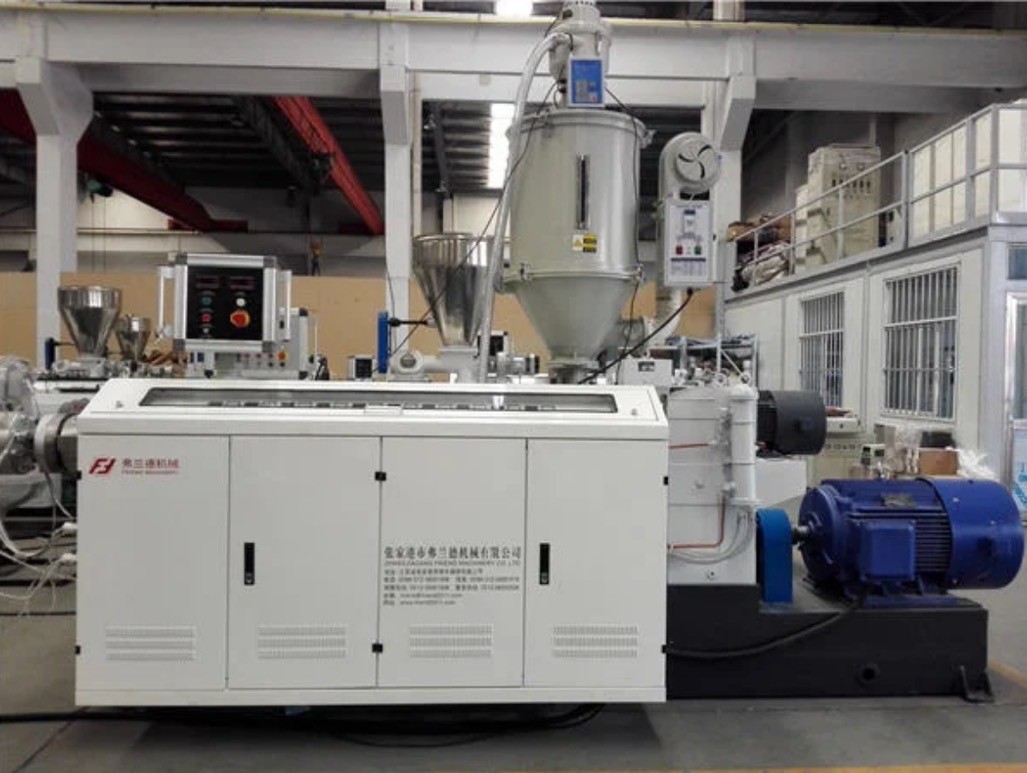

65 / 132 twin-screw extruder
four cavity die head

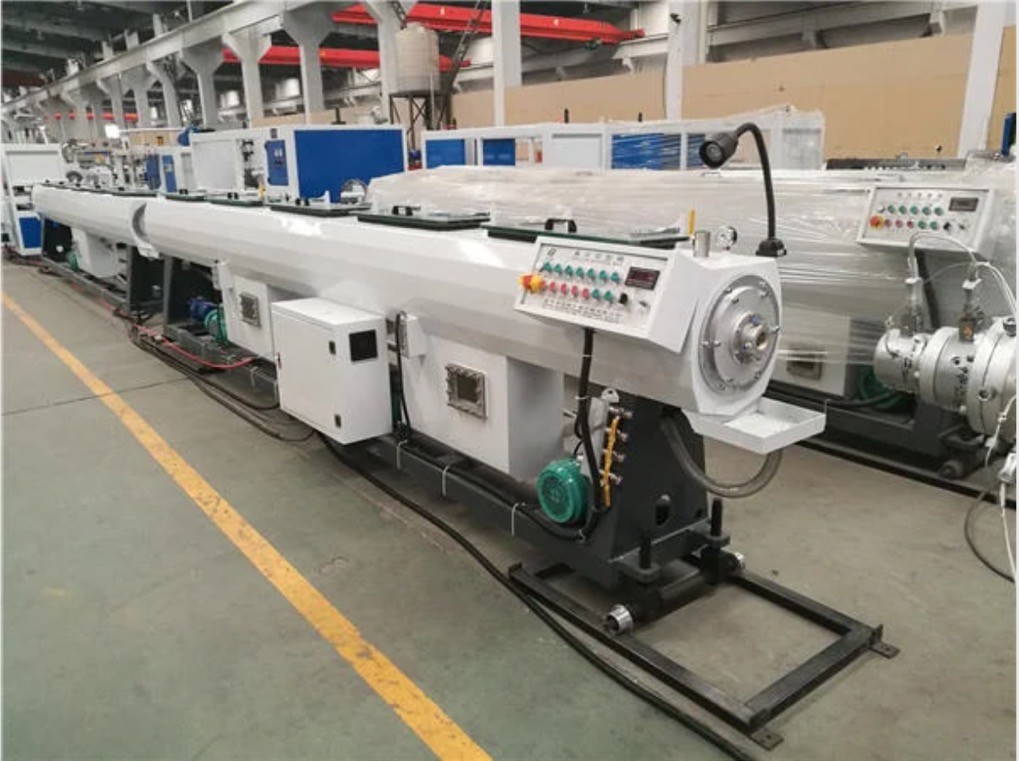

Stainless steel vacuum vacuum calibration tank
Automatic printer spraying moving frame;

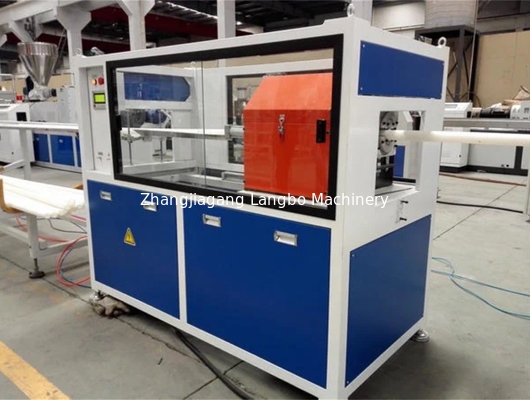

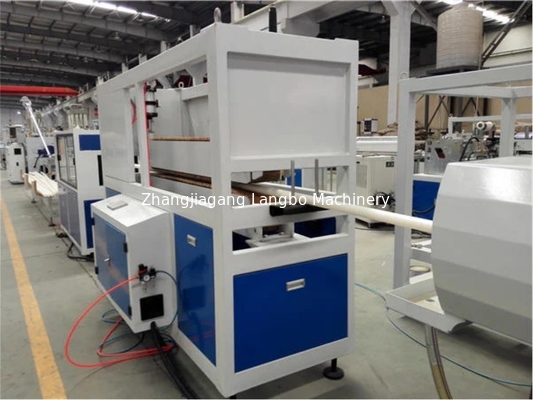

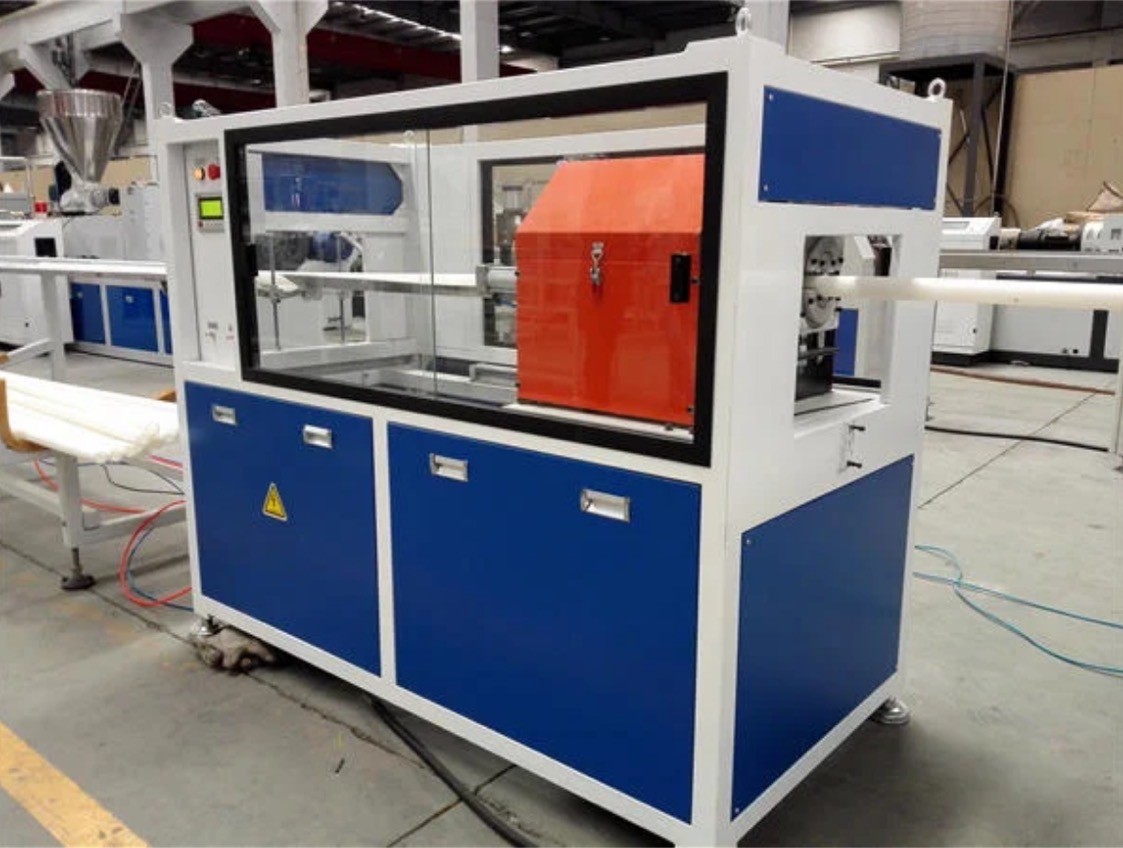

Four cavity puller & cutting machine

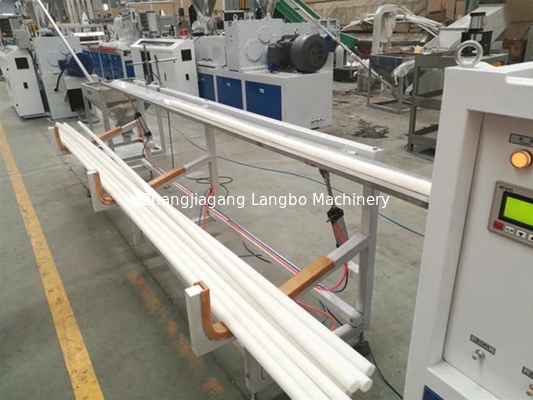

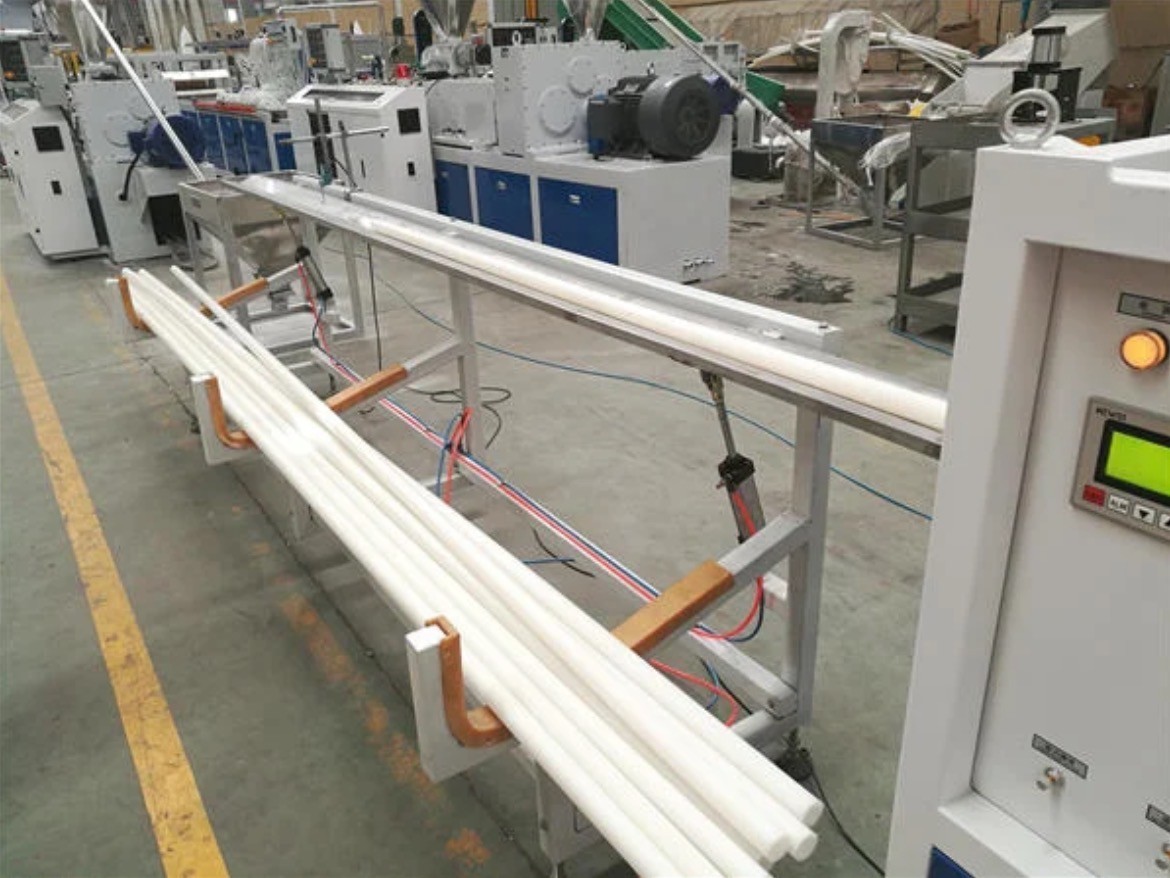

Stacker
SPECIFICATION
| Outside diameter (mm) | Wall Thickness (mm) |
| 16 | 1,1.1,1.2,1.3,1.4,1.5,1.6,1.7,1.8,1.9,2.0 |
| 20 | 1,1.1,1.2,1.3,1.4,1.5,1.6,1.7,1.8,1.9,2.0 |
| 25 | 1,1.1,1.2,1.3,1.4,1.5,1.6,1.7,1.8,1.9,2.0 |
| 32 | 1.2,1.3,1.4,1.5,1.6,1.7,1.8,1.9,2.0,2.1,2.2,2.3,2.4,2.5 |
| 40 | 1.3,1.4,1.5,1.6,1.7,1.8,1.9,2.0,2.1,2.2,2.3,2.4,2.5 |
| 50 | 1.5,1.6,1.7,1.8,1.9,2.0,2.1,2.2,2.3,2.4,2.5,2.6,2.7,2.8,2.9,3.0 |
| Note: | Other specifications can be negotiated |
