710-1600MM high capacity single screw HDPE pipe extrusion line
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
250mm HDPE pipe extrusion line,Single screw HDPE pipe extrusion line,Single screw HDPE pipe extruder |
||
Product Description
710-1600MM high capacity single screw HDPE pipe extrusion line
DESCRIPTION
This line is mainly used for producing HDPE pipes with different diameters ranging from 630mm to 1400mm. The feature of HDPE pipe is resistant to high strength. This line offers energy-saving motor and automatic control system. High standard manufacture and details apply for better operation and maintenance.
PROCESSING PROCESS
Raw Material—feeder—single screw extruder—mould and calibrator—vacuum forming machine— spraying cooling machine—haul-off machine—cutting unit— stacker.
SPECIFICATIONS
| Model | LB630 | LB800 | LB1200 | LB1400 |
| Pipe Range (mm) | 315-630 | 500-800 | 630-1200 | 710-1400 |
| Throughput(kg) | 850 | 1100 | 1200 | 1400 |
PRODUCT DETAIL

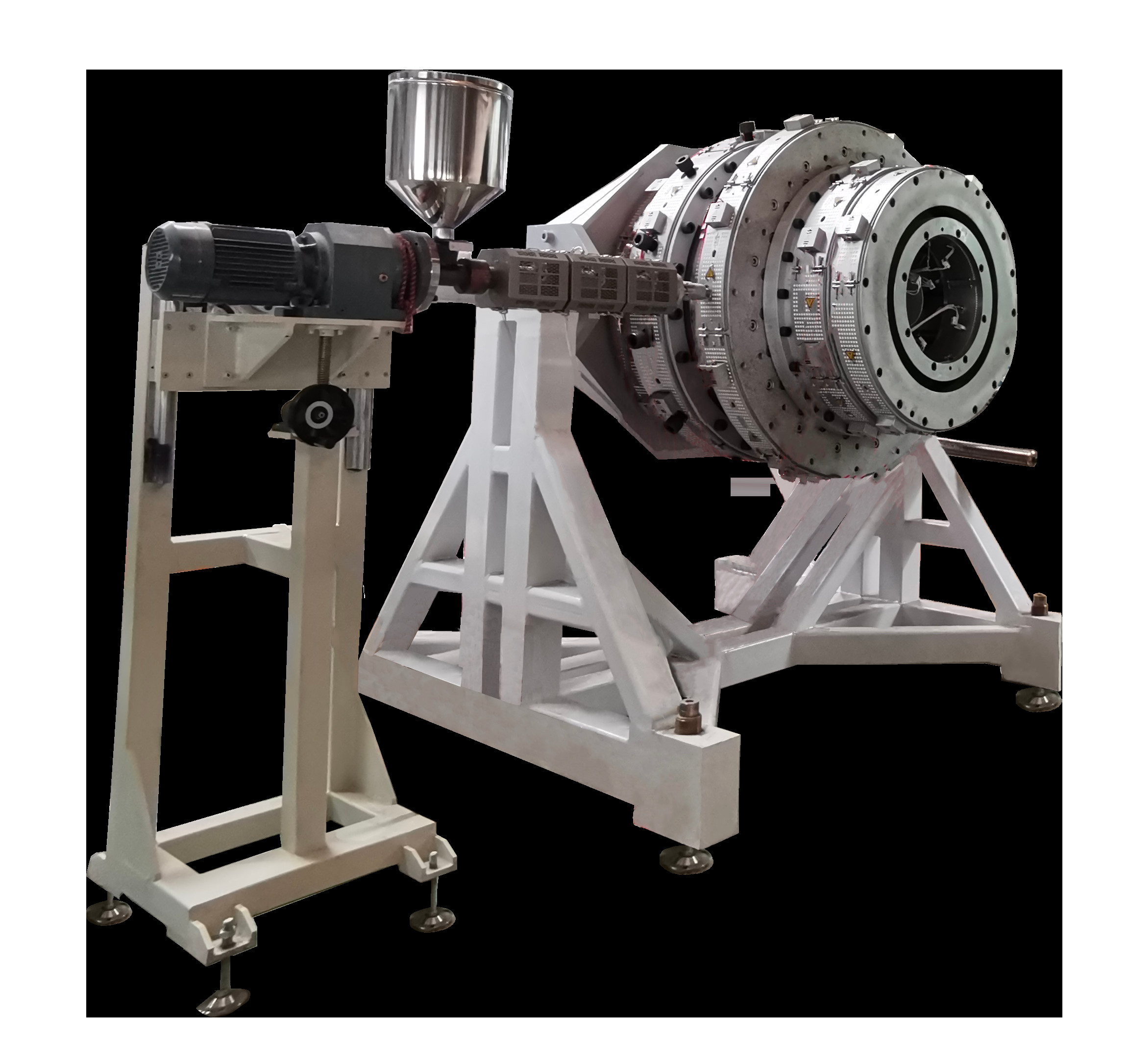

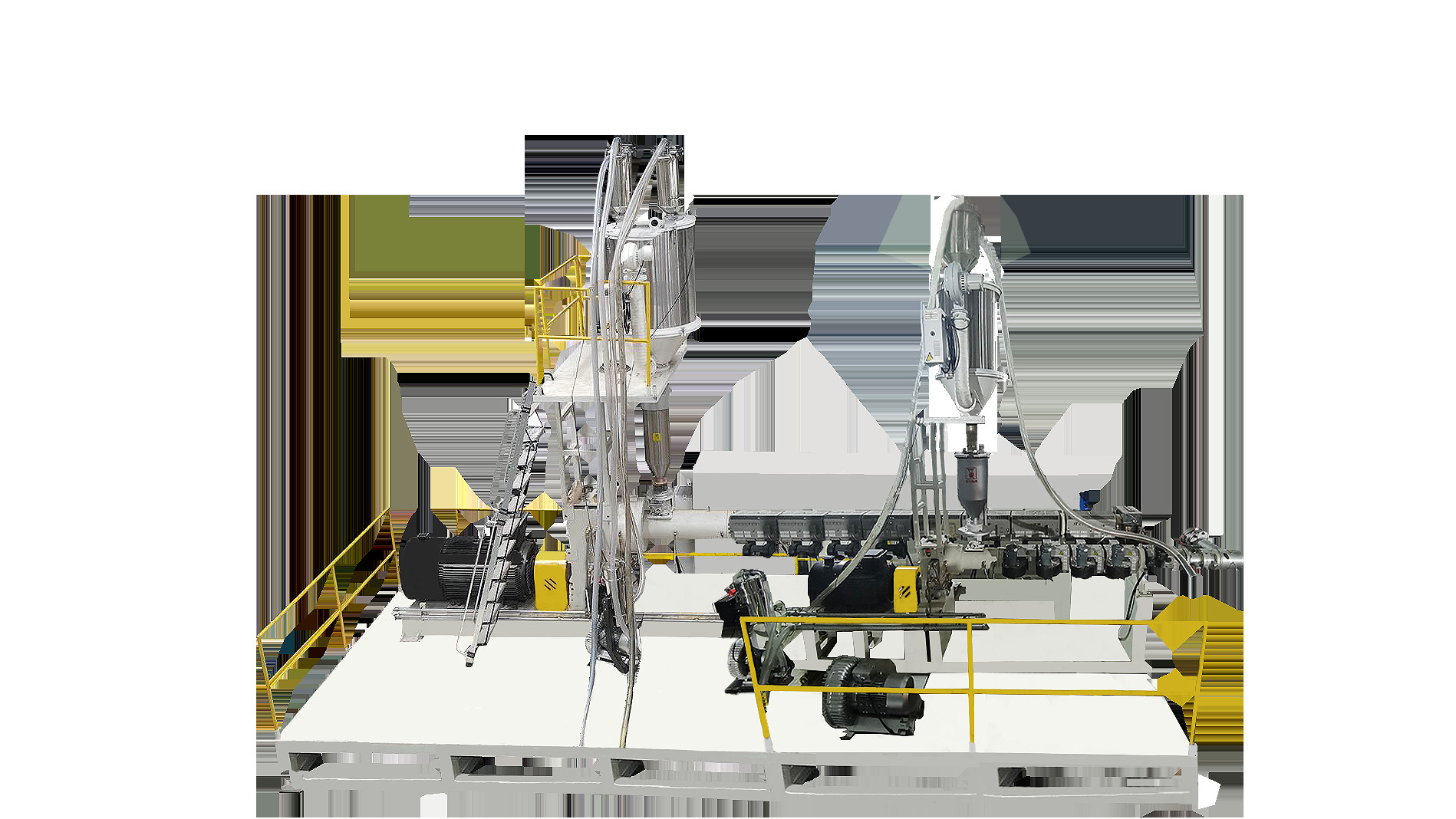

Extruders with Platform
Gravimetric Dosing System keeps a continues wall thickness during production
Clever matching between motor and screw based on production condition for high performance and output
High processing torque design for better plasticizing
Surface coated screw and barrel for long service time
Platform for co-extruders ensures operation safety and convenience

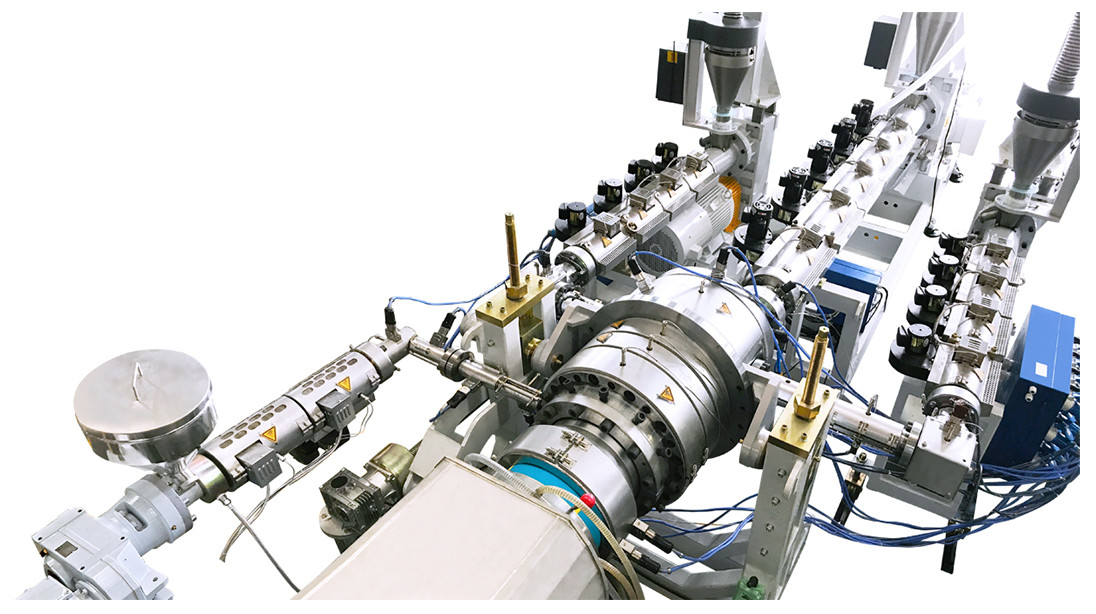

Mould
Specially designed of flow channel for superb pipe shaping and reasonable melt pressure. The large spiral distributor ensures the excellent plasticizing effect.

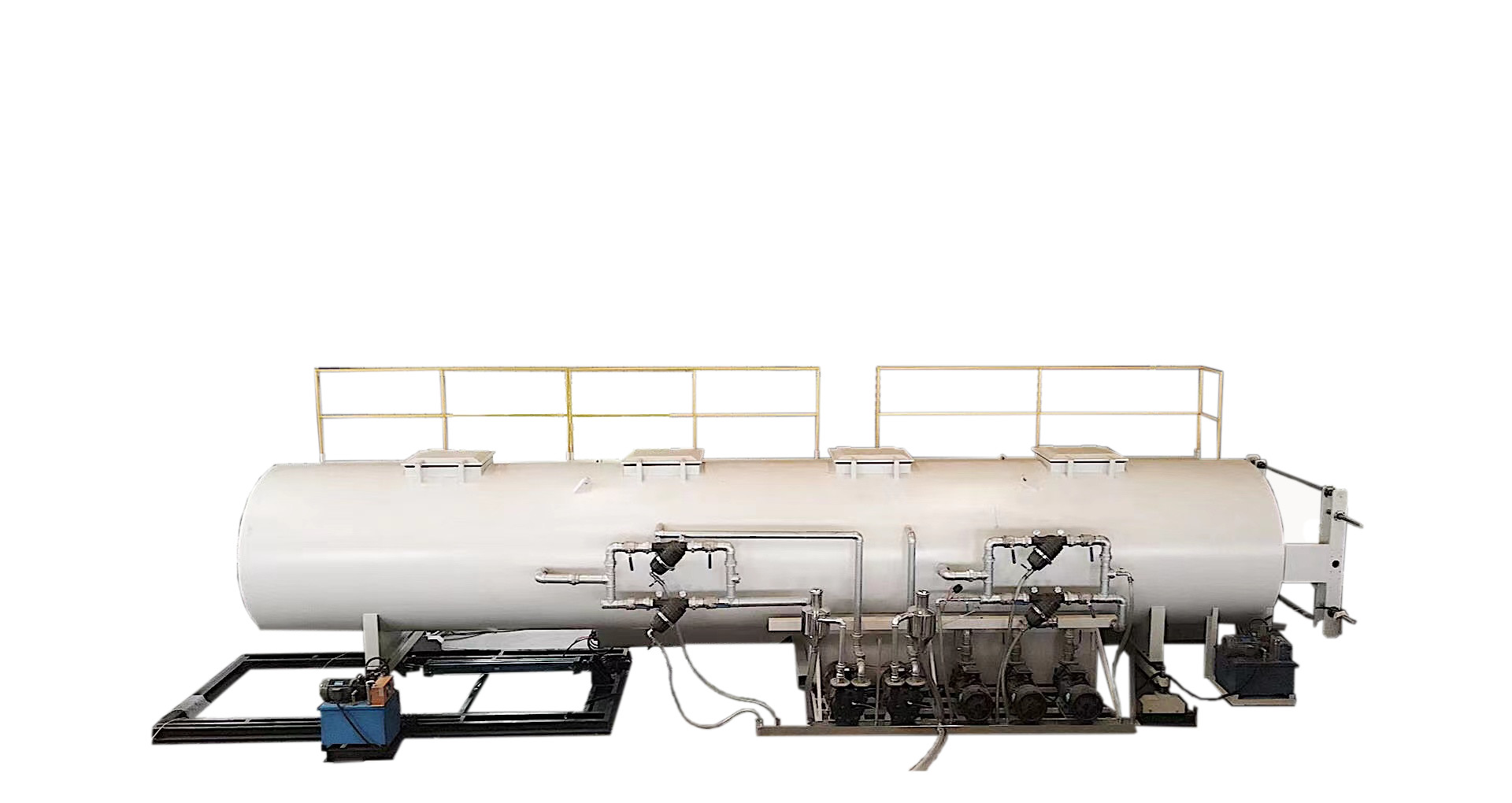

Vacuum Calibration & Cooling
Frequency conversion vacuum control system for constant vacuum environment with lowest energy consumption.
Backup pumps for each section of vacuum tanks to ensure a reliable production
Easy operation and clear display layout
Robust concept of components for stable running

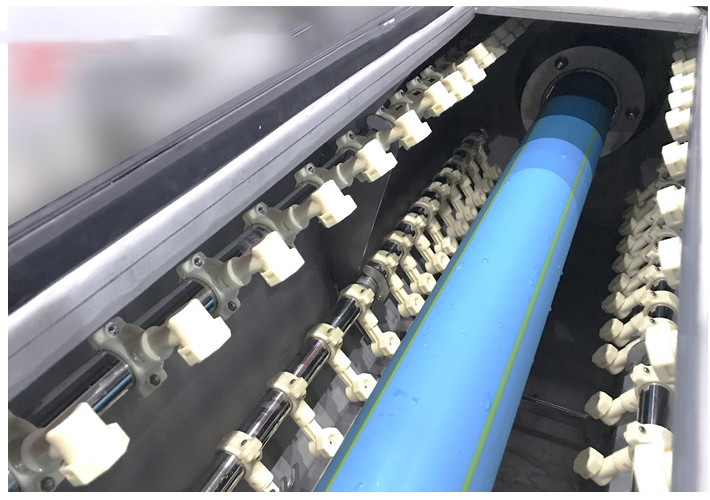

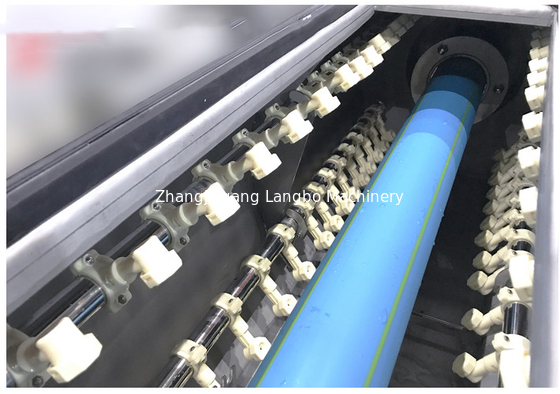

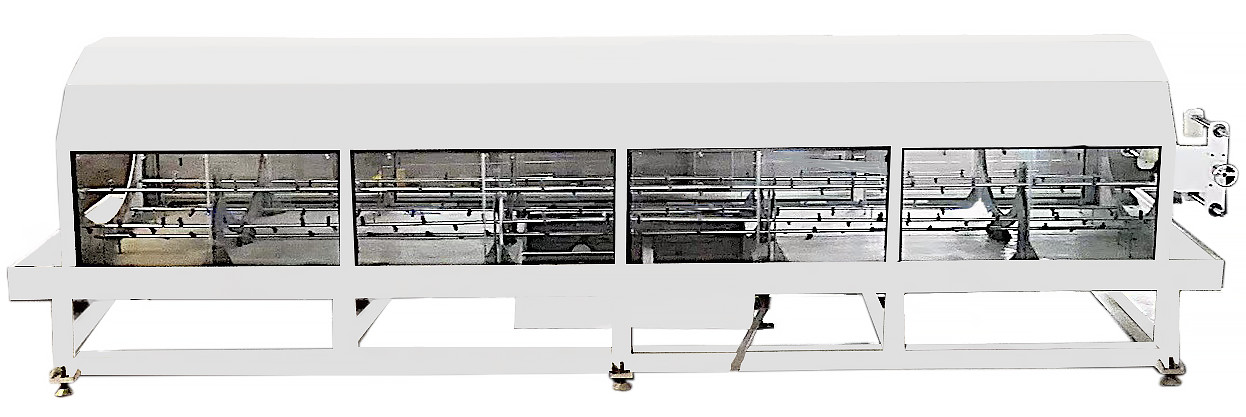

Spraying Tank
Energy Efficiency pump and enlarged water tank for sufficient cooling effect
High quality part, robust structure design ensures a long service time

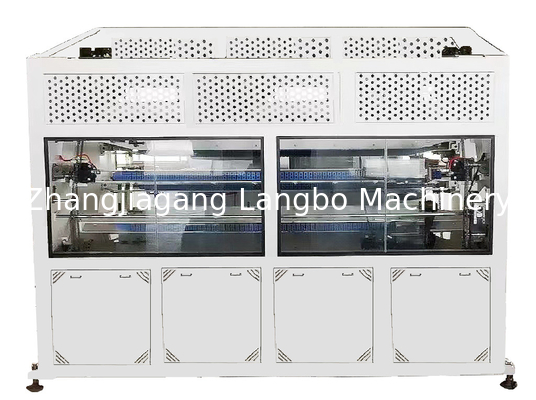

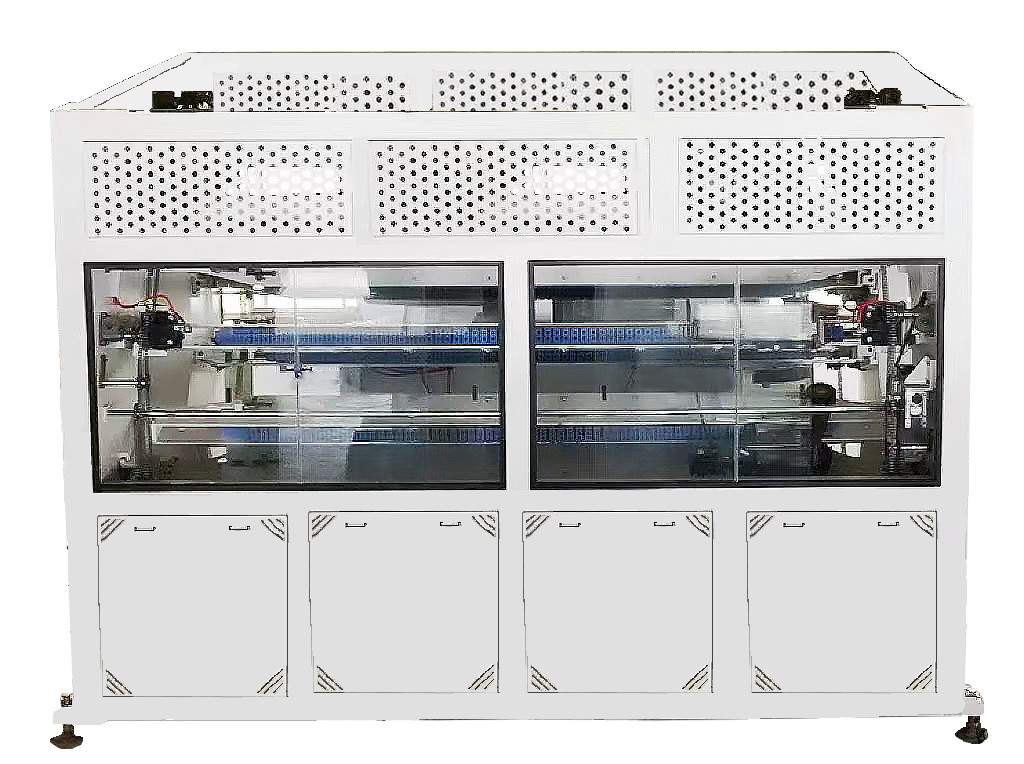

Haul-off Unit
Servo Motor and high-quality reducer for synchronized movement of belt or crawler track
Ten crawler tracks haul off for hauling off of different pipe diameter
Tailored hauling concept adopted based on production requirement of customers
Easy maintenance mechanical concept

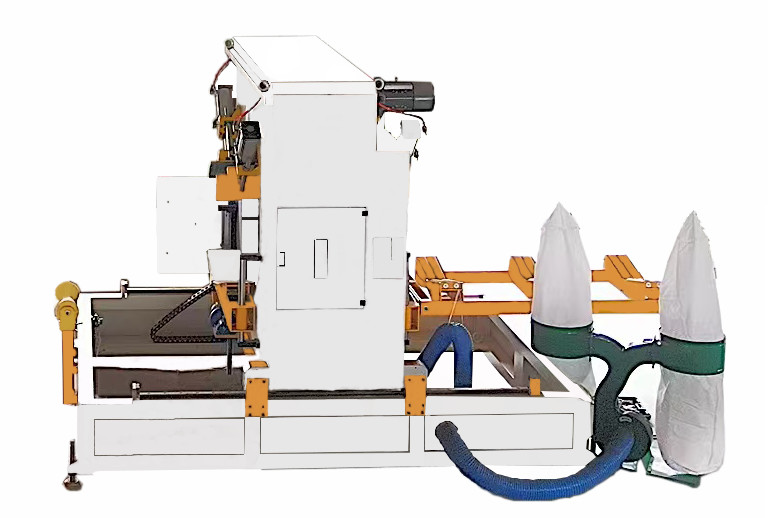

Cutting Unit
Double cutting concept for different production requirement
high accuracy encoder ensures a precise and stable cutting length
Hauling-off and cutting combination is optional with the advantage of space saving.

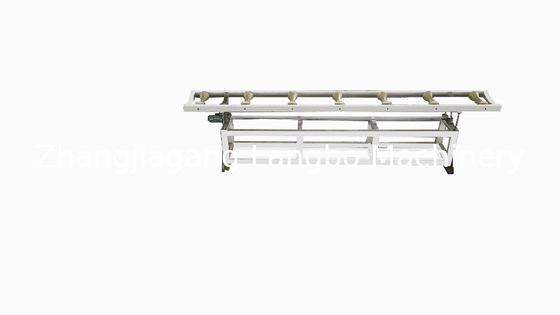

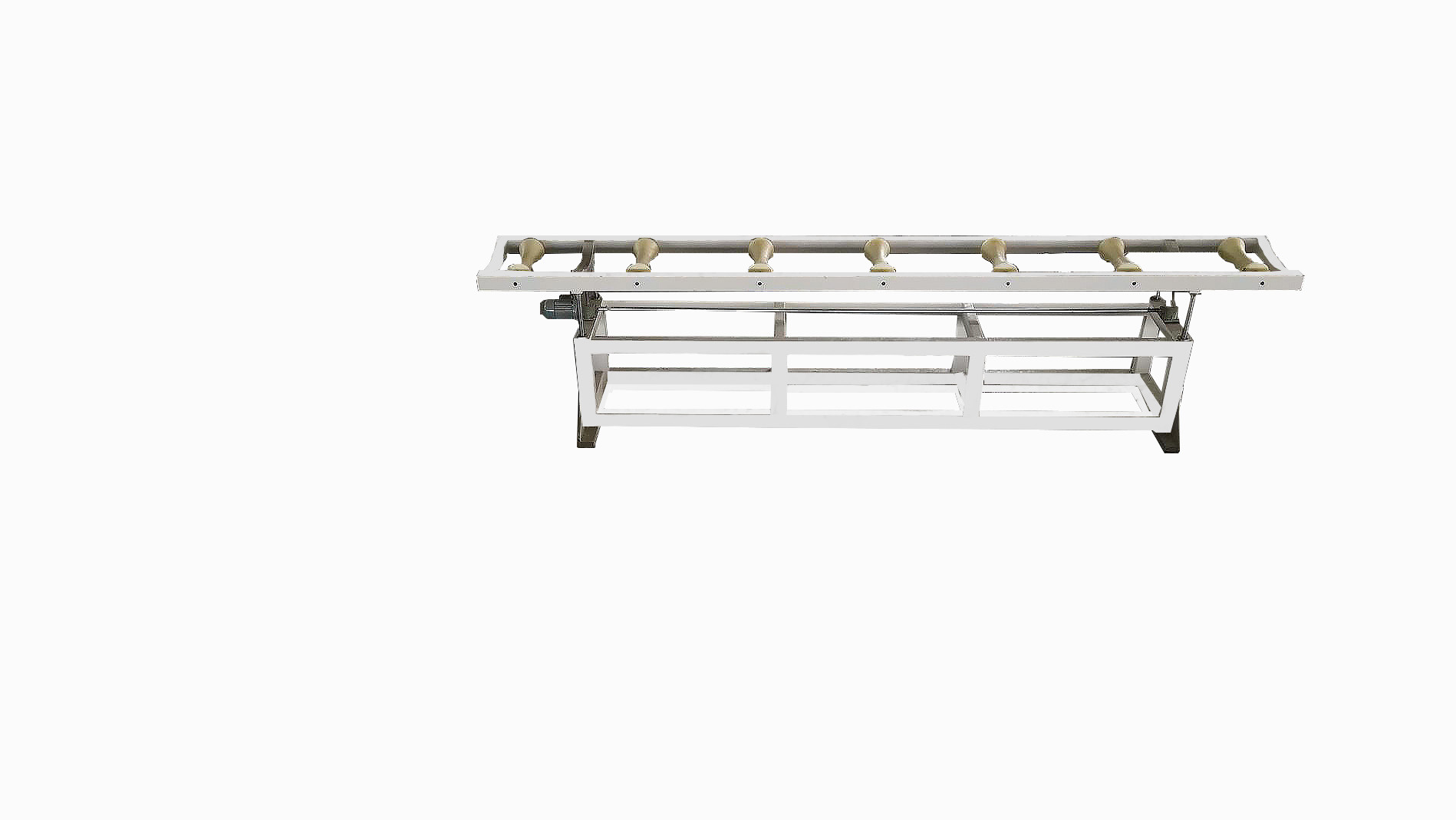

Electrical Pipe Holder
The electrical motor for adjustment of the height of holder.
robust structure of holder for stable pipe holding for further transportation of pipes
