Product Details:
|
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Motor: | Siemens |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | Customer Demand | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Color: | Customised |
| Control: | PLC+Touch Screen | Processing Type: | Extrusion Machine |
| High Light: | Single screw HDPE Pipe Extrusion Line,Full automatic hdpe pipe extrusion machine,Single screw hdpe pipe extrusion machine |
||

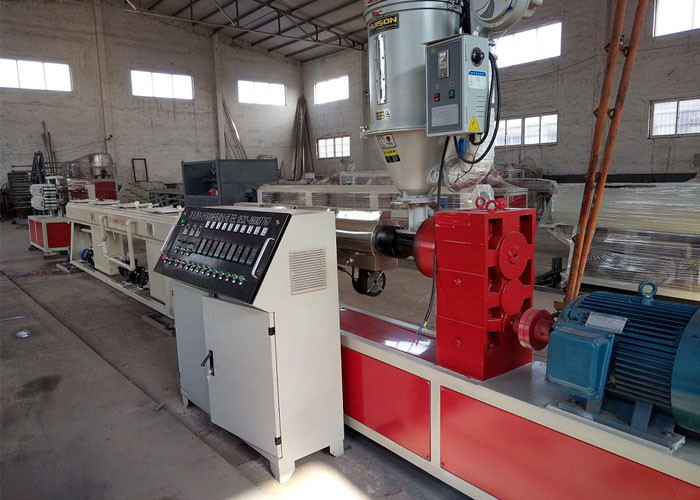

HDPE Pipe Extrusion Line 20mm-110mm
PE PIPE PRODUCTION LINE
With the large demand of plastic pipes and increasingly energy and raw material costs, LANGBO MACHINERY has continuously being optimizing its pipe extrusion solutions recent years. Our PE Pipe Production Line achieves a first class balance with high output and energy effectiveness. For a customized production solution please contact us to get detail information.
FEATURES OF PE PIPE EXTRUSION LINE:
The high efficiency extruder is designed for HDPE pipes, equipped with reducer which obtain the high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS:
Single screw extruder
Co-extruder: manufacturing marking line on pipe or multilayer of pipes
Die head
Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
Cooling tank: due to diameter, the numbers of cooling tank canbe one, two or three
Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve caterpillars
Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter
Coiler/ Tipping chute
