Co Extrusion Customized 500kg/H Window Profile Extrusion Line
Product Details
| EXTRUDER MODEL: | CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 1240MM |
|---|---|---|---|
| MOTOR POWER: | 55KW | RAW MATERIAL: | PVC & ADDITIVES |
| HAUL-OFFS: | TWO INDEPENDENT TRACKS | CAPACITY: | 350KG/H |
| Highlight |
500kg/h window Profile Extrusion Line,customized pvc profile production line,500kg/h plastic profile production line |
||
Product Description
PVC Window Profile Production Line
PVC PROFILE MATERIAL
For window profile expulsion, PVC is the normal material and the twin screw extruder the standard handling machine. PVC Profiles are described by low weight, great strength and structure soundness. PVC is an incredibly flexible material that is for the most part that anyone could hope to find as a dry (powder) mix. Preceding handling in the extruder, added substances are mixed into the virgin PVC in a warming/cooling blending unit. PVC compounds are delicate to shearing and high temperatures and are along these lines tenderly handled on one or the other equal or funnel shaped twin screw extruders, contingent upon throughput prerequisites.
CO-EXTRUSION FOR WINDOW PROFILE
With the Co-Extrusion Concept the reused PVC material can be utilized, so the material expense will be fundamentally diminished. By the Production with Co-Extrusion, the fed material incorporates the virgin PVC as well as the reused material for instance old PVC profile or waste part during creation. For instance, the recyclates or savvy plans are expelled for window fundamental profiles, which situate in the center or in the imperceptible region of the profile; the noticeable surfaces are produced using colorfast virgin material.
PROFILE PRODUCTION LINE PRESENTED BY LANGBO
With the enormous interest of plastic profiles and progressively energy and natural substance costs, LANGBO MACHINERY has constantly being enhancing its profile expulsion arrangements during late years. Our machine accomplishes the top of the line offset with high result and energy adequacy.

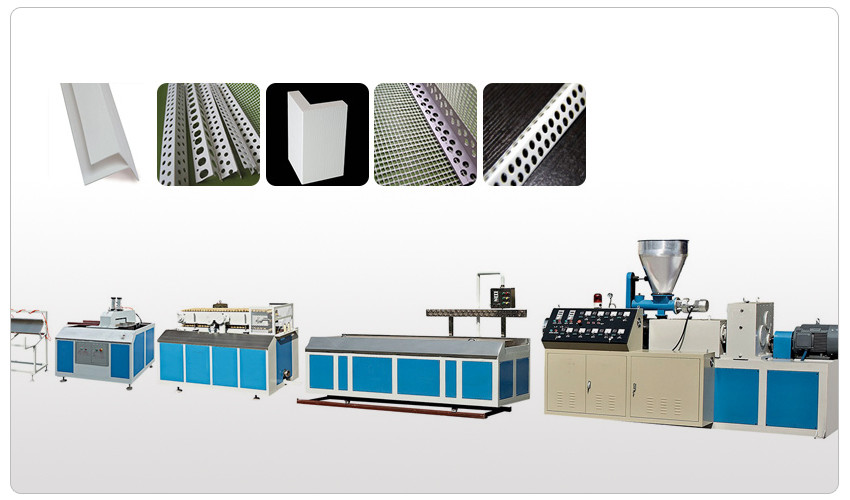

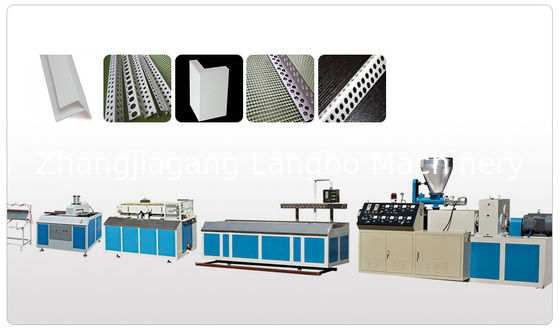

STANDARD PROFILE EXTRUSION LINE
Extruder (single screw extruder, twin screw extruder, Co-extruder)
Tooling
Calibrating table
Haul-off
Cutting unit
Tip table
SPECIFICATION
| Item | SJSZ-55/110 | SJSZ 65/132 | SJSZ 80/156 | SJSZ 92/188 |
| Screw Diameters(mm) | 55mm/110mm | 65mm/132mm | 80mm/156mm | 92mm/188mm |
| L/D Ratio | 22:1 | 22:1/25:1 | 22:1/25:1 | 22:1/25:1 |
| Output(Kg/h) | 80-120mm | 160-200 | 250-350 | 400-500 |
| Main Driving Power(kw) | 22 | 37 | 55 | 110 |
| Heating Powder(Kw) | 4 zones,20Kw | 4 zones, 24Kw | 5 zones, 38Kw | 6 zones, 54Kw |
