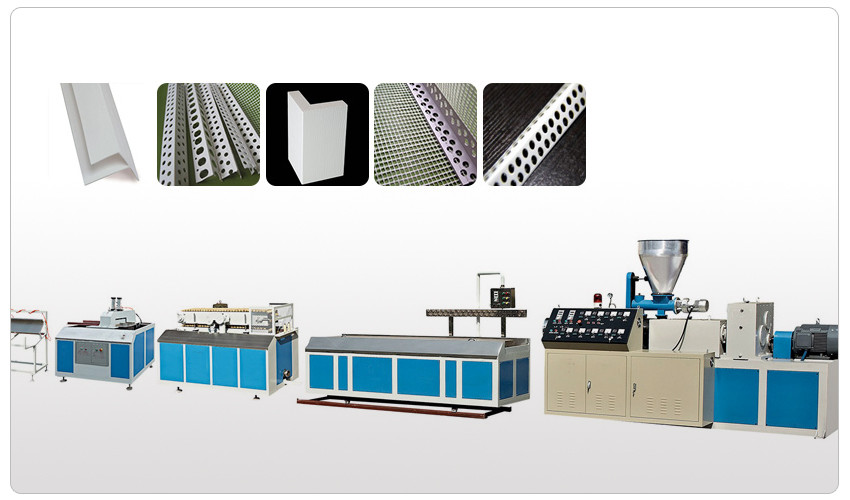

Conical Twin Screw Pvc Profile Extruder High Output
Product Details
| EXTRUDER MODEL: | CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 1240MM |
|---|---|---|---|
| MOTOR POWER: | 55KW | RAW MATERIAL: | PVC & ADDITIVES |
| HAUL-OFFS: | TWO INDEPENDENT TRACKS | CAPACITY: | 350KG/H |
| Highlight |
Conical Screw PVC profile extruder,high output PVC profile extruder,Twin Screw plastic pipe extruder |
||
Product Description
High Quality Machinery PVC profile extrusion
PRODUCT DESCRIPTION:
Profile is utilized in different applications like entryways, window, office fixing, inside parcel and embellishment. LANGBO MACHINERY is a main maker of complete plastic profile expulsion line. With creation limit of up to 200 kg/hr and greatest board size of up to 32", Conical Twin Screw Extruders are rumored overall for unrivaled quality creation and empowering higher calcium stacking, consequently diminishing the assembling cost significantly. LANGBO MACHINERY has effectively introduced all the more then 200 Conical Twin Screw Extruder and in excess of 2000 Single Screw Extruder for pvc profiles abroad.
PRODUCT FEATURES
Extruding machine: conical twin-screw extruder is used to ensure high output and efficiency. Many advanced technologies are adopted such as Omron temperature control meter and frequency speed control. The auxiliary equipment such as vacuum pump and hauling motor are all world famous brand with a high quality. Different products can be produced by changing moulds.
PRODUCTION PROCESS
APPLICATION
Door Panel Extrusion Line
Window Profile Extrusion Line
Technical Profile Production Line
PVC Wall Panel Extrusion Line
SPECIFICATION
The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| Effective length of screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kw) | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power (kw) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 95 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | ||||
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
