Product Details:
|
| Name: | PVC Pipe Extrusion Line | Packaging Details: | Film Wraping |
|---|---|---|---|
| Plastic: | PVC | Application: | Pipe Making |

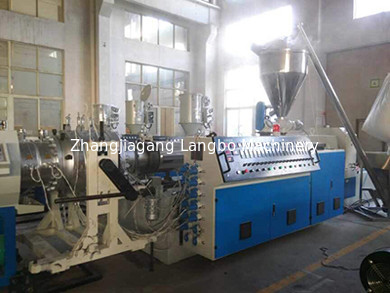

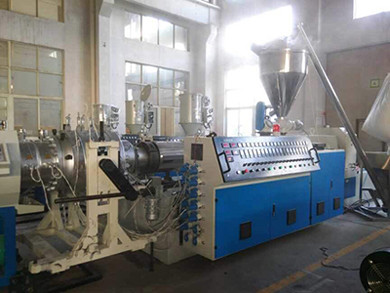

| Raw Material: | Pvc Powder | Screw Design: | Conical Twin Screw |
| Material Of Screw: | 38CrMoALA | Motor: | Siemens |
| Inverter: | ABB | Temperature Sensor: | Omron |
| High Light: | twin screw PVC Pipe Extrusion Line,315mm PVC Pipe Extrusion Line,315mm PVC Pipe Extruder |
||

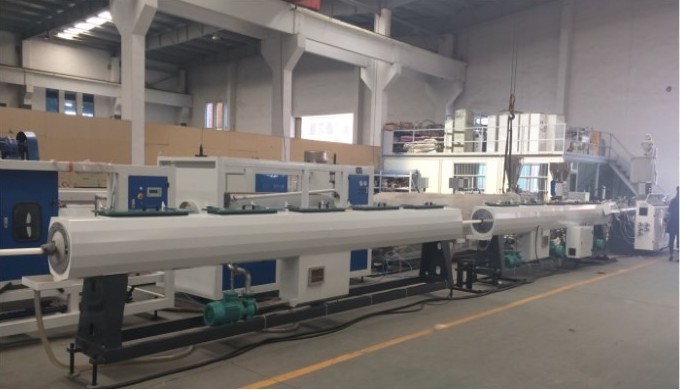

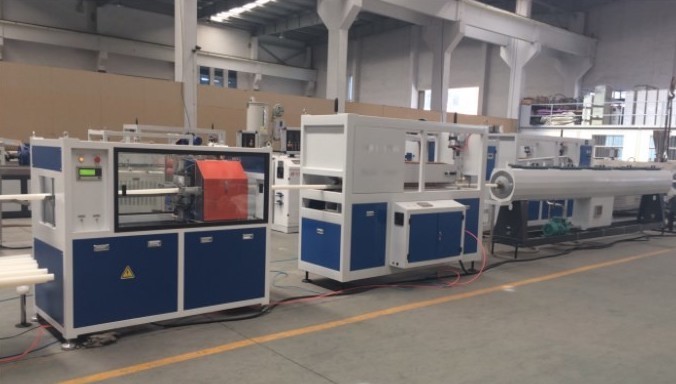

High Efficiency 110mm to 315mm PVC Pipe Extrusion Line
PVC PIPE EXTRUSION LINE:
With the large demand of plastic pipes and increasingly cost of energy and raw material, LANGBO MACHINERY has continuously being optimizing its pipe extrusion solutions during recent years. We offer solutions tailored to customer specifications in all fields of extrusion technology. Our machine concept is based on economical high performance extrusion.Our machine achieves a first class balance between high output and energy effectiveness. We can produce the PVC pipe with diameter from 16mm to 630mm. If you want a customized production solution, please contact us to get more detailed information.
SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-32A | 16-32(four) | SJ65/132 | 37AC | 250 |
| LB-32B | 16-32(four) | SJ80/156 | 55AC | 350 |
| LB-50A | 16-50 | SJ45/90 | 15AC | 100 |
| LB-50B | 16-50(double) | SJ51/105 | 18.5AC | 150 |
| LB-50C | 16-50(double) | SJ65/132 | 37AC | 250 |
| LB-63A | 16-63 | SJ51/105 | 18.5AC | 150 |
| LB-63B | 16-63(double) | SJ65/132 | 37AC | 250 |
| LB-160 | 50-160 | SJ65/132 | 37AC | 250 |
| LB-250 | 63-250 | SJ65/132 | 37AC | 250 |
| LB-315 | 110-315 | SJ80/156 | 55AC | 350 |
| LB-630 | 315-630 | SJ92/188 | 110DC | 800 |
| LB-800 | 560-800 | SJ105/216 | 160DC | 1100 |
PRODUCT FEATURES

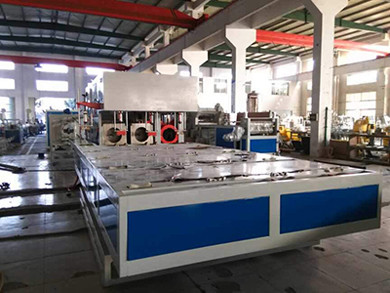

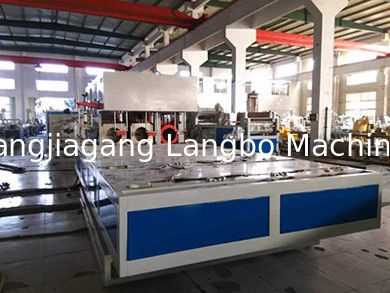

By working synchronous with pipeline, without any human intervention, machine can take pipes from the line and then make belling.
Pipe heating degree and blowing pressure can be adjusted.
With the wide selection feature on touch screen, wastage of pipe can be prevented.
By using internal PLC system, machine can work independently from pipe line.
FEATURES OF PVC PIPES
Corrosion Resistant
With self-extinguishing and flame retardant;
Excellent in anti-aging character
The PVC pipe is light, easy to flaring, bonding, bending, welding.
Installation workload and Processing cost are lower than metal pipe
Good electrical properties of resistance
Recycled and Environment-friendly.
