PVC Large Diameter Pipe Extrusion Line
Product Details
| Name: | PVC Pipe Extrusion Line | Packaging Details: | Film Wraping |
|---|---|---|---|
| Plastic: | PVC | Application: | Pipe Making |
| Raw Material: | Pvc Powder | Screw Design: | Conical Twin Screw |
| Material Of Screw: | 38CrMoALA | Inverter: | ABB |
| Temperature Sensor: | Omron | ||
| Highlight |
PVC Pipe Extrusion Line |
||
Product Description
PVC Large Diameter Pipe Extrusion Line
Short Description:
PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum forming machine—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.
THE FEATURE OF PVC PIPE EXTRUSION MACHINE:

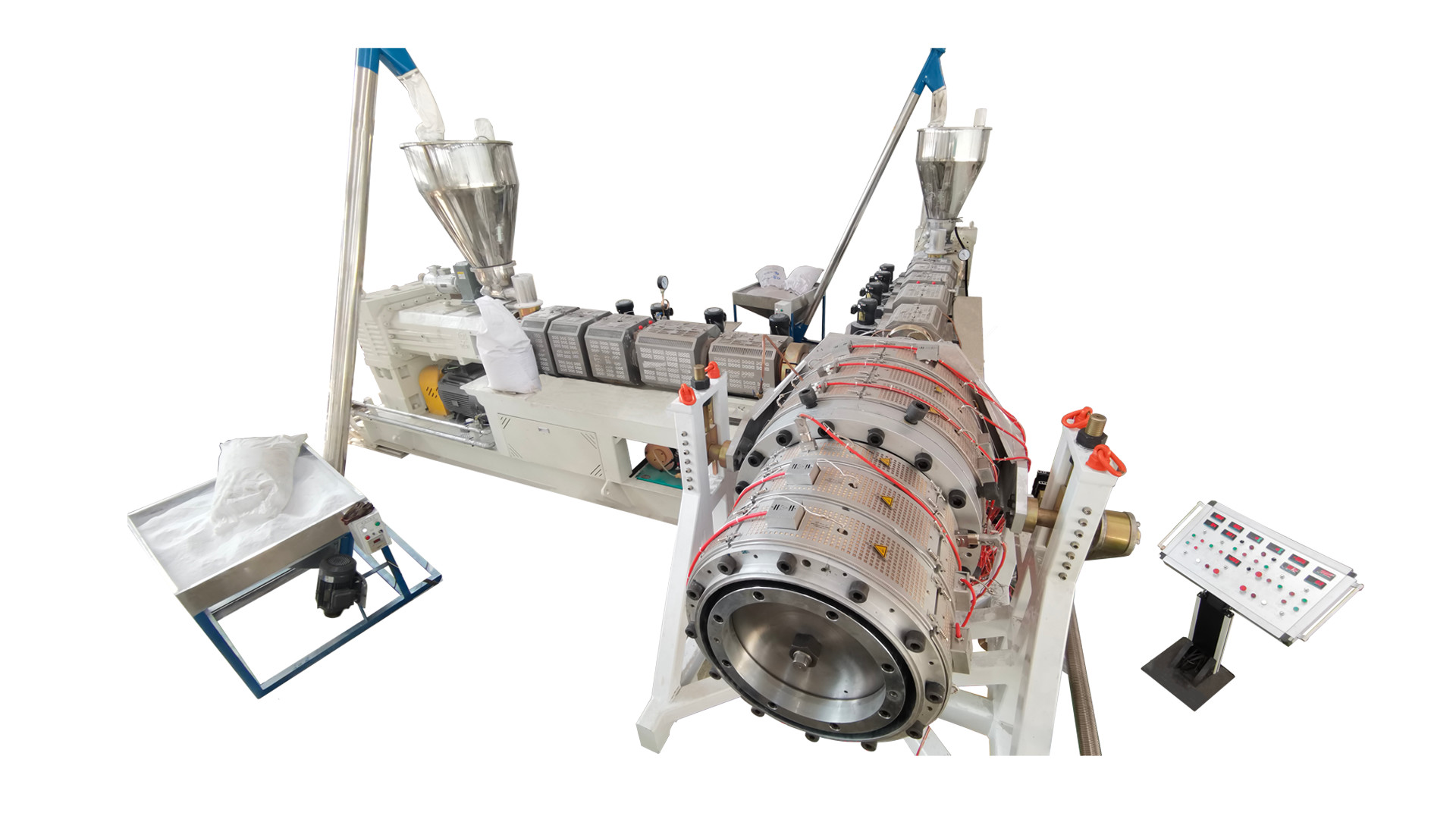

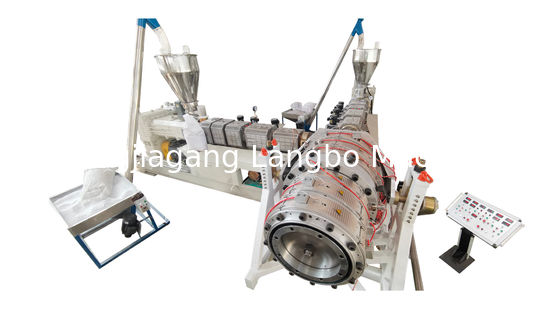

Conical twin-screw extruder: It equipped with forced fixed-quantity material feeding system, automatic temperature control system, vacuum exhaust system and automatic speed control system.
This structure assures accurate controlling for the material temperature, plasticization stability and greatly improving production speed. The main motor is direct convertor or frequency convertor.
PVC extruding molds: Material is high quality 40Cr. Molds surface is dealt with polishing and chrome plating. it adopts the structure of multiple head spiral. The melt has low pressure. Extruding at high quantity, the die head still maintain low temperature.
Vacuum calibrating water tank: The material of body is high hardness and good quality stainless steel board. It is high-pressure resistance, corrosion-resistance and two-stage for large diameter pipe.
Electricity controls water temperature.
The nozzle material is ABS engineering plastic. The frame of the machine can be adjusted three dimensions. The moving from front to back adopt cycloid reducer drive and up & down and left & right adopt screw adjustment.

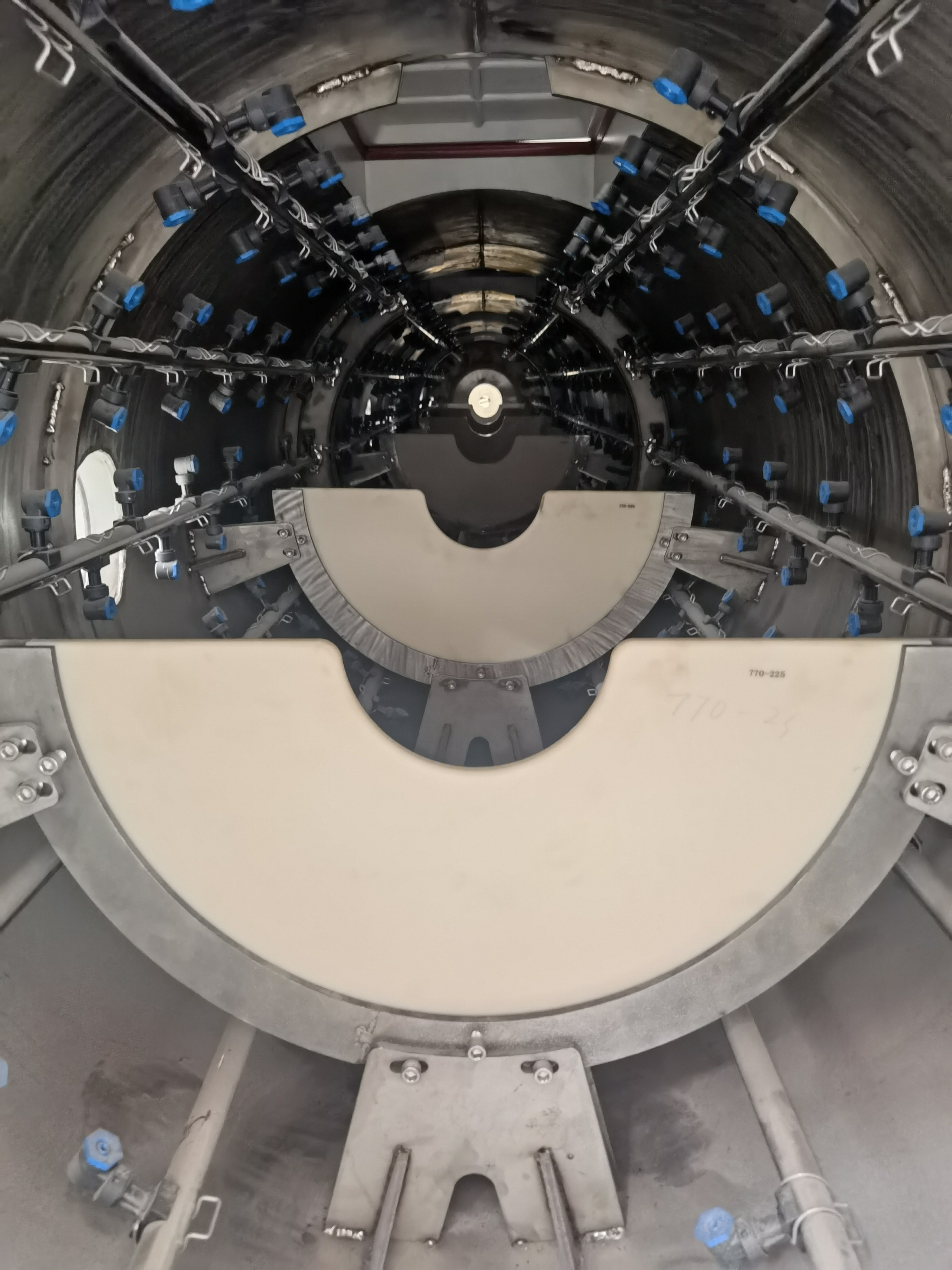

Water spray cooling tank: The body is made of stainless steel and the shade is transparent soft PVC curtain. Stainless steel float adjusts water level and electricity controls water temperature. The nozzle material is ABS engineering plastic.

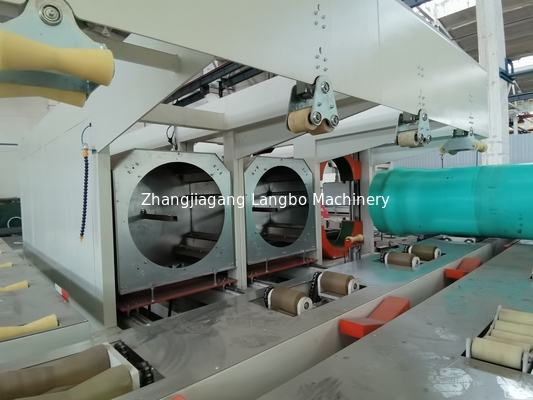

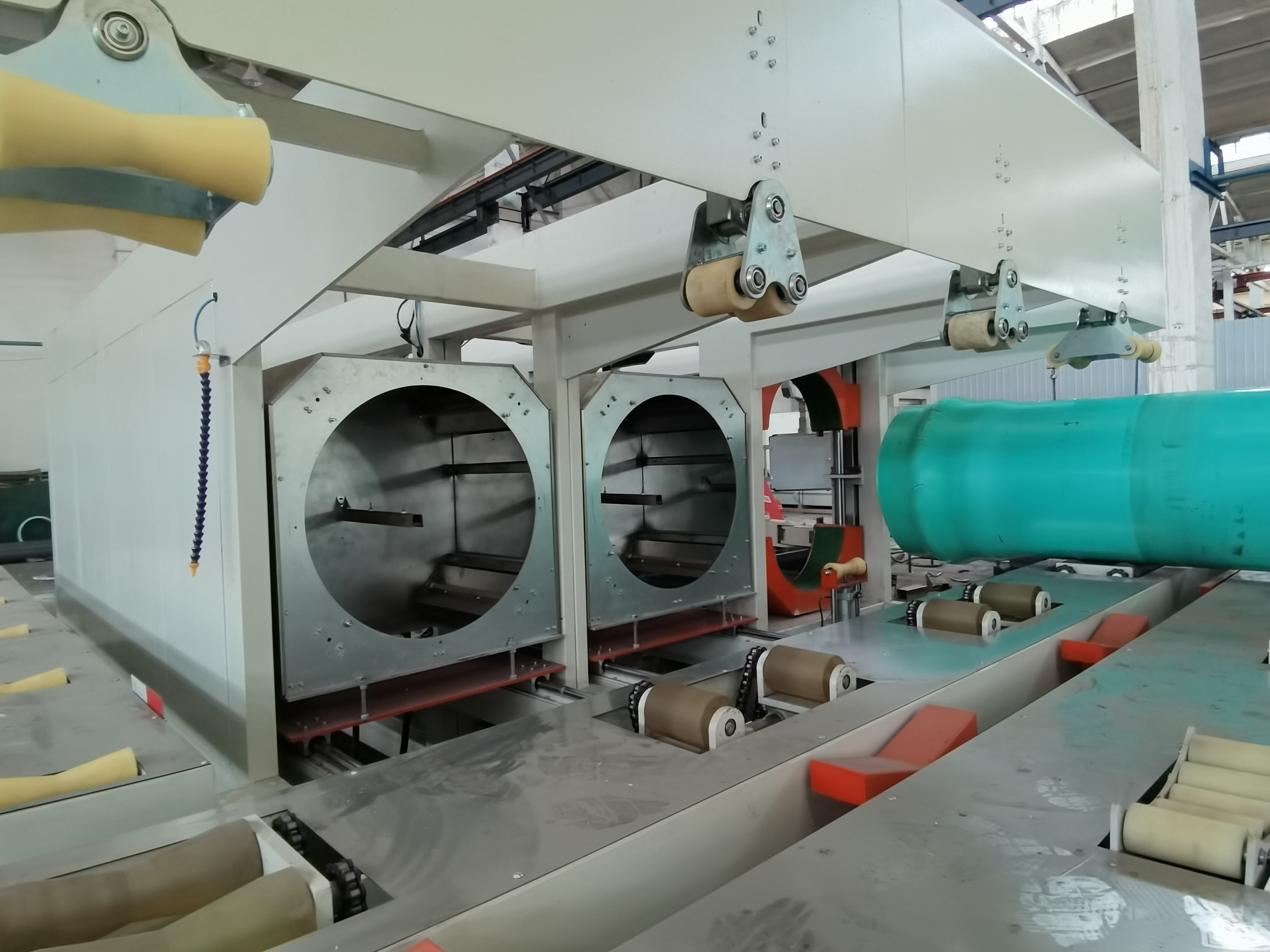

Haul-off machine: It adopts frequency conversion approach. Every traction frame transfers with chain which ensures every track moving simultaneously. It is pneumatic flexibility clamping.

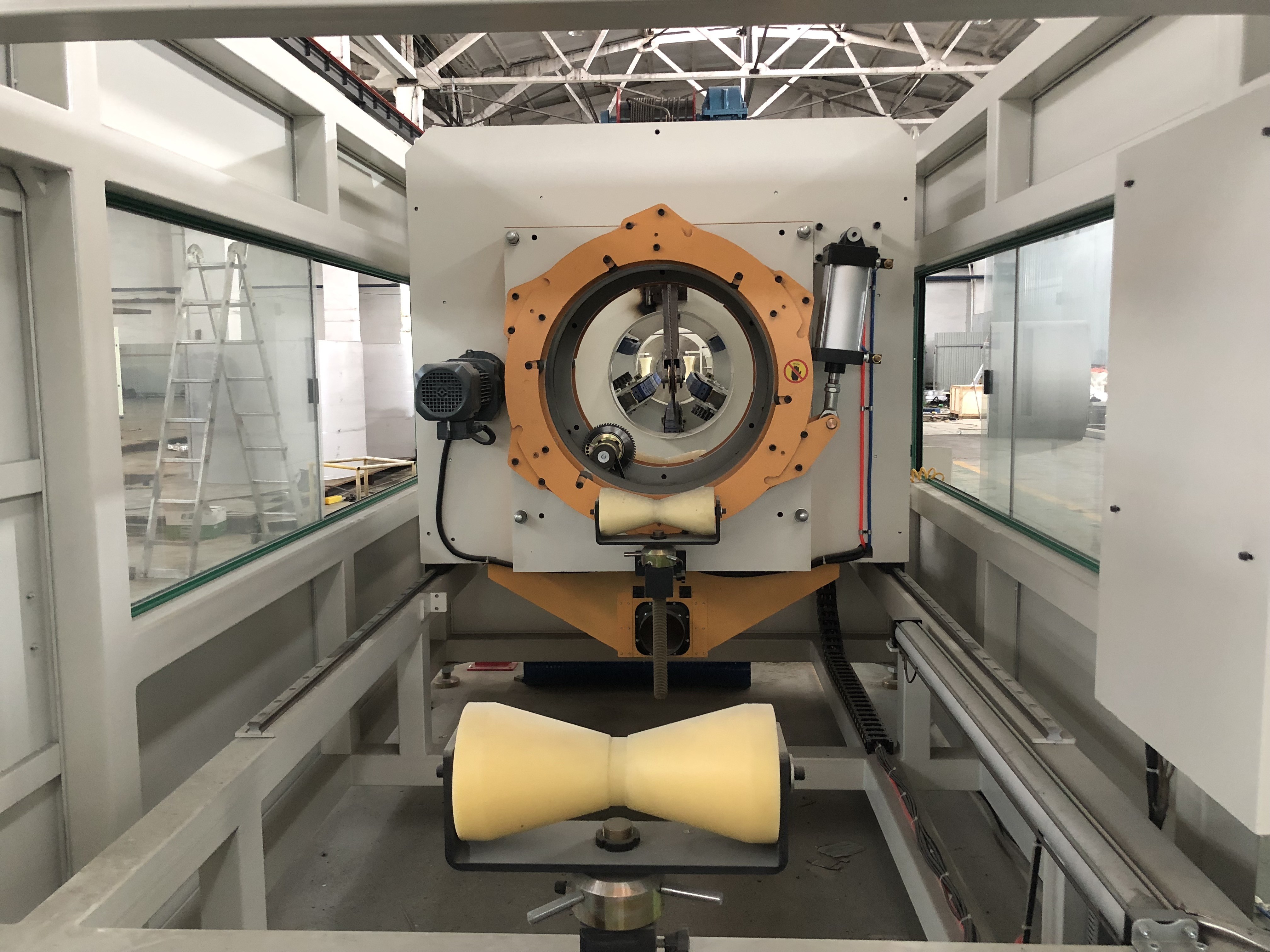

Cutting machine: It is planetary cutting for large diameter. The blade takes rotation and cutting part and inserting blade part take revolution. It has angle cutting structure, pneumatic aluminum half clamping and cleaning device.
Control system: We can offer PLC controlling system which is intelligent controlling system. Also we can offer ordinary controlling system which use electrical parts, Omron temperature controller. Operation is simple.
TECHNICAL PARAMETER:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-32A | 16-32(four) | SJ65/132 | 37AC | 250 |
| LB-32B | 16-32(four) | SJ80/156 | 55AC | 350 |
| LB-50A | 16-50 | SJ45/90 | 15AC | 100 |
| LB-50B | 16-50(double) | SJ51/105 | 18.5AC | 150 |
| LB-50C | 16-50(double) | SJ65/132 | 37AC | 250 |
| LB-63A | 16-63 | SJ51/105 | 18.5AC | 150 |
| LB-63B | 16-63(double) | SJ65/132 | 37AC | 250 |
| LB-160 | 50-160 | SJ65/132 | 37AC | 250 |
| LB-250 | 63-250 | SJ65/132 | 37AC | 250 |
| LB-315 | 110-315 | SJ80/156 | 55AC | 350 |
| LB-630 | 315-630 | SJ92/188 | 110DC | 800 |
| LB-800 | 560-800 | SJ105/216 | 160DC | 1100 |
