150-250KG/H Capacity high quality 16-160mm PVC Pipe Extruder
Product Details
| Name: | PVC Pipe Extrusion Line | Packaging Details: | Film Wraping |
|---|---|---|---|
| Plastic: | PVC | Application: | Pipe Making |
| Raw Material: | Pvc Powder | Screw Design: | Conical Twin Screw |
| Material Of Screw: | 38CrMoALA | Inverter: | ABB |
| Temperature Sensor: | Omron | ||
| Highlight |
high quality PVC Pipe Extruder |
||
Product Description

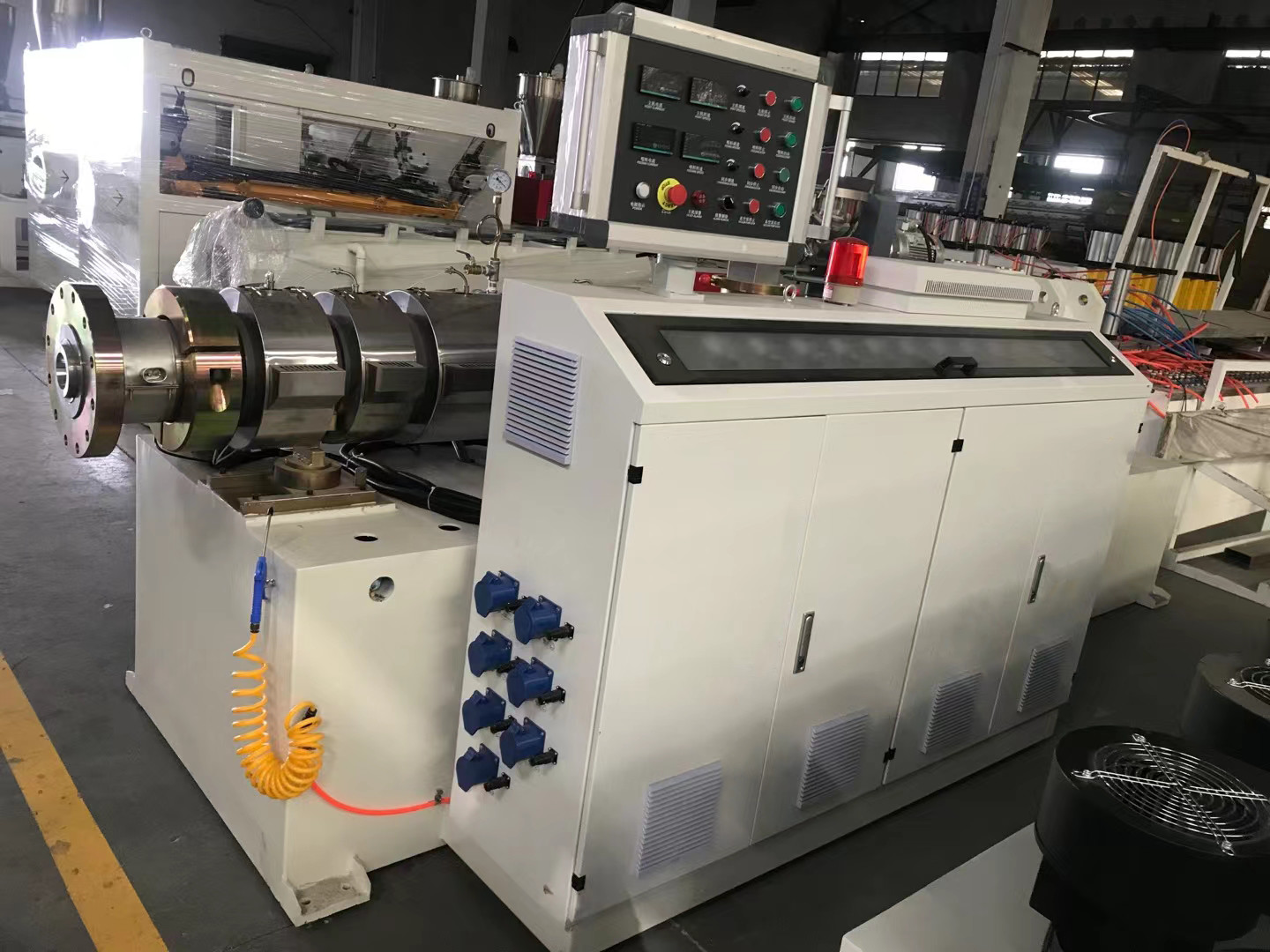

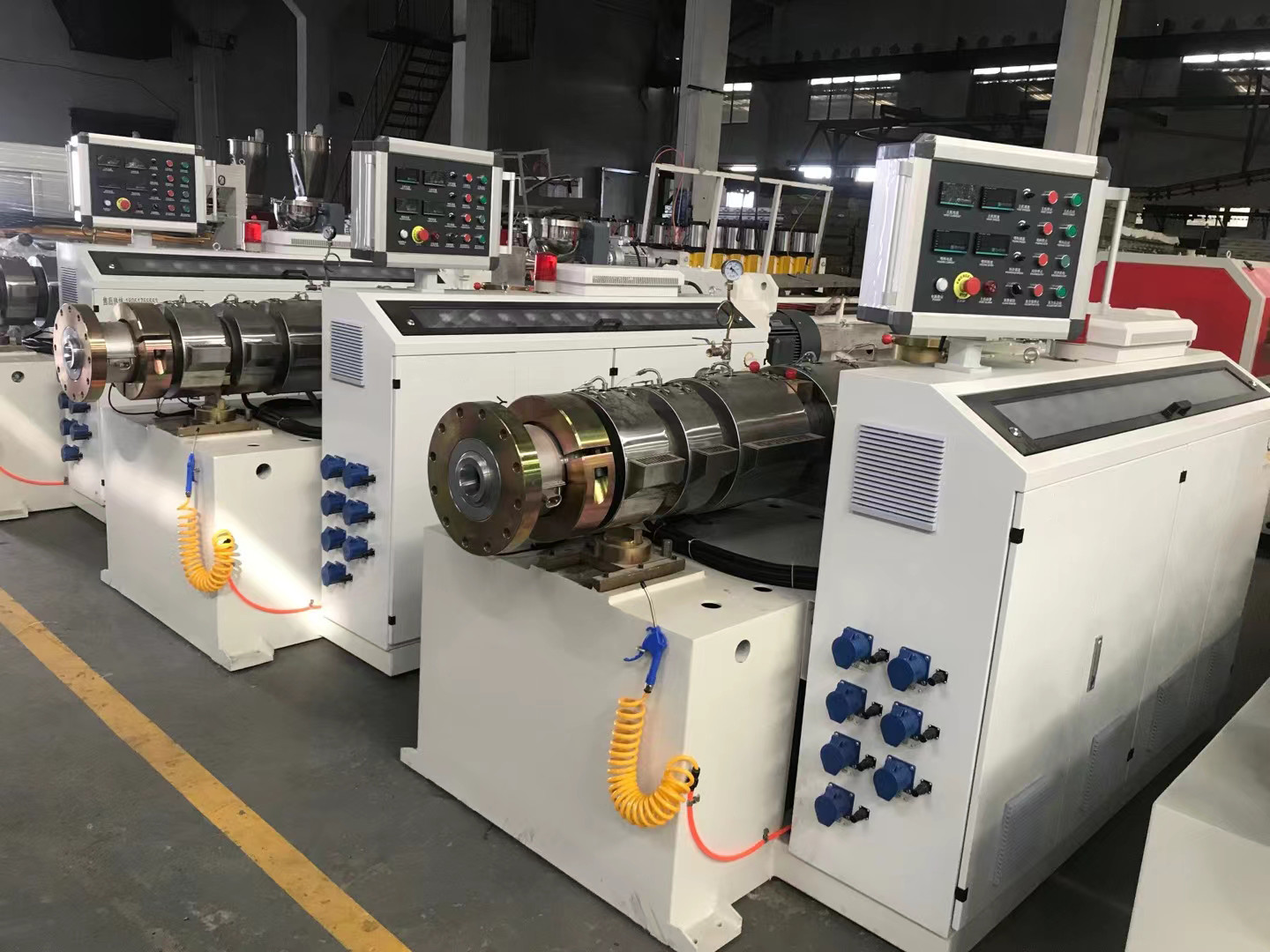

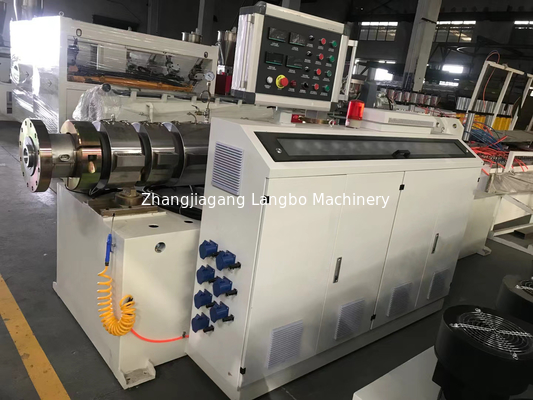

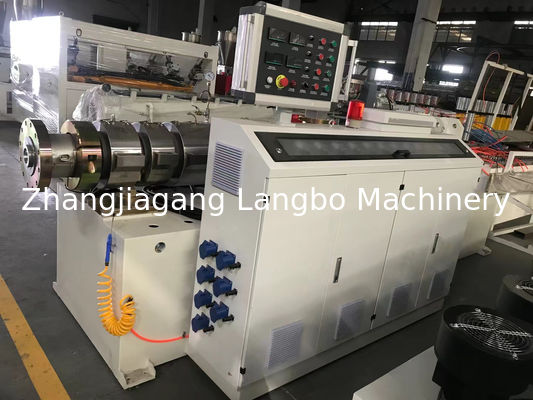

150-250KG/H Capacity high quality 16-160mm PVC Pipe Extruder
Description of PVC pipe making machine :
PVC pipe extruder machine /PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

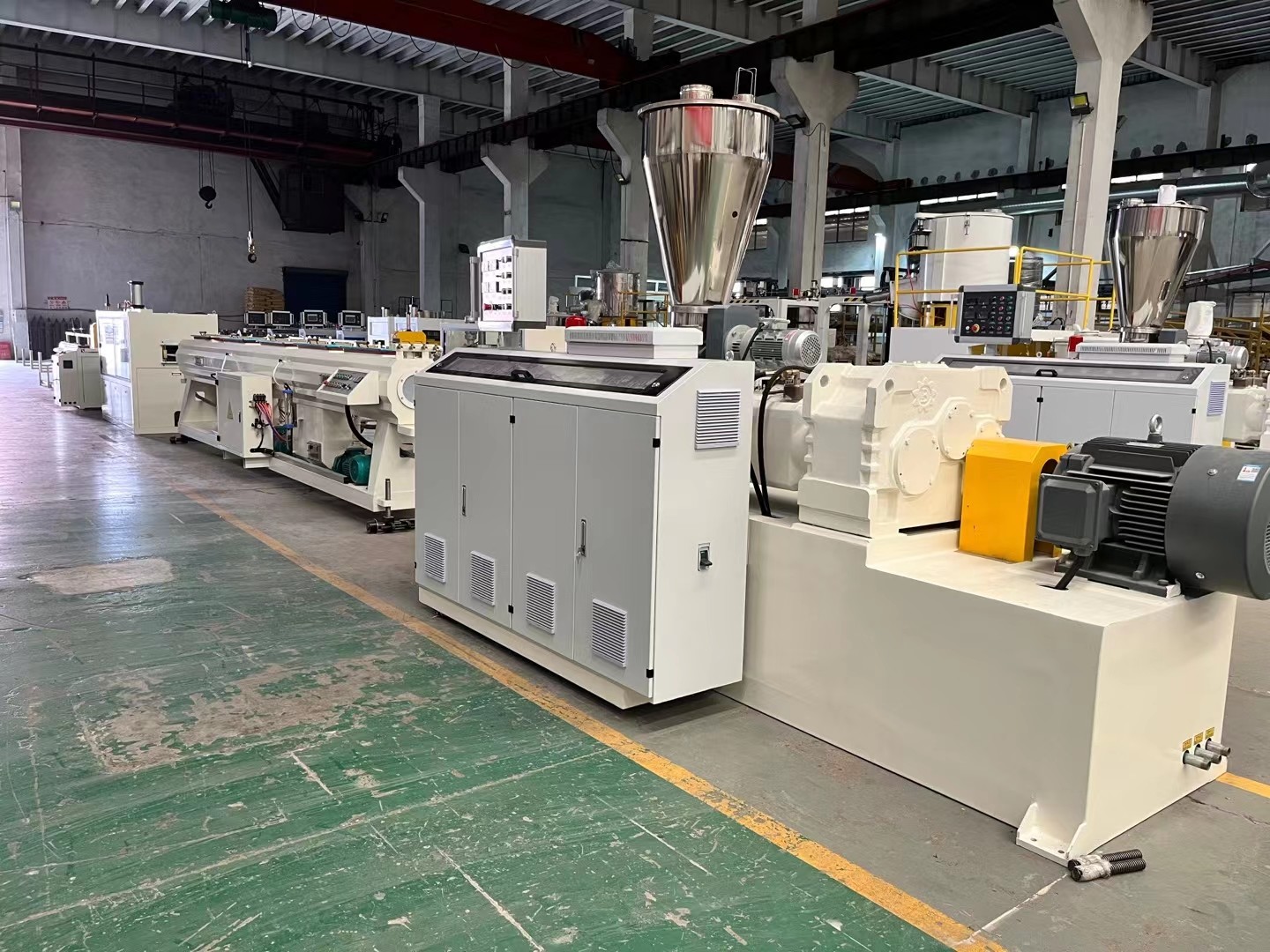

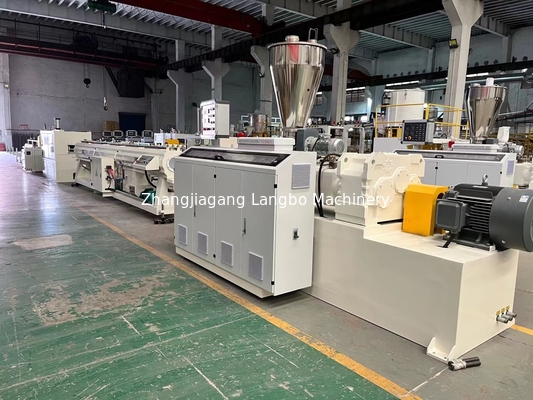

This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 630mm
Application:
This machine line is suitable for the plastic Pipe making purpose, especially for the PP/PE/PVC and so on.
Specifications:
Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption
The characteristics:
1. Installed with imported termo controllers, imported inverters or converters.
2. Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3. For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4. Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5. We also can provide a variety of exhaust-type extruder.
SPECIFICATIONS:
| MODEL | PIPE DIAMETER(MM) | EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-63A | 16-63 | SJSZ51/105 | 22 AC |
| LB-63B | 16-63(DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-160 | 50-160 | SJSZ65/132 | 37 AC |
| LB-250A | 63-250 | SJSZ65/132 | 37 AC |
| LB-250B | 63-250 | SJSZ80/156 | 55 AC |
| LB-315 | 110-315 | SJSZ80/156 | 55 AC |
| LB-630 | 315-630 | SJSZ92/188 | 110 DC |
Description:

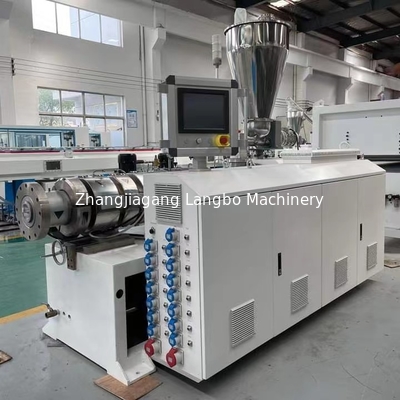

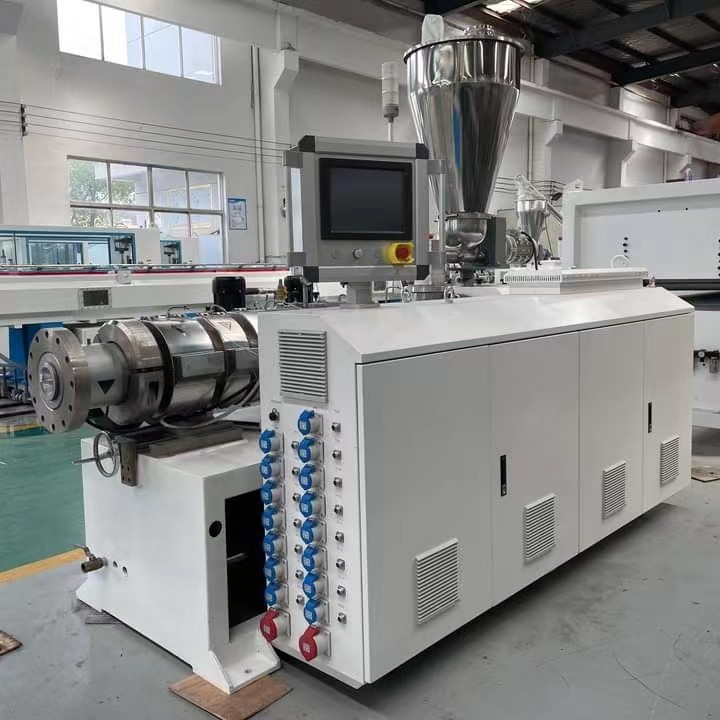

Conical twin screw extruder is professional equipment to extrude PVC/ composite mixture of PVC and wood/composite pellets of PP/PE and wood. Equipped with different die head, downstream equipment, it can be applied for manufacturing of pipe, profile, composite profile, panel, sheet and pelletizing, etc.. It consists of following items:
- Driving motor: equipped with famous brand motor as driving source
- Gearbox: equipped with famous brand gearbox to ensure the maximum output of power
- Screw & barrel: it is made of bi-metallic. The screw core is equipped with device of temperature regulation of oil as medium and barrel is equipped with air blower as cooling device. The designing of screw and barrel will adapt the reasonable and optimal structure based on the characteristics of the formula of raw material ensure to get the plasticizing and melt stream for plastics.
- Control system: equipped with famous brand electrical components ensure to get the accurate control.
Product Features:
1. Screw:
Type: Evolution screw High-strength steel nitride, electroplated hardness chrome.
Material: 38CrMoALA alloy steel
2. Barrel:
High-strength alloy nitride, high-precision machining with a round grinding, hard chrome plating
Barrel cooling method: air-cooled
Cylinder wall: to prevent the resin burned, required wall surface treatment
3. Driving devices:
High-precision worm gear reducer high efficiency and low noise
Main heating:
High efficiency heater
Solid-state relay control
Germany PLC temperature control module (PROGRAMMABLE LOGIC CONTROLLER)
Germany PLC Inverter Motor Speed Control Module
German HMI HMI (HUMAN MACHINE INTERFACE)
Taiwan more than wing ultra quiet high-efficiency air-cooled fan control
4. Extruding mould: 1 set (contain one type of product)
Die lip: one
Core bar: one
Calibration unit: one
5. Vacuum calibration trough
Length of trough: 4M
Main body of the trough: 304# stainless steel, treated with bended and welded.
Material of the trough Cover: high strength and transparent steel glass
Vacuum chamber: consists of 1.5kw vacuum pump, stainless steel chamber.
Tri-dimension movable water tank stand
6. Haul off machine
High effective and stable hauling off with the wedge-shaped strap, the surface coving the foam PU
High effective and stable reducer transmission
Mitsubishi high-precision servo motor drive (SERVO MOTOR)
Mitsubishi high-precision servo controller (SERVO MOTOR CONTROLLER)
Japan NEMICON rotary encoder feedback control (ROTARY ENCODER)
7. Cutter
Aluminum alloy with low inertia rotary knife arm
Mitsubishi high-speed high-precision low inertia servo motor-driven response (SERVO MOTOR)
Mitsubishi Servo Controller (SERVO MOTOR CONTROLLER)
Japan's Mitsubishi PLC controller to cut off the length of products
Product length tolerance: ± 1mm-1.5mm
Product Highlights
150-250KG/H Capacity high quality 16-160mm PVC Pipe Extruder Description of PVC pipe making machine : PVC pipe extruder machine /PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the ...
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing pipes with various diameters and wall thickness specifications. Applications The manufactured UPVC pipes serve multiple applications including electrical conduit systems, water supply
50-250MM HDPE Pipe Making Machine Single-Screw Full-Automatic PE Pipe Extrusion Line
50-250MM HDPE Pipe Making Machine Extrusion Production Line Product Overview The HDPE pipes with large diameter are typically applied for fuel gas and water supply systems. These pipes feature excellent characteristics including heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, and good creep resistance. They serve as preferred conduits for ductwork systems and water supply networks between cities and suburbs. PE Pipe
Gas Water PE Pipe Extrusion Line Single Outlet 4 - 9m / Min Capacity
PE Pipe Extrusion Line HDPE gas water pipe machine, PE gas pipe extrusion line Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system. plastic machine Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. PE PIPE PROCUTION LINE MAIN COMPONENTS: No Equipment Quantity 1 Vacuum loader and hopper dryer 1set 2 Single screw extruder 1set 3 Die-head 1set 4 color line
Decoration PVC Foam Board Extrusion Line 45 / 90mm Double Screw Diameter
PVC free foam sheet production line/foam board extrusion line / PVC foam decoration sheet production line Products characteristics 1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc. 2) Color-way is not changed long time and not easy to aging under radiation resistance 3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig.It is
