High Energy PVC Pipe Production Extrusion Machine 150 - 250KG / H
Product Details
| Name: | PVC Pipe Extrusion Line | Packaging Details: | Film Wraping |
|---|---|---|---|
| Plastic: | PVC | Application: | Pipe Making |
| Raw Material: | Pvc Powder | Screw Design: | Conical Twin Screw |
| Material Of Screw: | 38CrMoALA | Inverter: | ABB |
| Temperature Sensor: | Omron | ||
| Highlight |
38CrMoALA PVC Pipe Production Machine,PVC Pipe Production Extrusion Machine,PVC Pipe Production Machine 250KG/H |
||
Product Description
150-250KG/H High Energy and Best Efficient PVC Pipe Production Machine
DESCRIPTION OF PVC PIPE MAKING MACHINE:
PVC pipe extruder machine /PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 630mm
COMPONENTS AND FEATURES:

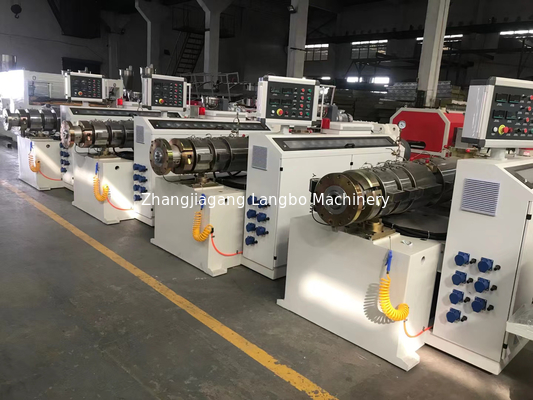

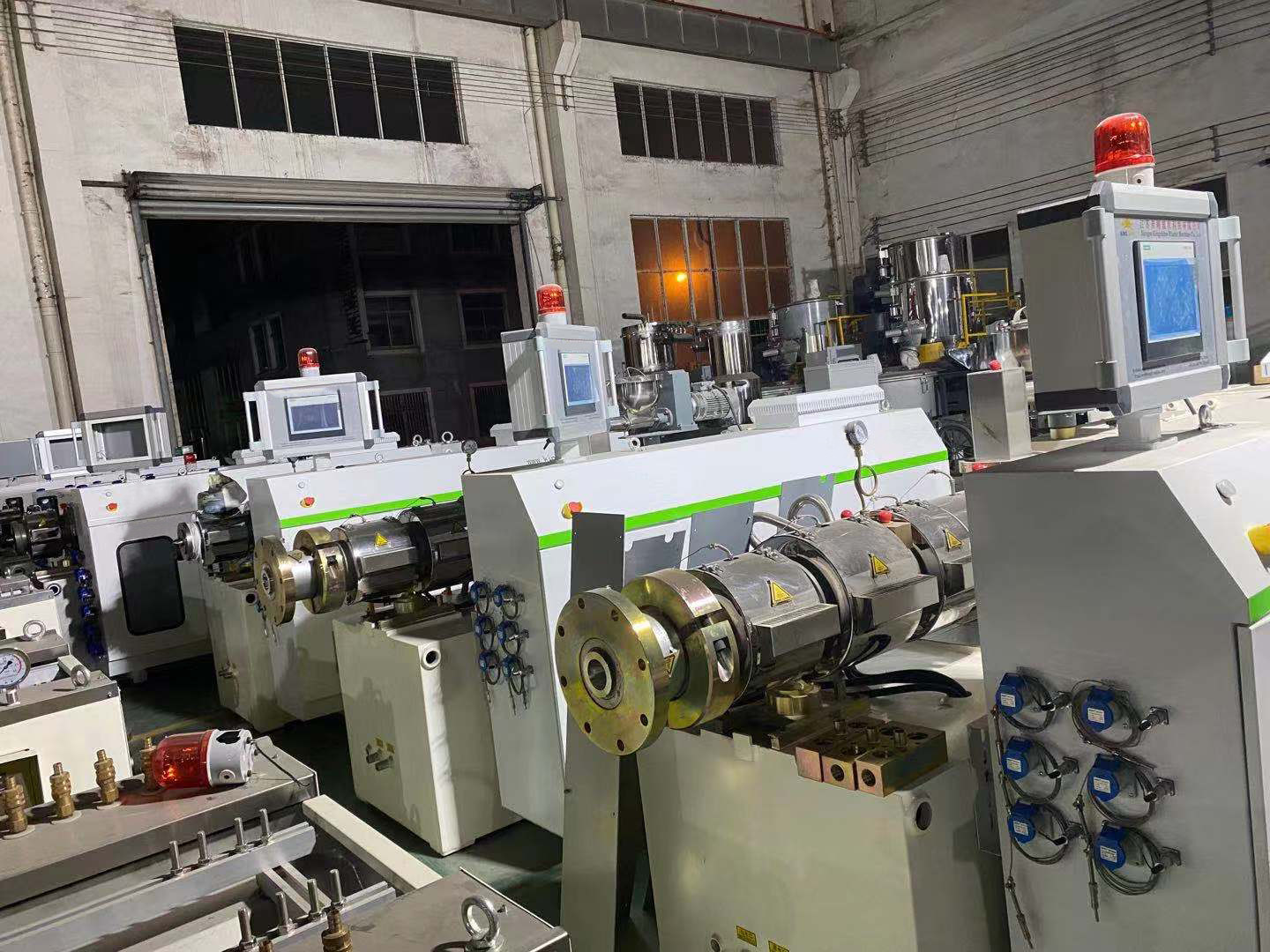

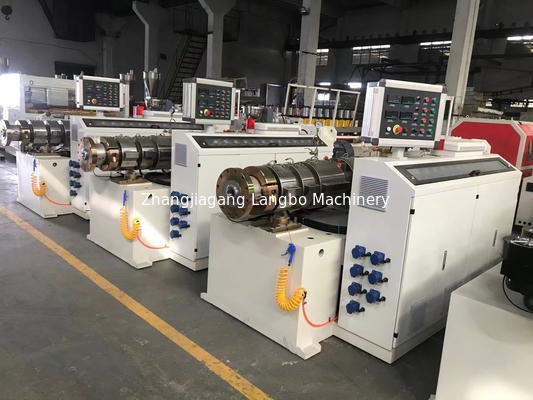

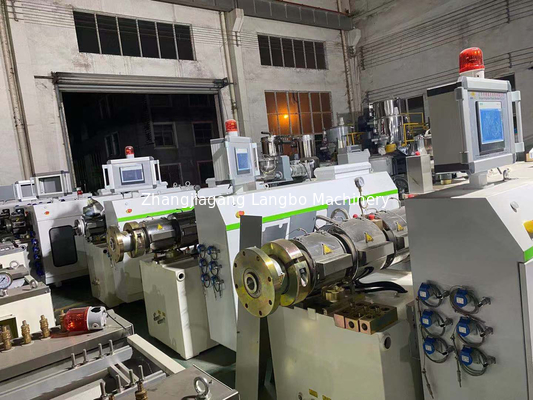

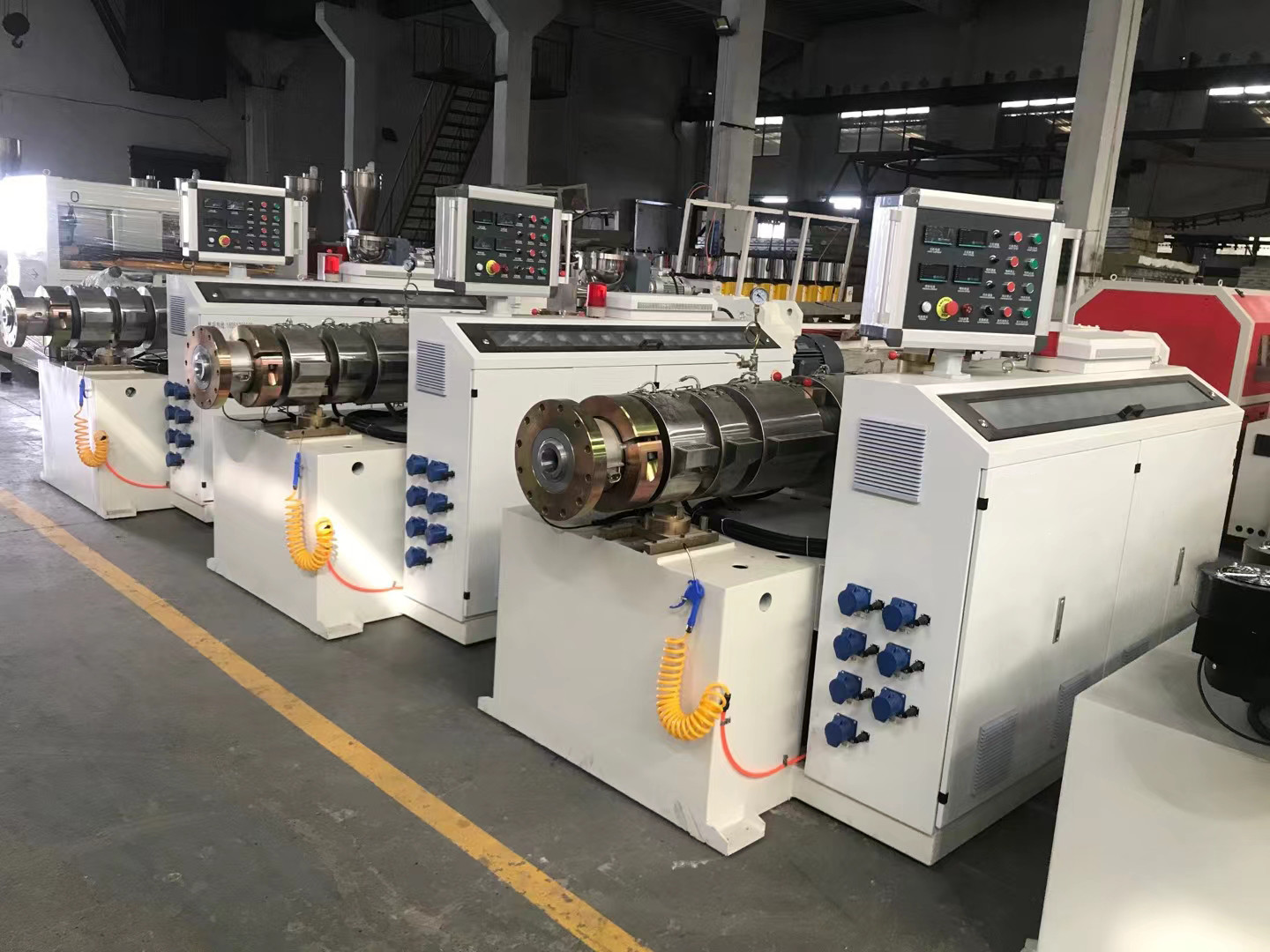

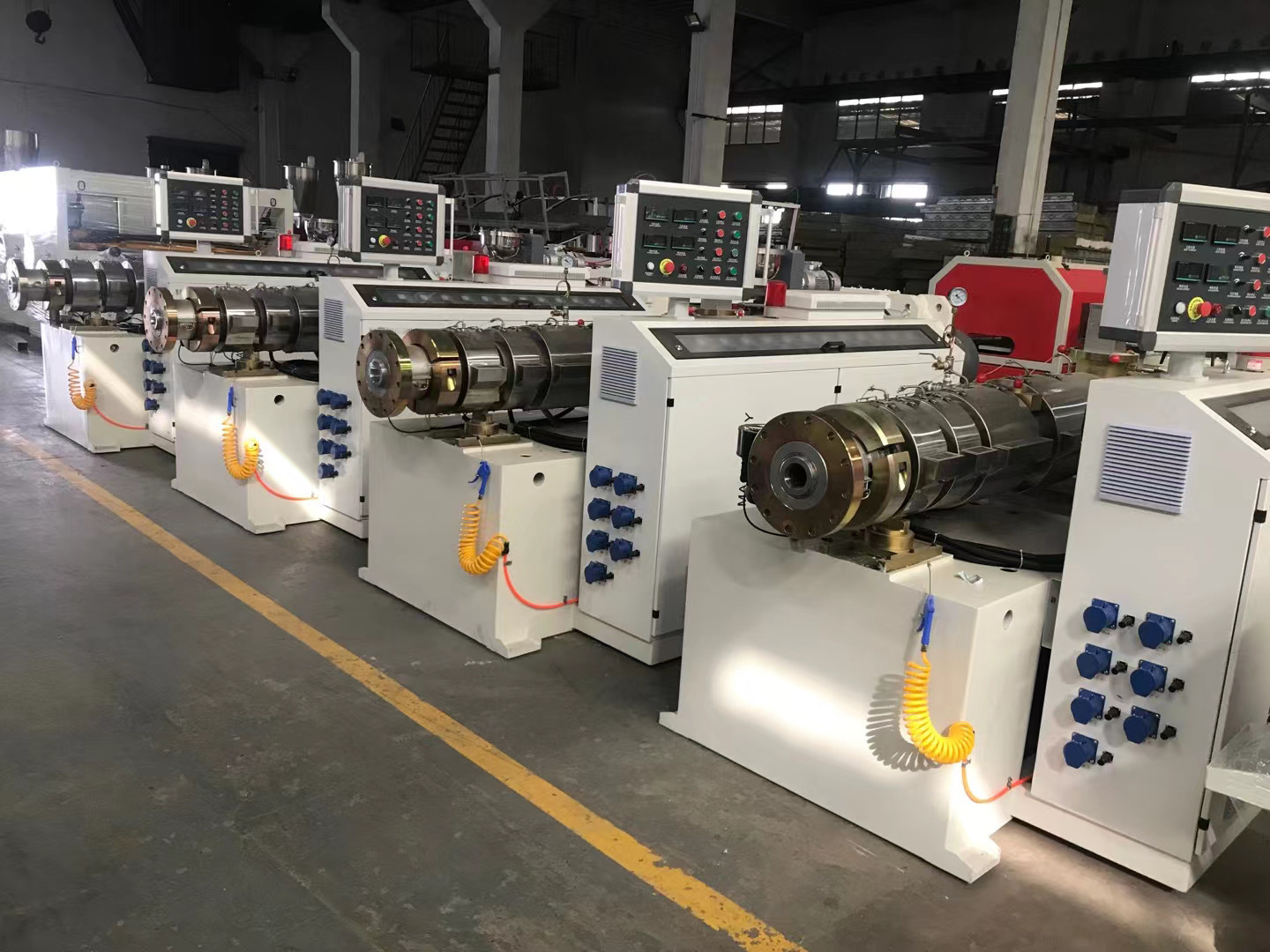

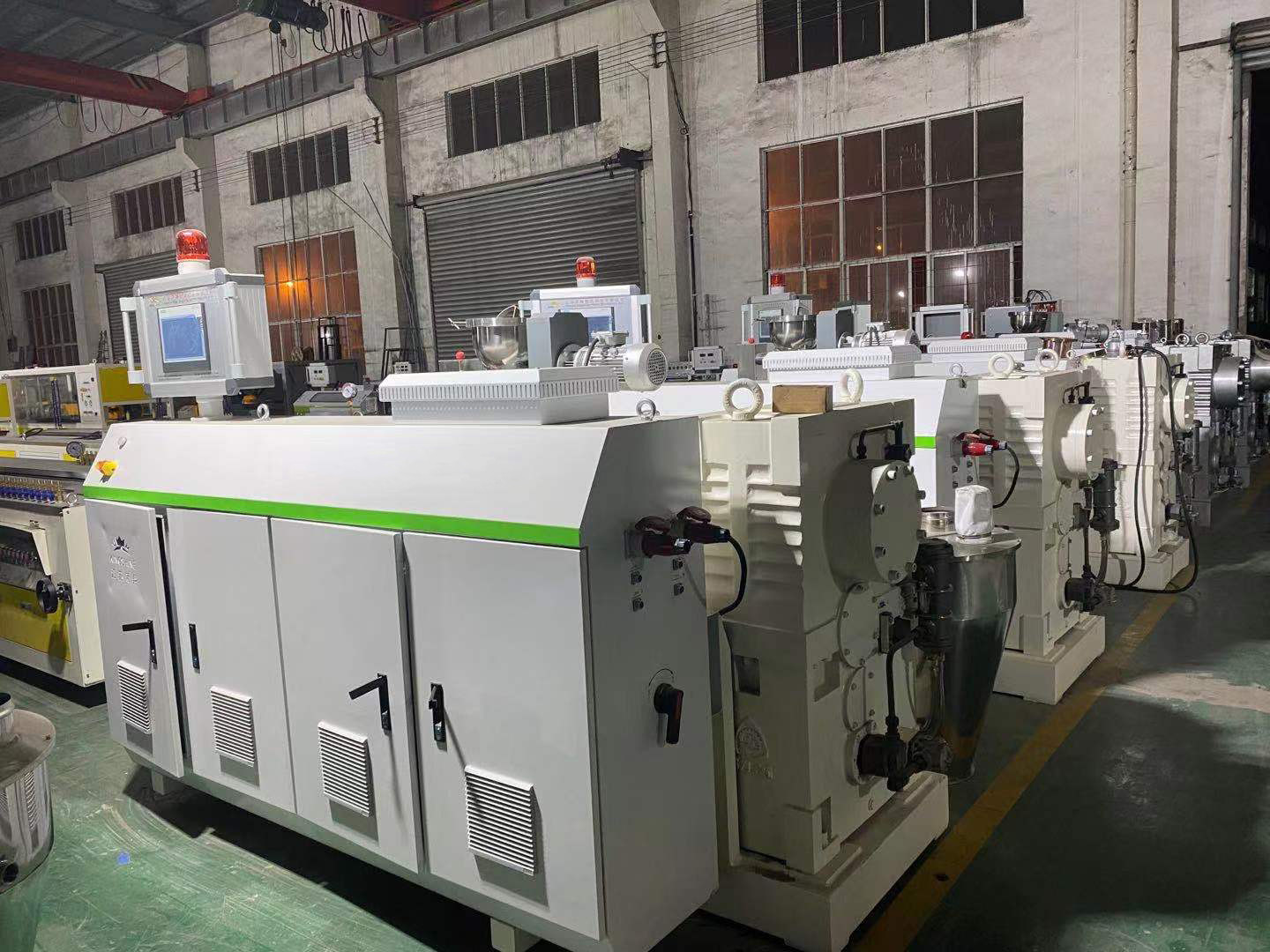

Conical twin screw extruder is professional equipment to extrude PVC/ composite mixture of PVC and wood/composite pellets of PP/PE and wood. Equipped with different die head, downstream equipment, it can be applied for manufacturing of pipe, profile, composite profile, panel, sheet and pelletizing, etc.. It consists of following items:
- Driving motor: equipped with famous brand motor as driving source
- Gearbox: equipped with famous brand gearbox to ensure the maximum output of power
- Screw & barrel: it is made of bi-metallic. The screw core is equipped with device of temperature regulation of oil as medium and barrel is equipped with air blower as cooling device. The designing of screw and barrel will adapt the reasonable and optimal structure based on the characteristics of the formula of raw material ensure to get the plasticizing and melt stream for plastics.
- Control system: equipped with famous brand electrical components ensure to get the accurate control.
SPECIFICATIONS:
| Model |
Screw diameter (mm) |
Rotary speed (rpm) |
Motor power (kw) |
Capacity (kg/hr) |
| SJSZ45/90 | 45/90 | 45/34.7 | 15 AC | 100 |
| SJSZ51/105 | 51/105 | 45/34.7 | 18.5 AC | 150 |
| SJSZ55/110 | 55/110 | 45/34.7 | 22 AC | 200 |
| SJSZ65/132 | 65/132 | 45/34.7 | 30/37 AC | 250 |
| SJSZ80/156 | 80/156 | 34.7/25 | 55 AC | 350 |
| SJSZ92/188 | 92/188 | 34.7/25 | 110 DC | 800 |
| SJSZ105/216 | 105/216 | 34.7/25 | 160 DC | 1100 |
