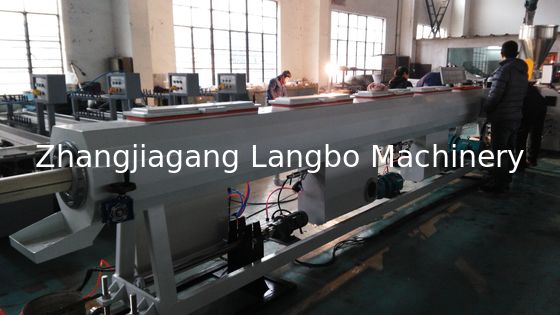

160KW Pvc Drainage Pipe Production Line 20 - 63mm
Product Details
| PIPE DIAMETER: | 16-630 | EXTRUDER'S POWER: | 22KW-160KW |
|---|---|---|---|
| CUTTER: | PLANETARY CUTTER | WATER PIPE DIAMETER: | 20-630MM |
| APPLICATION: | WATER PIPE | BELLING MACHINE: | NEEDED |
| Highlight |
pvc drainage pipe production line 63mm,pvc drainage pipe production Extrusion line,160KW drainage pipe production line |
||
Product Description
20-63mm diameter pvc drainage pipe production line
FEATURES OF PRODUCTION LINE
With high result, low power utilization, less rubbing, lower shearing rate and constrained expelling, the gear has the capacity to create the lines with an excellent and improved productivity. We get the programmed temperature control, degassing unit, and direct current speed guideline which is reasonable for handling PVC dry mix powder into lines, profiles, and sheets. In the interim, our hardware parts are brand with a superior presentation. Our machine idea depends on conservative superior execution expulsion. Furthermore, the affirmations demonstrate our obligation to ideal cycles and obligation regarding our current circumstance. We have refined process innovation and chivalrous administrations which will cause clients to feel insightful and consoling.
TECHNICAL PARAMETER
Creation Capacity has a cozy relationship with screw size and engine power. With the accompanying table you can get a generally outline to our line TWO Strand pipe arrangement.
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
THE PRODUCTION LINE IS COMPOSED OF THE FOLLOWING PARTS:

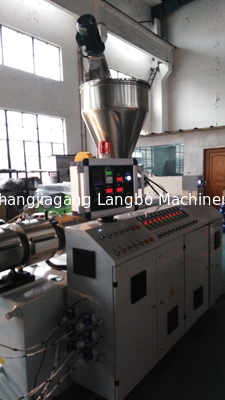

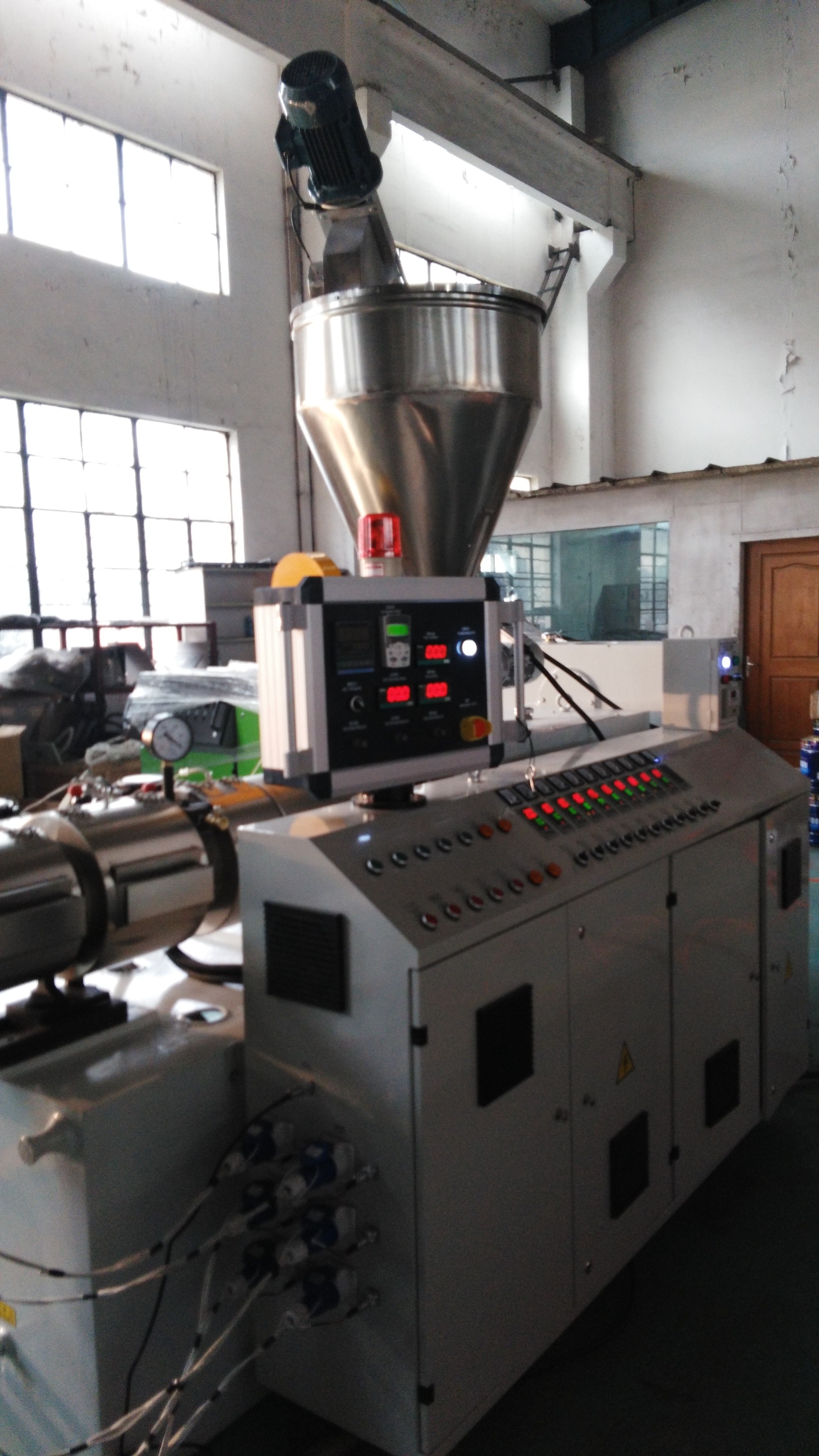

65 / 132 twin-screw extruder

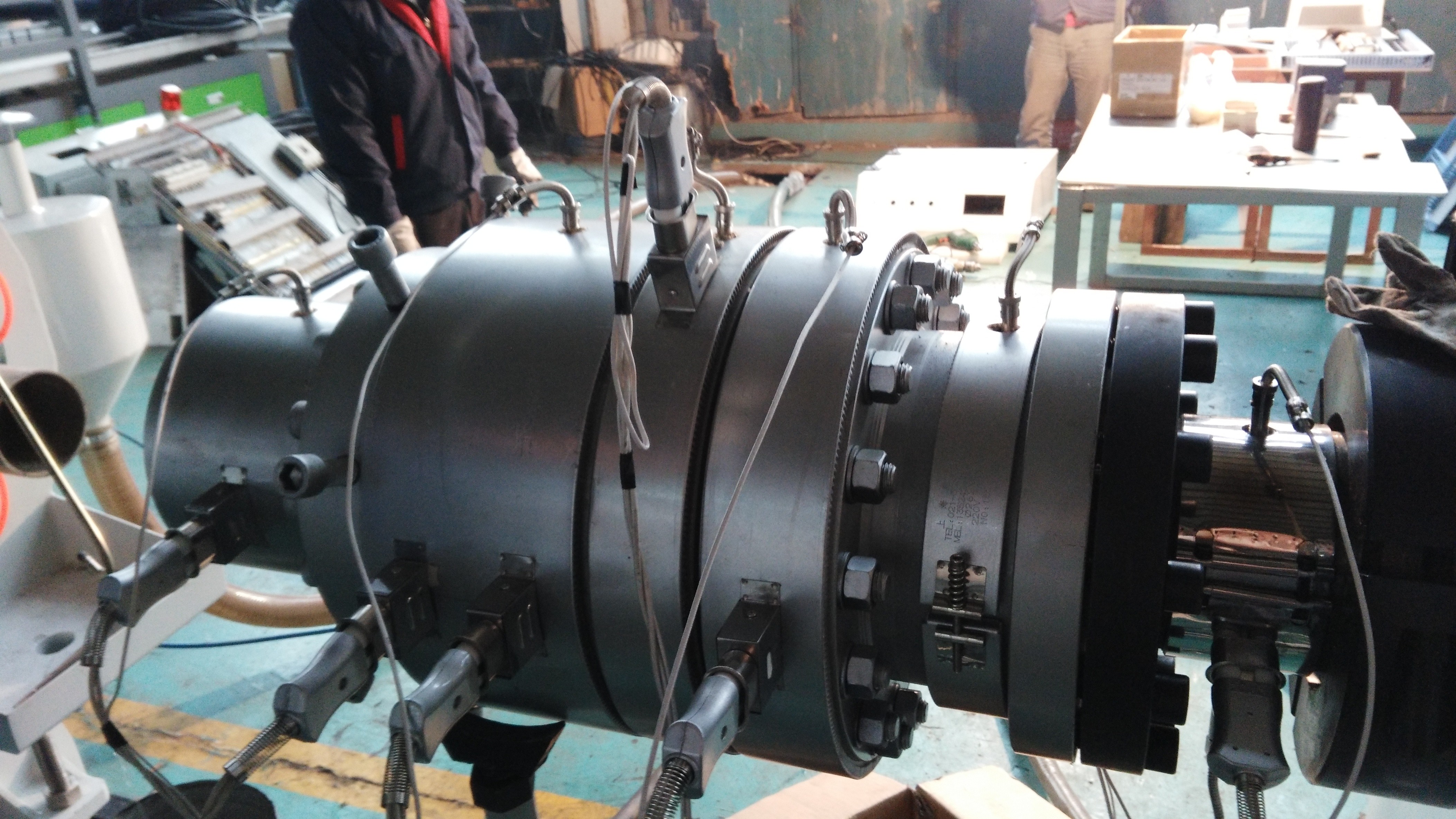

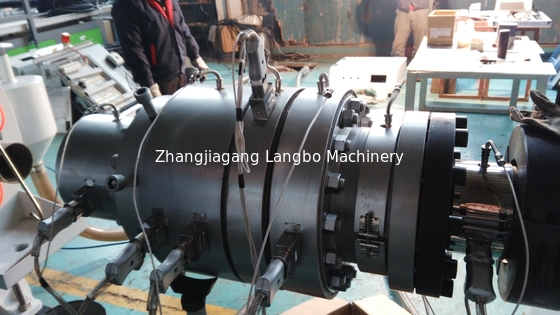

four cavity die head

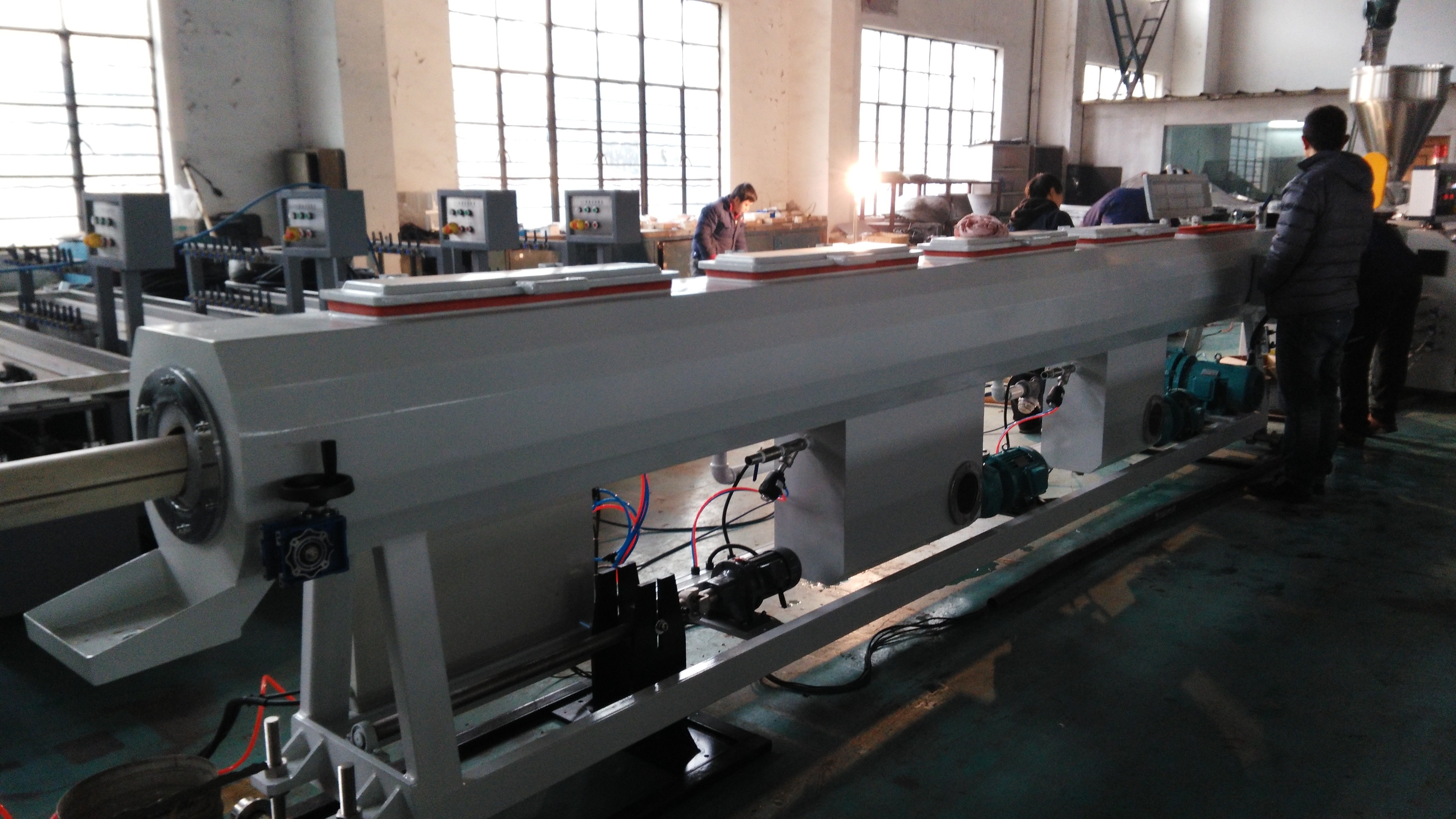

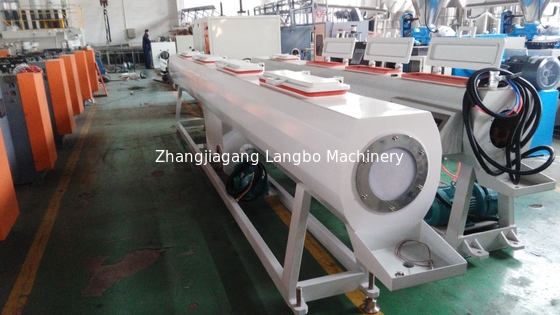

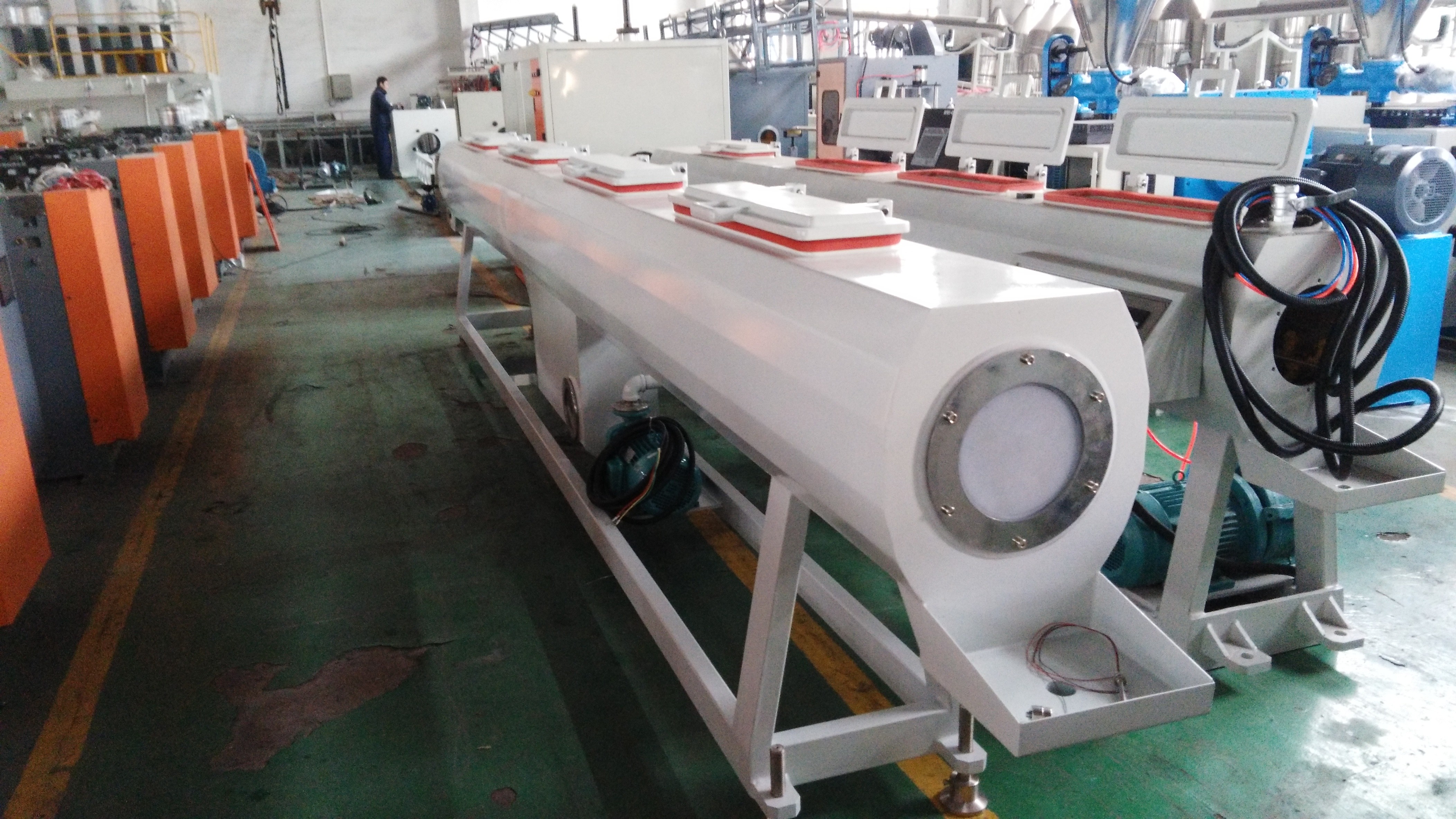

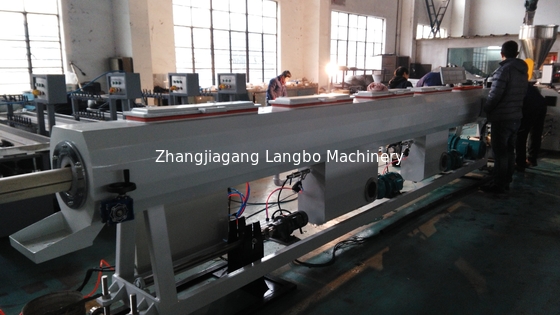

Stainless steel vacuum vacuum calibration tank
Automatic printer spraying moving frame;
Four cavity puller & cutting machine
Stacker
