Sewage Water PVC Pipe Extrusion Line Machine Plastic Electric Conduit

Plastic Electric Conduit And Sewage Water PVC Pipe Extrusion line

General introduction:

This Plastic PVC, UPVC Electric Water Pipe Extrusion Making Machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PVC pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

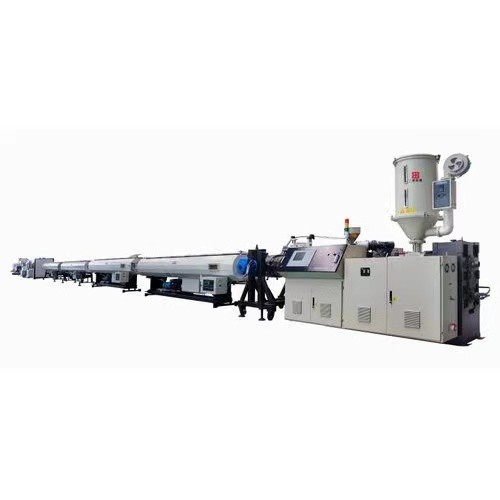

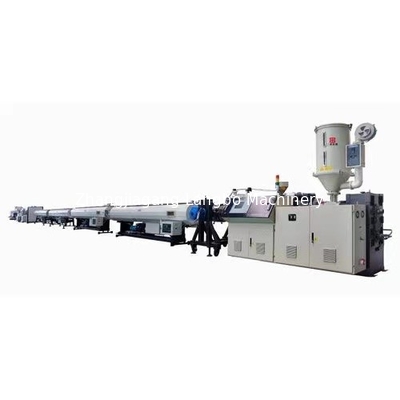

PVC pipe making machine production line is consist of SJZ series conical twin screw extruder, mould, vacuum cooling tank, spray cooling tank(for big size pipe), haul-off machine, cutting machine, stacker, etc. It also need some auxiliary machinery. For example, hot&cooling mixer, crusher, milling machine, belling machine, etc. The hot&cooling mixer is necessary, others is optional

Details:

Conical double-screw extruder

Feeding system: Motor Power: 1.5kw ;Force Feeder Motor Timing:ABB inverter
Screw : Diameter of screw: 92/188mm ; Material of screw: 38CrMoAl
Barrel: Material: 38CrMoAlA; Heating mode: Cast aluminum + stainless steel covering ; Method of cooling: air blow

PVC pipe extrusion mould

Material: Made by 40Cr. Inner surface polished
Pipe Thickness Control:With 2 different pipe wall thickness
Calibration mould material:Wearable tin bronze ZQSn5-2-5

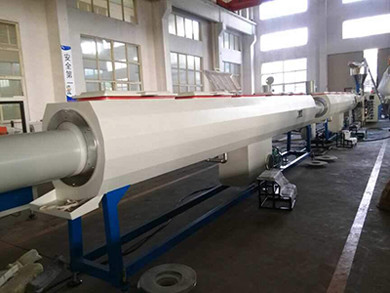

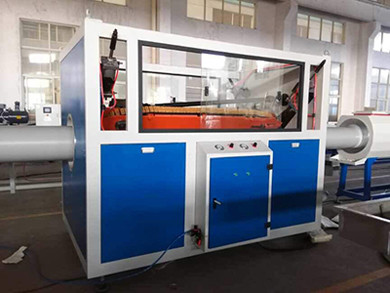

Vacuum calibration tank

Dimensions: Length: 4000mm
Vacuum pump: Hydroseal vacuum pump Power: 2.2kw x2
Water pump: Power: 3KW x 2
Tank material: Stainless steel, Limit switch; Electric cabinet with water-proof protection

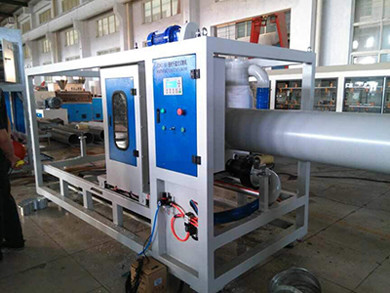

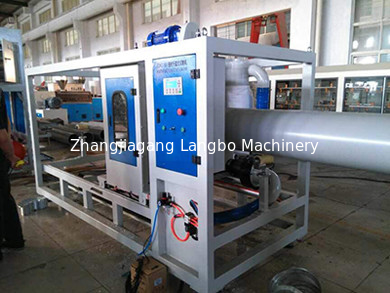

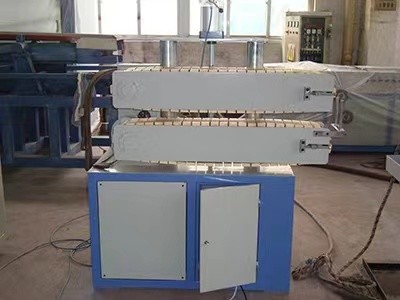

Pipe Haul-off Machines

Haul-off length:1000mm
Haul-off Motor Power:0.55KW×4sets
Haul-off Speed :1.1KW×2sets Inverter
Haul-off Speed: 0.5~12 meters/min

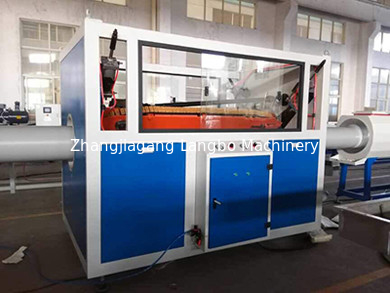

Pipe Cutter

Cutting pipe diameter scope: 16~40mm
Saw blade Diameter: 230mm
Cutter motor power:0.75KW×2 sets
Blade Bracket Longitudinal Moving Distance: 500mm

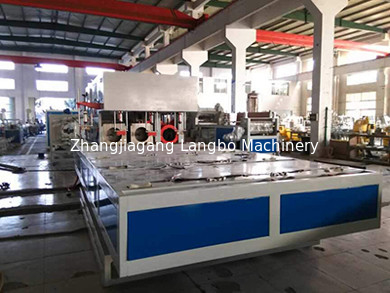

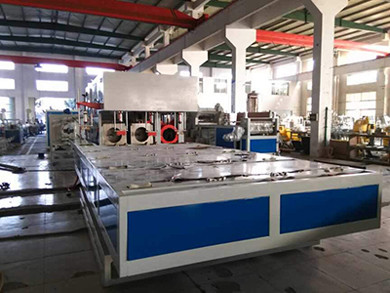

Pipe Stacker

The length of stacker: 2 meters
Support-Board:0.8mm stainless steel board
Working Method: pneumatic, with stroke switch soleplate, to provide the fixed length cutting signal
