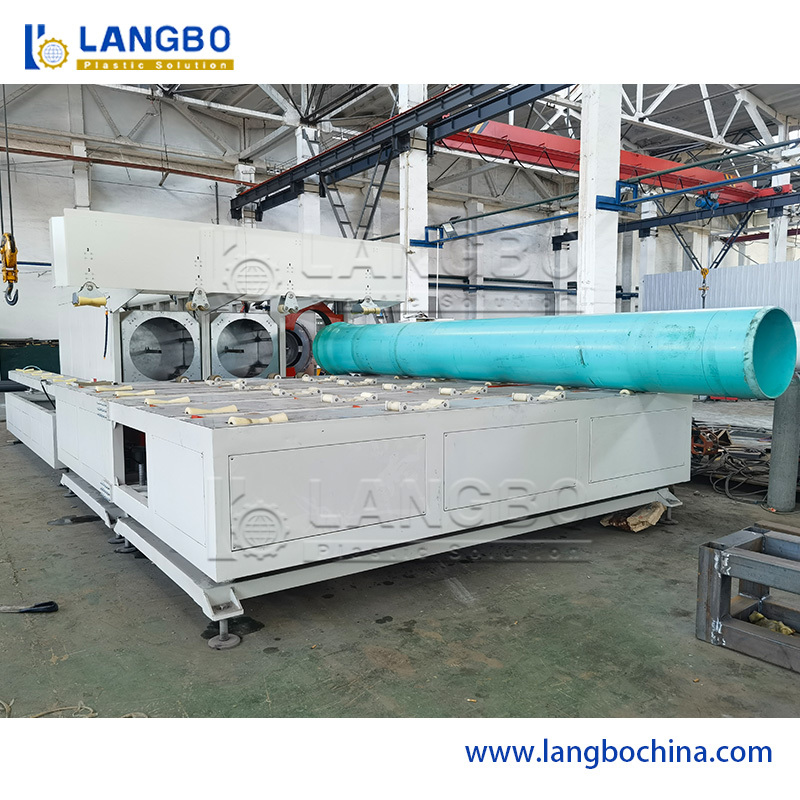

Automatic PVC Pipe Belling Machine Plastic Pipe Socket 800kg/H

Brand Name: LB
Model Number: LB
Place of Origin: ZHANGJIAGANG
Certification: CE ISO
Minimum Order Quantity: 1 SET
Price: USD EUR
Supply Ability: 15 SETS PER MONTH
Tags

pipe expander machine

pvc pipe socketing machine

automatic socketing machine

Product Details

Pipe Diameter: 16~800mm Capacity: 120~800kg/h
Delivery Time: 45days Install Power: 37~600kw
Extruder: Single Screw Extruder
Highlight

Automatic PVC Pipe Belling Machine

,

Plastic Pipe Socket Belling Machine

,

800kg/h Pipe Socket Belling Machine

Product Description

Automatic PVC Pipe Belling Machine Plastic Pipe Socket 800kg/H
Manual and automatic PVC pipe belling machine for plastic pipe socket manufacturing with production capacity of 800kg/h.
Machine Overview

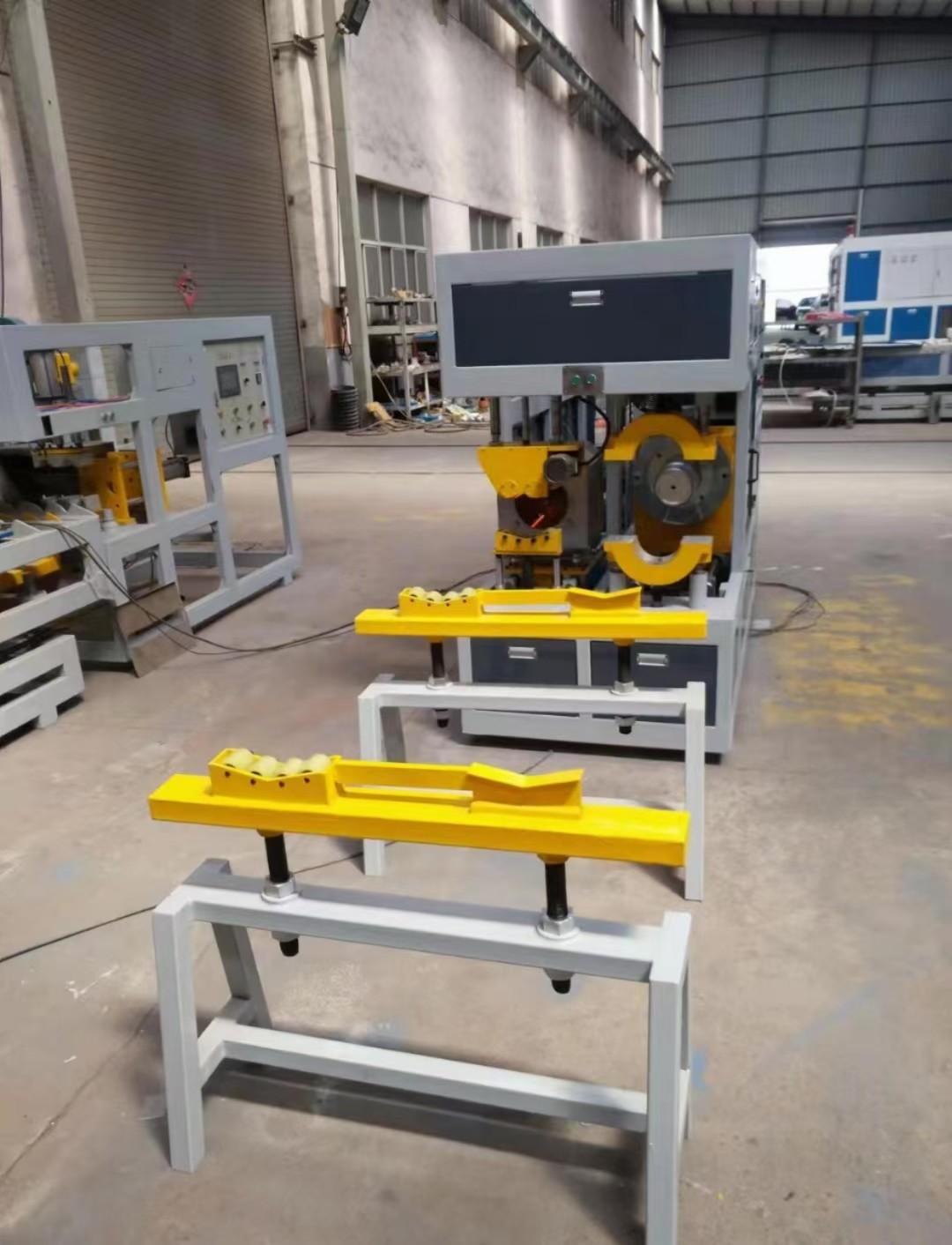

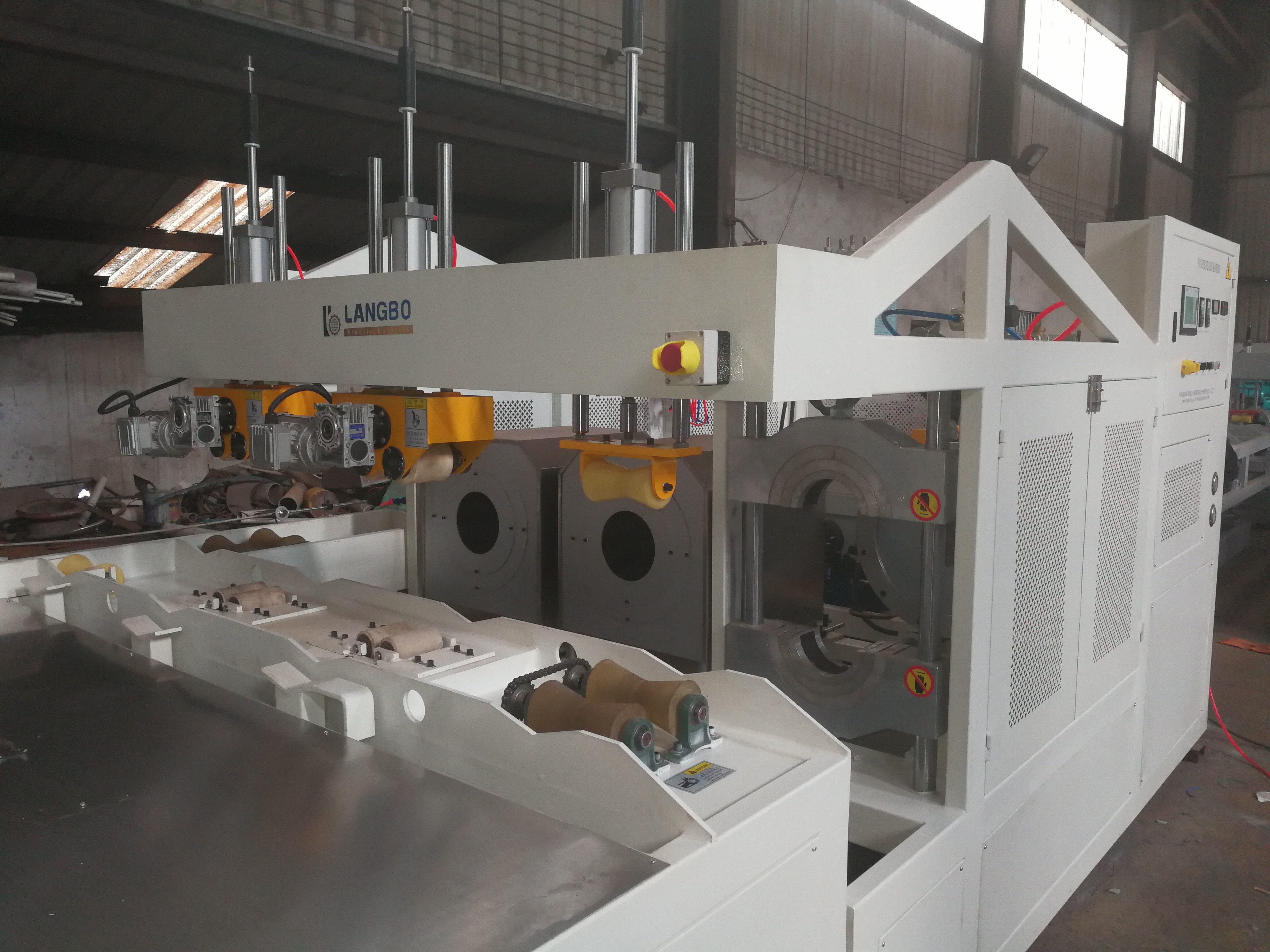

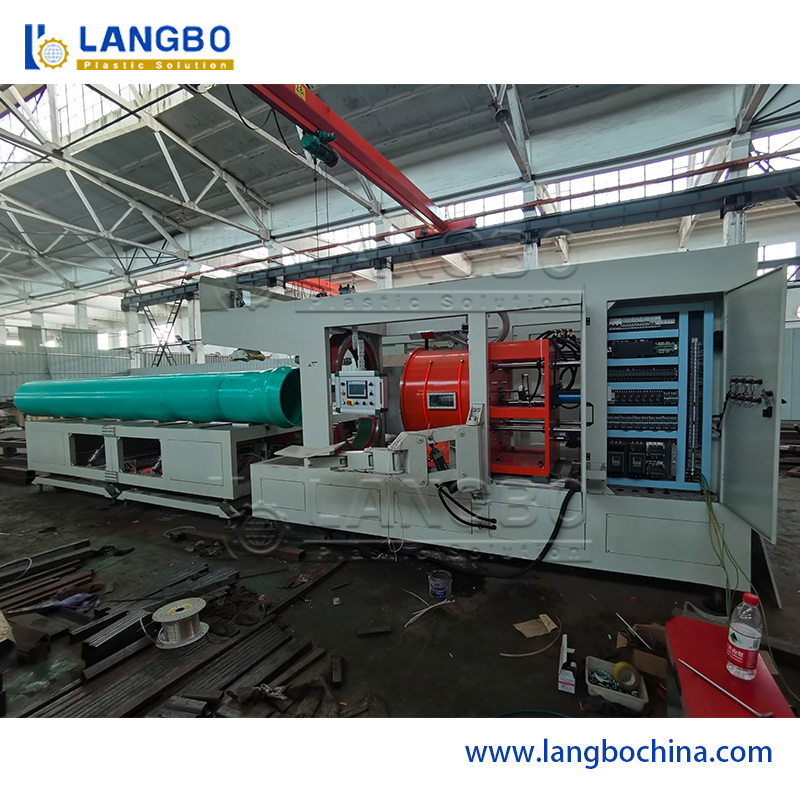

Full-automatic pipe belling machine with drawing device and program interface, designed for use with extruding machines or as standalone equipment. Features electric heating system with individual heating cores in each oven, ensuring precise pipe mouth sizing through expanding-end shaping technology.
  • Steady translation action during pipe expansion prevents material damage

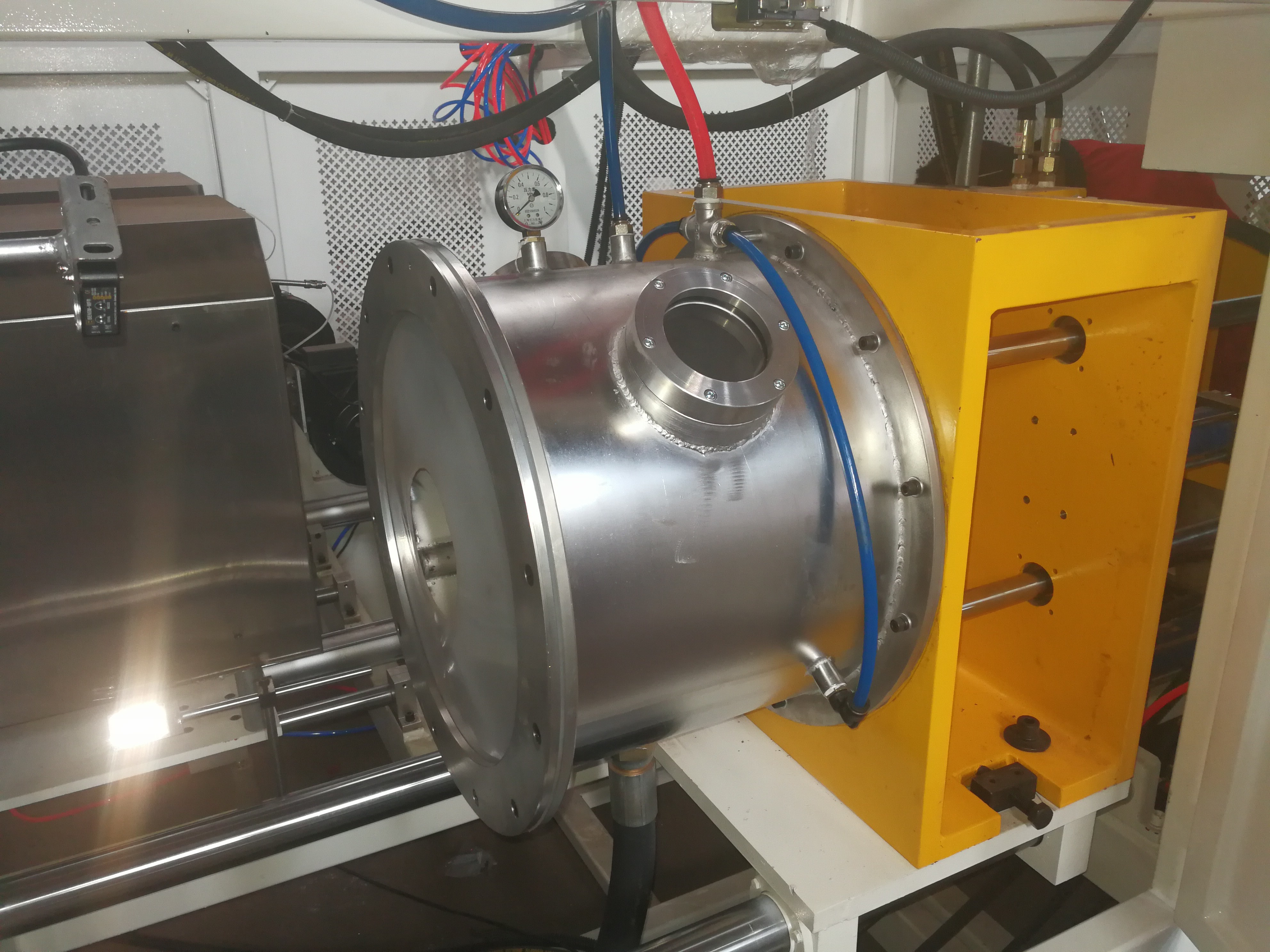

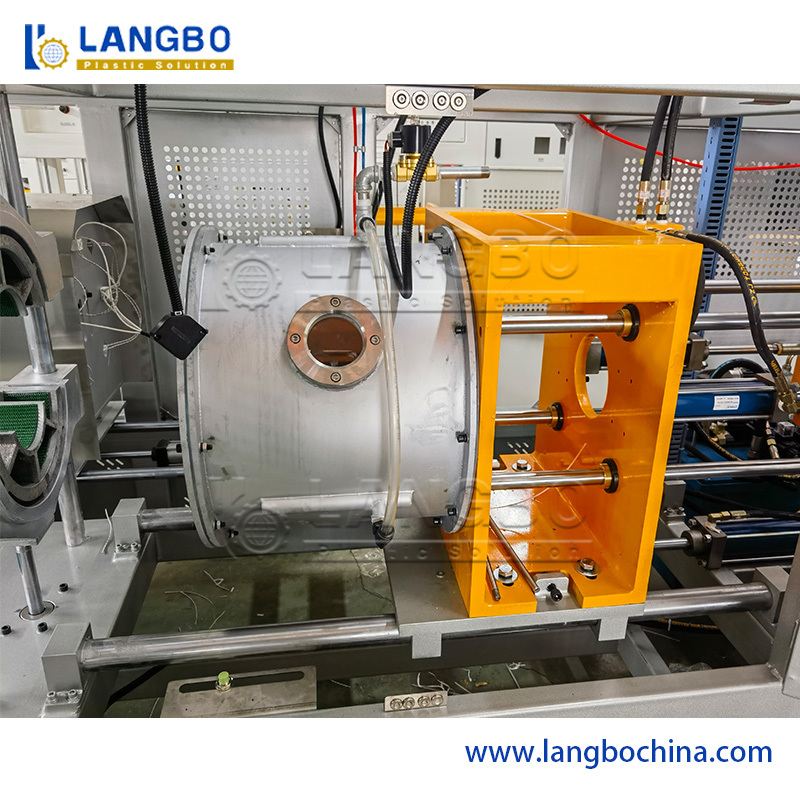

  • Dual heating capability with maximum temperature of 280°C
  • Panel-mounted transfer switch for solvent type socket (straight port) and seal loop type socket (R port)
  • Center height adjustable at 900mm ± 50mm
Technical Specifications
Pipe Expand Range (Outer Diameter) Φ 315-630mm
Belling Type R Type & U Type
Hydraulic Oil Specification No. 40 Hydraulic Oil
Heater Quantity 2
Maximum Heater Temperature 280°C
Gas Pressure 0.6-0.8 MPa
Water Pressure 0.2-0.3 MPa
Pipe Length Capacity 3-6m
Center Height 900mm ± 50mm
Machine Dimensions 8615 × 3125 × 2500mm
Service & Support
Comprehensive after-sales service including factory trial notifications, on-site installation by qualified engineers, machine debugging, and operator training.
Warranty: One year comprehensive warranty coverage.
Company Profile
Zhangjiagang Langbo Machinery Co., Ltd. is strategically located in Zhangjiagang city, with convenient access from Shanghai (2 hours) and Wuxi Airport (40 minutes).
With over 20 years of industry experience, we specialize in plastic machinery manufacturing including washing recycling systems, granulating machines, pipe extrusion equipment, and auxiliary components. Our commitment includes delivering high-quality machinery at competitive prices with reliable after-sales support.
