50 - 250mm PVC Pipe Extrusion Line High Speed And High Output 65/132
Product Details
| PIPE DIAMETER: | 16-630 | EXTRUDER'S POWER: | 22KW-160KW |
|---|---|---|---|
| COLOUR: | WHITE ORANGE BLACK | WATER PIPE DIAMETER: | 16-630MM |
| CONTROL: | PLC | APPLICATION: | WASTED WATER |
| Voltage: | As Requiremen | Automatic Grade: | Full-automatic |
| Application: | Pipe | Screw Design: | Double-screw |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training | Warranty: | 1 Year |
| Inverter: | ABB | Color: | Customizable |
| Raw Material: | PVC Powder | Motor: | Brand |
| Highlight |
250mm PVC Pipe Extrusion Line,65/132 PVC Pipe Extrusion Line,PVC Pipe Double screw Extrusion Line |
||
Product Description
Factory price 50-250mm high speed and high output 65/132PVC Pipe Extrusion Line
The process flow of this line as blow:

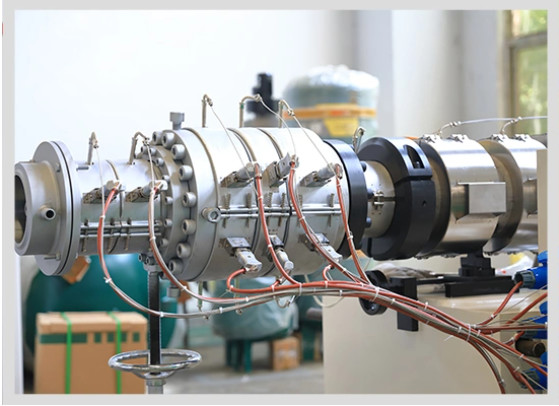

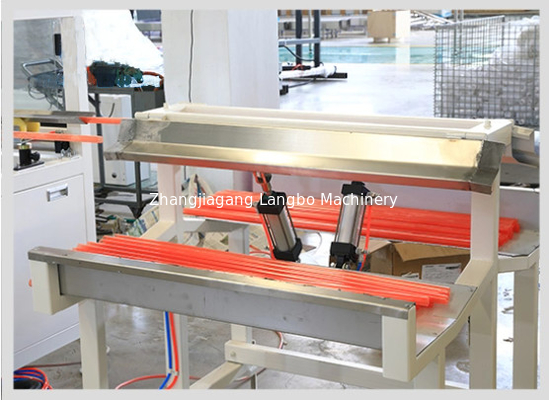

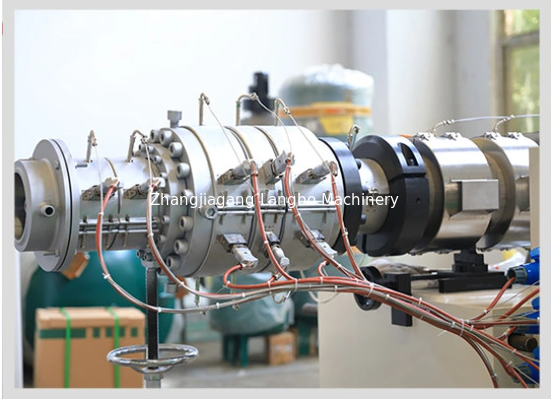

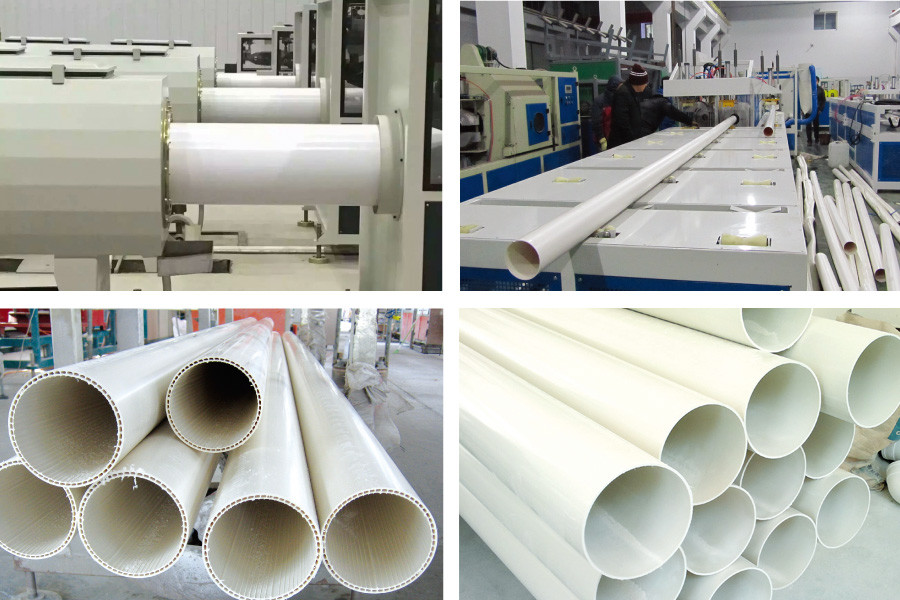

PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum forming machine—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.

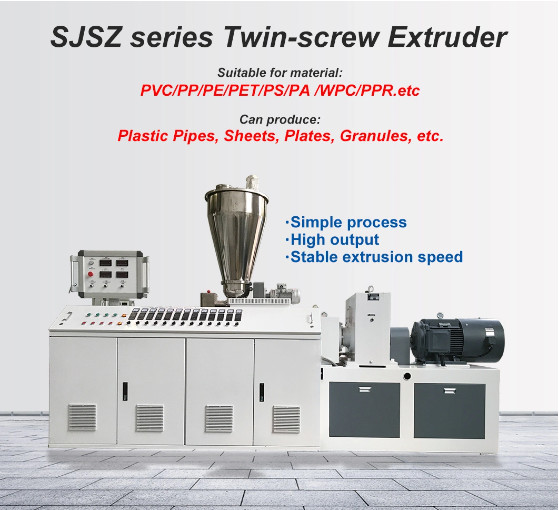

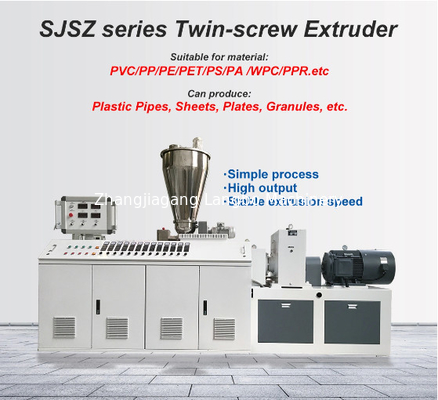

The screw of extruder has advanced design, which provide powerful safeguard for the PVC plasticization, and the PLC control system make more convinient operation. The degassing system will ensure the quality of final PVC pipes.

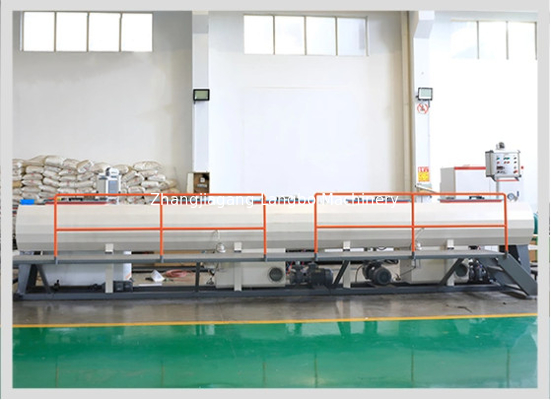

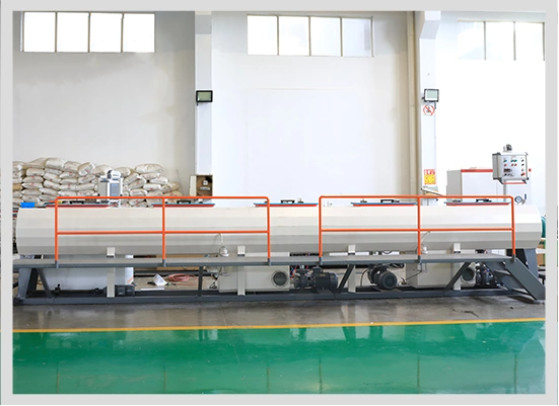

The tank body of vacuum calibration and cooling units adopt stainless 304# steel, multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency; Auto water temperature control system make the machine more intelligent.

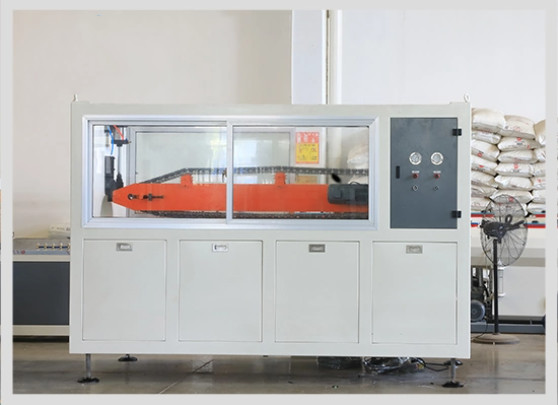

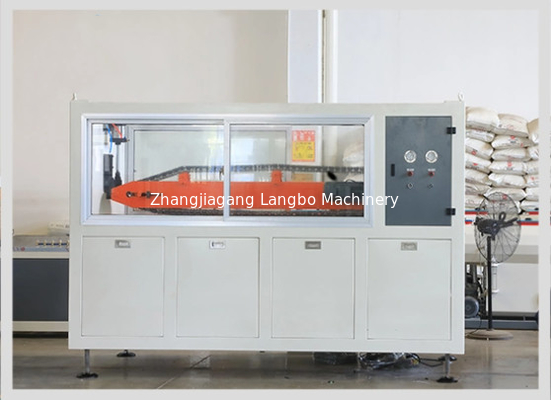

For different pipe size, the haul-off machine will adopt two s, three s, four s, six s are designed for different requirements. Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable in performance

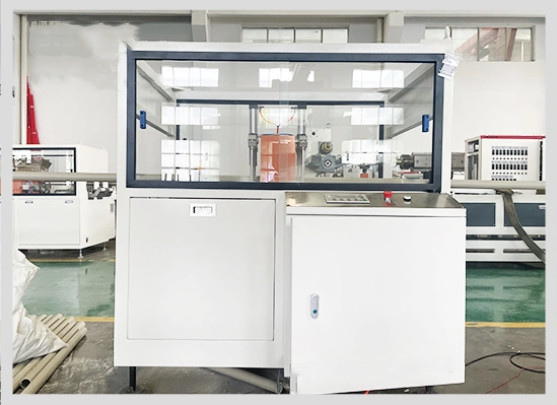

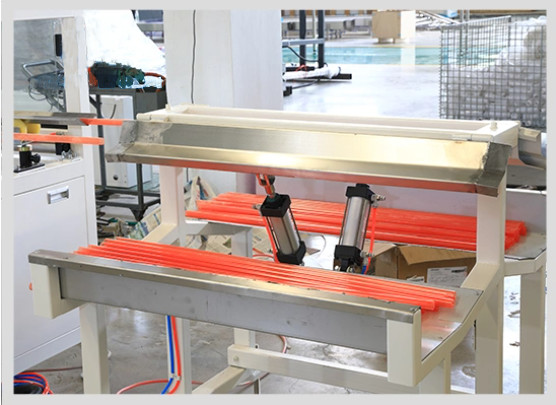

Cutting system adopts no-dust cutter or planetary cutting means; There is dust-collecting system ensures clean working environment.
FEATURES OF PRODUCTION LINE
With high result, low power utilization, less rubbing, lower shearing rate and constrained expelling, the gear has the capacity to create the lines with an excellent and improved productivity. We get the programmed temperature control, degassing unit, and direct current speed guideline which is reasonable for handling PVC dry mix powder into lines, profiles, and sheets. In the interim, our hardware parts are brand with a superior presentation. Our machine idea depends on conservative superior execution expulsion. Furthermore, the affirmations demonstrate our obligation to ideal cycles and obligation regarding our current circumstance. We have refined process innovation and chivalrous administrations which will cause clients to feel insightful and consoling.
SPECIFICATIONS:
| MODEL | PIPE DIAMETER(MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-63A | 16-63 | SJSZ51/105 | 22 AC |
| LB-63B | 16-63(DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-160 | 50-160 | SJSZ65/132 | 37 AC |
| LB-250A | 63-250 | SJSZ65/132 | 37 AC |
| LB-250B | 63-250 | SJSZ80/156 | 55 AC |
| LB-315 | 110-315 | SJSZ80/156 | 55 AC |
| LB-630 | 315-630 | SJSZ92/188 | 110 DC |
