Single Screw HDPE Pipe Extrusion Line Wide Sale High Output 65mm
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
HDPE Single Screw Pipe Extrusion Line,single layer hdpe pipe extrusion,High Output HDPE Pipe Extrusion Line |
||
Product Description
Factory Produced high output single screw HDPE pipe extrusion line wide sale
DESCRIPTION

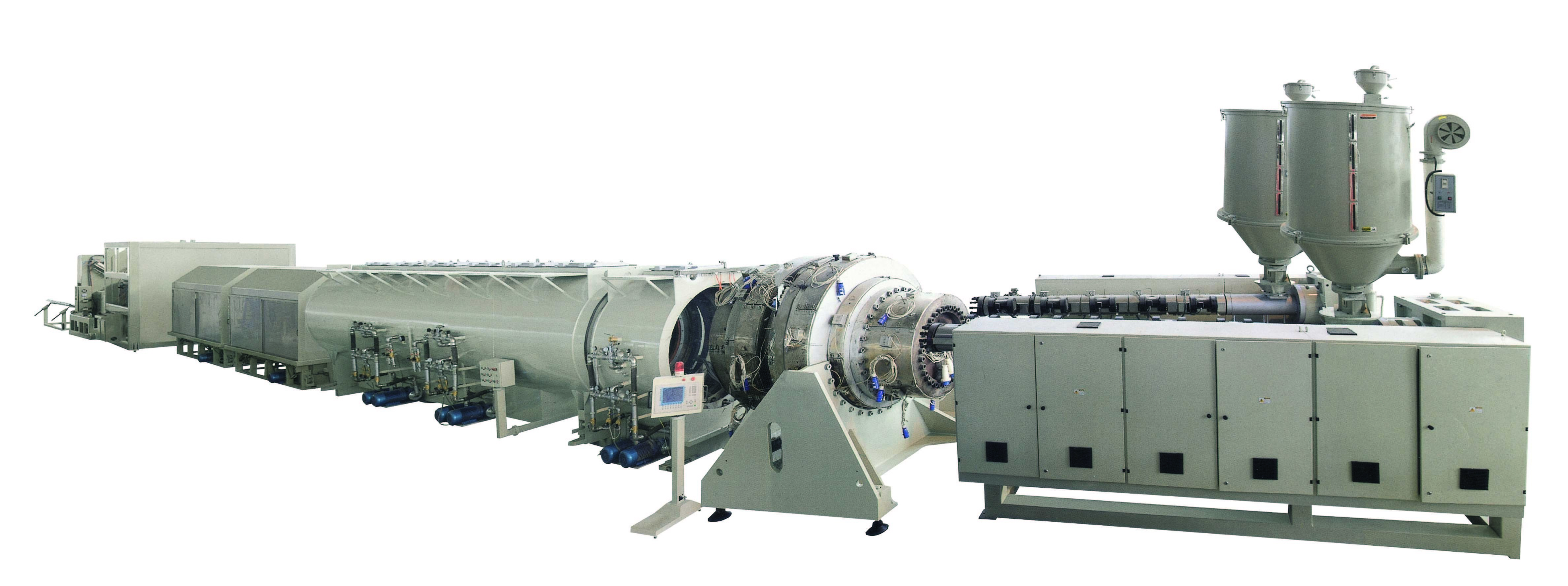

LB Machinery offers complete production line ranging from 16mm to 1200mm. This production line is widely used in producing HDPE water supply pipes, gas supply pipes. Deeply exploring in the pipe extrusion field for several years, we are experienced and sophisticated in the HDPE pipe production line. For different requirements, the production line could be designed as multiply-layer pipe extrusion line.
PROCESSING PROCESS
PE particles—material feeder—single screw extruder—mould and calibrator—vacuum forming machine—two-staged spraying cooling machine—haul-off machine—rapid cutter/Planetary cutter—stacker.
Specifications
| Model | LB63 | LB110 | LB250 | LB315 | LB630 | LB800 |
| Pipe Range | 20-63mm | 20-110mm | 75-250mm | 110-315mm | 315-630mm | 500-800mm |
| Screw Model | SJ65 | SJ75 | SJ90 | SJ90 | SJ120 | SJ120+SJ90 |
| Motor power | 37KW | 55KW | 90KW | 160KW | 280KW | 280KW+160KW |
| Output | 100kg | 150kg | 220kg | 400kg | 700kg | 1000kg |
PRODUCT DETAIL
Single screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.
Mould
The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.
It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.
Vacuum and cooling tank
The vacuum calibration tank adopts stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. The holder in first step of the vacuum calibration tank guarantees the pipe shaped and provides extra power for the pipes moving on.
Haul-off Unit
The ten crawler track on the haul-off machine ensures produced pipe running stably and steady. utilize a unique mechanism to prevent pipe ovality while our unique belt design assures proper pulling without slippage.

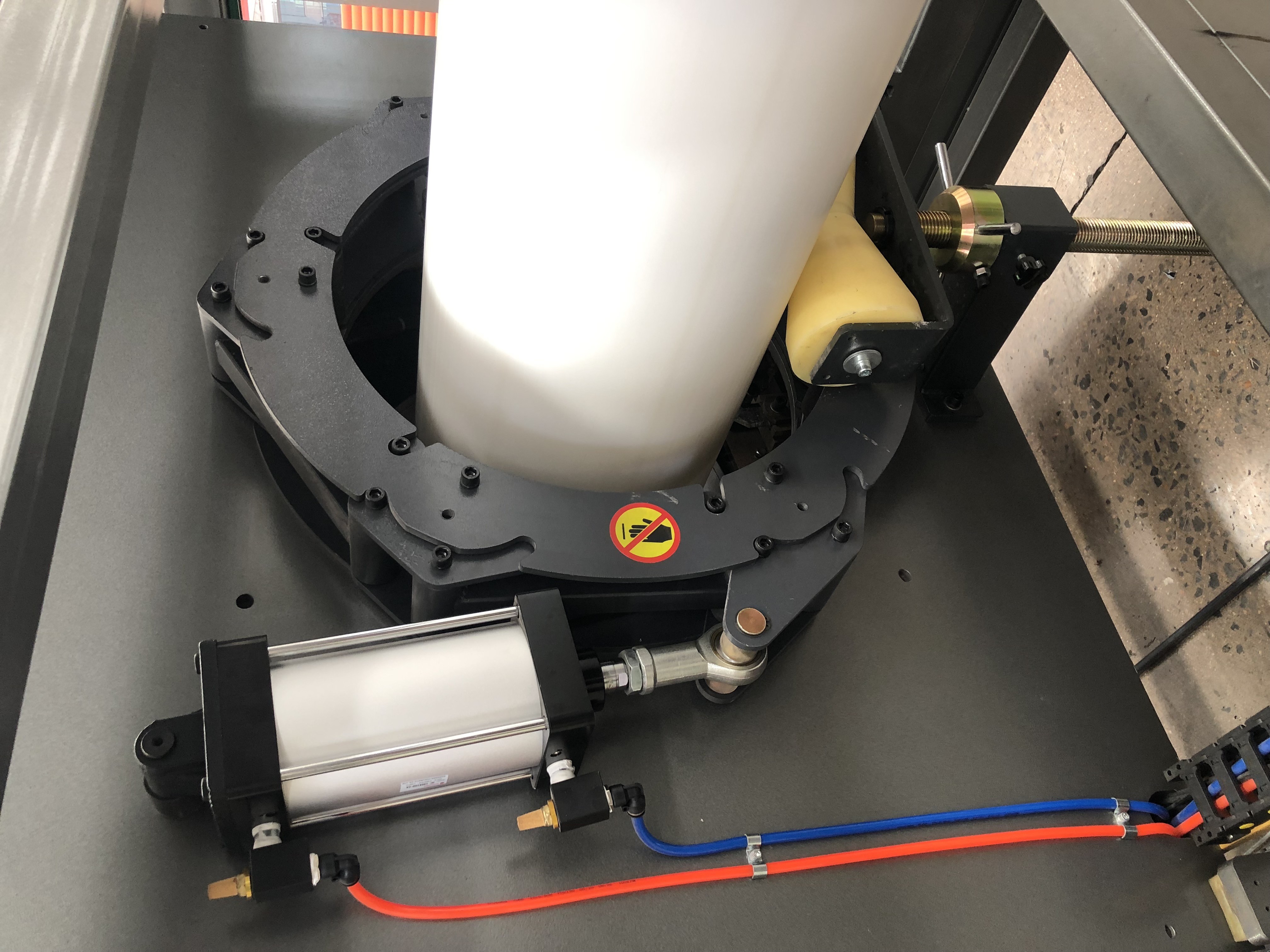

Cutting Unit
We offers two cutting methods including rapid cutter and planetary cutter. In accordance to the
produced pipe material, the cutting way can be switched randomly.
Tipping table
Our Tipping table is made by 304 quality stainless material of iron structure, sturdy structure and heavy load bearing. Our rubber wheel steady hold the pipe product without scratch risk.
