Plastic HDPE Pipe Extrusion Line 75 - 315mm Water Supply

Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply
Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply
Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply Plastic HDPE Pipe Extrusion Line  75 - 315mm Water Supply

Large Image :  Plastic HDPE Pipe Extrusion Line 75 - 315mm Water Supply

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH

Plastic HDPE Pipe Extrusion Line 75 - 315mm Water Supply

Description
Packaging Details: WOODEN BOX Material: PE
Screw Diameter: 65mm LD Ratio: 33:1
Warranty: 1 Year Motor: Siemens
Screw Design: Single-screw Certification: CE,ISO
Voltage: Customer Demand Automatic Grade: Full-automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training Color: Customised
Control: PLC+Touch Screen Processing Type: Extrusion Machine
High Light:

Siemens Plastic HDPE Pipe Extrusion Line

,

Plastic HDPE Pipe Extrusion Line

,

Plastic Pipe Extrusion Line 315mm

Plastic 75-315mm water supply HDPE pipe extrusion line hot sale

Description

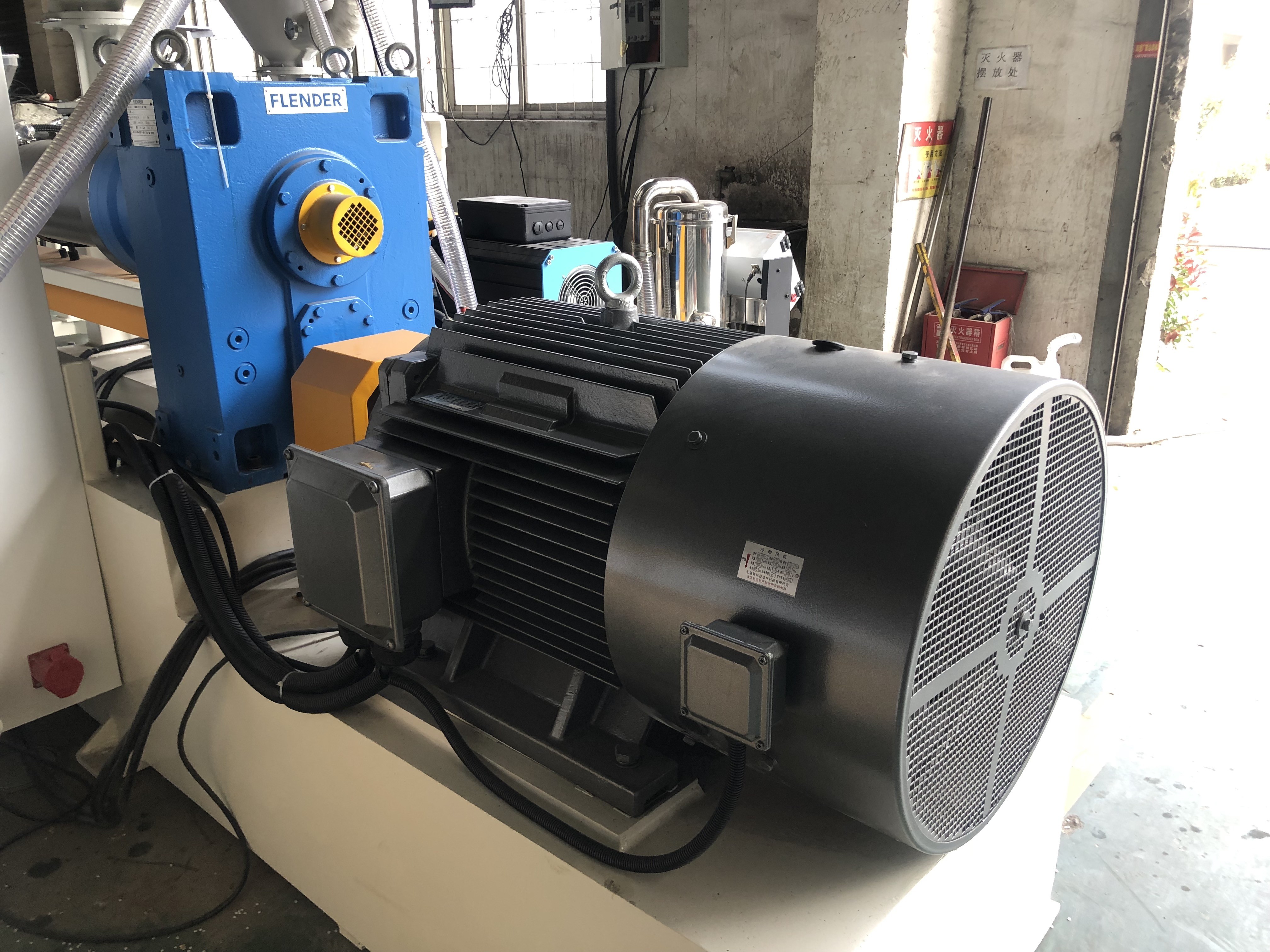

With vast experience in the HDPE single and multi layer pipe extrusion field, our company made a 75-315mm HDPE pipe extrusion machine line. We adopt 160kw motor, Flender gearbox, Siemens PLC control system. For the multi layer HDPR pipe, inner and outer layer used virgin material and the medium layer used recycling material. It is a good way to save the capital of the raw material.

Specifications

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER
LB-63 20-63 SJ65/33 55AC
LB-110 20-110 SJ65/33 55AC
LB-160 75-160 SJ75/33 90AC
LB-250 90-250 SJ75/33 110DC
LB-315 110-315 SJ90/33 160DC



Product detail

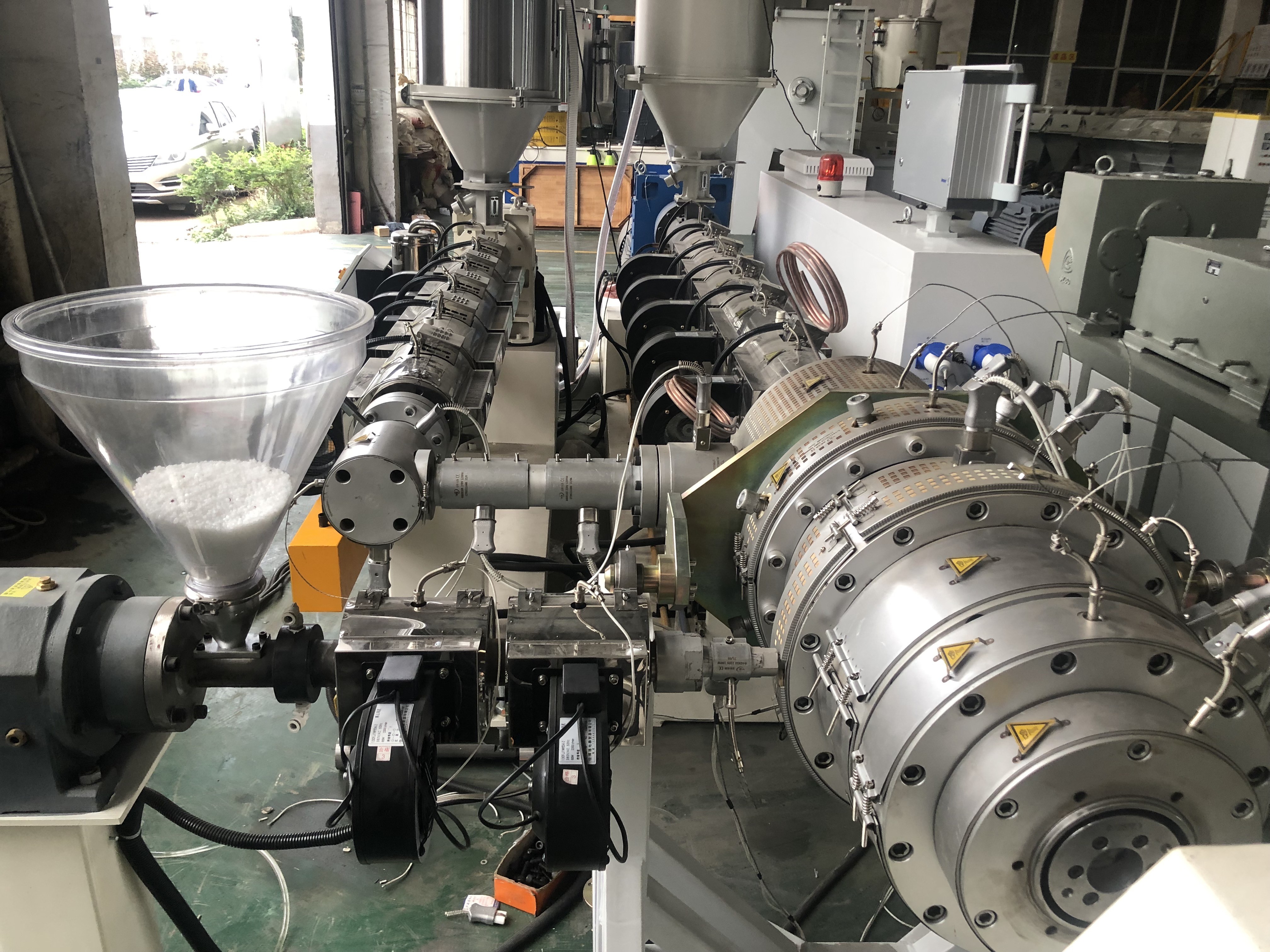

Co-extrusion extruder

Making the multi-layer HDPE pipe, three extruders were needed. The main extruder is extruding the inner and outer layer with 160kw. Another is extruding the medium layer with 75kw. Another small extruder is line maker extruder. All the electrical elements were Schneider.

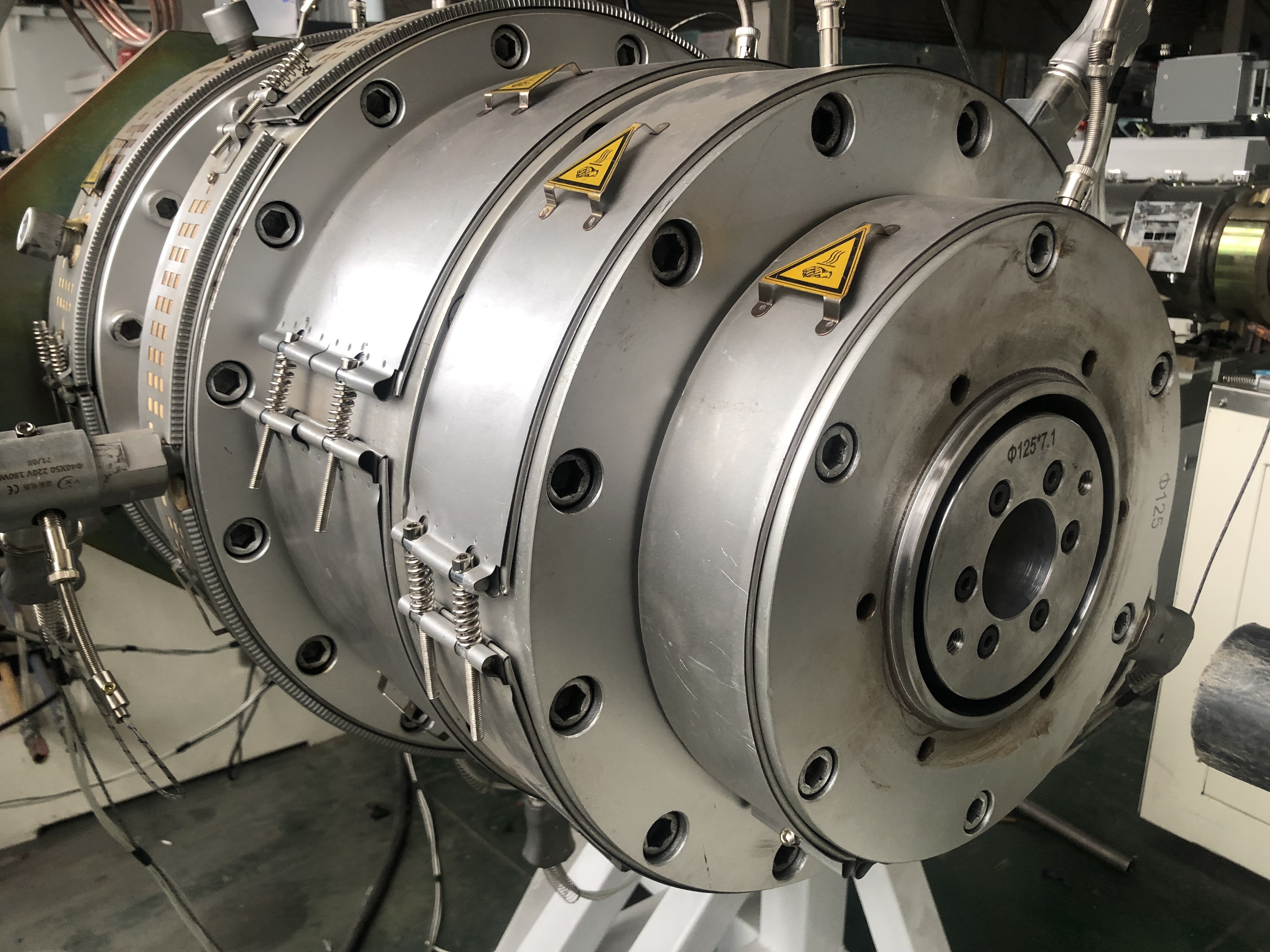

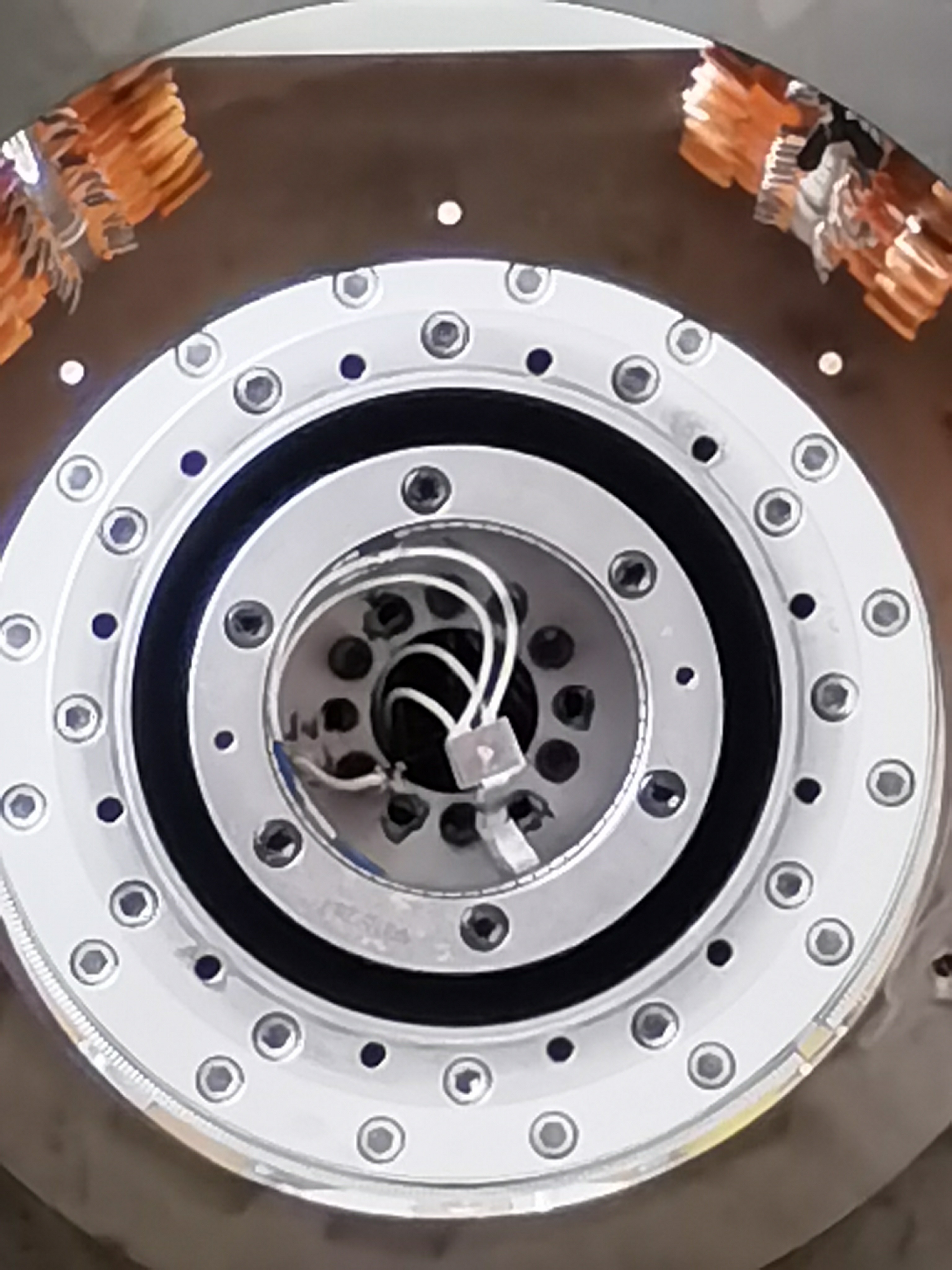

Mould

The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect. It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.

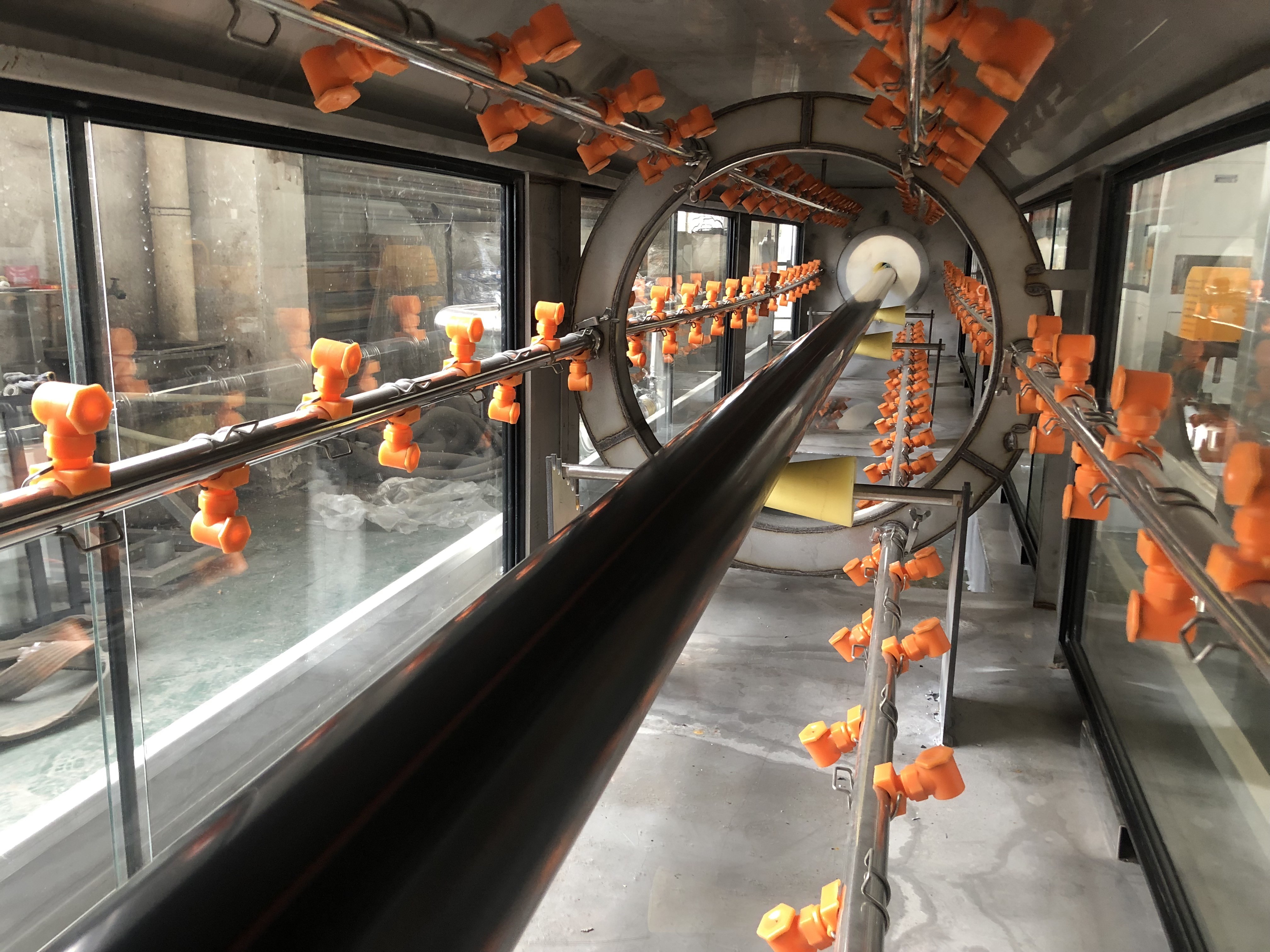

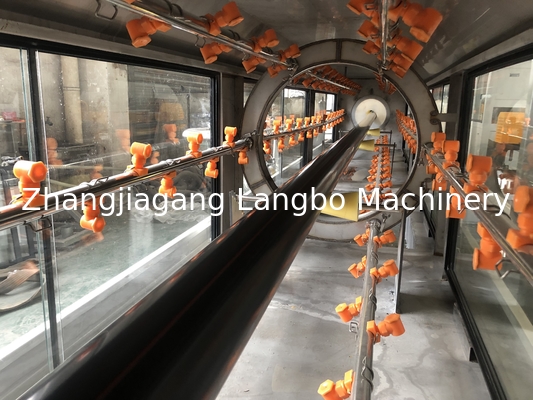

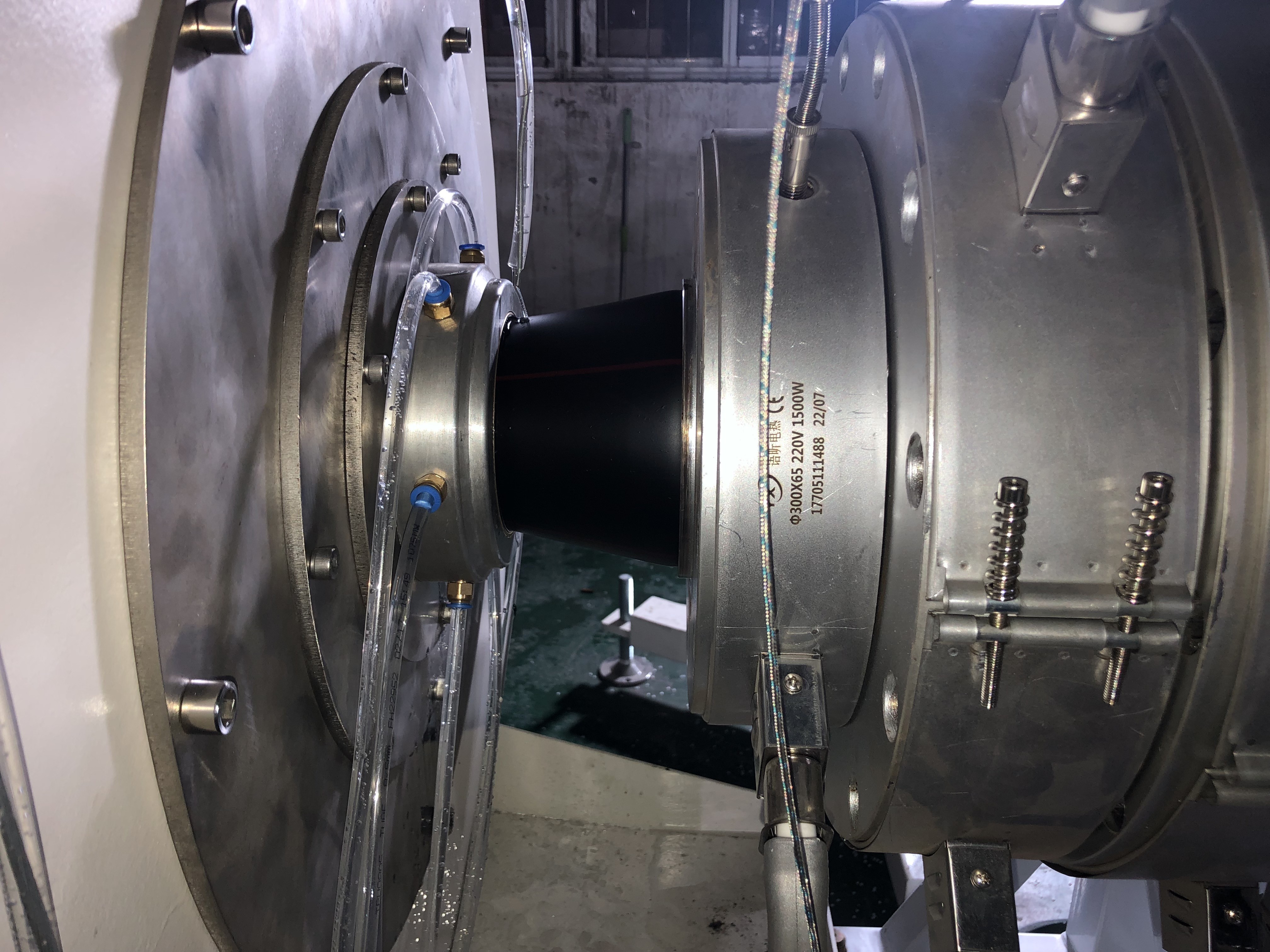

Vacuum and cooling tank

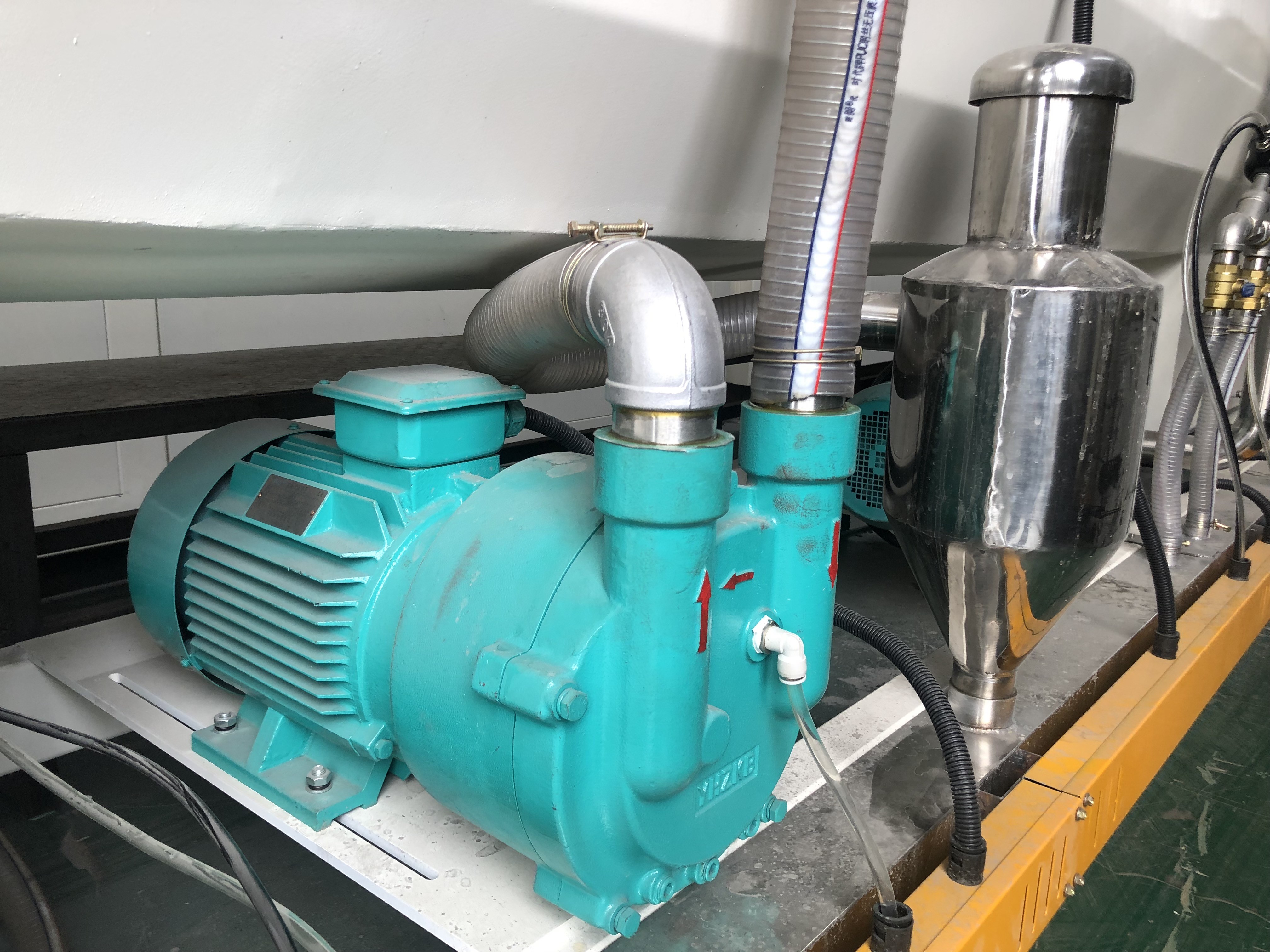

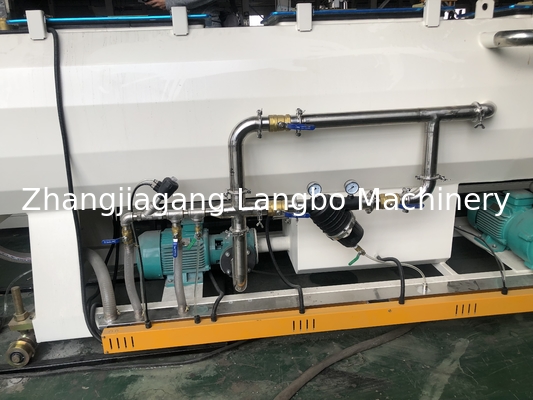

This line adopts 6m vacuum and 8m cooling tank equipped with 2 vacuum pumps and 4 water pumps. The cooling tanks have enough nozzles continuously providing cold water to cool the pipe. After enough length of the pipe, the product is smooth and sturdy.



Laser Printer

The laser printer has smart system and encoder. It will be automatically printing at the exact length. We just program it and it will print the logo, type, diameter and any other needed.



Haul-off Unit

The three caterpillar haul-off machine ensures the HDPE pipe running stably and steady. Our unique haul-off design assures proper pulling without slippage. And the control speed is program and automatically control as the extruding speed.



Cutting Unit

We offers no-dust cutting method. The sharp cut ensure the smooth of the pipe and the cutting action happens automatically.
