Water Supply HDPE Pipe Extrusion Machine 1600mm High Capacity 150kg / H
Product Details
| Plastic Processed: | PE Granule | Condition:: | New |
|---|---|---|---|
| Pipe Diameter: | 20mm-1600mm | Output(kg/h):: | 150kg/h-1500kg/h |
| Warranty: | 1 Year | Screw Type: | Single-screw |
| Place Of Origin:: | Zhangjiagang Jiangsu,China | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | ||
| Highlight |
Water Supply HDPE Pipe Extrusion Line,1600mm HDPE Pipe Extrusion Line,150kg / h HDPE Pipe Extrusion Machine |
||
Product Description
High Capacity Water Supply HDPE Pipe Extrusion Machine
PE PIPE PRODUCTION LINE
LB Machinery offers complete production line ranging from 16mm to 1200mm. This production line is widely used in producing HDPE water supply pipes, gas supply pipes. Deeply exploring in the pipe extrusion field for several years, we are experienced and sophisticated in the HDPE pipe production line. For different requirements, the production line could be designed as multiply-layer pipe extrusion line.
FEATURES OF PE PIPE EXTRUSION LINE:
The high efficiency extruder is designed for HDPE pipes, equipped with reducer which obtain the high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS:
Single screw extruder

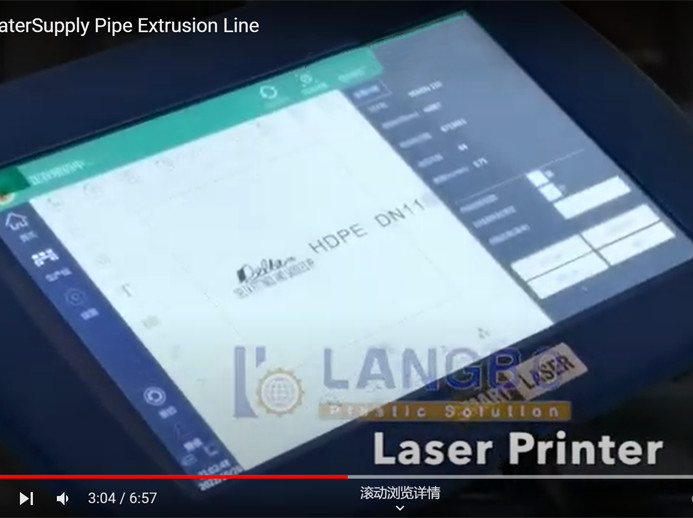

Co-extruder: manufacturing marking line on pipe or multilayer of pipes

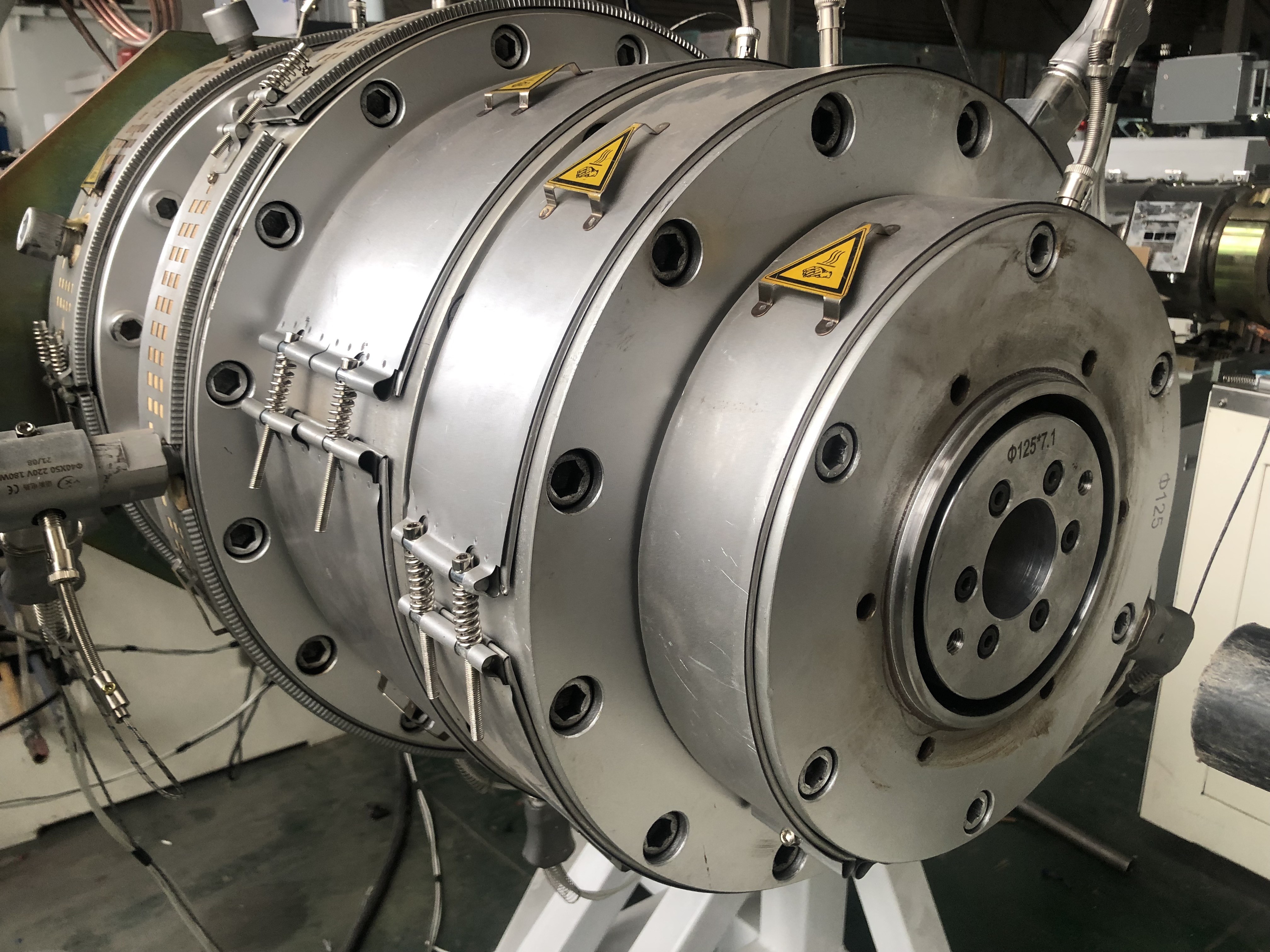

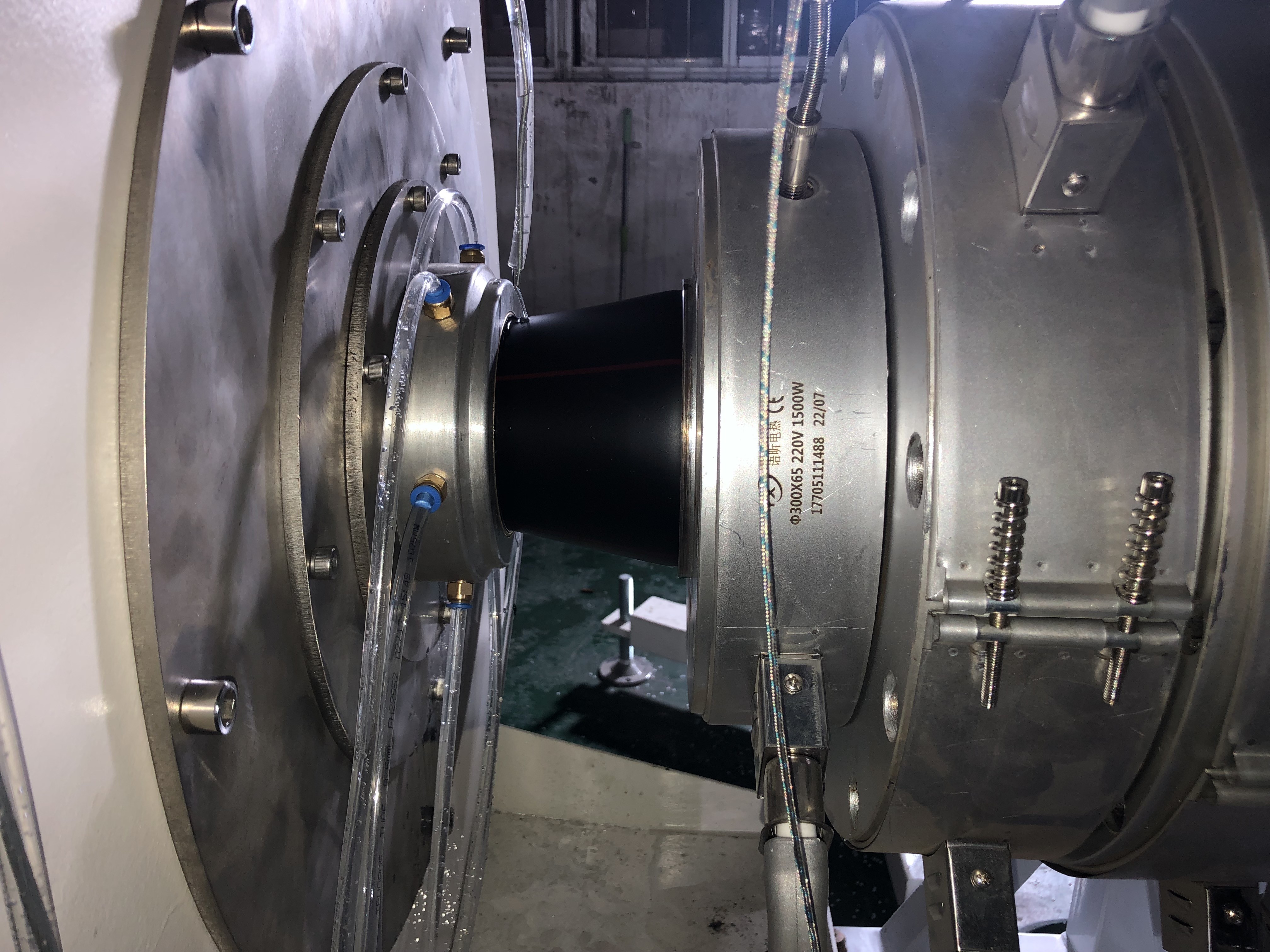

Die head

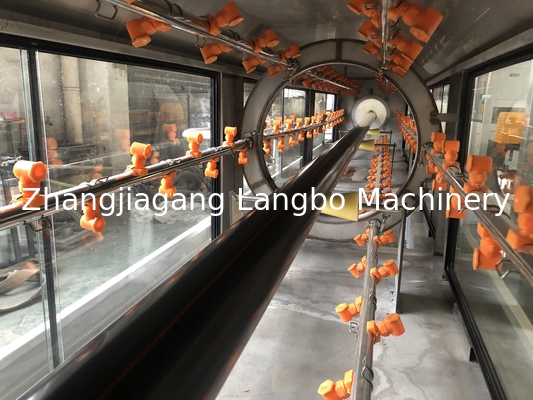

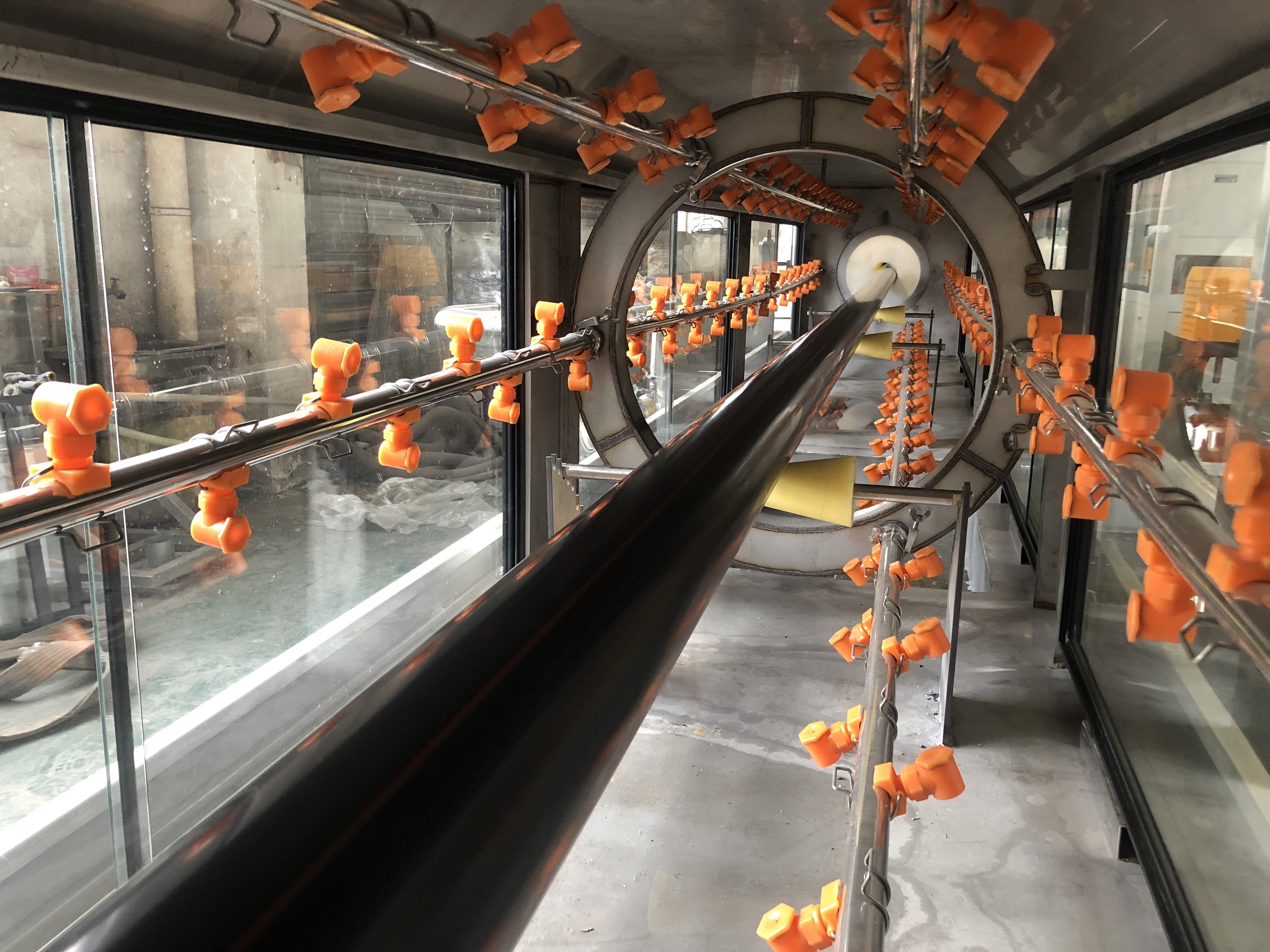

Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
Cooling tank: due to diameter, the numbers of cooling tank canbe one, two or three

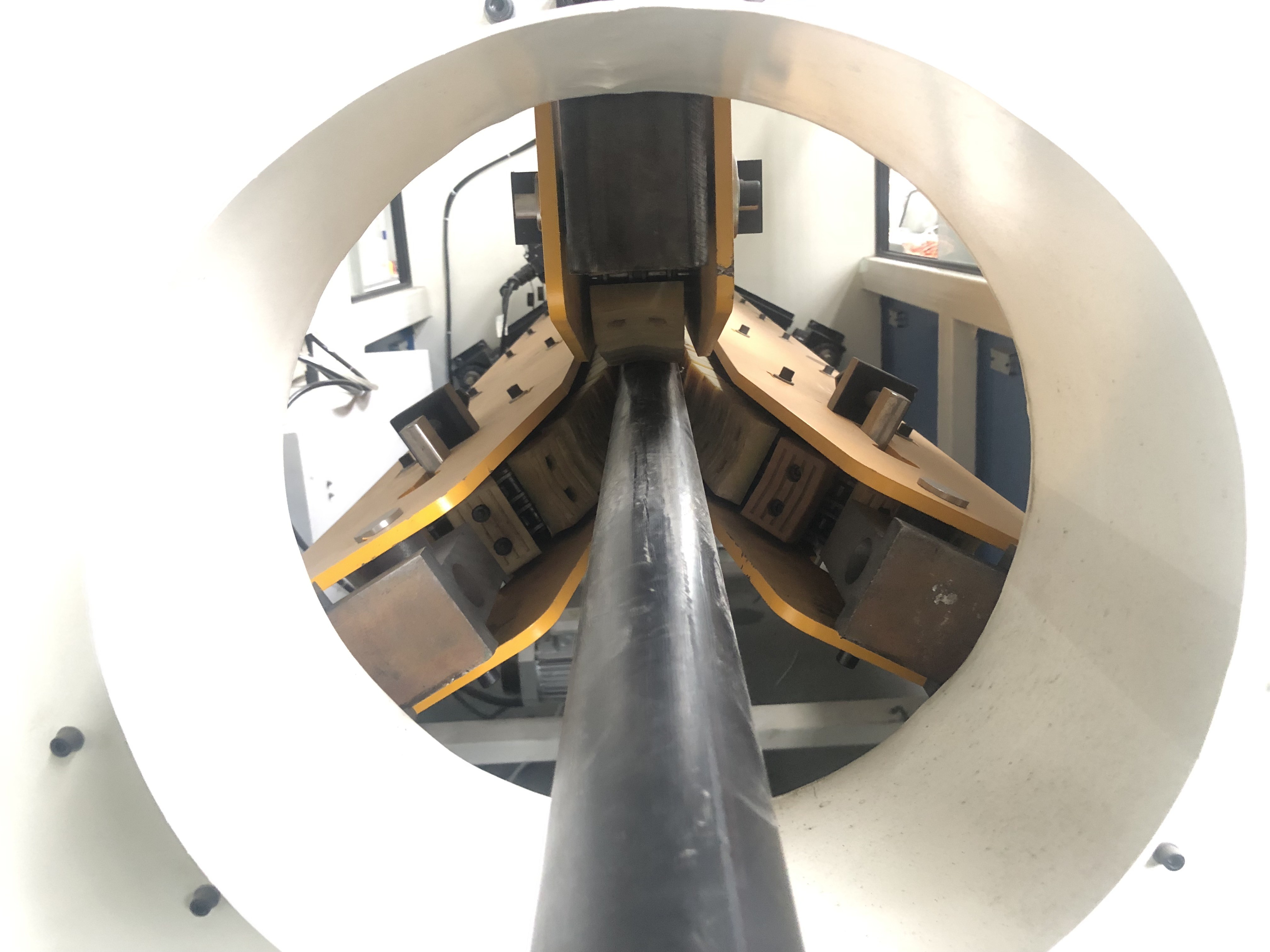

Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve s
Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter
Coiler/ Tipping chute
