Name: PE Pipe Single Screw Extruder 210KW 75/38 High Capacity
Brand: Zhangjiagang Langbo Machinery Co. Ltd.
SKU: LB-25, LB-150
Price: 25,000.00 USD
Availability: InStock

PE Pipe Single Screw Extruder 210KW 75/38 High Capacity

1 SET

MOQ

USD, EUR

Price

Features Gallery Product Description Request A Quote

Features

Specifications

MOTOR POWER: 160-210KW

SCREW CONCEPT: SINGLE SCREW

CAPACITY: 550KG-600KG

MOTOR BRAND: SIEMENS

GEARBOX BRAND: FLENDER

WARRANTY: 12 MONTHS

PROCESSING MATERIAL: PR OR PPR

MACHINE BRAND: LANGBO

Highlight:

PE Pipe Single Screw Extruder

210 KW Single Screw Extruder

75/38 High Capacity Single Screw Extruder

Basic Infomation

Place of Origin: ZHANGJIAGANG

Brand Name: LB

Certification: CE, ISO

Model Number: LB-25, LB-150

Payment & Shipping Terms

Packaging Details: STANDARD PACKAGE

Delivery Time: 45 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 15 SETS PER MONTH

Gallery

PE Pipe Single Screw Extruder 210KW 75/38 High Capacity

Product Description

75/38 High Capacity PE Pipe Single Screw Extruder

SINGLE SCREW EXTRUDER TYPES:

Extruder has two types including single screw and twin screw extruder. The single screw has simper structure and high output capacity. It mostly has 60/38, 75/38, 90/38, 120/38 and so on.

For the single screw extruder, it has driving motor, gearbox, screw&barrel, control system.

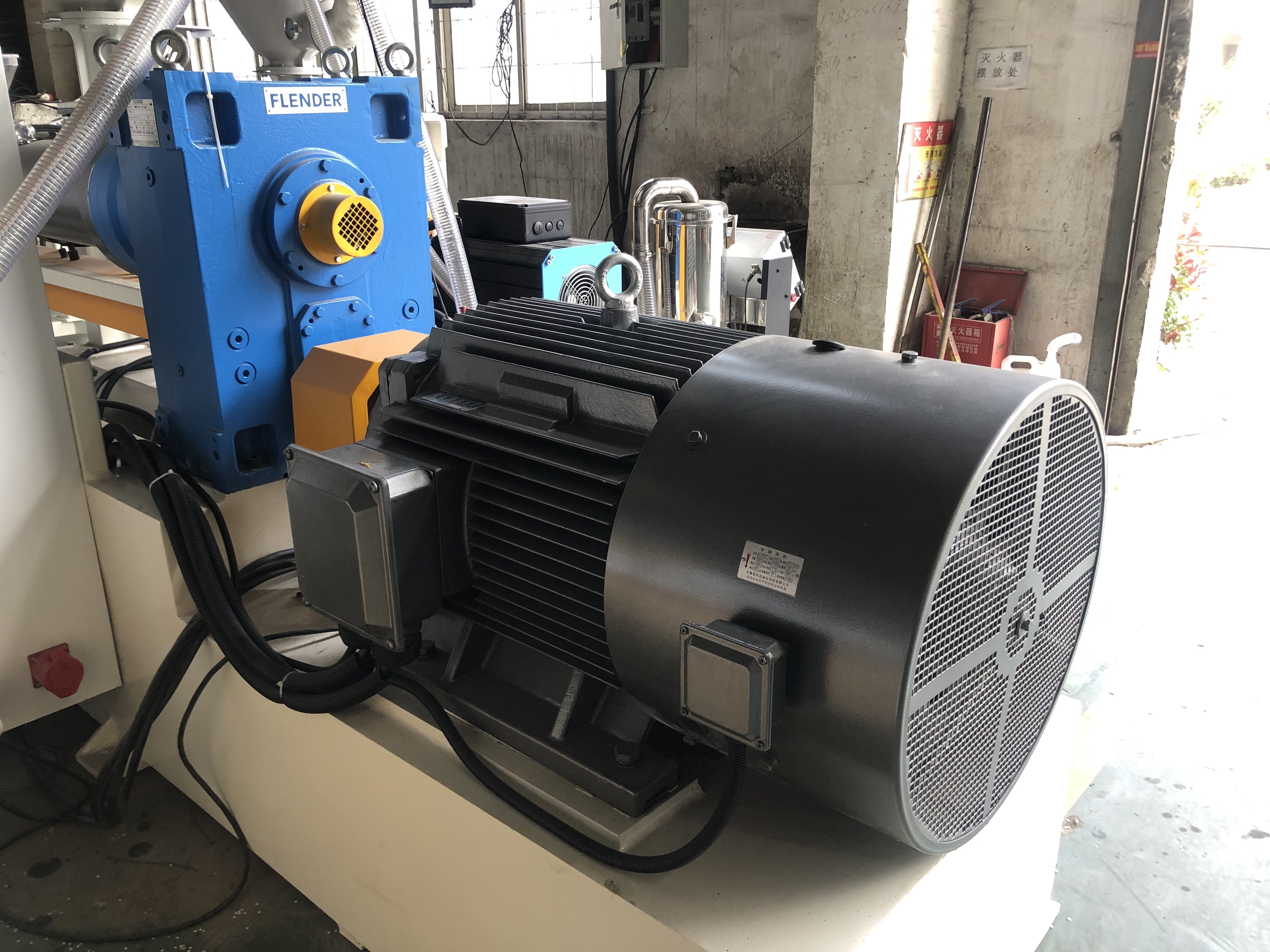

Driving motor: equipped with famous brand motor as driving source.
Gearbox: equipped with famous brand gearbox to ensure the maximum output of power
Screw & barrel: both the screw and barrel adapted the designing of combined of independent teeth and mixing components together for screw and the feeding groove and longer feeding section together for barrel to get the optimizing plasticizing and capacity.
Control system: equipped with famous brand electrical components ensure to get the accurate control

SPECIFICATIONS:

Model	Screw diameter (mm)	L/D	Rotary speed (rpm)	Motor power (kw)	Capacity (kg/hr)
SJ25/25	25	25:1	25-130	1.5 AC	1-3
SJ30/25	30	25:1	25-150	5.5 AC	2-8
SJ45/30/33	45	30:1,33:1	8-100	7.5 /15 AC	4-50
SJ65/30/33	65	30:1,33:1	12-150	37/55 AC	50-120/50-250
SJ75/30/33	75	33:1	12-120	90 DC	50-350
SJ90/30/33	90	33:1	10-120	90/160 DC	100-320/100-550
SJ120/30/33	120	33:1	9-90	160/250 DC	200-500/200-800
SJ150/30/33	150	33:1	7-75	250/315 DC	300-800/500-1200

PE Pipe Single Screw Extruder 210KW 75/38 High Capacity 0
