400kg / H High Capacity PVC Pipe Extrusion Line 20 - 63mm
Product Details
| PIPE DIAMETER: | 16-63 | EXTRUDER'S POWER: | 75kw |
|---|---|---|---|
| VACUUM PUMP: | 4KW | WATER PUMP: | 4KW |
| Voltage: | 380V 50HZ | AUTOMATIC DEGREE: | FULL AUTOMATIC |
| RAW MATERIAL: | PVC RESIN | Screw Design: | Double-screw |
| Warranty: | 1 Year | ||
| Highlight |
PVC Pipe Extrusion Line 63mm,PVC RESIN Pipe Extrusion Line,400kg/h PVC Pipe Extrusion Line |
||
Product Description
20-63mm 400kg/h High Capacity PVC Pipe Extrusion Line
Short description:
This line is applied to produce 32-63mm pvc pipe. Its output capacity can be up to 400kg/h. This line adopt double stand design. It can make two pvc pipe at the same time. By this way, it highly increased the capacity. Our motor drive is -Beide. And the control cabinet and the haul-off machine have smart control.
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER |
| LB-63A | 16-63 | SJSZ51/105 | 22 AC |
| LB-63B | 16-63(DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-160 | 50-160 | SJSZ65/132 | 37 AC |
| LB-250A | 63-250 | SJSZ65/132 | 37 AC |
| LB-250B | 63-250 | SJSZ80/156 | 55 AC |
Essential details:
Place of Origin:Jiangsu, China (Mainland) Brand Name: Langbo
Plastic Type: PVC Production Capacity (kg/h): 400
Making pipe diameter: 20-63mm Haul off type: Belt haul off
Machine Type: PVC Double Strand Extrusion Line Max.Production Capacity (kg/h): 600-800
Voltage: 380V,3Phase,50HZ(customerized) Power (kW):55kw
Warranty:1 years Key Selling Points:High quality
Product detail

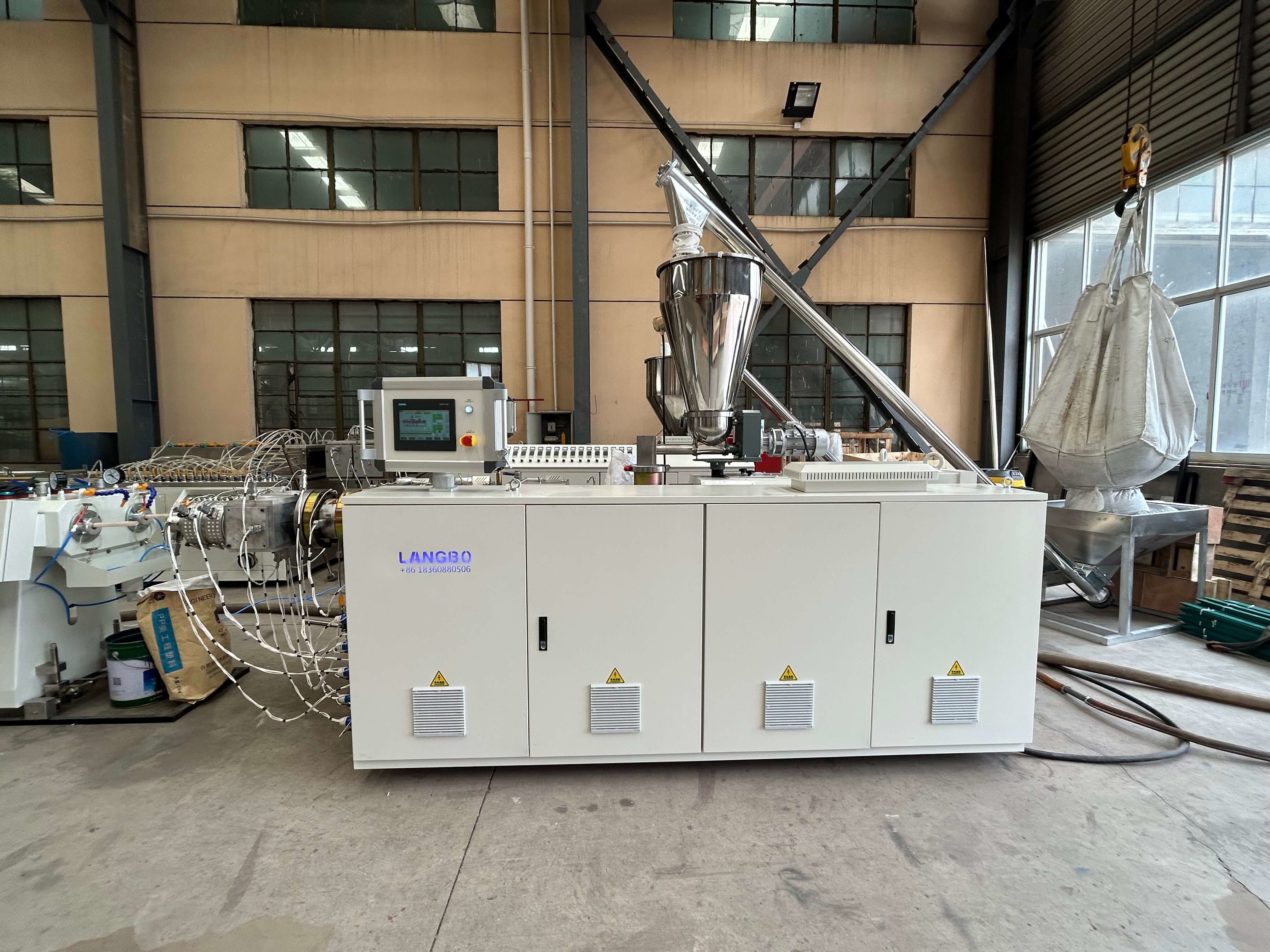

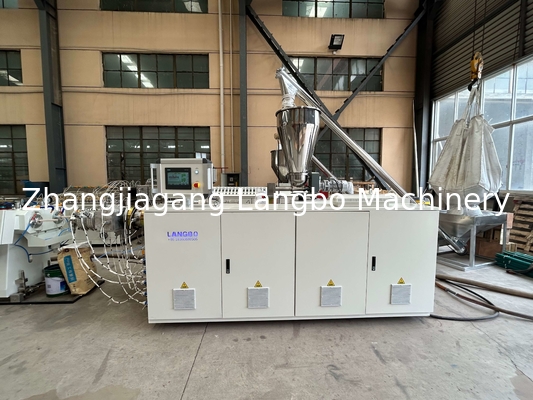

Twin screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency.

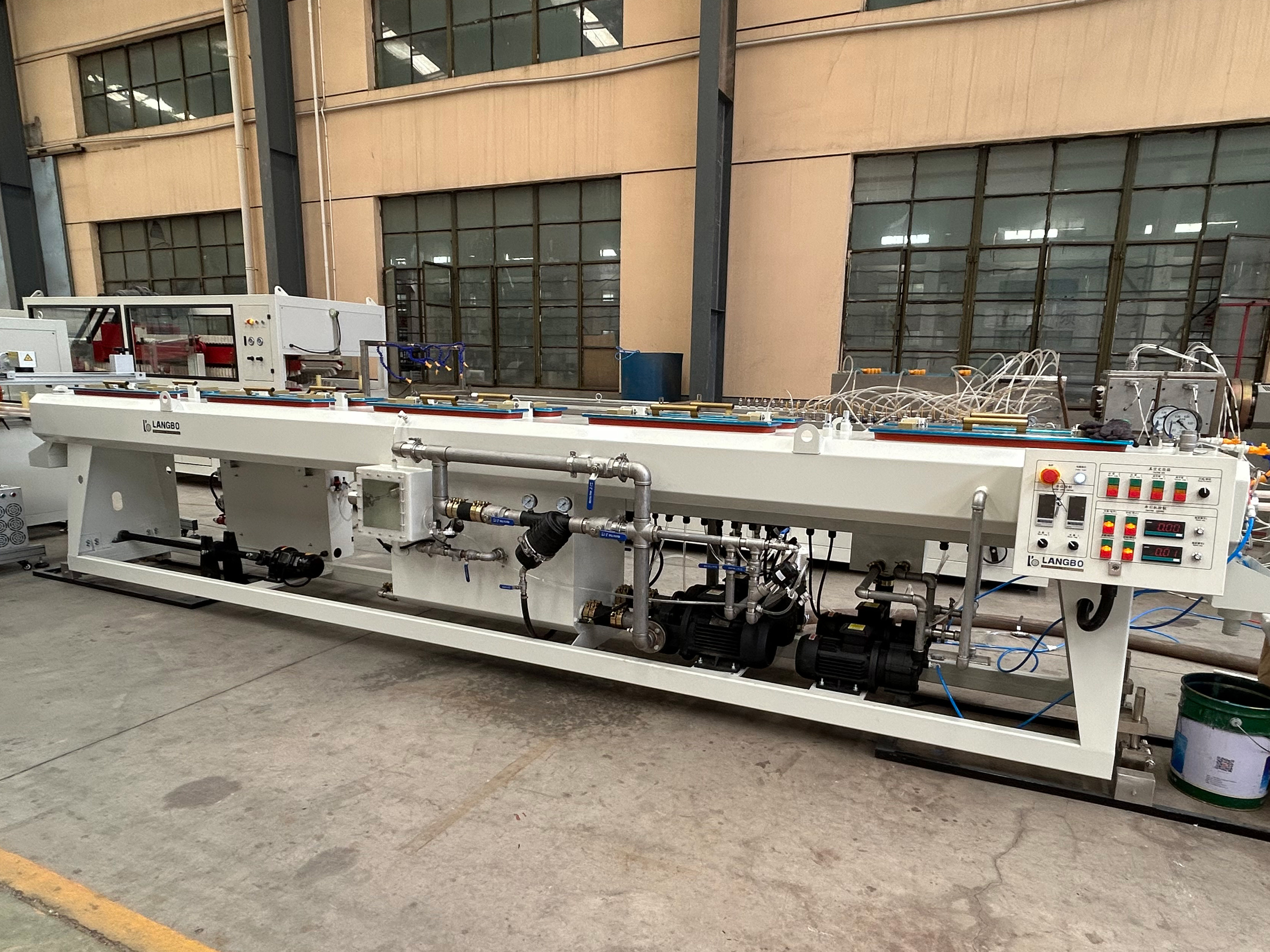

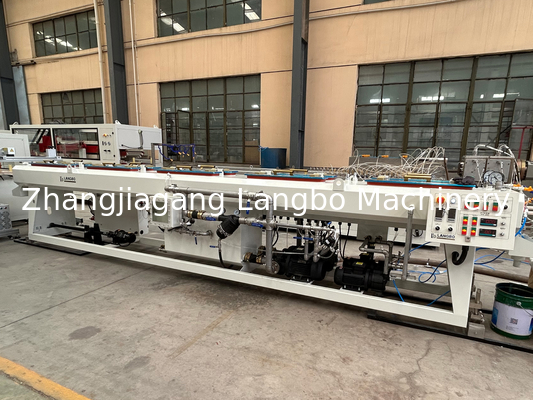

Vacuum Calibration & Cooling
It has 6 meter long with several water nozzle for cooling. Our worker installed and adjusted the position carefully in order to make good utilization. It is full of water nozzle. And the double strand pvc pipe will be gone through the water. This way is useful for the cooling and makes pipe harder.

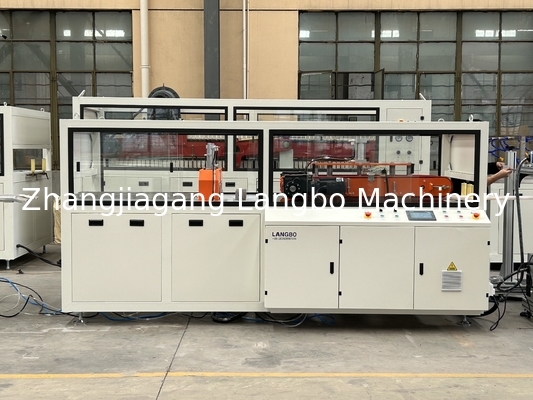

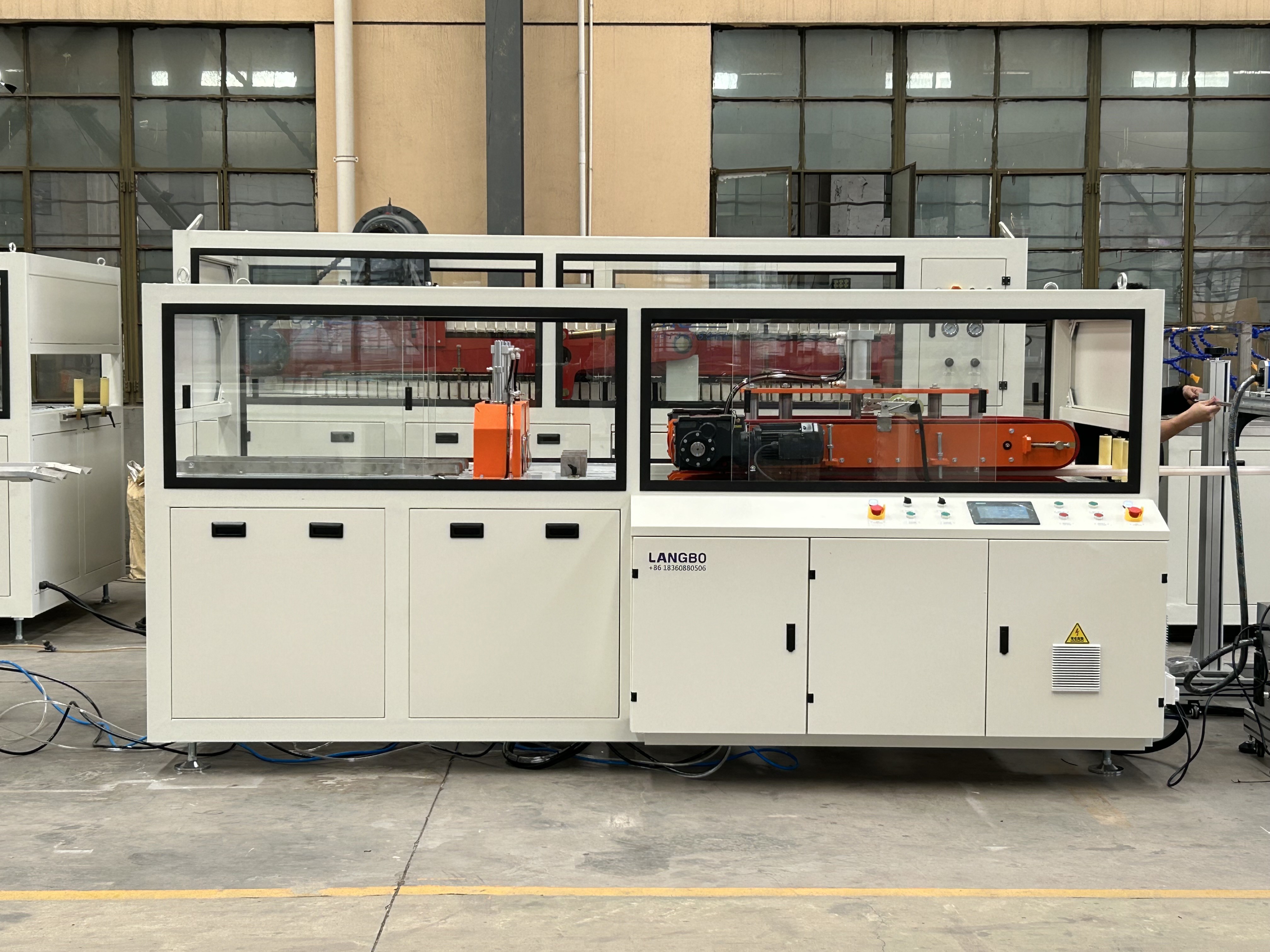

Haul-off and cutter combination
We adopt two belt haul-off machine. It can haul off two pvc pipe at the same time. On its behind is the cutter. It has coder. It counts the length of the pipe and cut at the exact point. And finally all the pvc pipe will be same length and easy for transporting and packing.

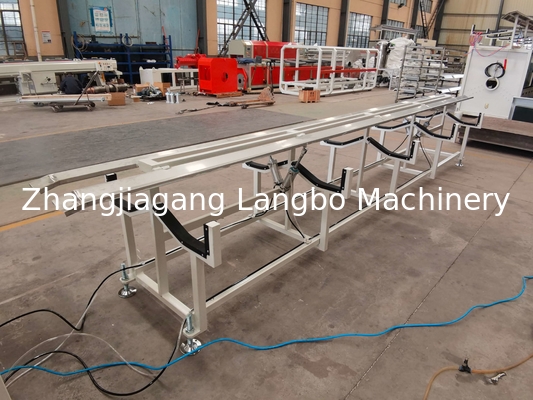

Stacker
It is the holder for the pvc pipe. The pipe will be lying on there. And workers can pack them one by one
