Embossed WPC Outdoor Profile Extrusion Line 400KG/H 75KW
Product Details
| EXTRUDER TYPE: | CONICAL TWIN SCREW EXTRUDER | MOTOR DRIVE: | 75KW |
|---|---|---|---|
| RAW MATERIAL: | WPC & ADDITIVES | OUTPUT CAPACITY: | 400KG/H |
| PROCESSING METHOD: | FLUSHING | WARRANTY: | 12 MONTHS |
| APPLICATION: | OUTDOOR FLOOR | ||
| Highlight |
Embossed Outdoor WPC Profile Extrusion Line,WPC Outdoor Profile Extrusion Line 400KG/H,75KW WPC Outdoor Profile Extrusion Line |
||
Product Description

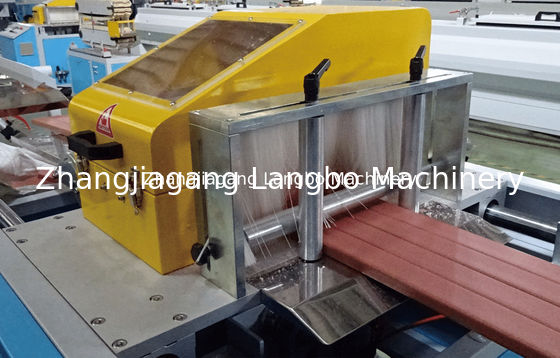

400KG/H Embossed Outdoor WPC Profile Extrusion Line
Short Description:
The wpc profile has two kinds. One is pvc profile + lamination machine. One is PP/PE +wood powder. The raw material different, the layout of the whole extrusion line differ. Recent years, as the wood powder price rising, more and more manufacture produces pvc profile and laminate different film on it. By this way, the cost of the product has decreased and more situation can use. The pvc type wpc is mainly used as decoration. The PP/PE type wpc is mainly used as wpc floor.
Specifications:
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 110 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 92 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
Essential details:
Place of Origin:Jiangsu, China (Mainland) Brand Name: Langbo
Plastic Type: PVC/PP/PE Production Capacity (kg/h): 200-400
Machine Type: Extrusion Line Max.Production Capacity (kg/h): 600-800
Voltage: 380V,3Phase,50HZ(customerized) Power (kW):15-110kw
Warranty:1 years Key Selling Points:High quality
Extrusion lines for WPC profile:
With LANGBO MACHINERY polywood technology, it is possible to obtain WPC profiles composed of natural fiber up to 80%, with features that make them better than wood in terms of reliability, performance and production costs. LANGBO MACHINERY also produces systems for the manufacture of WPC granules, which in turn can be transformed in finished product through molding or extrusion.
LANGBO MACHINERY builds profile extrusion machine lines suitable for the production of WPC granules with high-quality mechanical features, starting from renewable raw materials selected for environmental protection. These lines are fully customisable and highly efficient at any production output, thanks to the innovative extruders and the wide range of modular accessories. Ease of use and time saving for maintenance and cleaning are always our goals during the study and design of our granulation lines.
Product Highlights
400KG/H Embossed Outdoor WPC Profile Extrusion Line Short Description: The wpc profile has two kinds. One is pvc profile + lamination machine. One is PP/PE +wood powder. The raw material different, the layout of the whole extrusion line differ. Recent years, as the wood powder price rising, more and ...
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing pipes with various diameters and wall thickness specifications. Applications The manufactured UPVC pipes serve multiple applications including electrical conduit systems, water supply
50-250MM HDPE Pipe Making Machine Single-Screw Full-Automatic PE Pipe Extrusion Line
50-250MM HDPE Pipe Making Machine Extrusion Production Line Product Overview The HDPE pipes with large diameter are typically applied for fuel gas and water supply systems. These pipes feature excellent characteristics including heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, and good creep resistance. They serve as preferred conduits for ductwork systems and water supply networks between cities and suburbs. PE Pipe
Gas Water PE Pipe Extrusion Line Single Outlet 4 - 9m / Min Capacity
PE Pipe Extrusion Line HDPE gas water pipe machine, PE gas pipe extrusion line Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system. plastic machine Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. PE PIPE PROCUTION LINE MAIN COMPONENTS: No Equipment Quantity 1 Vacuum loader and hopper dryer 1set 2 Single screw extruder 1set 3 Die-head 1set 4 color line
Decoration PVC Foam Board Extrusion Line 45 / 90mm Double Screw Diameter
PVC free foam sheet production line/foam board extrusion line / PVC foam decoration sheet production line Products characteristics 1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc. 2) Color-way is not changed long time and not easy to aging under radiation resistance 3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig.It is
Please use our online inquiry contact form below if you have any questions, our team will get back to you as soon as possible.
