Water Supply HDPE Pipe Making Machine 16 - 63mm 250kg / H
Product Details
| Raw Material: | PE Granule And Masterbatch | Automatic Degree: | Full Automatic |
|---|---|---|---|
| Pipe Diameter: | 16mm-63mm | Output(kg/h):: | 250kg/h-300kg/h |
| Warranty: | 1 Year | Motor: | Beide |
| Screw Type: | Single Screw Extruder | Inverter: | Schnider |
| Voltage: | 380V 50Hz Or Customized | Coiler: | Double Disk |
| Highlight |
HDPE PE Pipe Extrusion Machine,HDPE Pipe Extrusion Machine 63mm,250kg/h HDPE Pipe Extrusion Machine |
||
Product Description
Water Supply 16-63mm HDPE Pipe Making Machine
PE PIPE PRODUCTION LINE
As the world developed, many country starts to invest more time and money on the infrastruction field. Therefore the water supply pipe has widely used in the whole world especially the african countries. We could see the 16-63mm PE pipe everywhere abroad. And many pipe industries are also producing this diameter pipe to satify the new demand. Our PE extrusion line has very high output capacity and high stability. It has a long working time and less stoping time. It wins many applauds by our customers. We hold the mind of long-term business and always provide good quality machine.
FEATURES OF PE PIPE EXTRUSION LINE:
The high efficiency extruder is designed for HDPE pipes, equipped with reducer which obtain the high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |

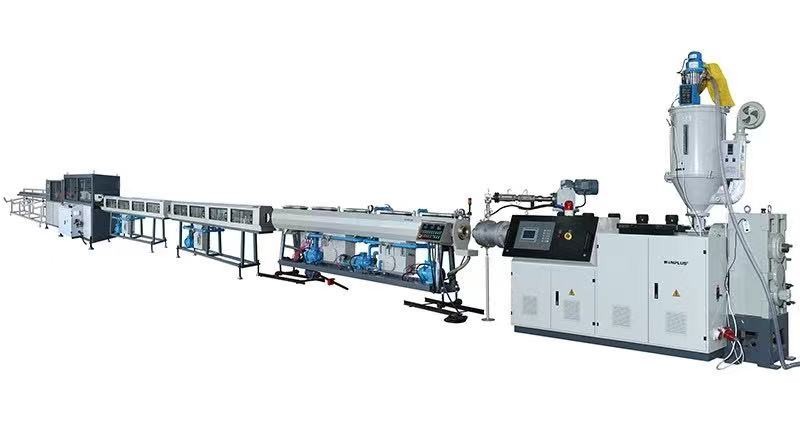

THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS:
Single screw extruder
Co-extruder: manufacturing marking line on pipe or multilayer of pipes
Die head
Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
Cooling tank: due to diameter, the numbers of cooling tank canbe one, two or three
Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve s
Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter

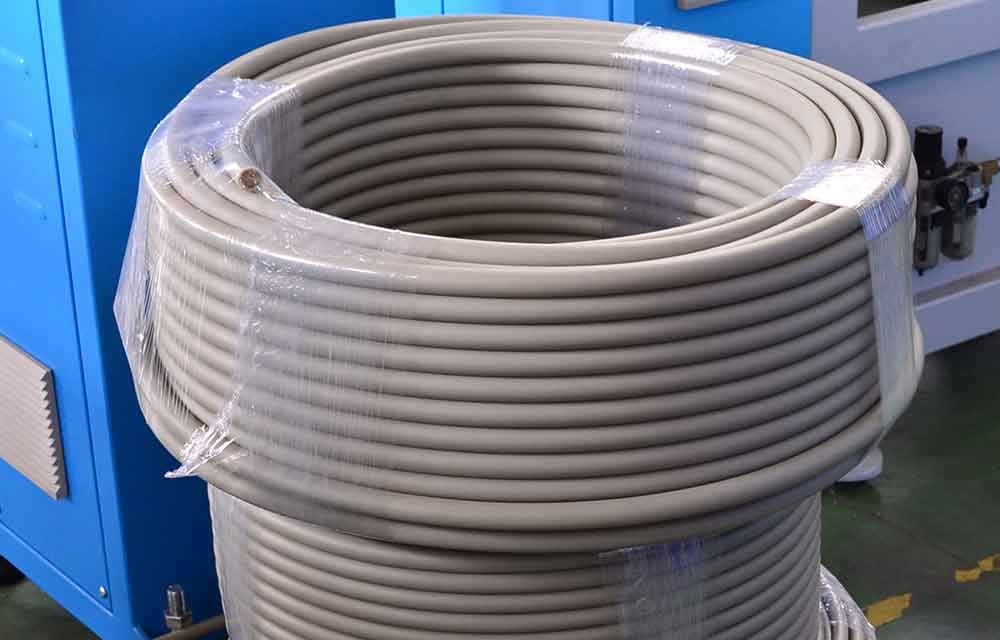

Coiler/ Tipping chute
