Double Layer WPC Profile Extrusion Line High Capacity 37KW
Product Details
| EXTRUDER TYPE: | CONICAL TWIN SCREW EXTRUDER | MOTOR DRIVE: | 37KW |
|---|---|---|---|
| RAW MATERIAL: | Pp/pe +wood | OUTPUT CAPACITY: | 400KG/H |

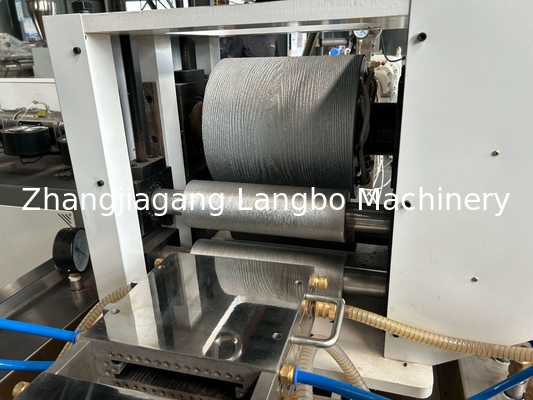

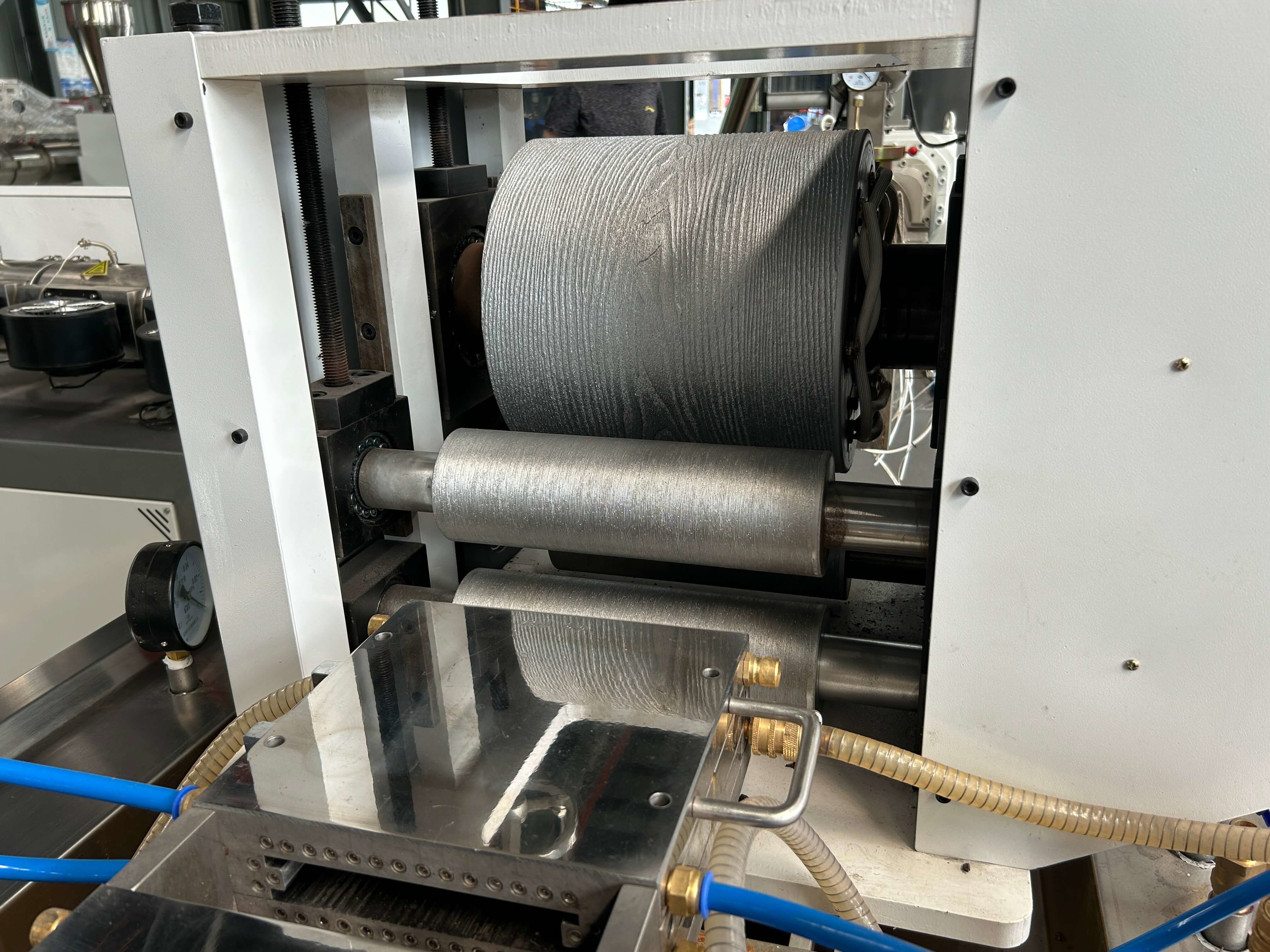

| PROCESSING METHOD: | Embossing | WARRANTY: | 1 Year |
| APPLICATION: | Floor | ||
| Highlight |
Double Layer WPC Profile Extrusion Line,400KG/H WPC Profile Extrusion Line,37KW WPC Profile Extrusion Line |
||
Product Description
Double Layer High Capacity WPC Profile Extrusion Line
Short Description:
The wpc profile has two kinds. One is pvc profile + lamination machine. One is PP/PE +wood powder. The raw material different, the layout of the whole extrusion line differ. Recent years, as the wood powder price rising, more and more manufacture produces pvc profile and laminate different film on it. By this way, the cost of the product has decreased and more situation can use. The pvc type wpc is mainly used as decoration. The PP/PE type wpc is mainly used as wpc floor.
Specifications:
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 110 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 92 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
Essential details:
Place of Origin:Jiangsu, China (Mainland) Brand Name: Langbo
Plastic Type: PVC/PP/PE Production Capacity (kg/h): 200-400
Machine Type: Extrusion Line Max.Production Capacity (kg/h): 600-800
Voltage: 380V,3Phase,50HZ(customerized) Power (kW):15-110kw
Warranty:1 years Key Selling Points:High quality
Co-extrusion lines for WPC profile:

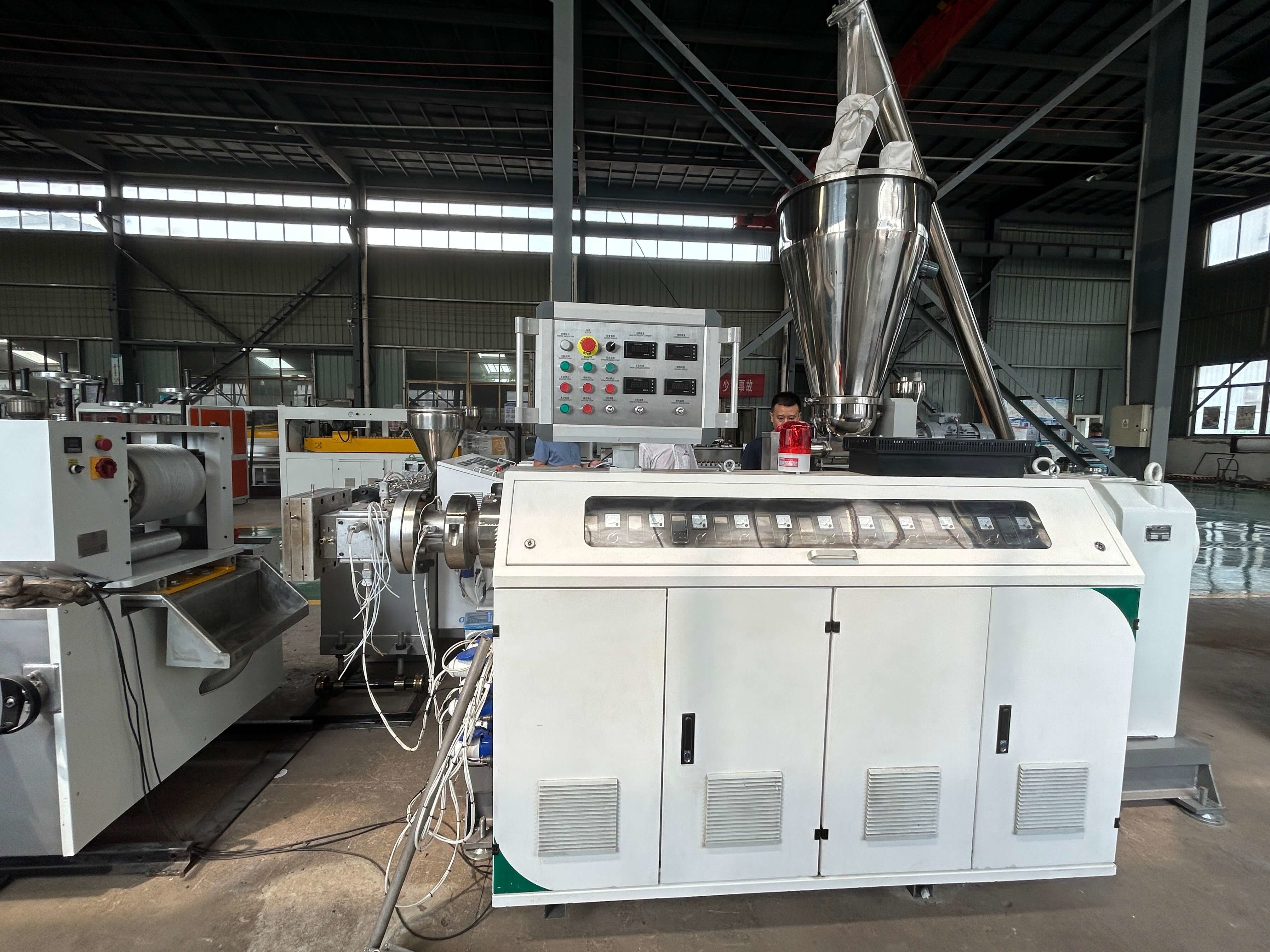

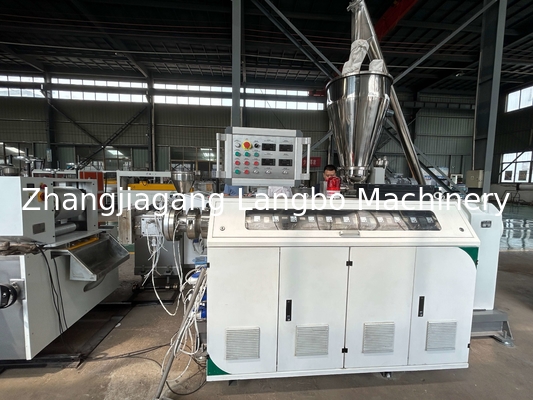

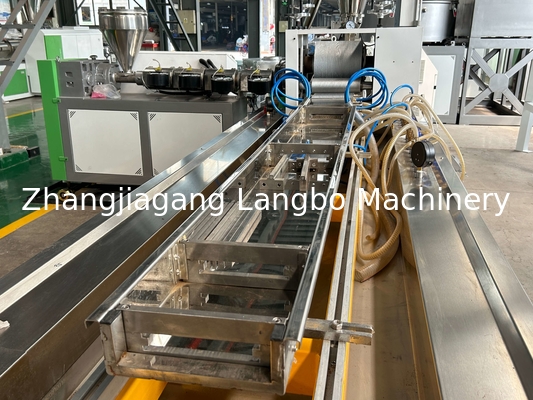

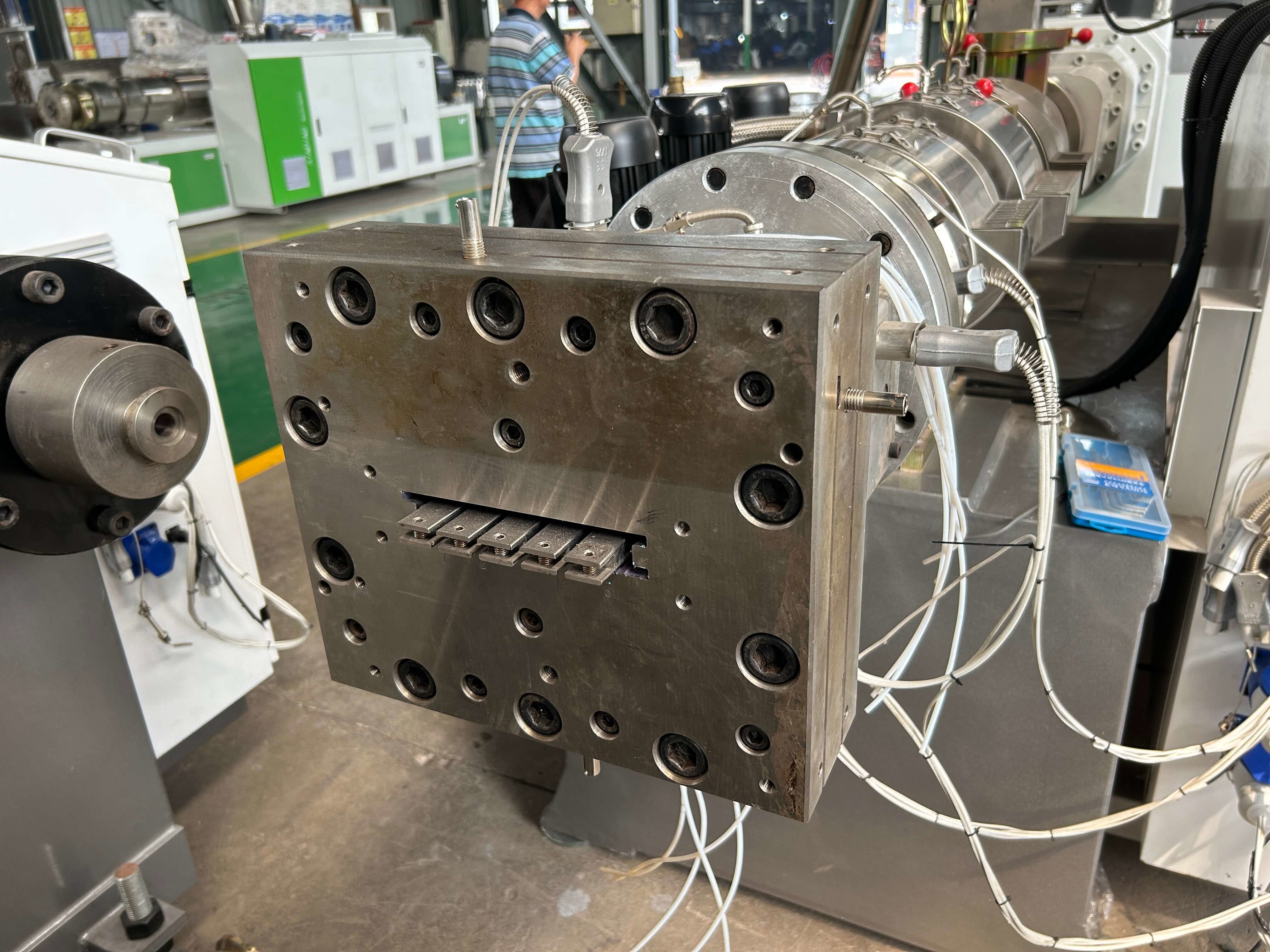

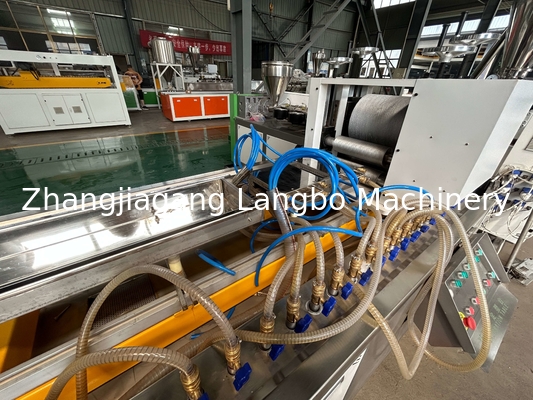

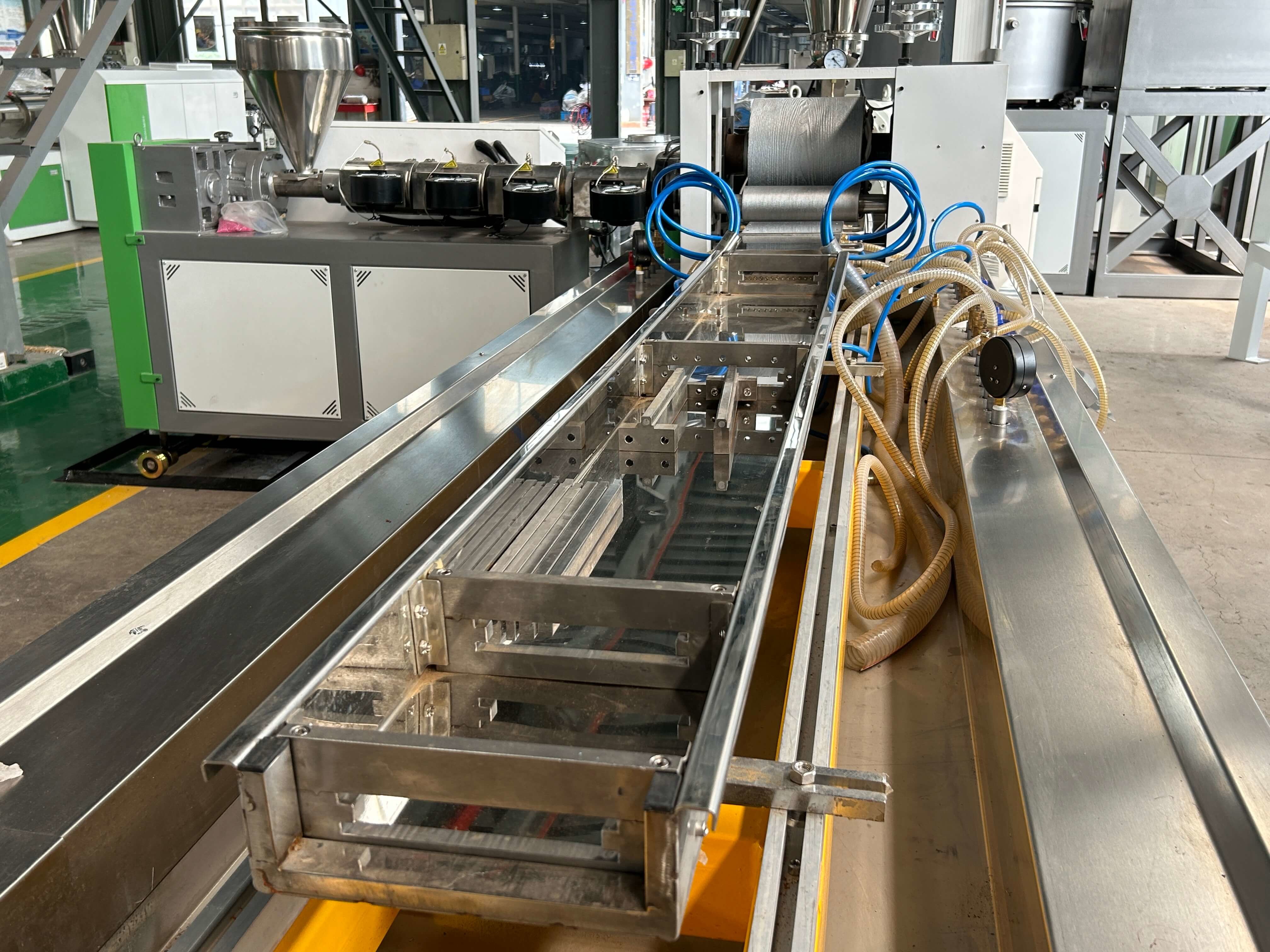

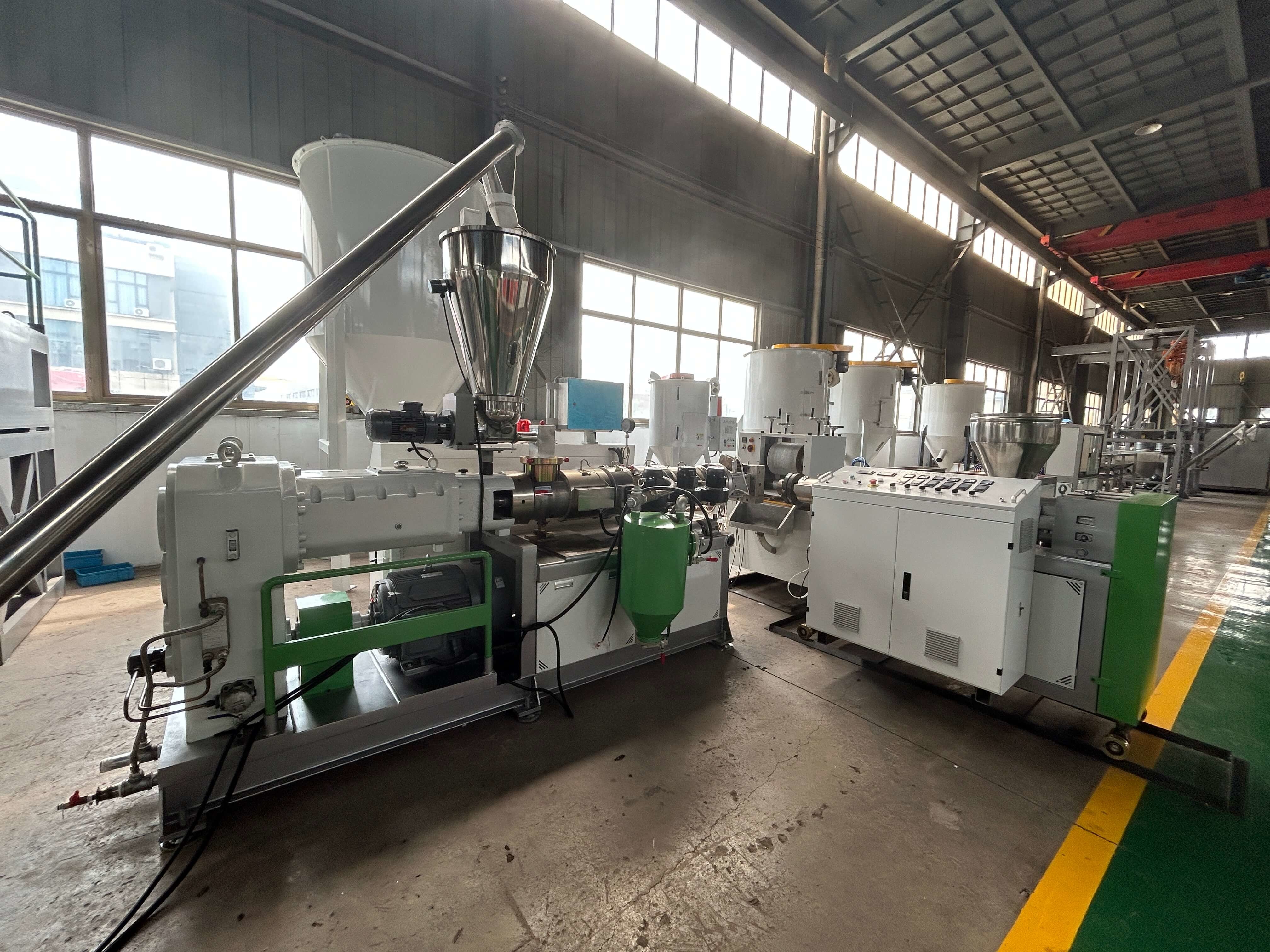

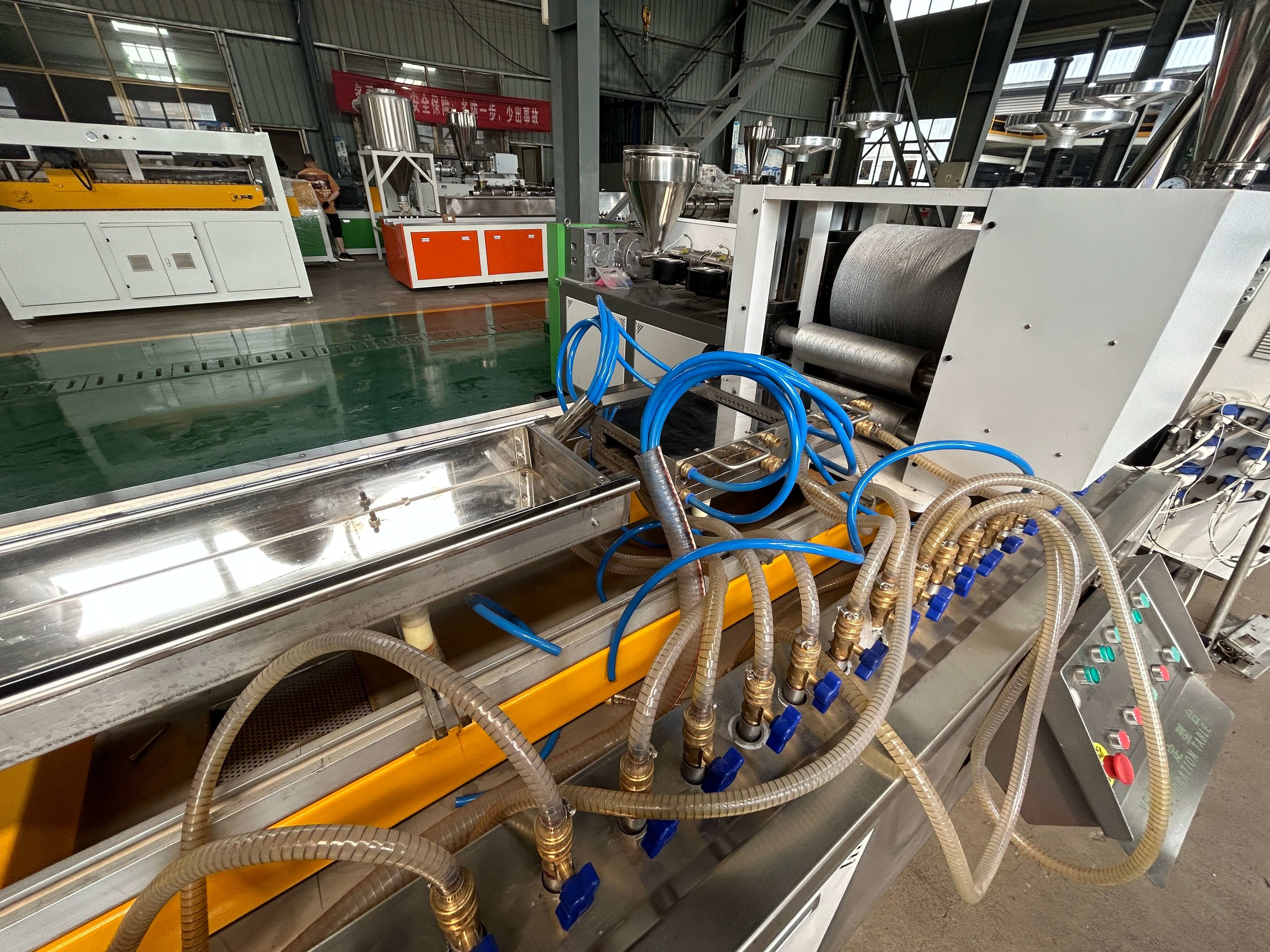

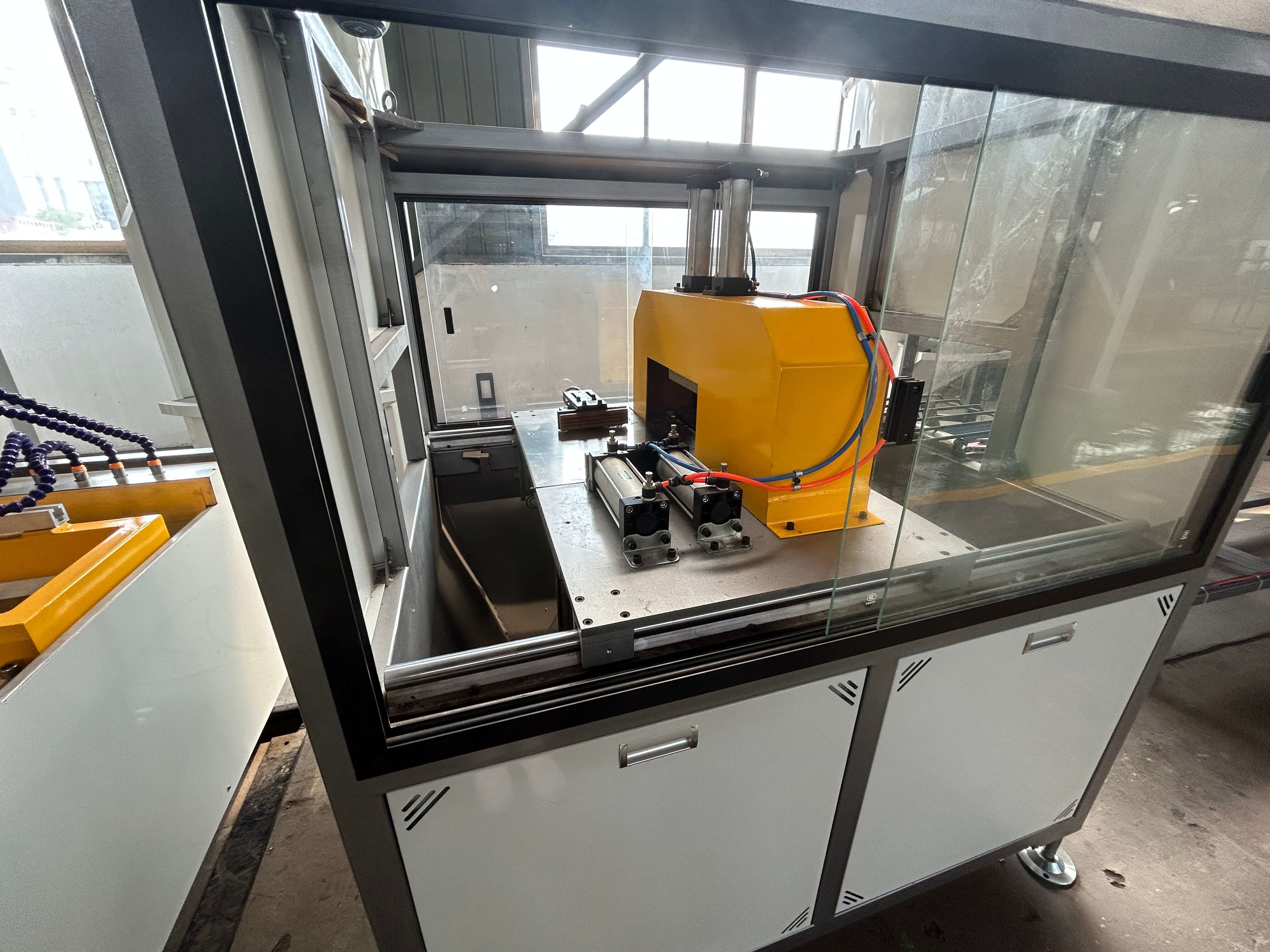

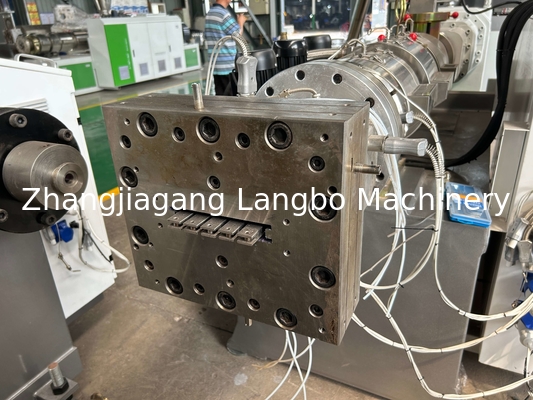

For this line, our customer want to produce the PP/PE+wood type wpc profile. Meanwhile it needs different color, so wo adopt co-extrusion machine to make the profile. The main extruder is SZSJ65/132 37kw to ensure the inner layer. Another extruder is smaller one to ensure the surface layer. The special designed mould ensures the stable extruding of the wpc profile. Through water spraying and cooling on the calibration table, the profile will be cut at exact length.

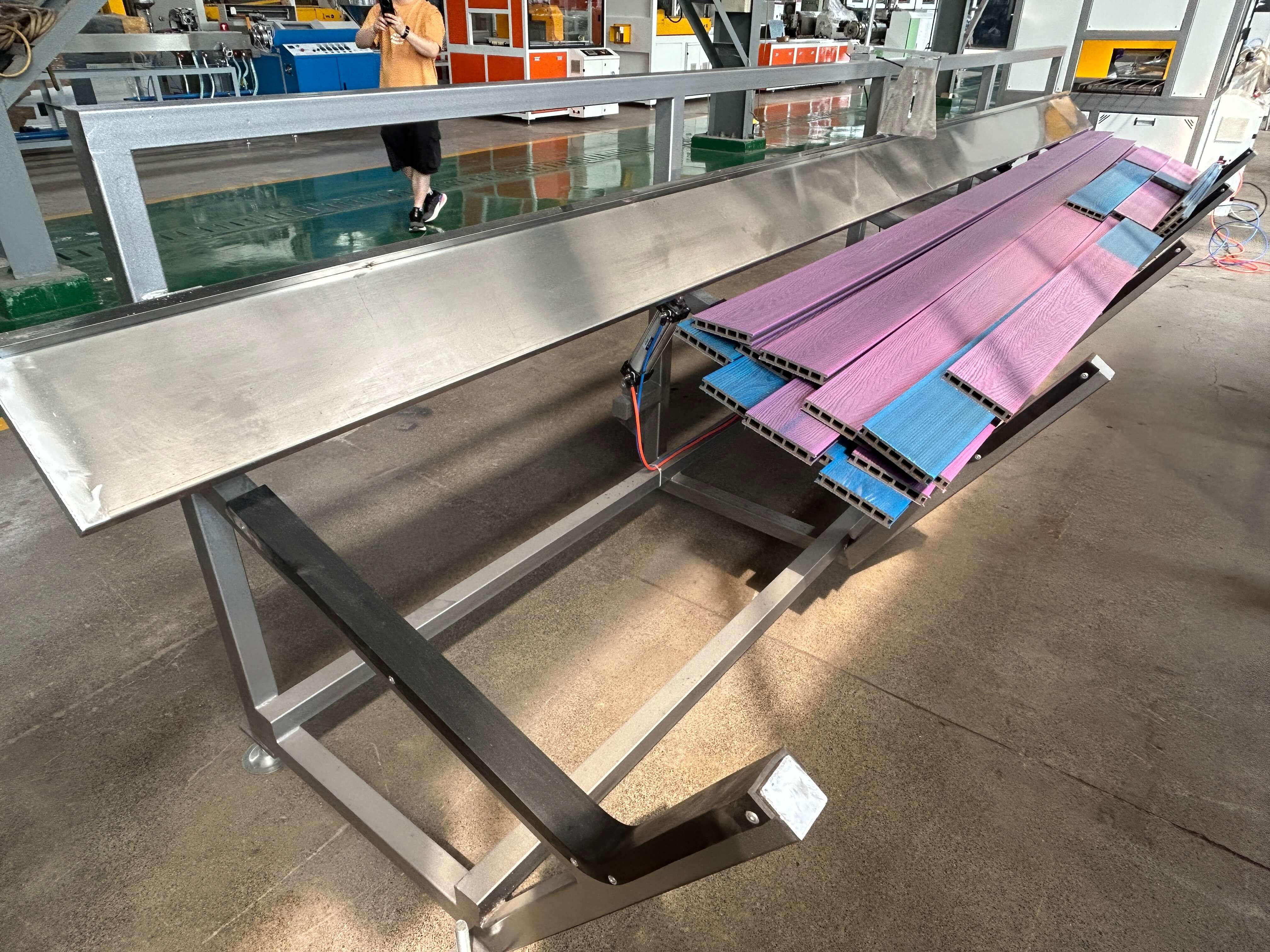

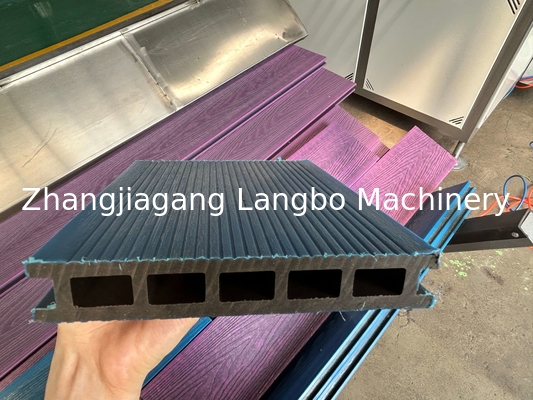

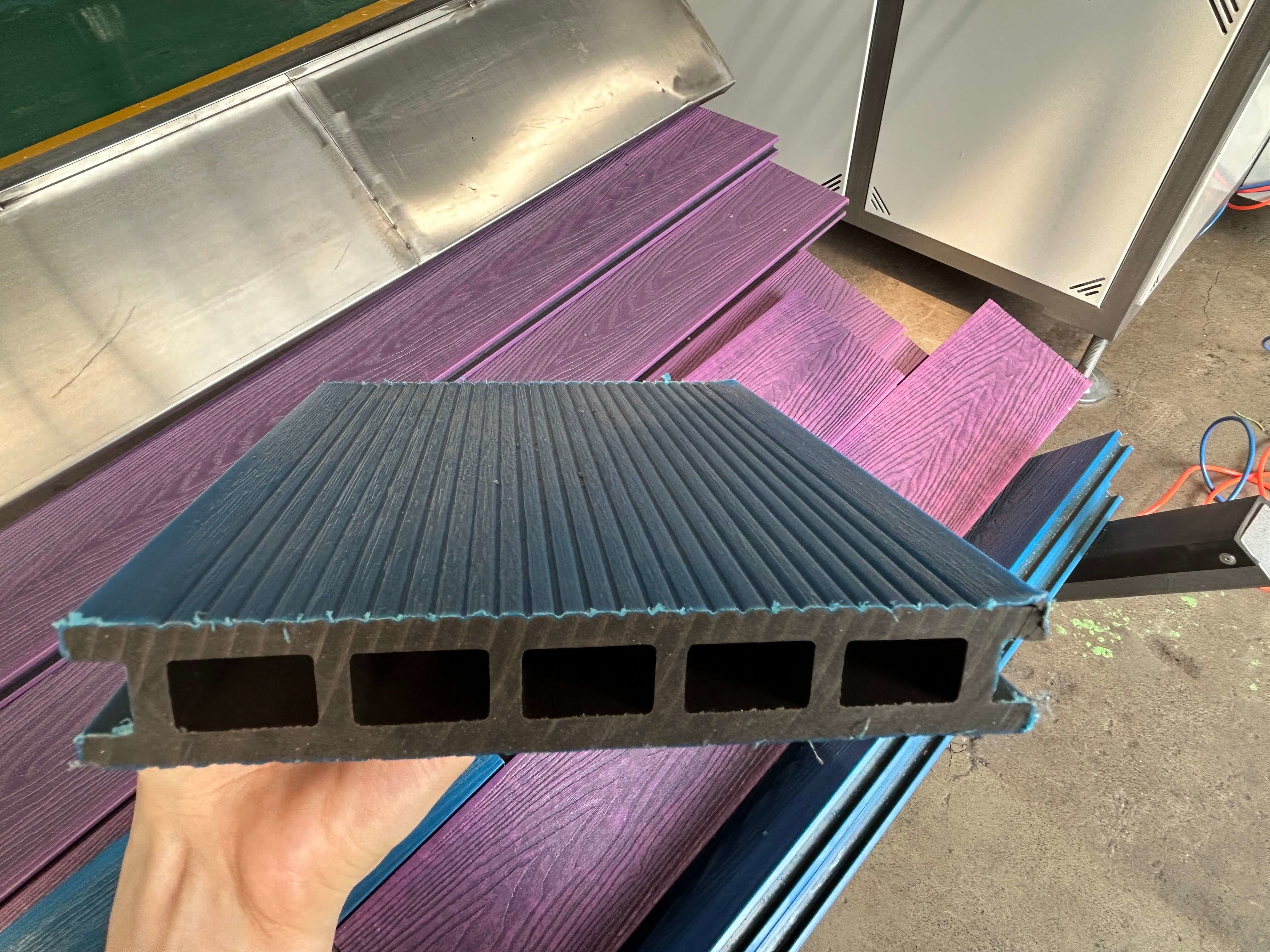

The wpc profile produced by our extrusion line has beatiful and smooth surface.
