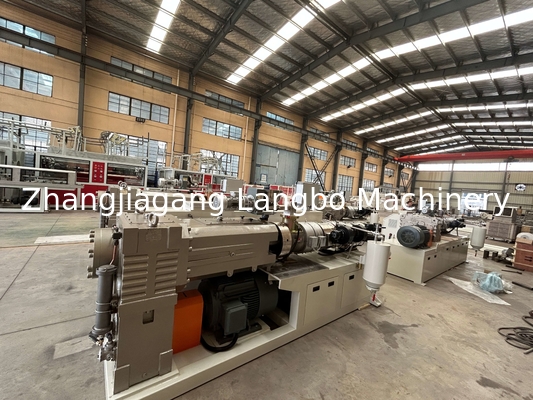

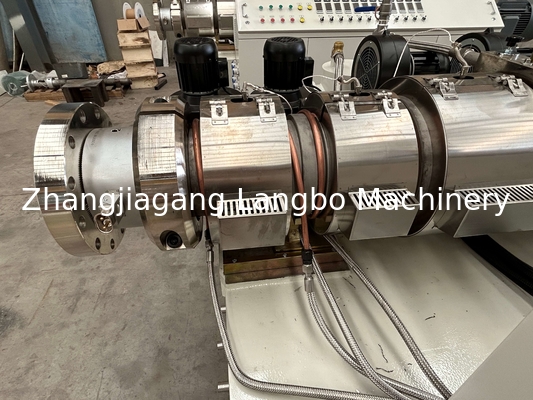

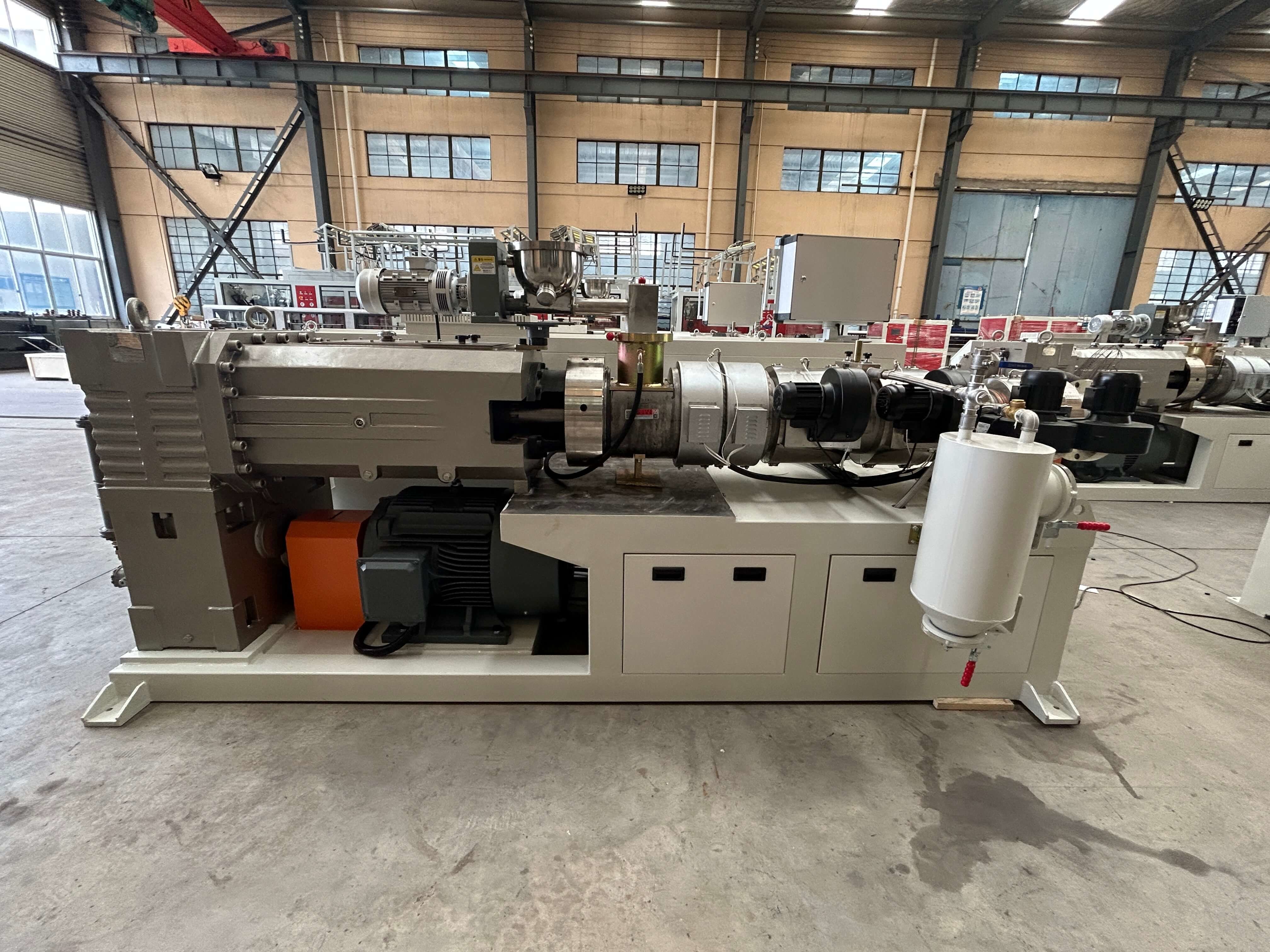

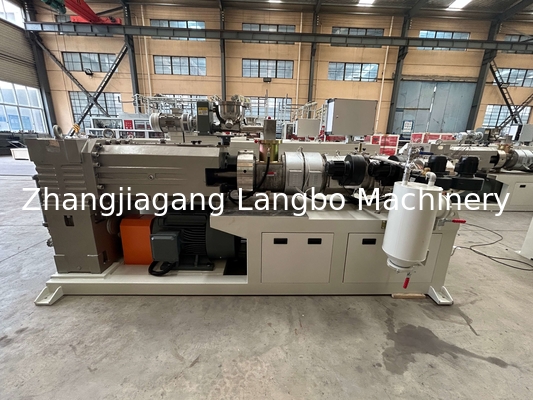

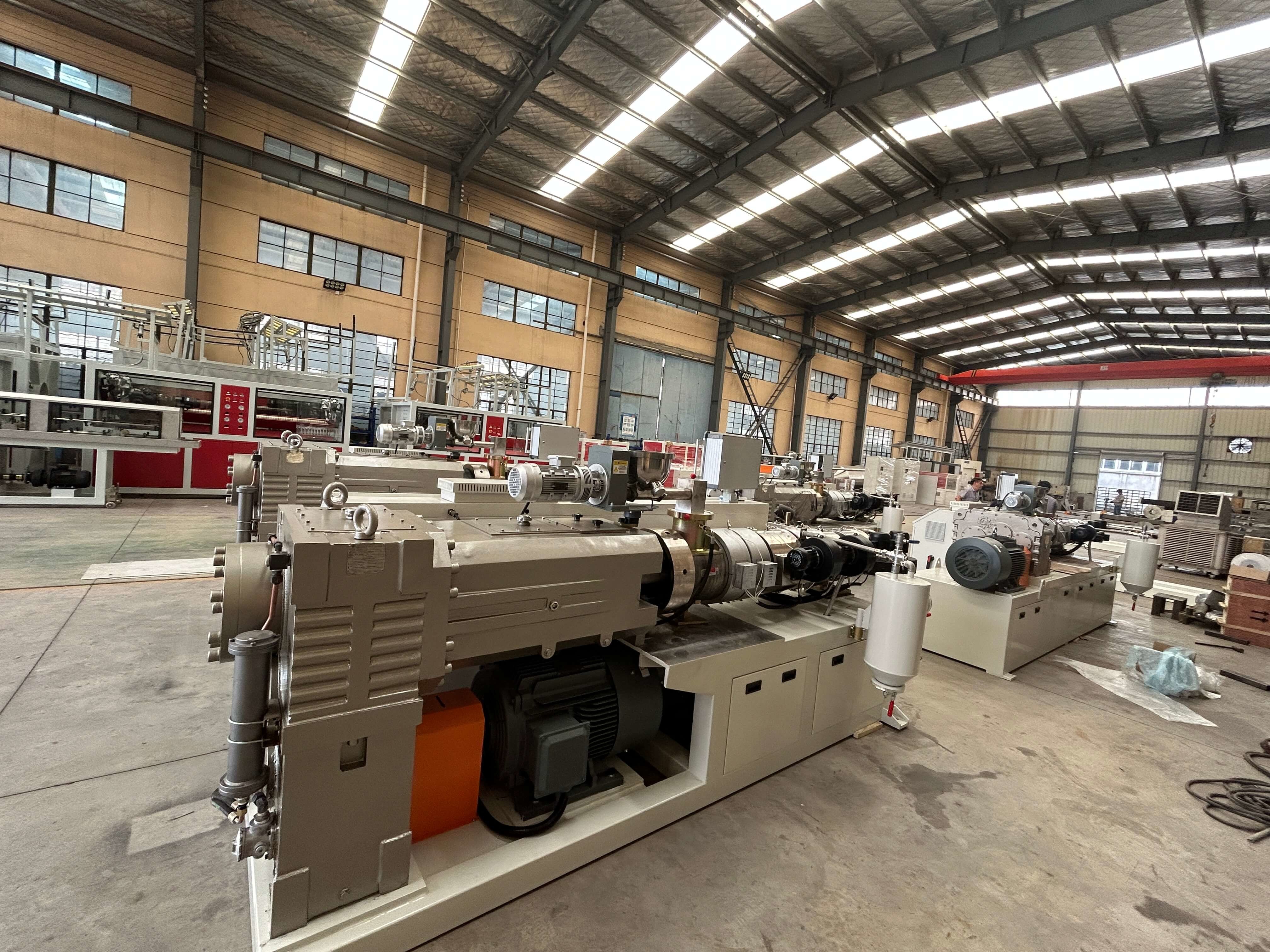

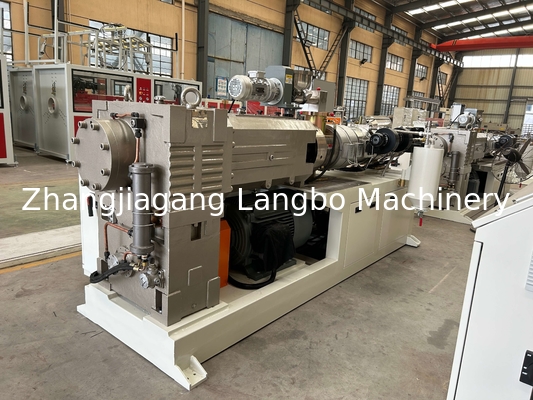

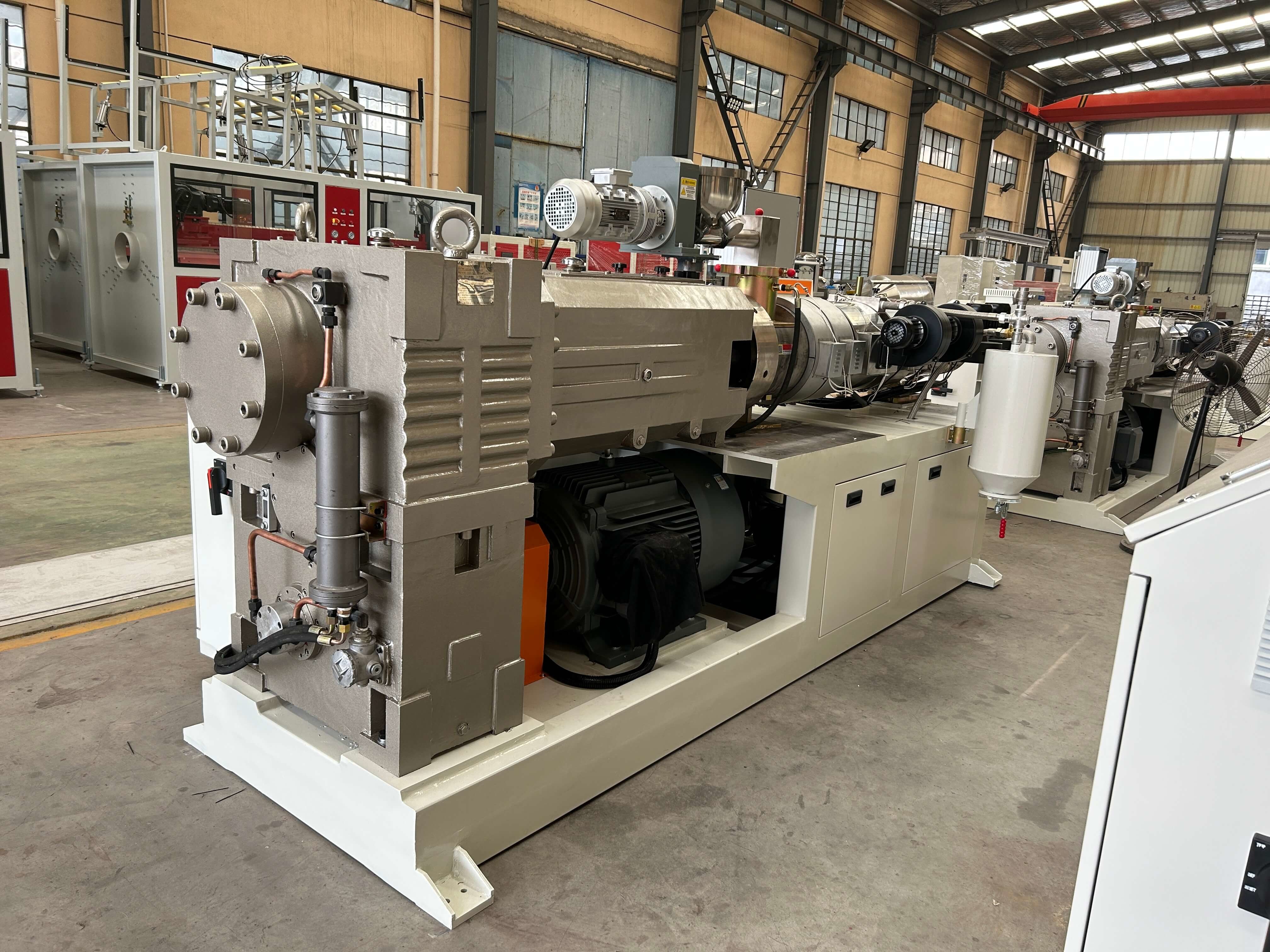

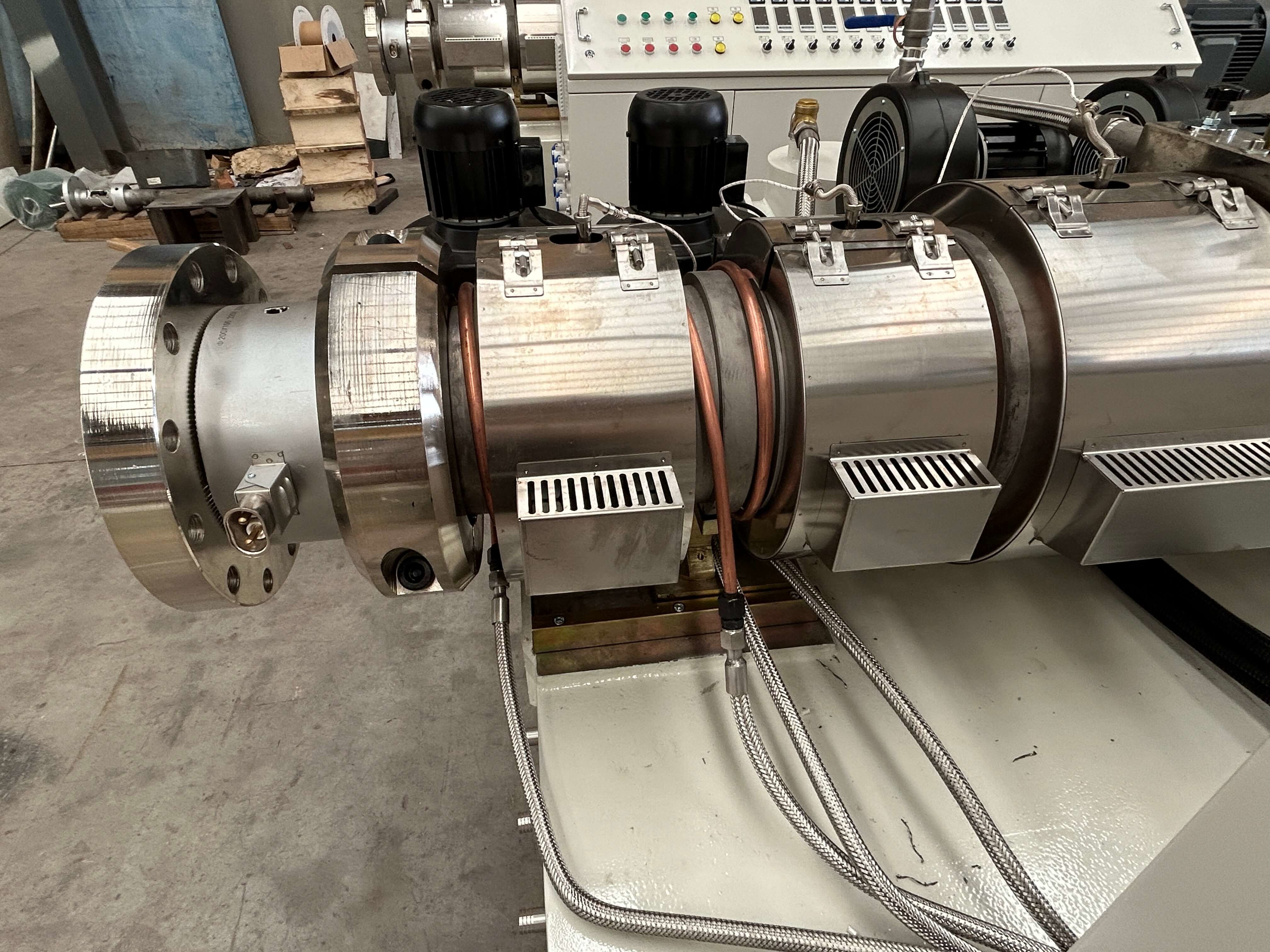

80 / 173 Conical Twin Screw PVC Pipe Extrusion Line With Output 600kg / H

80/173 Conical Twin Screw PVC Pipe Extrusion Line with Output 600kg/h

COMPONENTS AND FEATURES:
The manufacture of high capacity pipes are increasingly feeling the pressure of rising energy and raw material costs. As the result of this, LANGBO MACHINERY has continuously being optimizing its pipe extrusion solutions during recent years. The result: a first rate energy balance with high output and pipe extrusion with maximum effectiveness. With extrusion line from LANGBO MACHINERY-everything from one source –you can be on the safe side. We accompany you from the initial idea to the finished product-reliable, competent and fair.

Features
High wear resistant
Definite outer diameter calibration
Product Range
Diameters from 75 to 315 mm

We provide vacuum tanks for the calibration and cooling process of plastic pipes covering diameters from 16 to 800 mm. All of our tanks are built from stainless steel which guarantees total absence of corrosion. Motorized longitudinal movement lets precise and fast positioning during the process.
Stainless steel tank
Motor driven longitudinal movement
Product Range
Diameters from 75 to 315 mm
Vacuum tank length from 6 to 9 mt

A wide range of haul-off units allows us to supply to the customers the ideal solution for a diameter range of 16 to 800 mm. We supply both caterpillar and belt-type haul-off units on our pipe down streams.
Caterpillar is driven by AC or servo drive
Synchronization with extruder speed
Speed adjustment by inverter
Product Range
Caterpillar tracks from 2 to 8
Diameters from 75 to 315 mm

Several types of cutting units for pipe applications. For medium and large diameter pipes, we supply our planetary cutting units. For small diameter pipes, we offer our guillotine and saw cutter.

Planetary Cutter:
Cutting and chamfering rigid pipes
Synchronization with extruder speed
Low maintenance cost
Adjustable cutting speed
Product Range: Pipe range from 50 to 800 mm
Saw Cutter:
Cutting pipes up to 63 mm
Low maintenance cost
Adjustable cutting speed
Cutting pipes up to 63 mm
Pipe range from 16 to 63 mm
Guillotine Cutter: GK 32 Features
Special design for pipes
Dust and chip-free cutting system
Low maintenance cost
Pipe range from 16 to 63 mm

Special designing of this machine with the necessary adaption of tools PP and PVC wasted water and sewage pipes bas been made possible. The fully automatic machine that is running in line.
With the special design of this machine is very high capacity production is possible. It can also produce 150cm pipe. also depending on customer requests we also manufacture special manual belling machine


SPECIFICATIONS:
