Electrical Pvc Conduit Pipe Extrusion Line Four Strand 20-25mm
Product Details
| PIPE DIAMETER: | 20-25mm | EXTRUDER: | 65/132 |
|---|---|---|---|
| HAUL-OFF: | TWO HAUL-OFF | APPLICATION: | ELECTRICAL CONDUIT |
| PACKING METHOD: | WOODEN BOX AND FILM PACKAGE | MATERIAL: | PVC POWDER AND ADDITIVE |
| INVERTER: | ABB | CONTROL: | PLC CONTROL |
| GEARBOX: | DELING CHINESE BRAND | MOTOR: | SIRMENS-BEIDE |
| VACUUM TANK LENGTH: | 60000MM | ||
| Highlight |
PVC Electrical Conduit Extrusion Line,PVC Conduit Pipe Extrusion Line 25mm,Four Strand PVC Conduit Extrusion Line |
||
Product Description

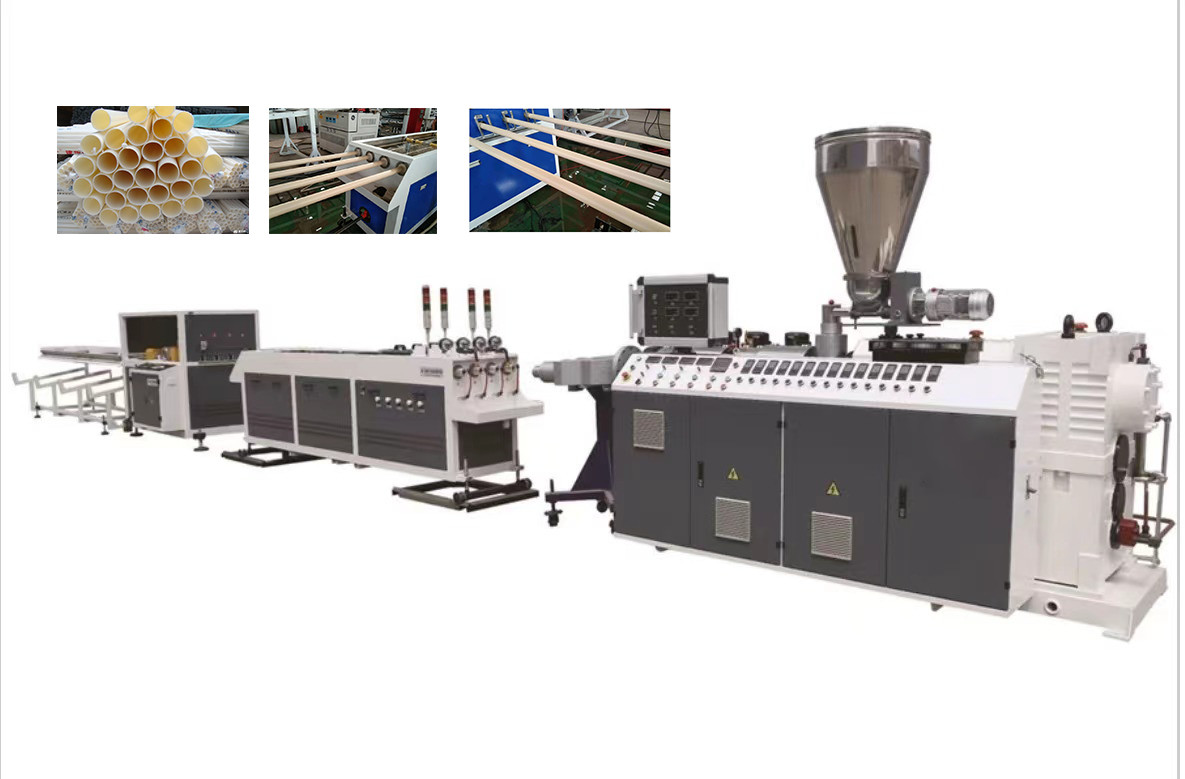

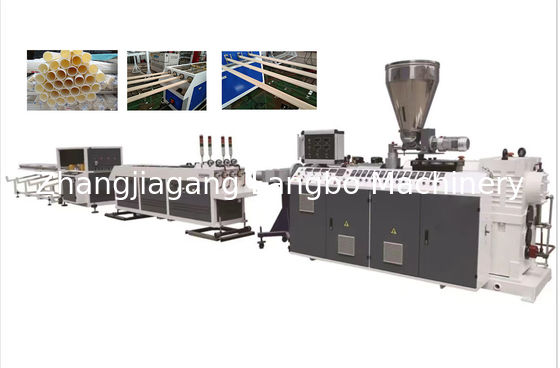

Four strand 20-25mm PVC Electrical Conduit Extrusion Line
DESCRIPTION OF 20-25MM PVC PIPE LINE
The 20-25mm pvc pipe is often used in the electricity industry. It can be used as electrical conduit. For this small diameter, in order to improve its capacity, we adopt four strand extrusion. It can extrude four pvc pipes at the same time. It has one extruder, four cavity mould , four belt haul-off machine and four cutter.
FEATURES OF PRODUCTION LINE
With high result, low power utilization, less rubbing, lower shearing rate and constrained expelling, the gear has the capacity to create the lines with an excellent and improved productivity. We get the programmed temperature control, degassing unit, and direct current speed guideline which is reasonable for handling PVC dry mix powder into lines, profiles, and sheets. In the interim, our hardware parts are brand with a superior presentation. Our machine idea depends on conservative superior execution expulsion. Furthermore, the affirmations demonstrate our obligation to ideal cycles and obligation regarding our current circumstance. We have refined process innovation and chivalrous administrations which will cause clients to feel insightful and consoling.
TECHNICAL PARAMETER
Creation Capacity has a cozy relationship with screw size and engine power. With the accompanying table you can get a generally outline to our line TWO Strand pipe arrangement.
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
THE PRODUCTION LINE IS COMPOSED OF THE FOLLOWING PARTS:
65 / 132 twin-screw extruder
four cavity die head
Stainless steel vacuum vacuum calibration tank
Automatic printer spraying moving frame;
Four cavity puller & cutting machine
Stacker
