75 - 315mm PVC Pipe Extrusion Line 25mm With Socket Making Machine

Brand Name: LB
Model Number: LB-25
Place of Origin: JIANGSU
Certification: CE ISO9001
Minimum Order Quantity: 1 SET
Price: USD EUR
Supply Ability: 15 SETS PER MONTH
Tags

pvc pipe production line

plastic tube making machine

plastic pipe extrusion line

Product Details

PIPE DIAMETER: 20-25mm EXTRUDER: 65/132
HAUL-OFF: TWO HAUL-OFF APPLICATION: ELECTRICAL CONDUIT
PACKING METHOD: WOODEN BOX AND FILM PACKAGE MATERIAL: PVC POWDER AND ADDITIVE
INVERTER: ABB CONTROL: PLC CONTROL
GEARBOX: DELING CHINESE BRAND MOTOR: SIRMENS-BEIDE
VACUUM TANK LENGTH: 60000MM
Highlight

PVC Pipe Extrusion Line 315mm

,

Pipe Extrusion Line With Socket Machine

,

PVC Pipe Extrusion Line 25mm

Product Description

75-315mm PVC Pipe Extrusion Line with Socket Making Machine
This industrial-grade PVC pipe extrusion line is designed for high-volume production of 75-315mm diameter pipes, complete with integrated socket making capabilities for comprehensive pipe manufacturing solutions.
Production Line Overview

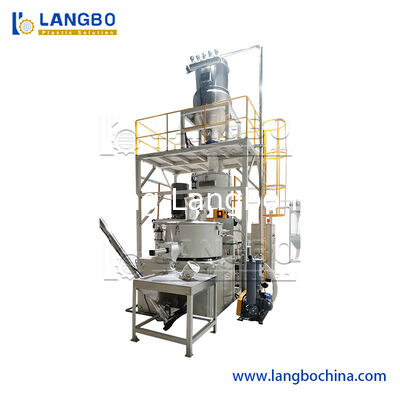

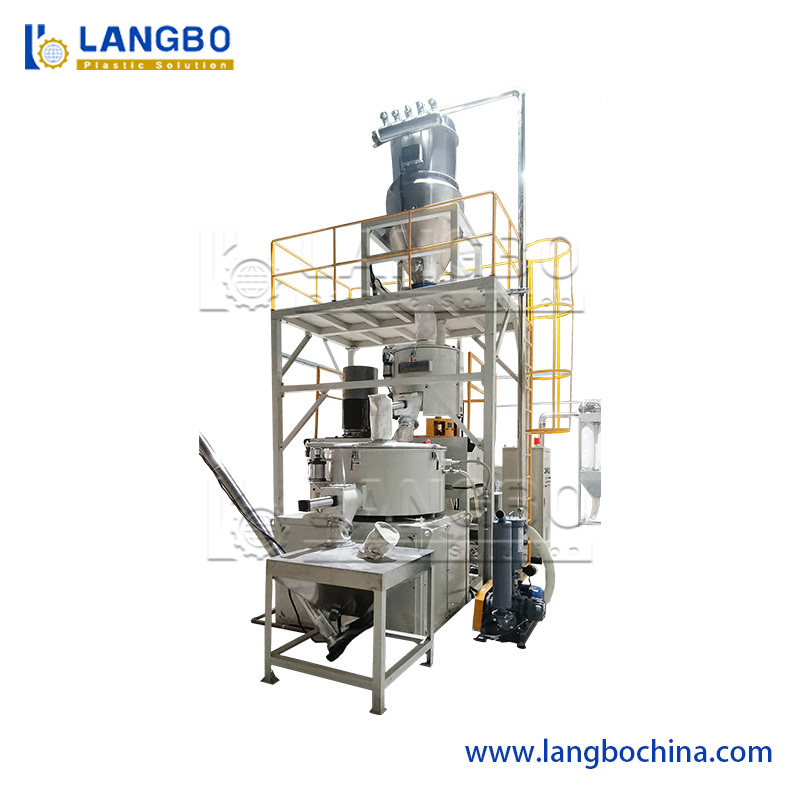

Our 75-315mm PVC pipe extrusion line with mixer combination delivers exceptional performance for water supply and electrical conduit pipe manufacturing. Engineered with high-output extruders and motors, this system utilizes premium components to ensure reliable operation and superior product quality.
Technical Specifications
Model Pipe Diameter (mm) Extruder Model Motor Power Capacity (kg/h)
LB-250 63-250 SJSZ65/132 37 AC 250
LB-315 75-315 SJSZ80/156 55 AC 350
LB-630 315-600 SJSZ92/188 110 AC 800
LB-800 560-800 SJSZ105/216 160 AC 1100
Key System Components

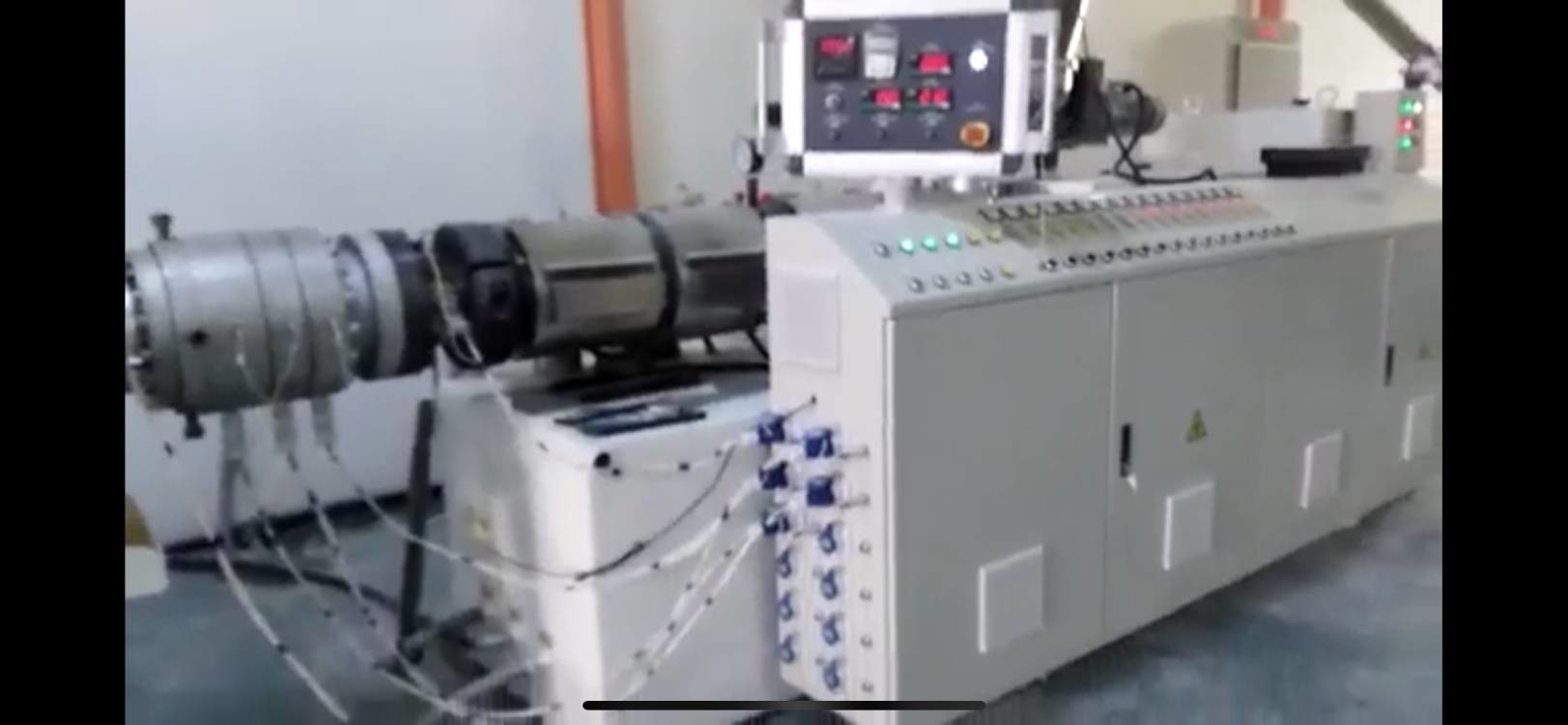

Twin Screw Extruder Machine

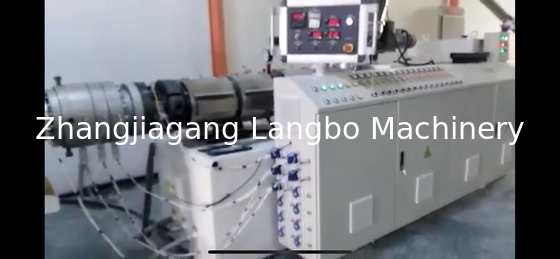

Manufactured with premium brand components to guarantee production stability, efficiency, and long-term durability. Our conical twin screw extruder design optimizes raw material processing with homogeneous mixing, superior plastification, and enhanced conveying efficiency.

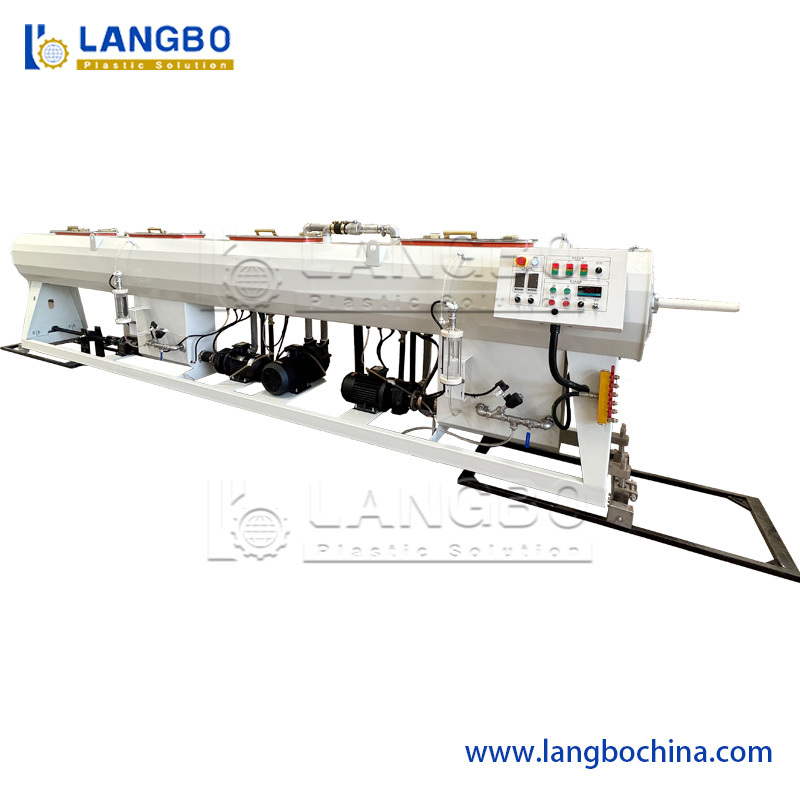

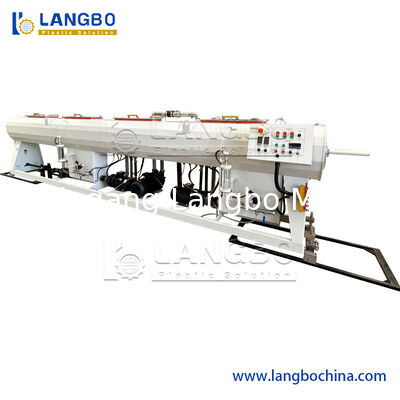

Vacuum Calibration & Cooling System

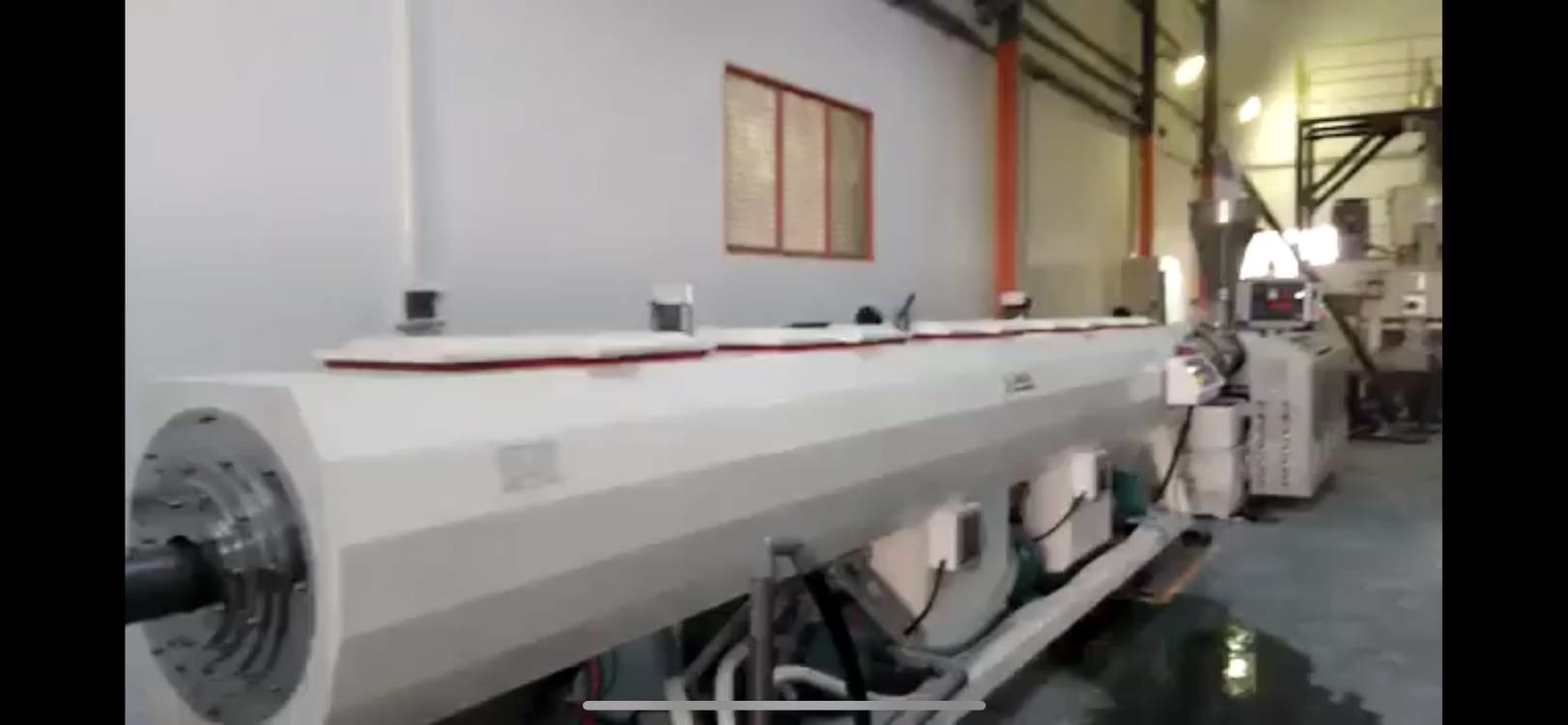

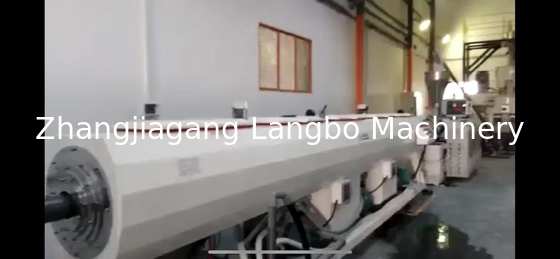

Features a 6-meter cooling section with multiple water nozzles for optimal temperature control. Precision installation ensures maximum cooling efficiency, hardening PVC pipes effectively as they pass through the water bath in double-strand configuration.
Haul-off Machine

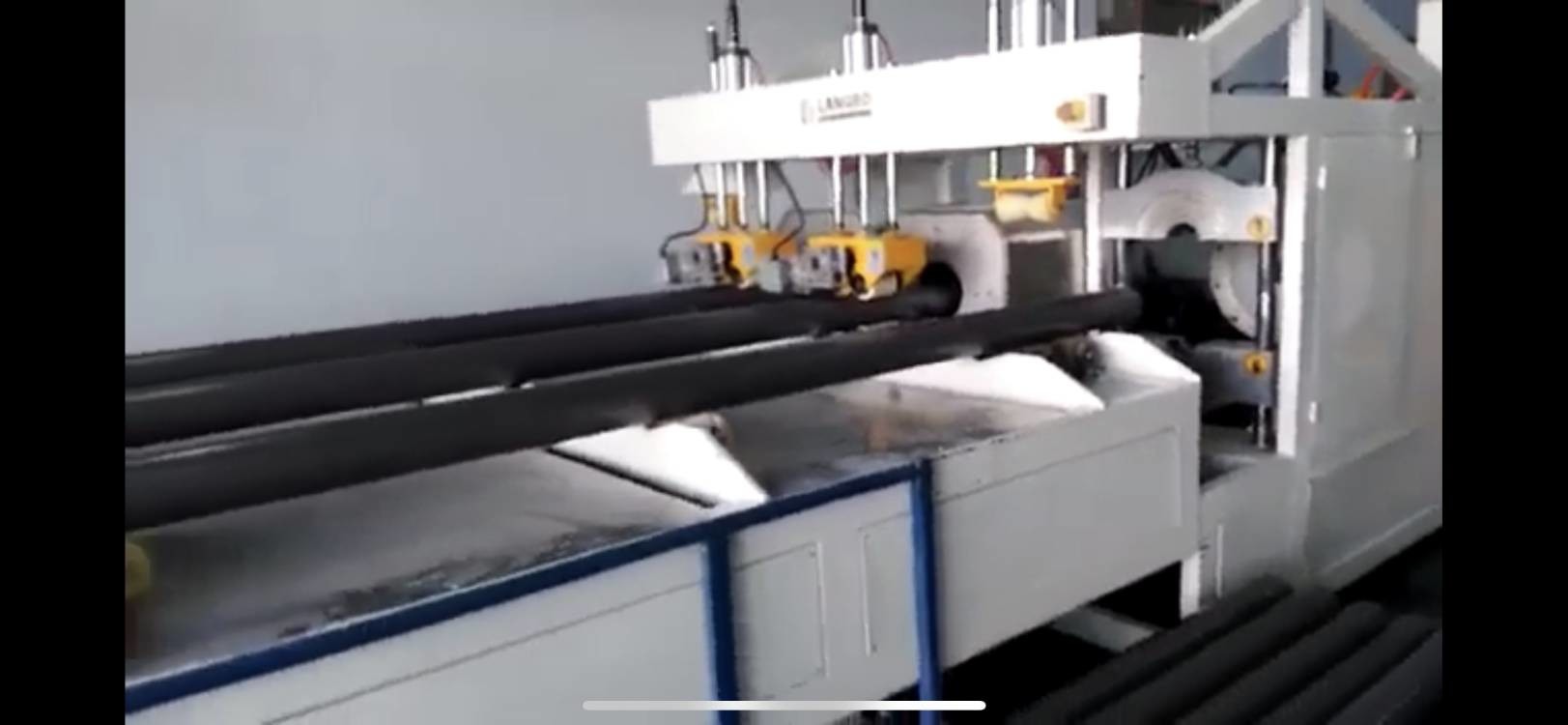

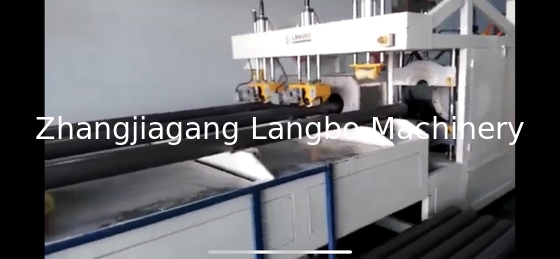

Equipped with three crawler track haul-off units designed for stable handling of 75-315mm PVC pipes. Constructed with high-quality rubber and chain components, each track features individual motor and gearbox control with cylinder adjustment for precise vertical positioning.

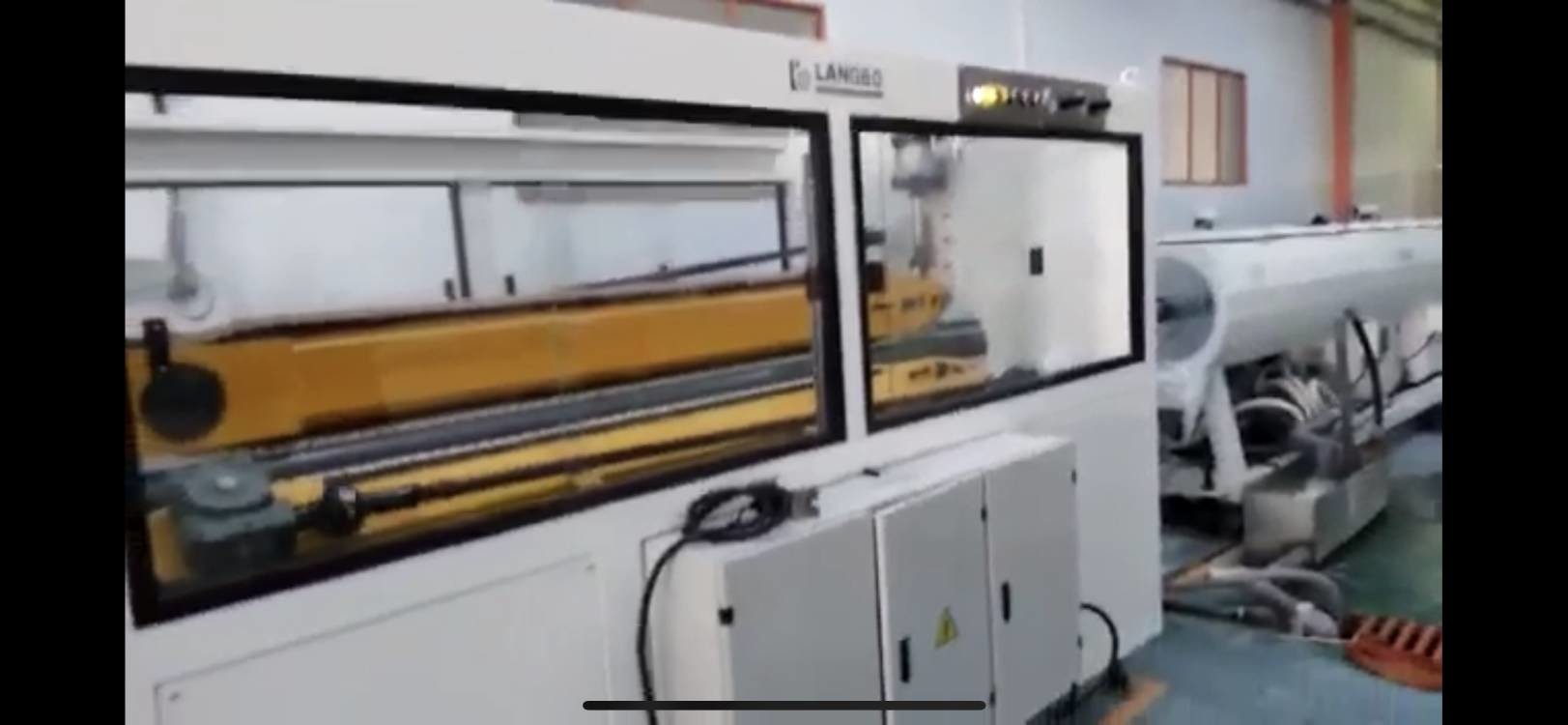

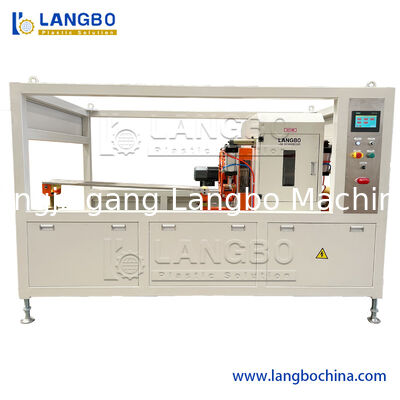

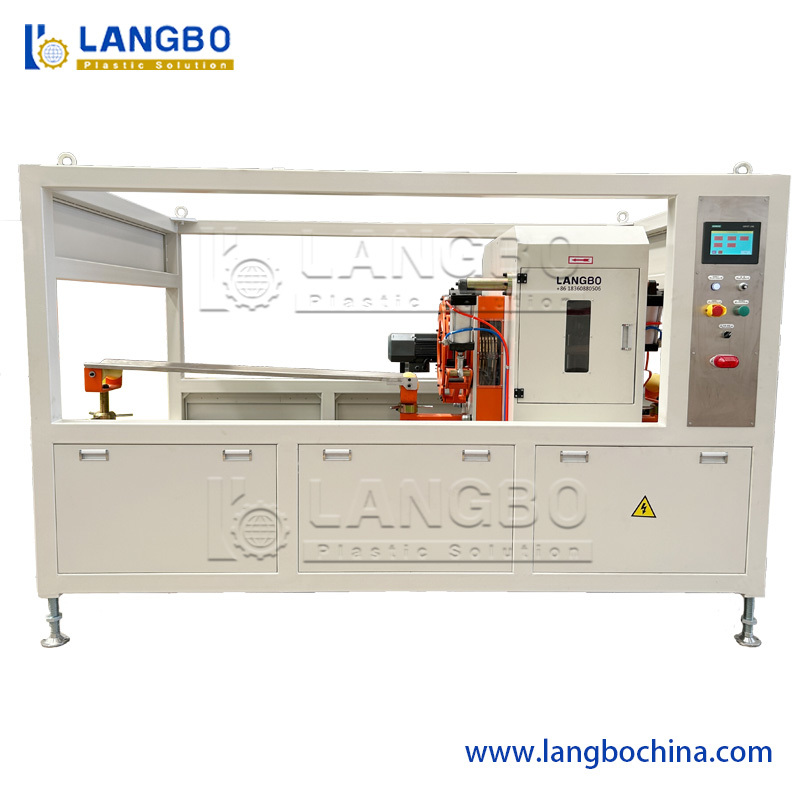

Automatic Cutter Unit

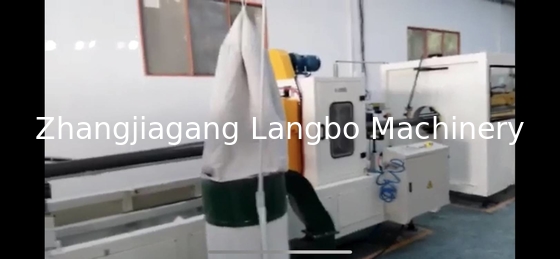

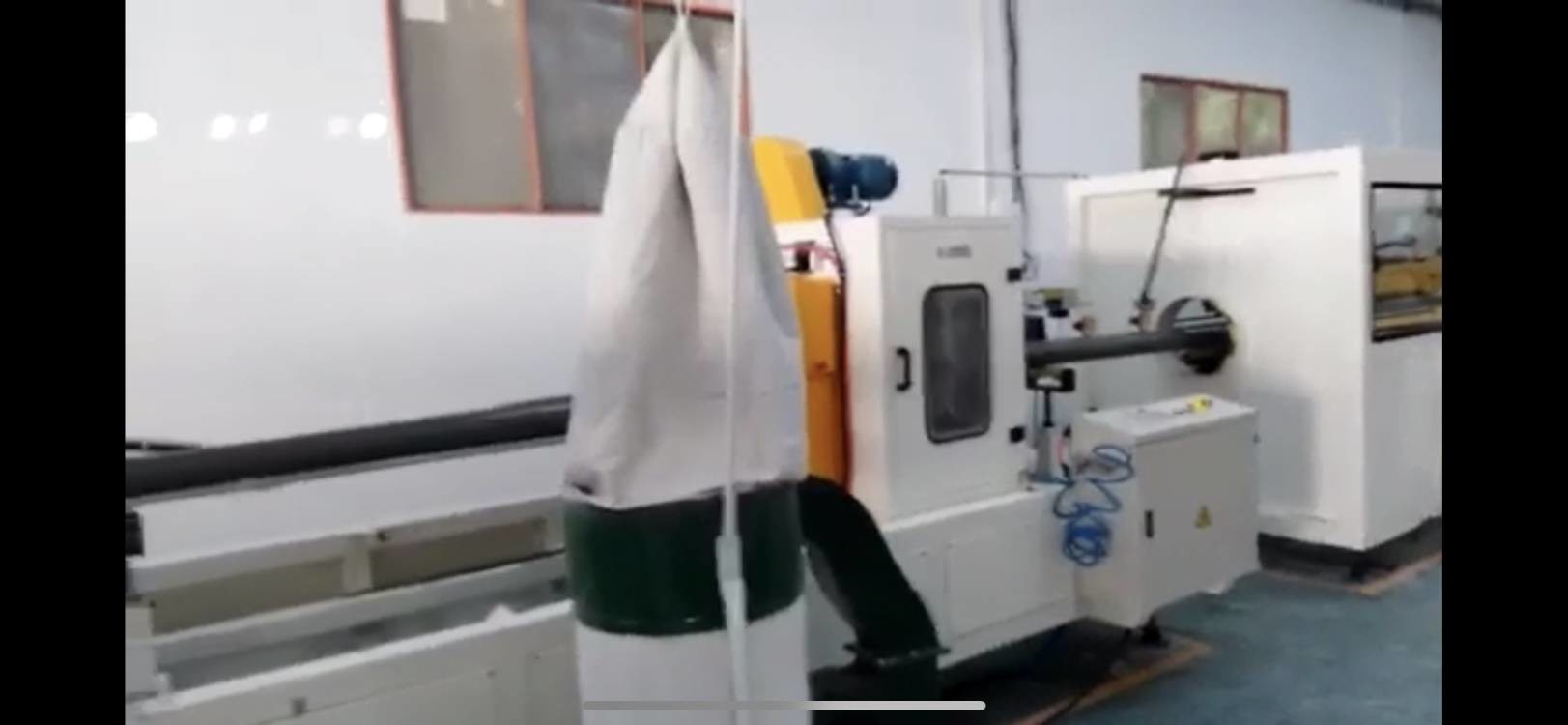

PLC-controlled cutting system with encoder technology for exact length measurement and precision cutting. The fully automated planetary cutting mechanism includes pre-delivery programming and adjustment, plus illuminated observation windows for monitoring.

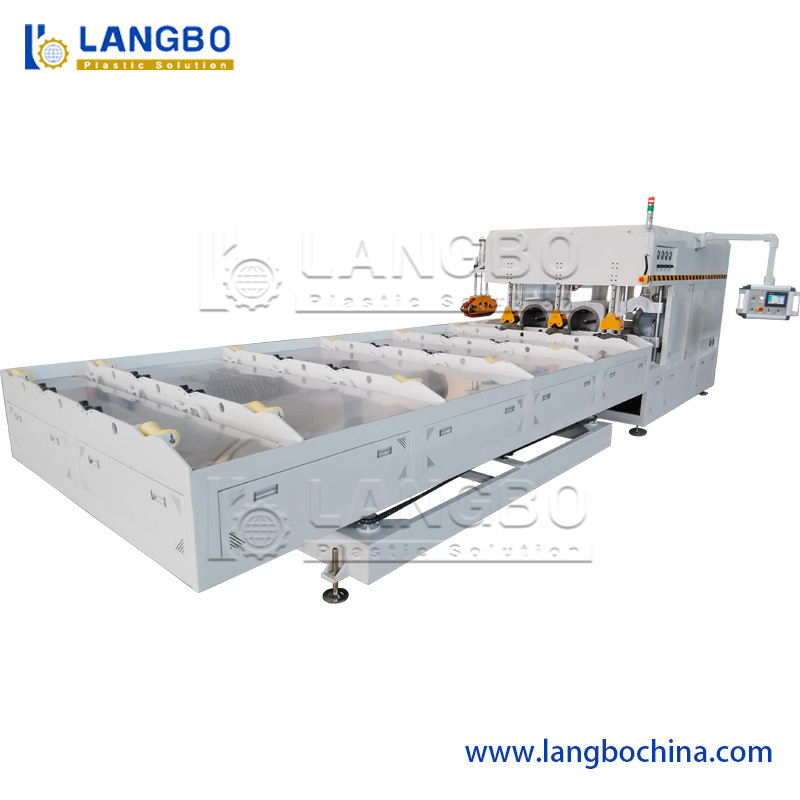

Belling Machine
Advanced socket forming technology featuring dual heating ovens for progressive temperature control. The belling chamber incorporates water spray cooling and push-power separation mechanisms for efficient socket production with excellent results.
Production Line Images
PVC pipe extrusion line overview showing complete production setup Close-up view of twin screw extruder machine components Vacuum calibration and cooling system in operation Haul-off machine with three crawler track system Automatic cutter unit and belling machine detail

Product Highlights

75-315mm PVC Pipe Extrusion Line with Socket Making Machine This industrial-grade PVC pipe extrusion line is designed for high-volume production of 75-315mm diameter pipes, complete with integrated socket making capabilities for comprehensive pipe manufacturing solutions. Production Line Overview ...
