Product Details:
|
| PIPE DIAMETER: | 32-160mm | EXTRUDER: | 65/132 |
|---|---|---|---|
| HAUL-OFF: | TWO CATERPILLAR HAUL-OFF MACHINE | APPLICATION: | WATER SUPPLY PIPE |
| PACKING METHOD: | WOODEN BOX AND FILM PACKAGE | CONNECTION MATERIAL: | SUS304 |
| MOTOR: | 37KW | OUTPUT CAPACITY: | 250KG/H |
| CUTTER: | SAW CUTTER | VACUUM TANK: | 6 METERS LENGTH |
| EXTRUDER MOTOR: | SIEMENS-BEIDE | STACKER: | 6 METERS LENGTH |
| Highlight: | Smart Control pvc pipe production line,32mm pvc pipe production line,low noise pvc pipe extruder |
||
Smart Control 32-160mm PVC Pipe Extrusion Line with high output and extrusion speed
LINE DETAILS
This line is applied to produce 32-160mm pvc pipe. Its output capacity can be up to 250kg/h. This line adopt Siemens-beide motor power. It adopts 65/132 extruder with 37kw. Our screw and barrel are famous Chinese brand"HUAYE" with delicate special design. Its inner cover is smooth enough and the produced pipe shinny. Our extruder adopts integrated gearbox with much stronger strcuture and high working stablity. The screw material is 38CrMnAlA. The mould is 40Cr forging and casting. We adopt two caterpillar for this line and saw cutter. The cutter has smart screen control. Our haul-off machine adopts ABB inverter and INOVICE motor. Our machine has best quality and forever after-sale services. If you have the interest, pls contact me for more information!
FEATURES OF PRODUCTION LINE
With high result, low power utilization, less rubbing, lower shearing rate and constrained expelling, the gear has the capacity to create the lines with an excellent and improved productivity. We get the programmed temperature control, degassing unit, and direct current speed guideline which is reasonable for handling PVC dry mix powder into lines, profiles, and sheets. In the interim, our hardware parts are brand with a superior presentation. Our machine idea depends on conservative superior execution expulsion. Furthermore, the affirmations demonstrate our obligation to ideal cycles and obligation regarding our current circumstance. We have refined process innovation and chivalrous administrations which will cause clients to feel insightful and consoling.
TECHNICAL PARAMETER
Creation Capacity has a cozy relationship with screw size and engine power. With the accompanying table you can get a generally outline to our line TWO Strand pipe arrangement.
| Model | LB160 | LB250 | LB315 | LB630 | LB800 |
| Pipe Range (mm) | 50-160mm | 75-250mm | 110-315mm | 315-630mm | 500-800mm |
| Screw Model | SJ65/132 | SJ80/156 | SJ92/188 | SJ92/188 | SJ92/188 |
| Motor power | 37KW | 55KW | 90KW | 110KW | 132KW |
| Output | 250kg | 350kg | 550kg | 600kg | 700kg |
THE PRODUCTION LINE IS COMPOSED OF THE FOLLOWING PARTS:

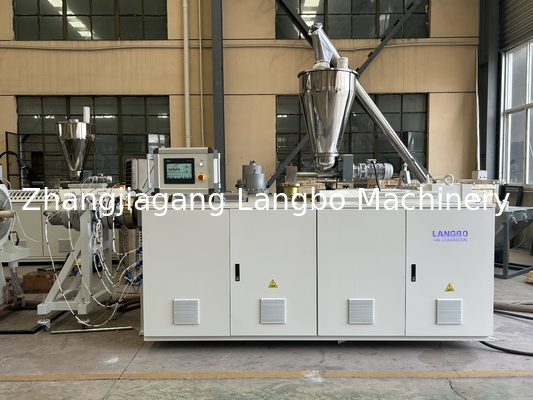

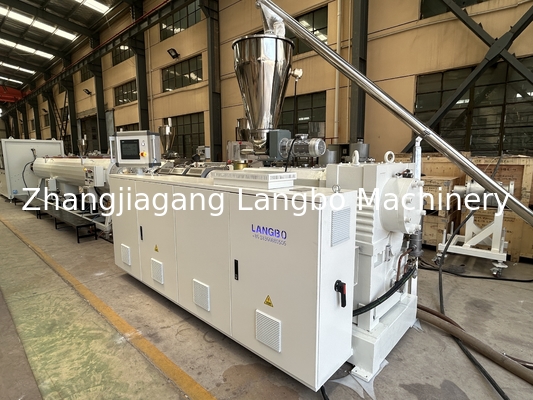

65 / 132 twin-screw extruder
Extrusion die

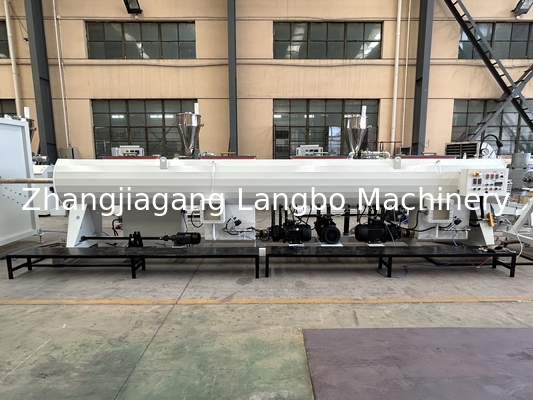

Stainless steel vacuum calibration tank
Automatic printer spraying moving frame;
Haul-off puller & cutter machine
Stacker
