Product Details:
|
| Extruder Type: | Conical Twin Screw Extruder | Extruder Model: | 60/125 |
|---|---|---|---|
| Raw Material: | CPVC Powder And Additives | Final Product Application: | Chemical Industry Conduit |
| Motor: | 45kw | Gearbox: | "Jiangyin" Gearbox |
| Control System: | PLC | Inverter: | ABB Frequency |
| Temperature Sensor: | Omron | Haul Off: | Three Caterpillar Haul Off Machine |
| Cutter: | Saw Cutter | ||
| Highlight: | dia 20-110mm CPVC Pipe Extrusion Line,Automatic PLC CPVC Pipe Extrusion Line,PLC CPVC Pipe Extrusion Line |
||

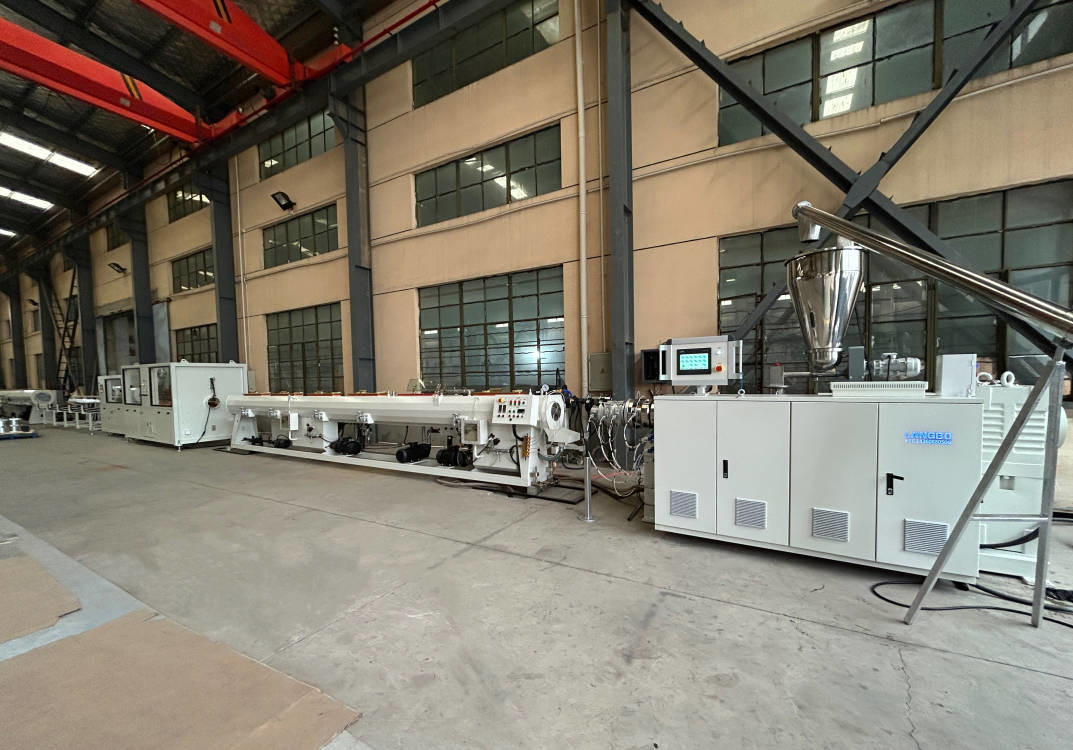

20-110mm CPVC Pipe Extrusion Line
Description:
CPVC pipe is unlike the UPVC pipe. It has highly corrosive and much sticker. It has high demand of the screw and barrel and the mould material. Meanwhile the mixed CPVC raw material is influential to the CPVC pipe making. The CPVC pipe always used as hot water supply pipe and firefighting pipe. Therefore it has thicker wall thickness.
Extrusion line details:

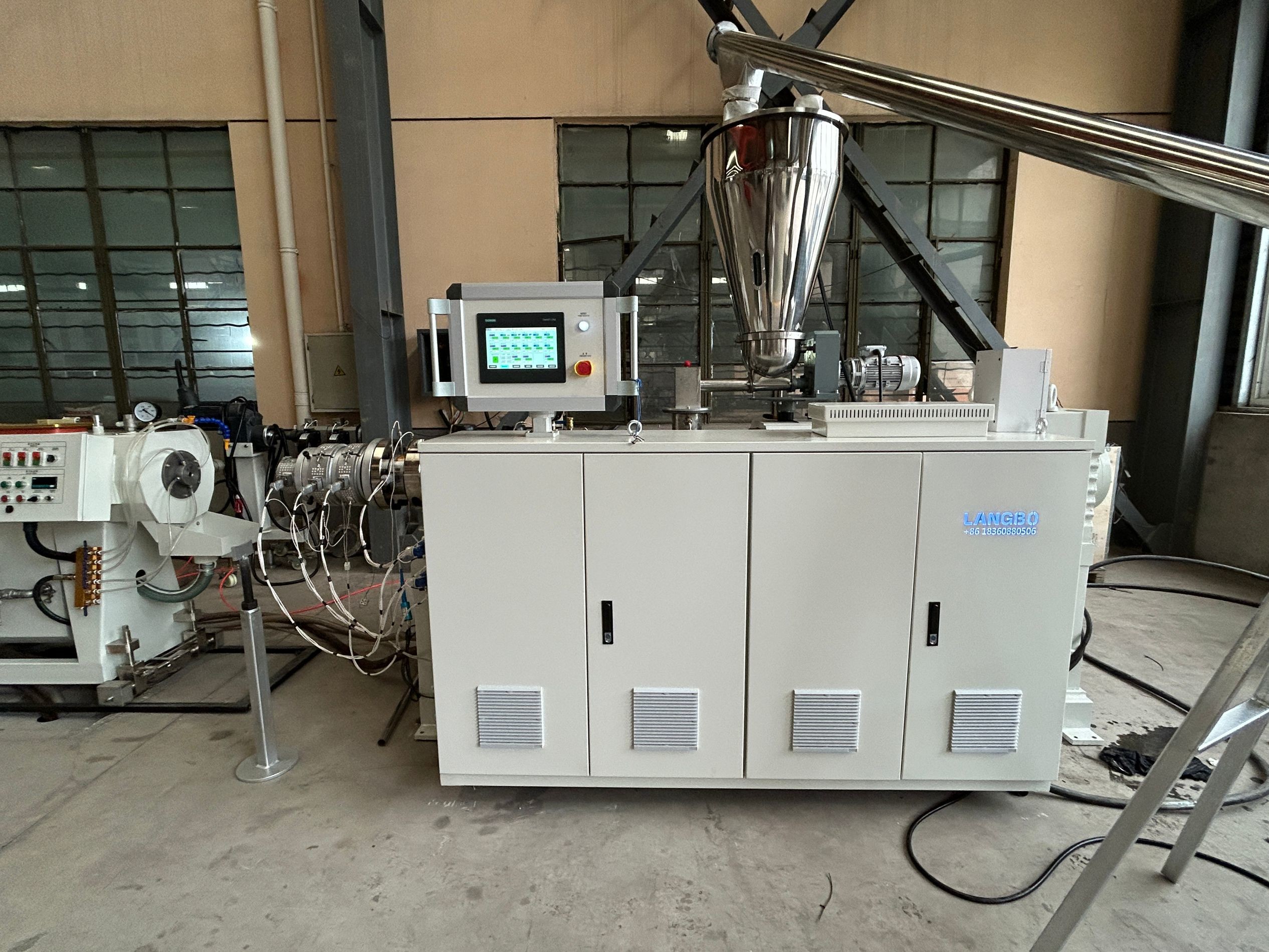

Twin screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Due to the stick feature of the CPVC material, we adopt 45kw for the extrusion line to ensure the pushing force. Meanwhile our screw and barrel is specially designed to deter to the high corrosive characters.

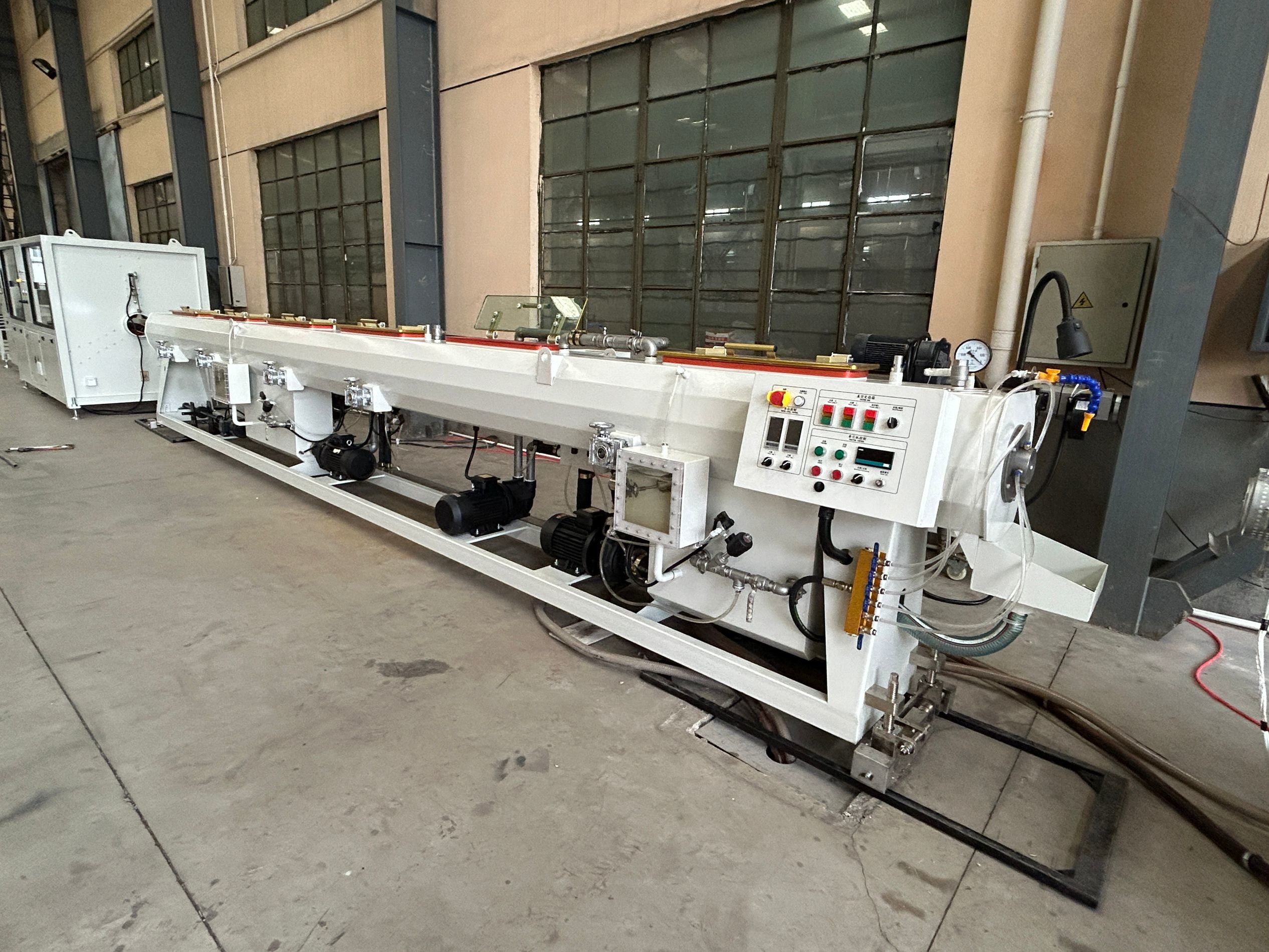

Vacuum calibration & cooling tank
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. We lengthen the vacuum and cooling tank to 8m. With much longer cooling process, the CPVC pipe can be well cooled and have better surface.
Haul-off Unit
We adopt three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

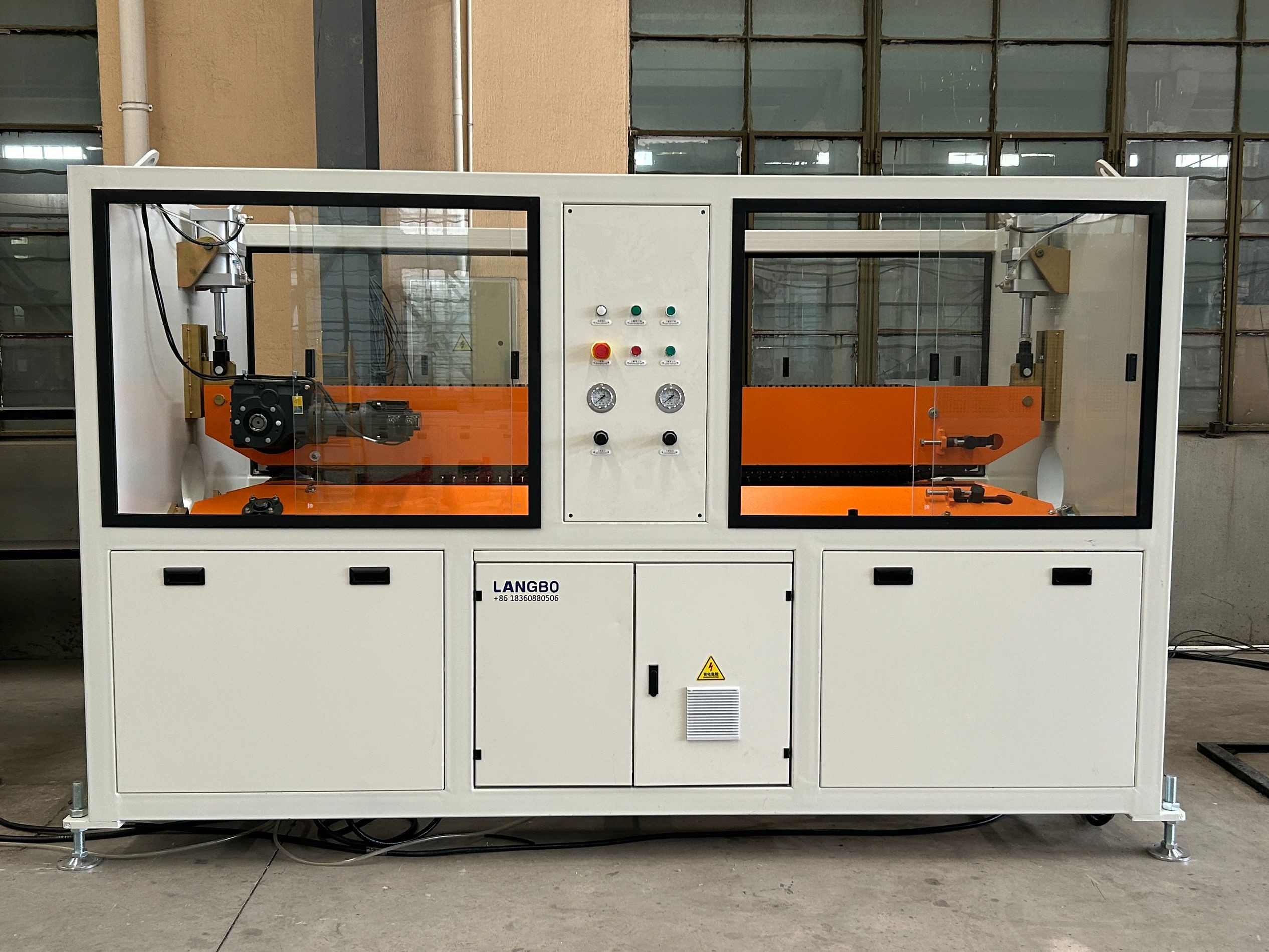

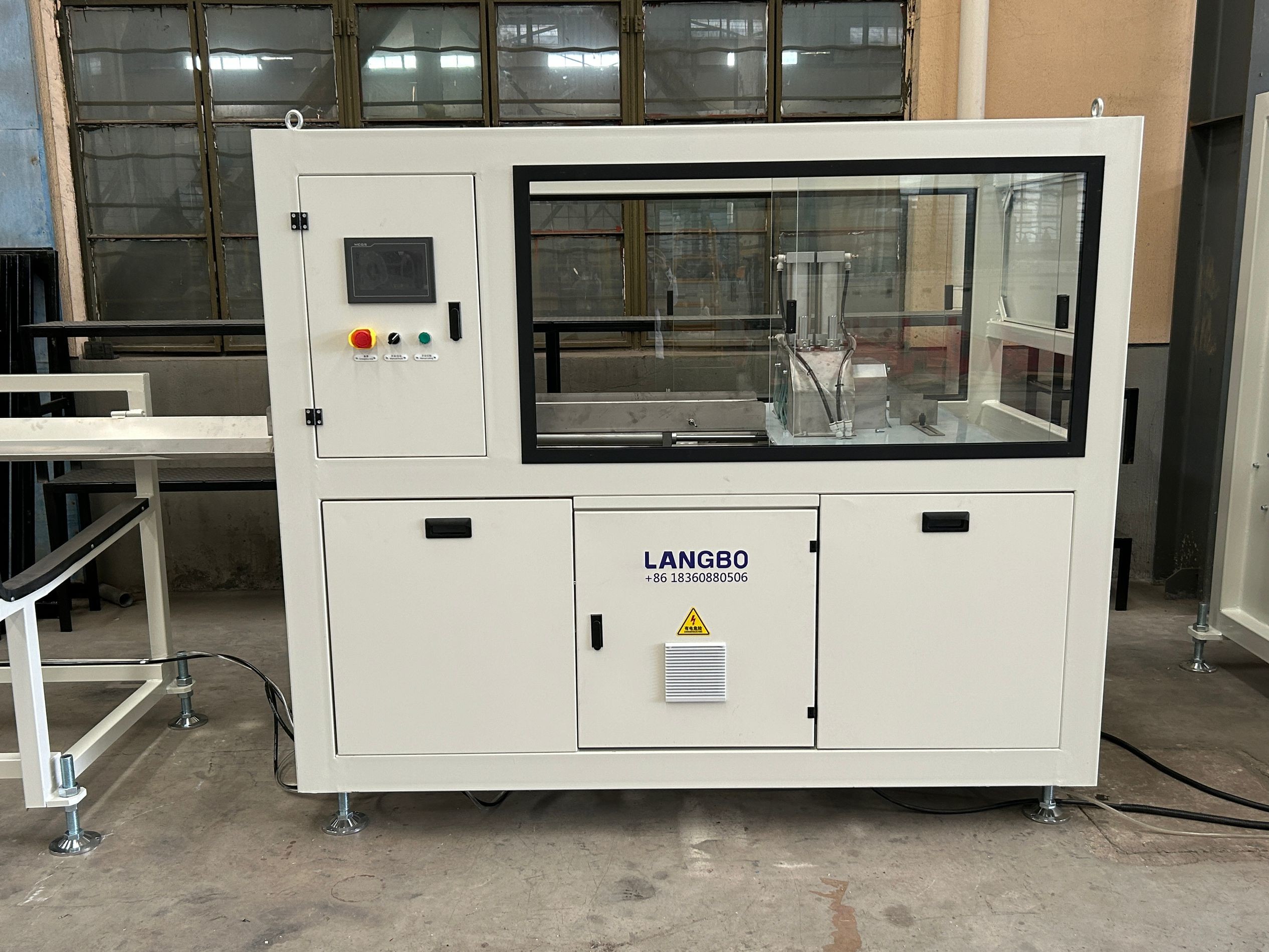

Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application. Due to the high corrosive feature of the CPVC material, all the surfaces of the cutting unit adopts stainless steel 304. It ensures the working lifetime of the cutting machine.
CONTACT US:
The CPVC pipe is a new and popular product among the pipes. We are much experienced in the CPVC pipe production field, if you are interested, pls contact me. I can make tailed solution and send you much working videos of the CPVC pipe production. Look forward to your inquiry.
