Full Automatic 180-400mm HDPE Pipe Extrusion Line With 75/38 Extruder With 160kw Motor
Product Details
| Extruder Power (kw): | 160KW | PIPE DIAMETER: | 180-400MM |
|---|---|---|---|
| COLOUR: | BLACK, ORANGE | APPLICATION: | GAS CONDUIT |
| MARK LINE: | YES | SCREW DIAMETER: | 75/38 |
| Screw Design: | Single Screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 1 Year |
| Color: | Customised | Control: | PLC+Touch Screen |
| Motor Power: | 160KW | Haul-off: | Four Haul-offs |
| Cutter: | Plenetary Cutter | ||
| Highlight |
75/38 HDPE Pipe Extrusion Line,160kw HDPE Pipe Extrusion Line,Full automatic HDPE Pipe Extrusion Line |
||
Product Description
180-400mm HDPE Pipe Extrusion Line
Description:

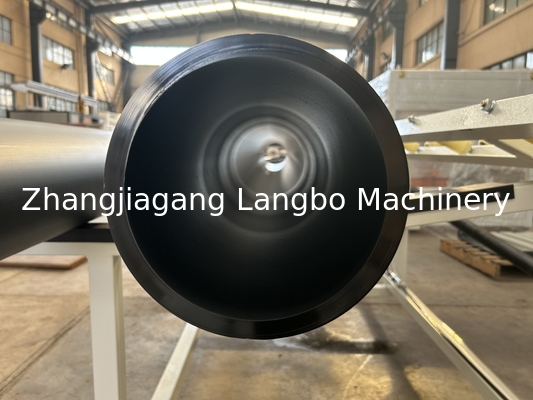

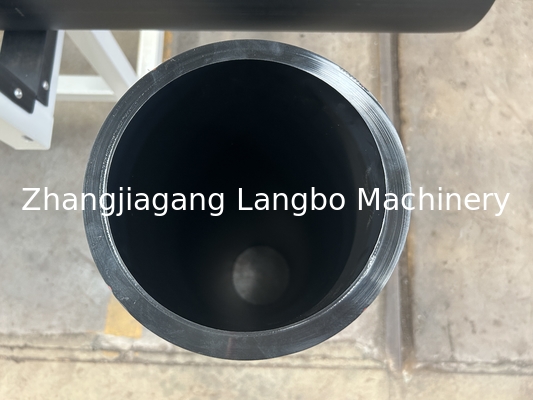

This line is making 180-400mm HDPE Pipe with 2cm wall thickness. We adopt 75/38 extruder with 160kw motor. It ensures 160kg/h capacity. The vacuum and cooling tank ensures the pipe become round and hard inside the tank. Another one cooling tank guarantee the high speed production. We equip three crawler track haul-off machine and knife cutting. The special design of the mould and temperature adjustment device ensures the pipe with good surface and best performance.
Processing Process:
PE particles—material feeder—single screw extruder—mould and calibrator—vacuum forming machine—two-staged spraying cooling machine—haul-off machine—knife cutter—stacker.
Specifications
| Model | LB110 | LB250 | LB315 | LB400 |
| Pipe Range | 20-110mm | 75-250mm | 110-315mm | 180-400mm |
| Screw Model | SJ65 | SJ75 | SJ75 | SJ75 |
| Motor power | 55KW | 90KW | 132KW | 160KW |
| Output | 150kg | 220kg | 400kg | 600kg |
Product detail:
Single screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.

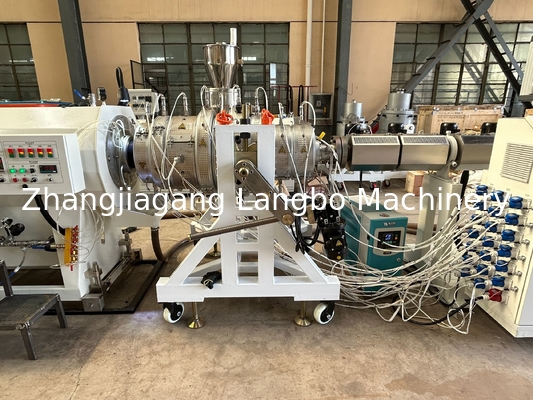

Mould
The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.
It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.

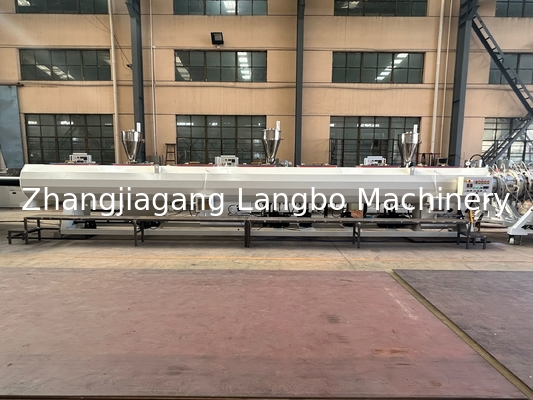

Vacuum and cooling tank
The vacuum calibration tank adopts stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. The holder in first step of the vacuum calibration tank guarantees the pipe shaped and provides extra power for the pipes moving on.

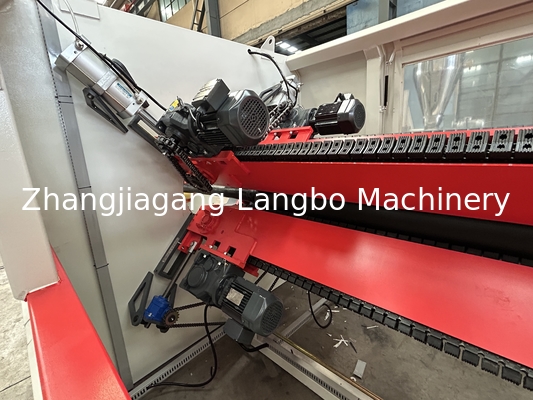

Haul-off Unit
The ten crawler track on the haul-off machine ensures produced pipe running stably and steady. utilize a unique mechanism to prevent pipe ovality while our unique belt design assures proper pulling without slippage.

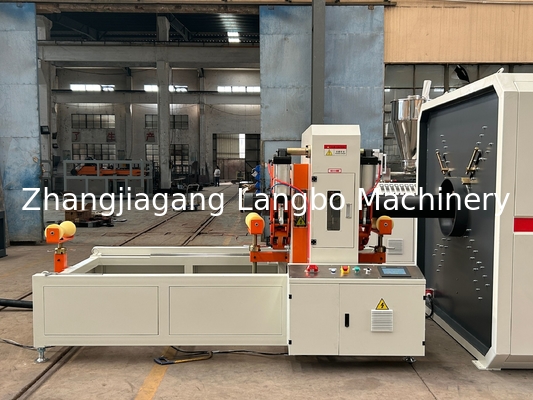

Cutting Unit
We offers two cutting methods including rapid cutter and planetary cutter. In accordance to the
produced pipe material, the cutting way can be switched randomly.

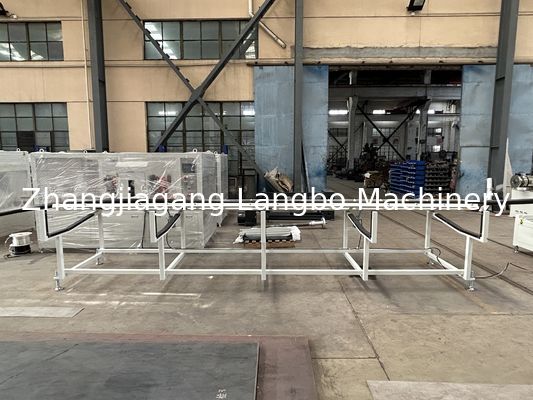

Tipping table
Our Tipping table is made by 304 quality stainless material of iron structure, sturdy structure and heavy load bearing. Our rubber wheel steady hold the pipe product without scratch risk.
