400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor

400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor
400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor
400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor

Large Image :  400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor

Product Details:
Place of Origin: ZHANGJIAGANG, JIANGSU, CHINA
Brand Name: LB
Certification: CE ISO9001
Model Number: LB-710
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor

Description
Extruder Type: Conical Twin Screw Extruder Extruder Model: 92/188
Raw Material: PVC Powder And Additives Final Product Application: Chemical Industry Conduit
Motor: 110kw Gearbox: "DELING" Gearbox
Control System: PLC Inverter: ABB Frequency
Temperature Sensor: Omron Haul Off: Four Caterpillar Haul Off Machine
Cutter: Planetary Cutter

400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor



The design of 400-710mm PVC Pipe:

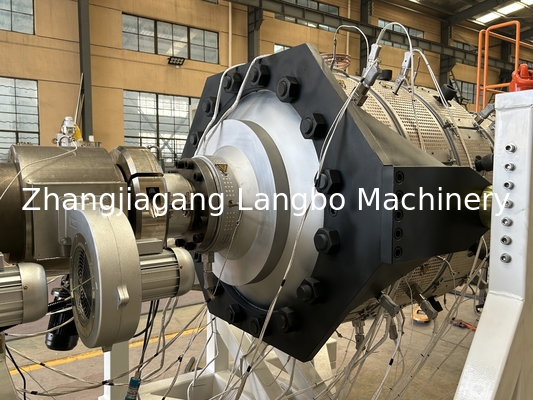

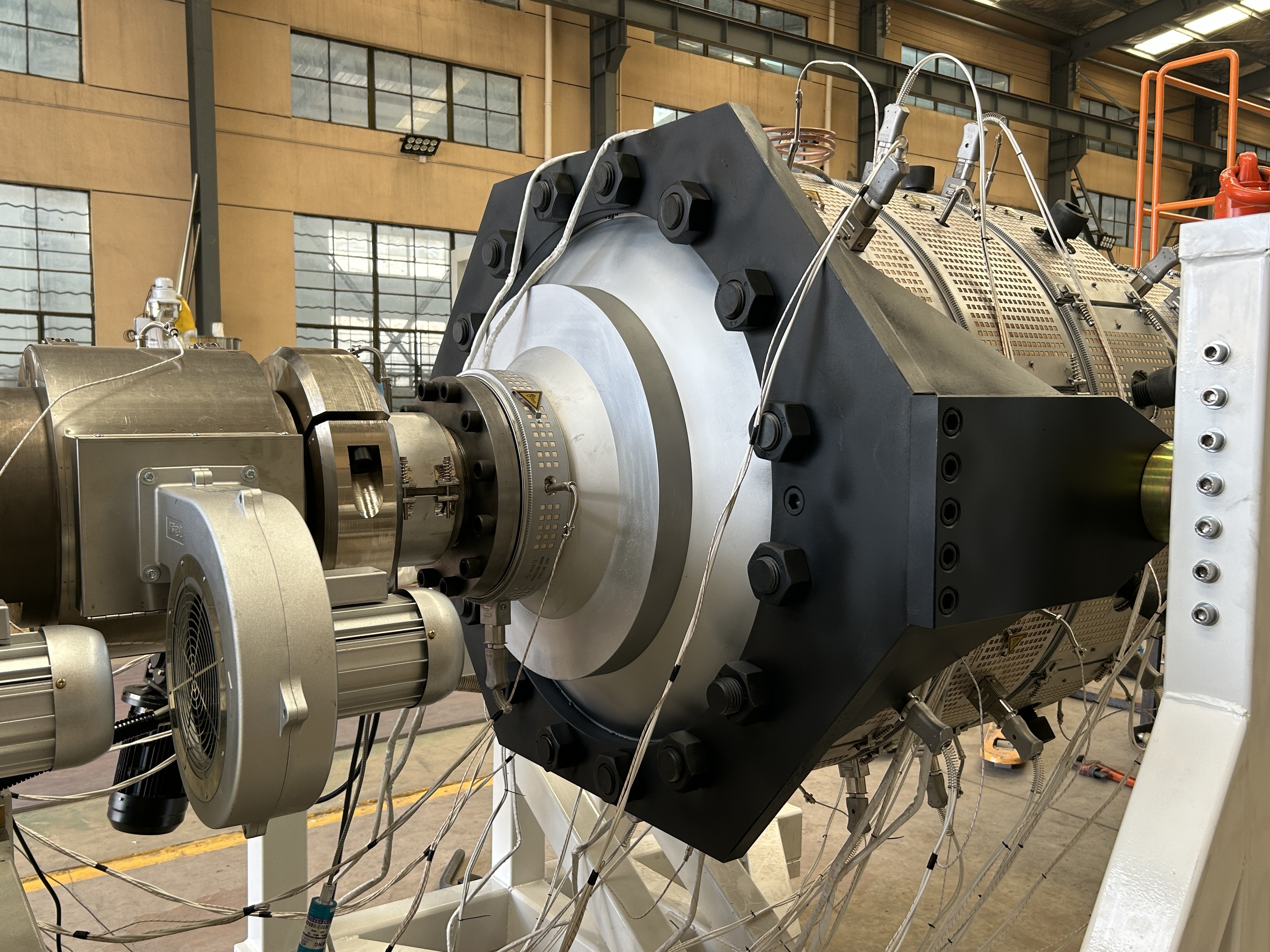

For the large PVC pipe, it is often used in the industrial water supply pipe. It is widely used in the Saudi Arabia and middle east countries. For the large diameter pipe, its capacity can be up to 800-1000kg/h. We have much experienced in the large diameter PVC pipe. For this line, we adopt 92/188 110kw extruder to ensure the stable extrusion speed. The mould material adopts 40Cr with temperature sensor device. The motor is Siemens-beide(joint venture in China). It has 6 meters long vacuum tank and four caterpillar haul-offs.

400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 0



In the extrusion process of pvc pipe, which points should be careful



During the extrusion process of CPVC (Chlorinated Polyvinyl Chloride) pipes, several points require careful attention to ensure the production of high-quality pipes. Here are some key points:



1. **Material Handling and Mixing**:

- Ensure proper handling and mixing of CPVC resin and additives to achieve uniform dispersion and consistency in the material. Proper mixing is crucial for maintaining the desired properties of the CPVC compound.



2. **Temperature Control**:

- Monitor and control the extrusion temperature carefully, as CPVC material has specific temperature requirements for processing. Maintain the temperature within the recommended range to prevent degradation of the material and ensure proper melt flow.



3. **Screw Design and Configuration**:

- Use extruder screws designed specifically for processing CPVC material. The screw design should provide adequate mixing and homogenization of the melt while minimizing shear heating to avoid material degradation.



4. **Die Design and Calibration**:

- Ensure the die design is suitable for CPVC pipe extrusion, with proper dimensions and geometry to produce pipes with consistent wall thickness and diameter. Calibrate the die properly to achieve uniform pipe dimensions.



5. **Cooling and Quenching**:

- Implement effective cooling and quenching systems to rapidly cool the extruded CPVC pipe and set its dimensions. Proper cooling is essential for preventing warping or distortion of the pipe and ensuring dimensional stability.



6. **Pulling and Sizing**:

- Control the pulling speed and sizing of the CPVC pipe to achieve the desired dimensions and surface finish. Proper pulling and sizing ensure uniformity in pipe diameter and wall thickness throughout the length of the pipe.



7. **Monitoring and Quality Control**:

- Implement a comprehensive monitoring and quality control system to detect any defects or inconsistencies in the extruded CPVC pipes. Conduct regular inspections and tests to ensure compliance with specifications and standards.



By carefully managing these points during the extrusion process, manufacturers can produce high-quality CPVC pipes that meet the required specifications and performance standards.



Extrusion line details:

Twin screw extruder machine

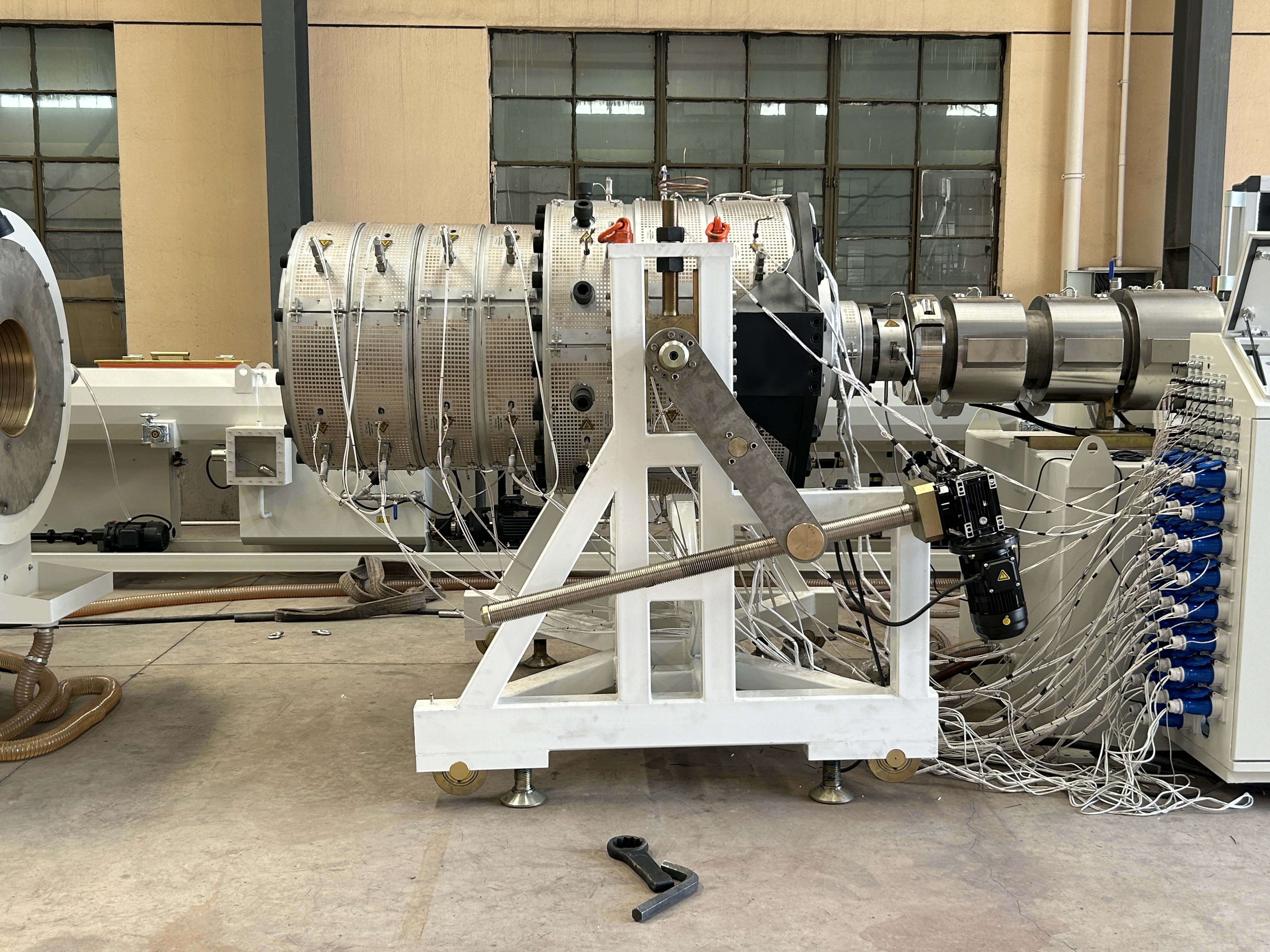

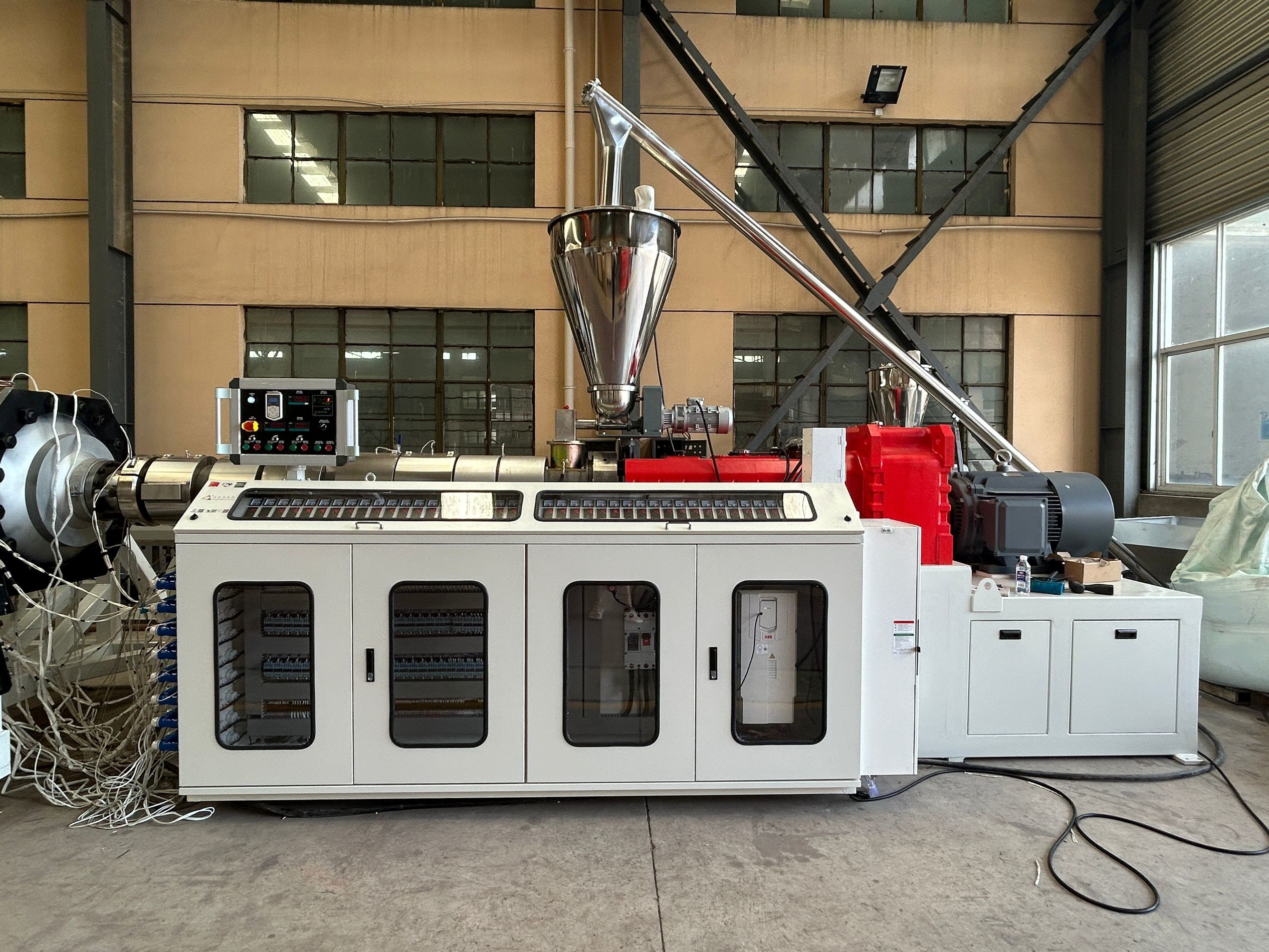

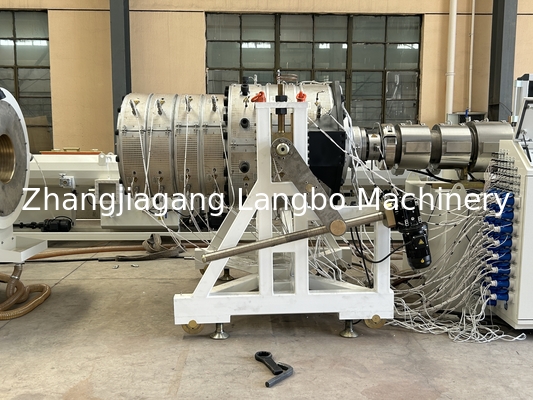

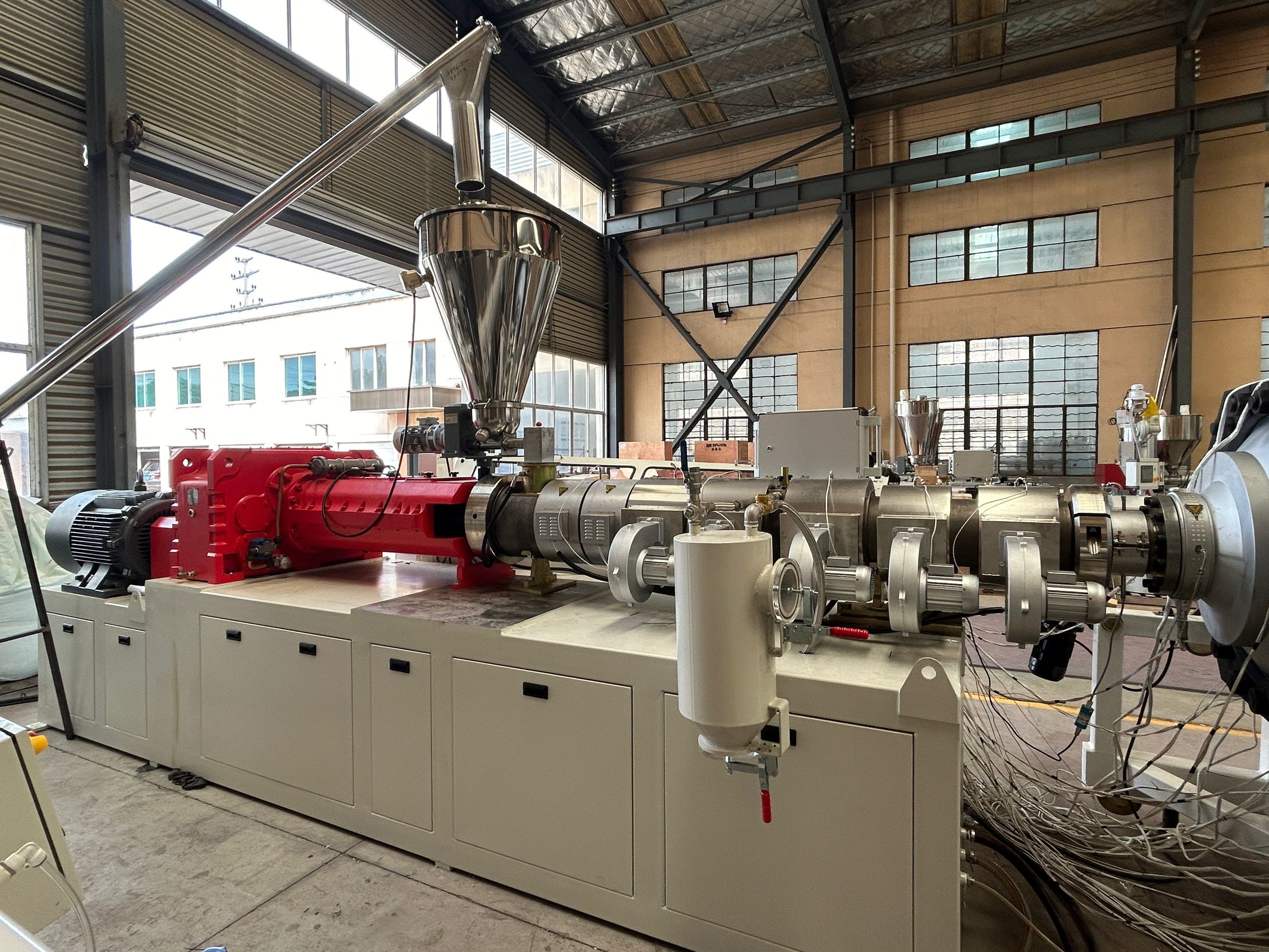

The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Due to the stick feature of the PVC material, we adopt 110kw for the extrusion line to ensure the pushing force. Meanwhile our screw and barrel is specially designed to deter to the high corrosive characters.

400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 1

Vacuum calibration & cooling tank

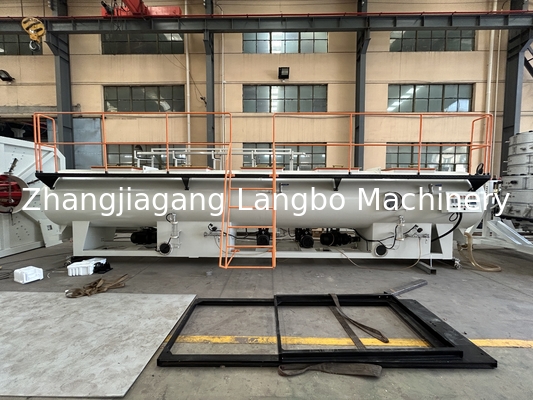

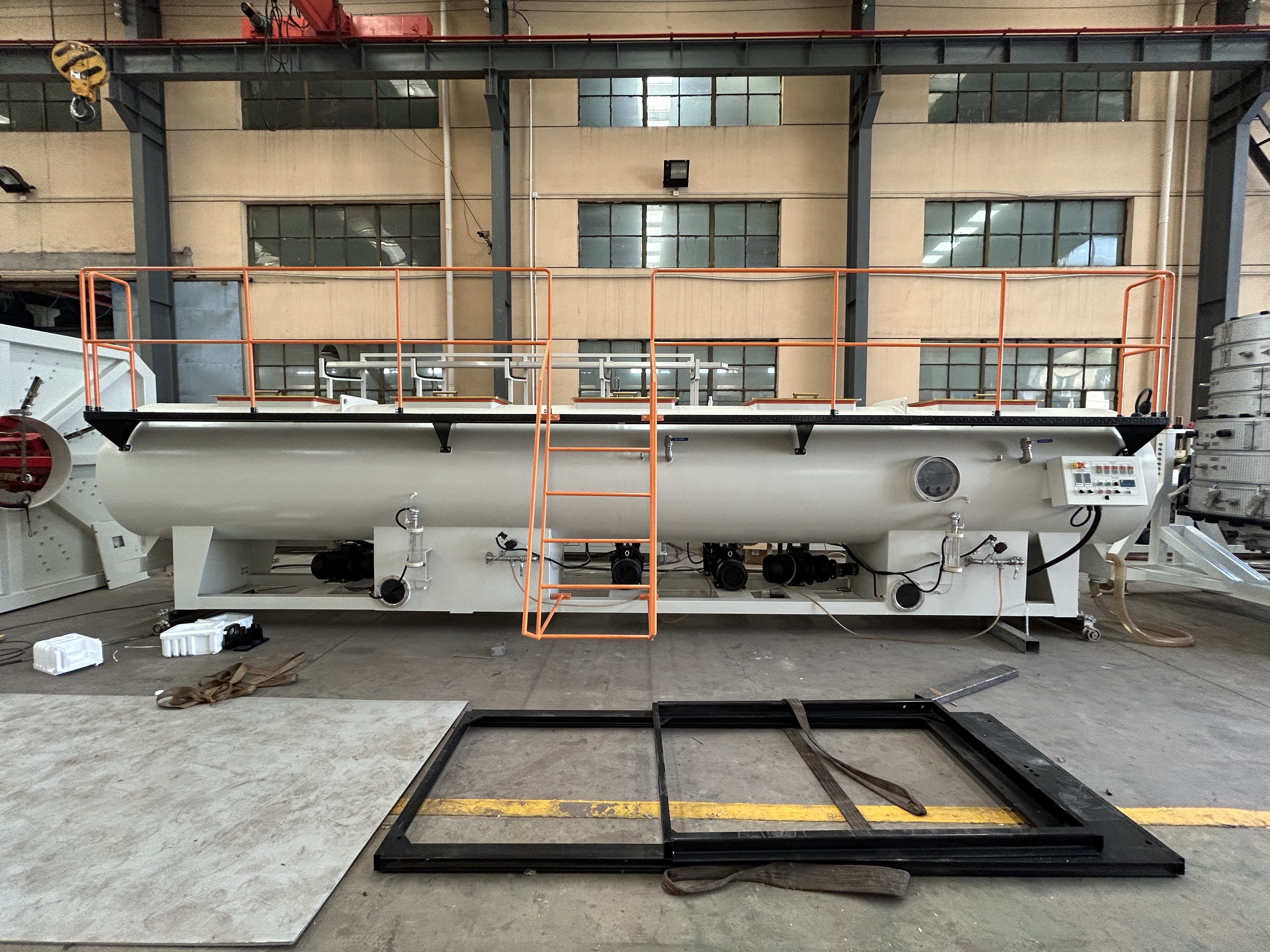

The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. We lengthen the vacuum and cooling tank to 8m. With much longer cooling process, the PVC pipe can be well cooled and have better surface.

400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 2

Haul-off Unit

We adopt four caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 3400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 4

Cutting Unit

The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application. Due to the high corrosive feature of the PVC material, all the surfaces of the cutting unit adopts stainless steel 304. It ensures the working lifetime of the cutting machine.

400-710mm PVC Pipe Extrusion Line with 92/188 110KW motor 5



CONTACT US:

The CPVC pipe is a new and popular product among the pipes. We are much experienced in the PVC pipe production field, if you are interested, pls contact me. I can make tailed solution and send you much working videos of the PVC pipe production. Look forward to your inquiry.
