Product Details:
|
| PIPE DIAMETER: | 20-63 | EXTRUDER'S POWER: | 37KW |
|---|---|---|---|
| COLOUR: | WHITE ORANGE BLUE | PIPE NUMBERS: | TWO PIPES |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatic |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 1 Year | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | SIEMENS Brand | Contactor: | SIEMENS |
| Highlight: | PVC Electrical Conduit Extrusion Line,20-63mm pvc pipe extrusion line,Double Strands pvc pipe extrusion line |
||
20-63mm Double Strands PVC Electrical Conduit Extrusion Line
PVC Electrical Conduit Pipe Features
For the PVC electrical conduit, it is mostly 20-63mm diameter. It often used in the decoration field and mostly are black color. For the 20-63mm pvc pipe production, we applied 65/132 37kw extruder ensuring the 250-300kg/h capacity.
PVC Pipe production line application
1. Water supply and drainage pipelines in building
2. Rainwater drainage pipelines in building
3. Electrical wiring pipe in building
4. Air conditioning condensate water systems
Features of PVC Pipe production line
1.Product size: Outside diameter 16-630mm
2.Output capacity: 120~800kg/h
3.Cooling water temperature<25℃,inlet pressure>0.3Mpa
4.Air pressure: > 0.6Mpa
5.Electric power supply: 3Phase/380V/50HZ or customized to your requirement.

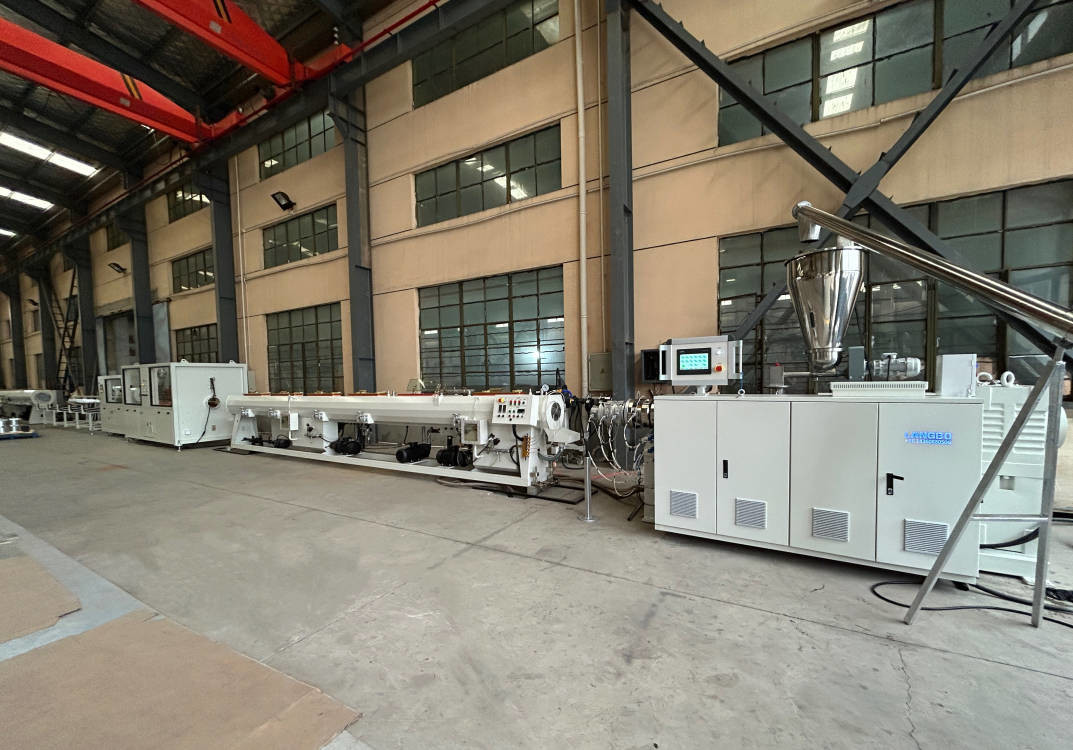

The PVC pipe production line includes the below machines:
1. PVC Mixer ( for raw material preparation)

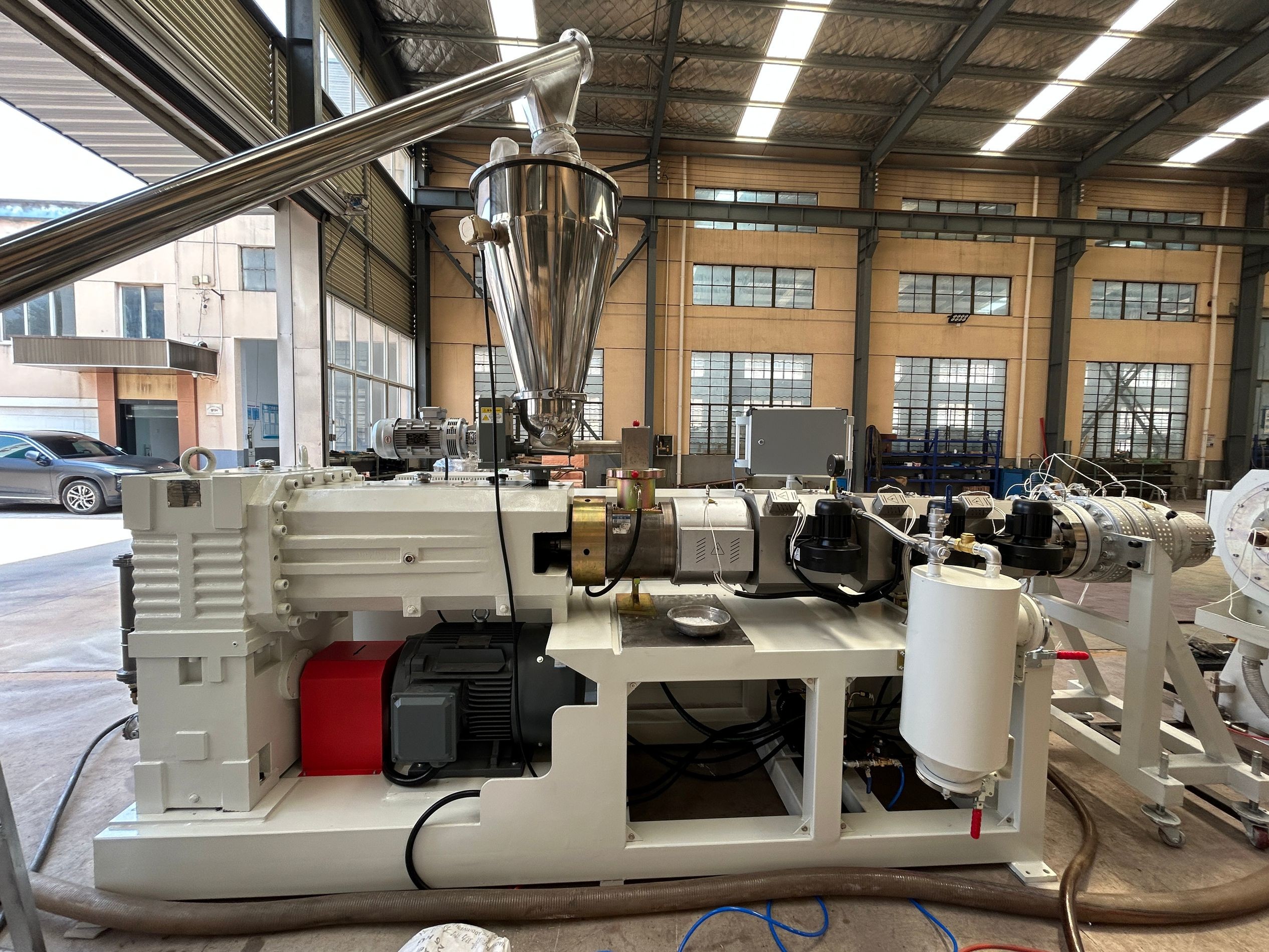

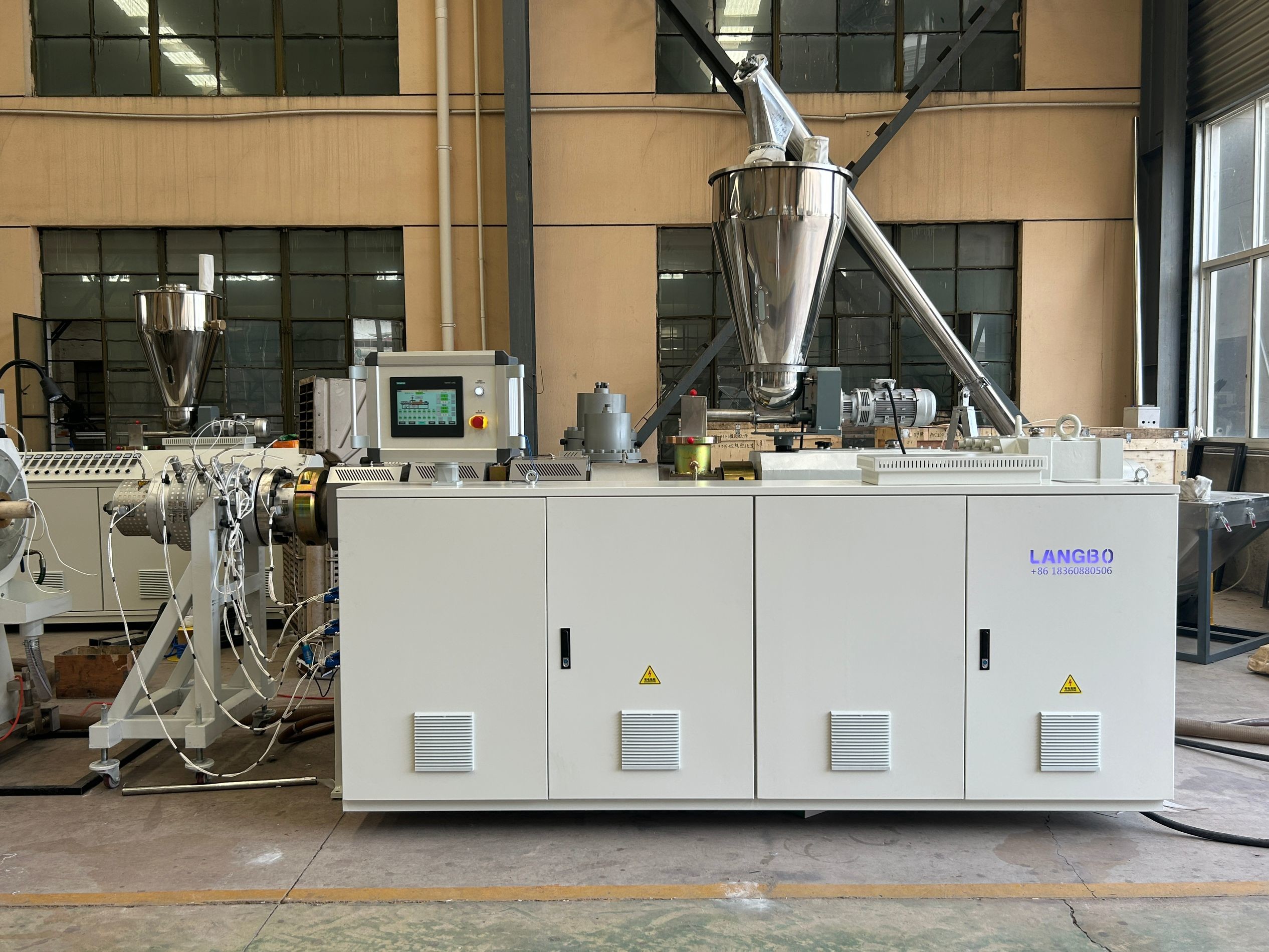

2. Conical Twin Screw Extruder
3. Extrusion Mold

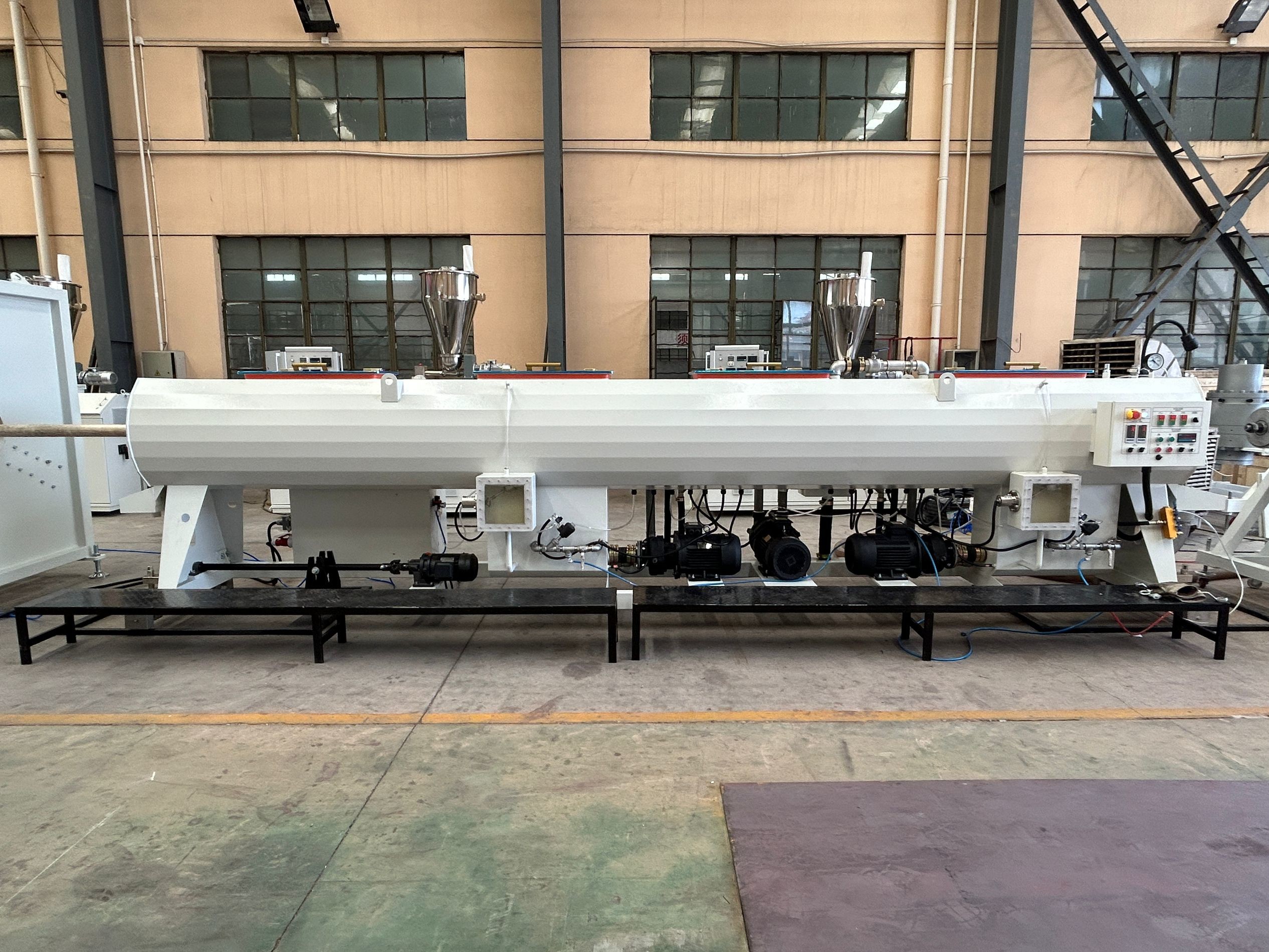

4. Vacuum Tank
5. Cooling Tank ( for large diameter pipes)
6. Haul Off Machine
7. Cutting Machine
8. Stacker
9. Auto Belling Machine ( for pipe connection)
10. Crusher and Milling Machine ( for waste pipe treatment, the recycled PVC could used for producing pipe again.)
Productline variant:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
1. We can provide machine testing when customer come to our factory to see this machine when available.
2. We provide machine technical specification, installation&operating manual, drawings,electric diagram,
3. We can provide engineers to customer's factory to help installation and training workers if customer required.
4. Spare parts is available when customer need.within 12 months warranty,we will provide without any charge.Over warranty,we can provide spare parts just with cost price.We will provide technical support for all machines we support lifetime.
