High Output Capacity 20-630mm Pvc Pipe Making Machine
Product Details
| PIPE DIAMETER: | 20-630 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE NUMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatic |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 12 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Highlight |
High Output Pvc Pipe Making Machine,High Capacity Pvc Pipe Making Machine,20-630mm Pvc Pipe Making Machine |
||
Product Description
HIGH OUTPUT CAPACITY 20-630MM PVC PIPE MAKING MACHINE
PVC Electrical Conduit Pipe Features
Φ 20-Φ 800 Series PVC Pipe Extrusion Line Is Mainly Used In The Manufacture Of Plastic PVC Pipes With Various Diameters And Wall Thickness Used In The Industries Such As Agriculture And Constructional Plumbing, Cable Laying etc.
This PVC Pipe Extrusion Line Is Composed Of Conical Twin-Screw Extruder, Vacuum Calibration Tank, Haul-Off, Cutter, Stake And etc. The Extruder And Haul-Off Adopt Imported AC Frequency Speed Controller, Vacuum Pump And Haul-Off Motor All Adopt Superior Products. The Haul-Off Method Has Two-Claw, Three-Claw, Four-Claw, Six-Claw And etc. You May Choose Saw Blade Cutting Type Or Planetary Cutting Type. It Is Additionally Attached With Length Counter And Intensifying Device.
This PVC Pipe Extrusion Line Is Of Reliable Preformance And High Production Efficiency. Our Company Can Also Manufacture Special Pipe Production Lines, E. G. Spiral Silencing Pipe And Core Foaming Pipe According To Your Requirements.
PVC Pipe production line application
1. Water supply and drainage pipelines in building
2. Rainwater drainage pipelines in building
3. Electrical wiring pipe in building
4. Air conditioning condensate water systems
Features of PVC Pipe production line
1.Product size: Outside diameter 16-630mm
2.Output capacity: 120~800kg/h
3.Cooling water temperature<25℃,inlet pressure>0.3Mpa
4.Air pressure: > 0.6Mpa
5.Electric power supply: 3Phase/380V/50HZ or customized to your requirement.
The PVC pipe production line includes the below machines:
1. PVC Mixer ( for raw material preparation)

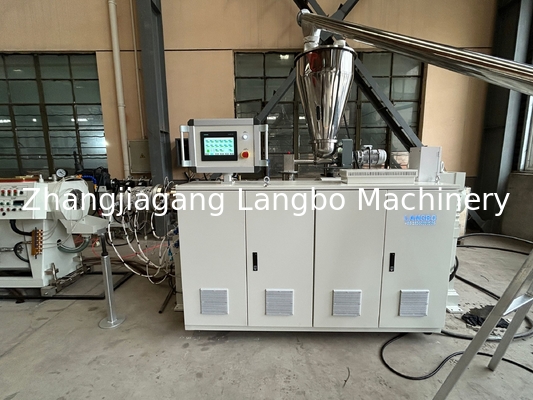

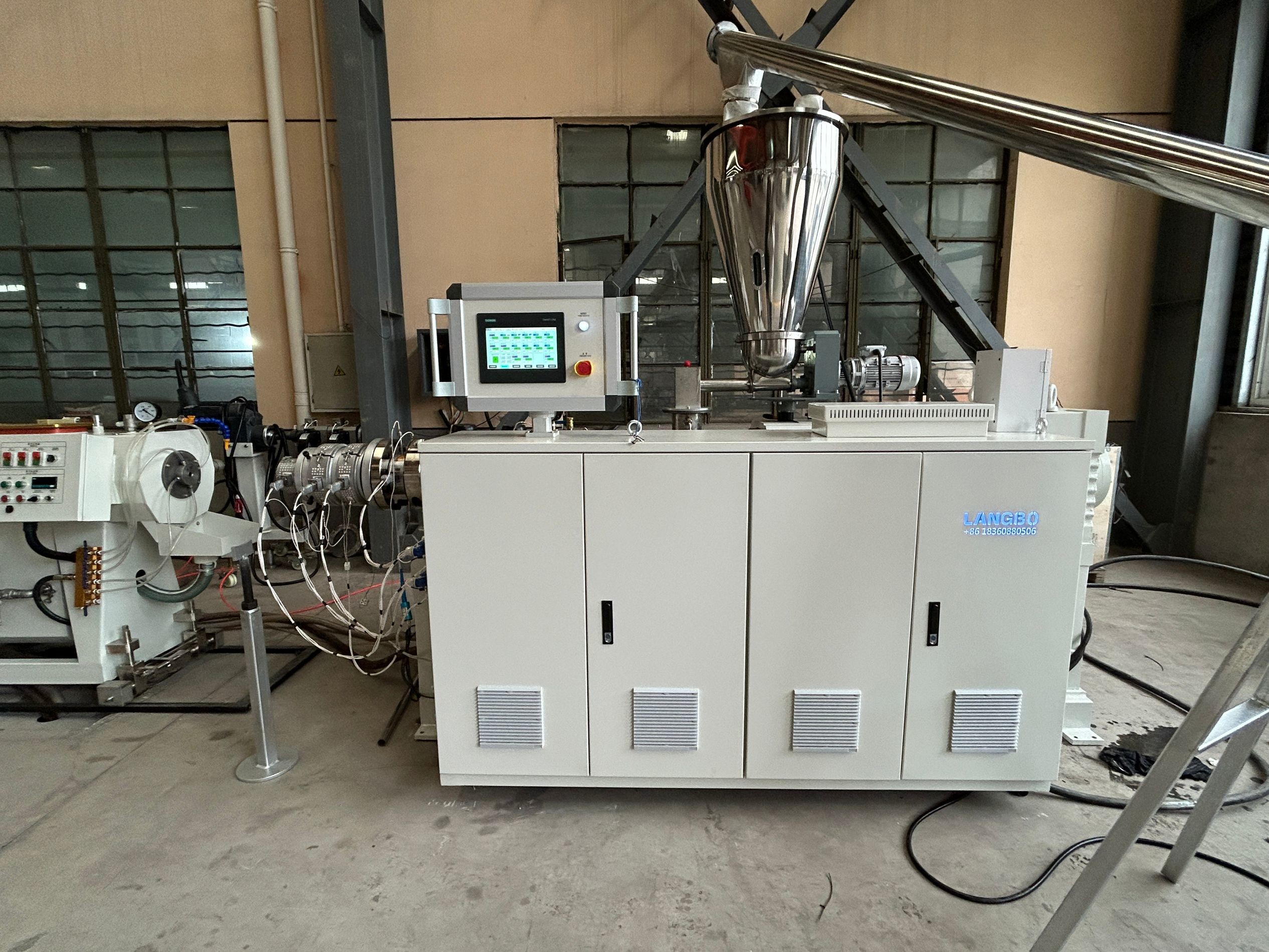

2. Conical Twin Screw Extruder
3. Extrusion Mold

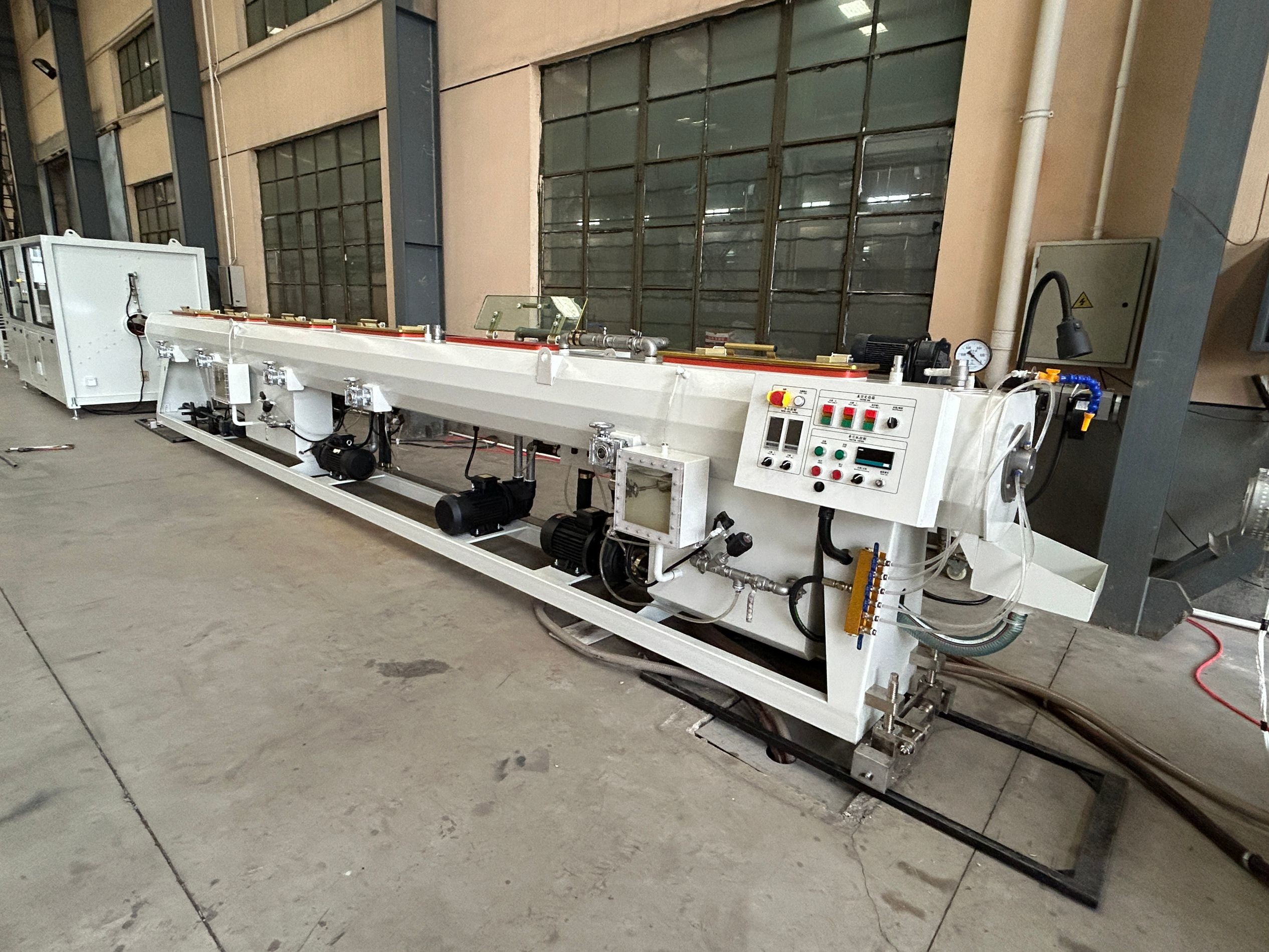

4. Vacuum Tank
5. Cooling Tank ( for large diameter pipes)

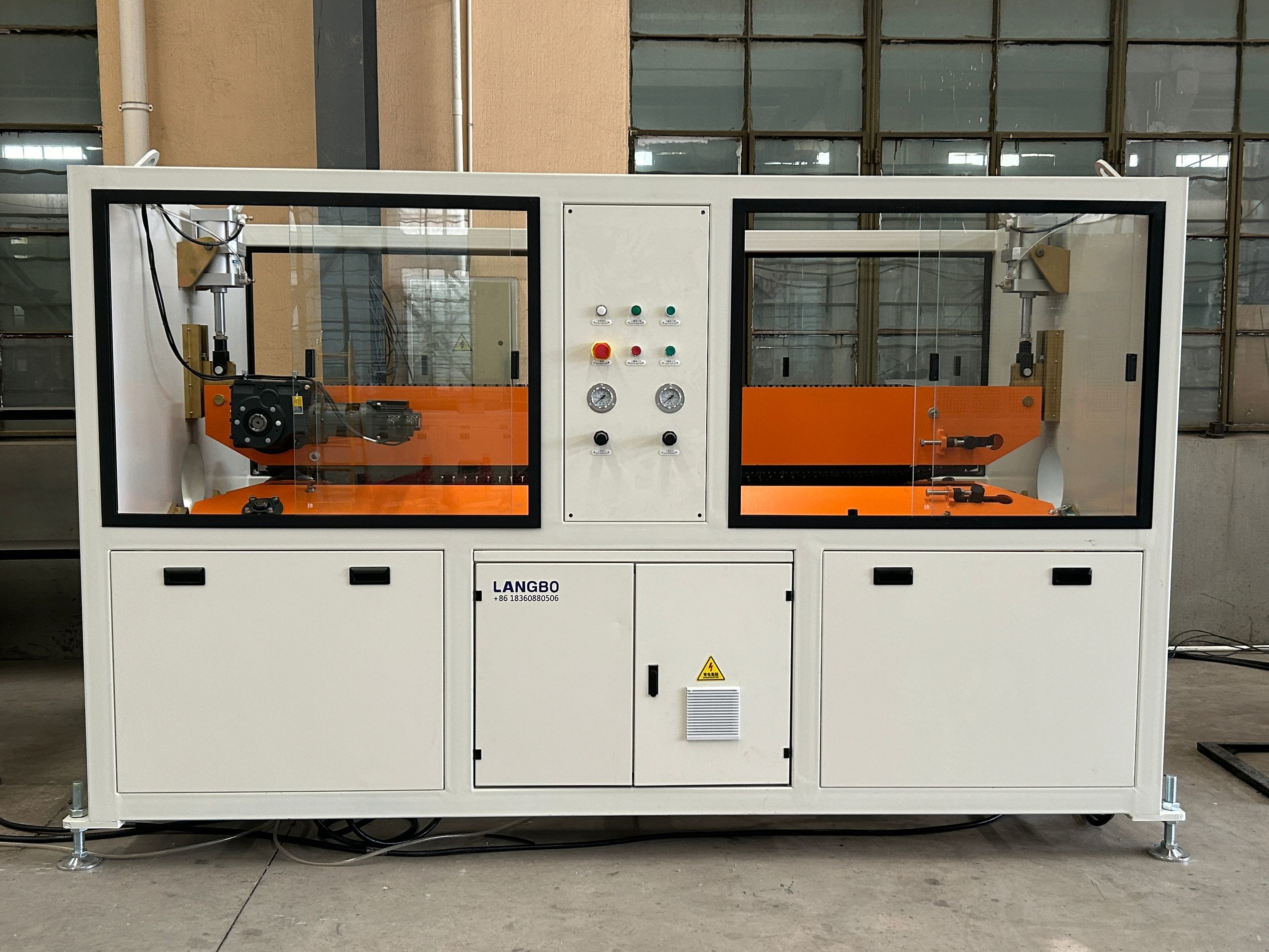

6. Haul Off Machine

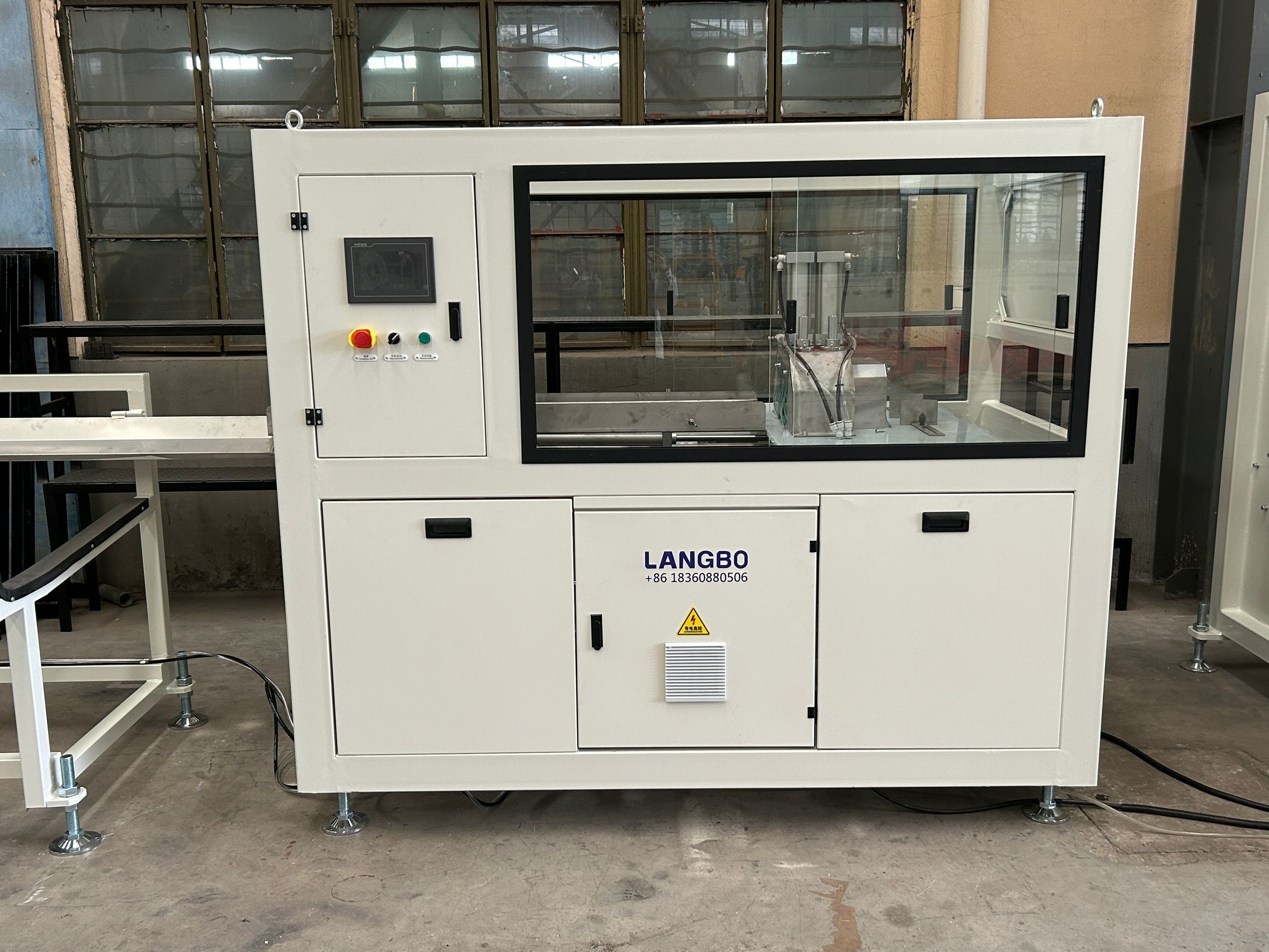

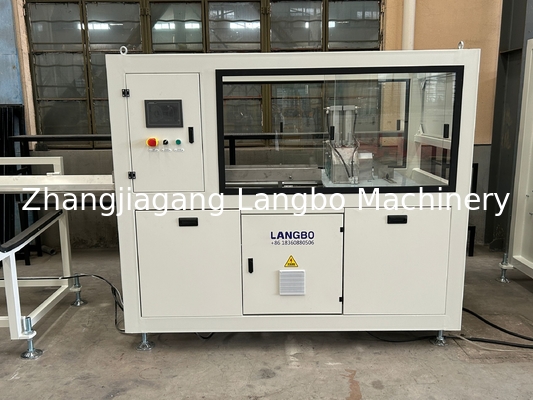

7. Cutting Machine
8. Stacker
9. Auto Belling Machine ( for pipe connection)
10. Crusher and Milling Machine ( for waste pipe treatment, the recycled PVC could used for producing pipe again.)
Productline variant:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
1. We can provide machine testing when customer come to our factory to see this machine when available.
2. We provide machine technical specification, installation&operating manual, drawings,electric diagram,
3. We can provide engineers to customer's factory to help installation and training workers if customer required.
4. Spare parts is available when customer need.within 12 months warranty,we will provide without any charge.Over warranty,we can provide spare parts just with cost price.We will provide technical support for all machines we support lifetime.
