Advanced PVC Pipe Production Line With 55kw Motor And ABB Frequency Inverter
Product Details
| Extruder Type: | Twin Screw Extruder | Extruder Model: | 51/105 65/132 80/156 |
|---|---|---|---|
| Raw Material: | PVC Powder Caco3 And Additives | Final Product Application: | Water Supply Pipe And Electrical Conduit |
| Motor: | 22kw 37kw 45kw 55kw | Gearbox: | "DELING" Or Sunlung Gearbox |
| Control System: | PLC Or Control Button | Inverter: | ABB Frequency |
| Temperature Sensor: | Omron | Haul Off: | Three Haul Off Machine |
| Cutter: | Saw Cutter | Screw And Barrel: | Top Quality Famous Chinese Brand |
| Warranty: | 12 Months | ||
| Highlight |
55kw PVC Pipe Production Line,Advanced pvc pipe extrusion line,Advanced PVC Pipe Production Line |
||
Product Description
PVC Pipe Production Line/ PVC Pipe Extrusion Line/ PVC Pipe Machine/PVC Pipe Making Machine/PVC Pipe Extruder
Product Description
PVC double pipe production line is developed for high output of double pipe extrusion.
The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with double-tube single-control
stainless steel spraying shaper to form a production line. It avoids a waste condition when one tube is adjusted and the other one is affected.
The auto single-control double drawing machine and cutting are combined with the front shaping technology to make operation more flexible.
Let you enjoy economic benefit which is brought about by separately control double-tube extruding.
The diameter of the extruded pipe is from 20-63mm. It can fully use the extruding capacity of the extruder. Even if it producces small diameter pipe,
it can get great output too.
So, it is your best choise for high output and effecient for PVC double pipe extrusion/ production line
1) conical twin screw extruder (PVC)
2) die head and mould (double-one)
3) Vacuum calibrating unit (double-one)
4) Spraying cooling tank (double one)
5) hual off unit and cutting machine (double one)

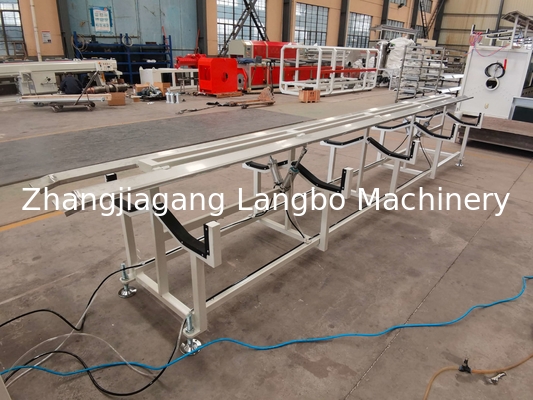

6) stacker
Extrusion line details:

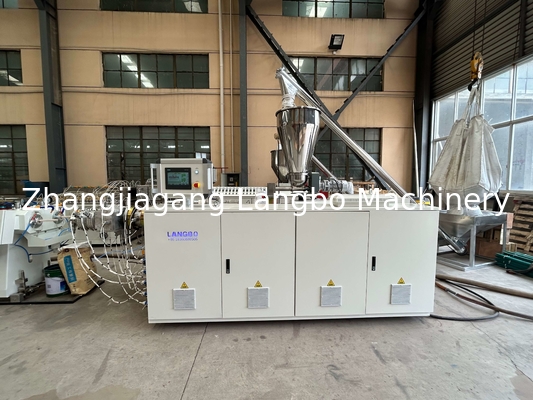

Twin screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Due to the stick feature of the CPVC material, we adopt 45kw for the extrusion line to ensure the pushing force. Meanwhile our screw and barrel is specially designed to deter to the high corrosive characters.
Mould
The mould design is different from the normal pvc pipe. It has spiral lines to make inner-vacuum for the silent pipe. Meanwhile the mould is rotating during production in order to make the lines for the inside of pipe.
Vacuum calibration & cooling tank
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. We lengthen the vacuum and cooling tank to 8m. With much longer cooling process, the CPVC pipe can be well cooled and have better surface.

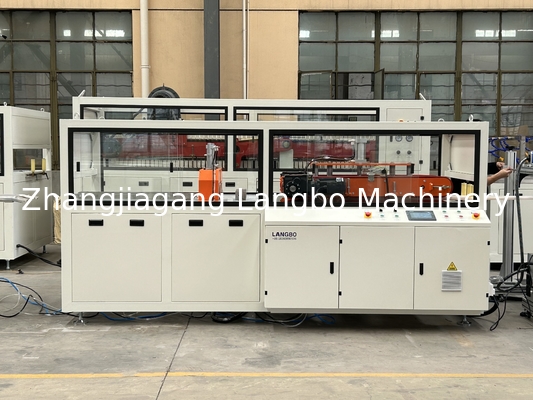

Haul-off Unit
We adopt three crawler track on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.
Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application. Due to the high corrosive feature of the CPVC material, all the surfaces of the cutting unit adopts stainless steel 304. It ensures the working lifetime of the cutting machine.
CONTACT US:
The UPVC silent pipe is a new and popular product among the pipes. We are much experienced in the UPVC silent pipe production field, if you are interested, pls contact me. I can make tailed solution and send you much working videos of the pipe production. Look forward to your inquiry.
