Black PVC Supermarket Profile Production Line Single Screw Extruder Profile Extrusion Line
Product Details
| EXTRUDER TYPE: | 55/28 SINGLE SCREW EXTRUDER | PROFILE'S SIZE: | 50MM |
|---|---|---|---|
| MOTOR POWER: | 30KW | RAW MATERIAL: | PVC POWDER & ADDITIVES & MASTERBATCH |
| HAUL-OFFS: | TWO BELT HAUL-OFFS | CALIBRATION TABLE: | TWO METERS LONG |
| PACKING METHOD: | WOODEN BOX AND FILM PACKAGE | PROFILE SIZE: | ACCORDING TO CUSTOMERS' DRAWING |
| DELIVERY TIME: | WITHIN 60 DAYS | MOTOR: | MADE IN CHINA |
| SCREW AND BARREL: | BEST QUALITY CHINA BRAND | CUTTER: | SAW CUTTER |
| WARRANTY: | 18 YEARS | AFTER-SALES SERVICE: | ENGINEER INSTALLATION AT SITE |
| RAW MATERIAL FEATURES: | PVC PELLETS WITH MASTERBATCH | STACKER: | TWO METERS LONG |
| Highlight |
single screw extruder profile extrusion line,Black PVC Profile Production Line,Supermarket PVC Profile Production Line |
||
Product Description
Black PVC Supermarket Profile Production Line single screw extruder
Production Line Description

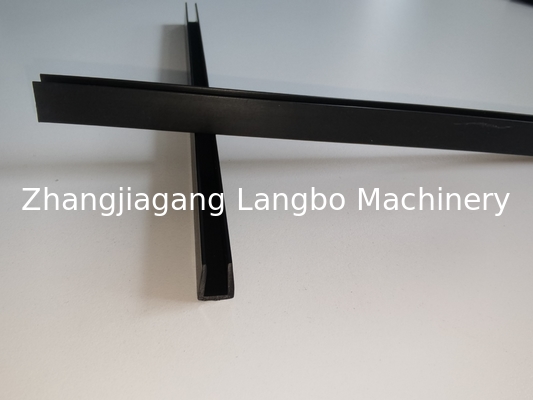

The black PVC supermarket profile is widely used in western country. It is combined and used with other parts of supermarket profile with beautiful functions. It needs to use vergin raw material with black masterbatch. In order to make smooth and high capacity, our machine design is suitable for producing two profiles at the same time. It could reach up to 4-5m/min extrusion speed. We enlarge the extruder motor in order to search for better and high capacity. The two meters long calibration table has two vacuum tank and one water tank to ensure the good performance of the profile. Our belt haul-offs ensure the profile moving forward stably. We provide two engineers install and commission service at site service and forever after-sales services. Whenever you have problem, you could contact me for help. I'm always on the standby to answer you!
Design details:

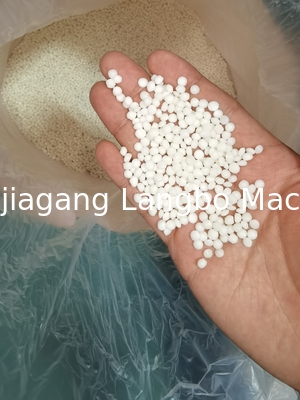

For this pvc profile extrusion line, our customers want to produce a special-shaped profile. Due to it used pvc pellets, so we choose SJSZ55/28 30kw extruder. The extruder is controlled by buttons. It has goodquality inverter and electrical contractors. The mould is specially processed in order to keep the profile having good performance. Our calibration table is 2 meters long. All the connection parts for the calibration table is 3mm SUS304. Our haul-offs has special curvatures ensuring the pulling force of the profile. When trial running of this line, our machine extrudes perfect profile.
Specifications
| Model | LB180 | LB240 | LB300 | LB600 |
| Max width of products(mm) | 180 | 240 | 300 | 600 |
| Screw Model | SJ55/110 | SJ65/132 | SJ65/132 | SJ80/156 |
| Motor power | 22KW | 37KW | 37KW | 55KW |
| Cooling Water(m3/h) | 5 | 7 | 7 | 10 |
| Compressor(m3/h) | 0.2 | 0.3 | 0.3 | 0.4 |
| Total length(m) | 18m | 22m | 22m | 25m |
Product detail

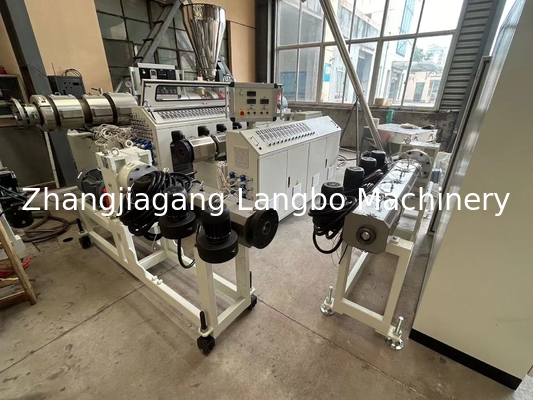

Conical Twin Screw Extruder
The screws are specifically designed and manufactured for the processing of dry pvc powder blend. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency. The permanent magnet synchronous motor provide high energy efficiency for the extruder. Equipped with PLC control system, it realized controlling the whole production line in the one site.

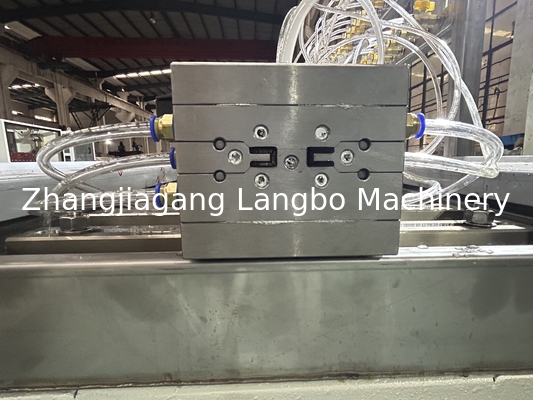

Mould
Our mould is processed by 40Gr forging and coated hard chromium on surface. The material of whole Vacuum calibrating sleeves is copper

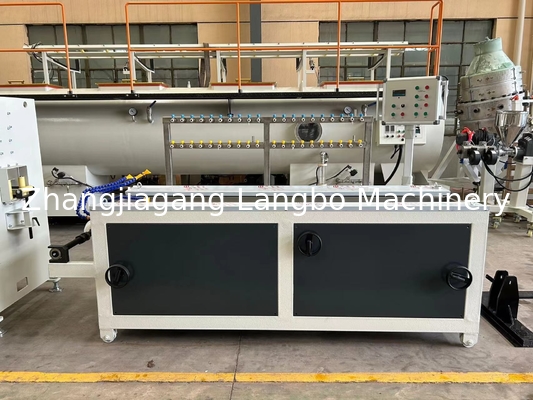

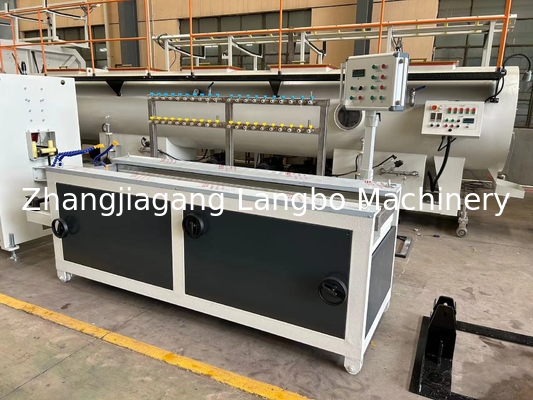

Calibration table
The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system. With precious layout of water pumps and vacuum calibrator, the PVC profile will be rapidly shaping and cooling. Enough length of the calibration table ensures the shaping of the PVC profile

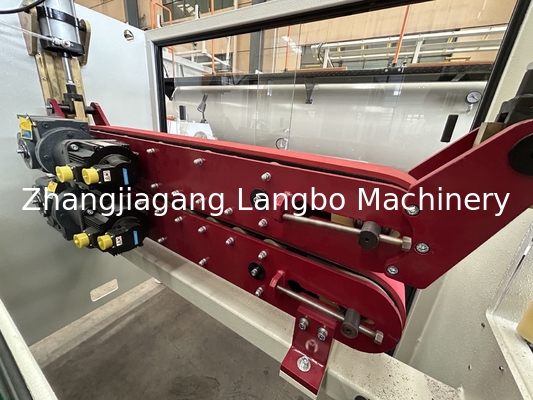

Haul-off
The force distribution along each s has sufficient hauling force. We offer good-quality rubber for the haul-off machine. The pneumatic pressure is conducive to the easy adjustment and product protection.

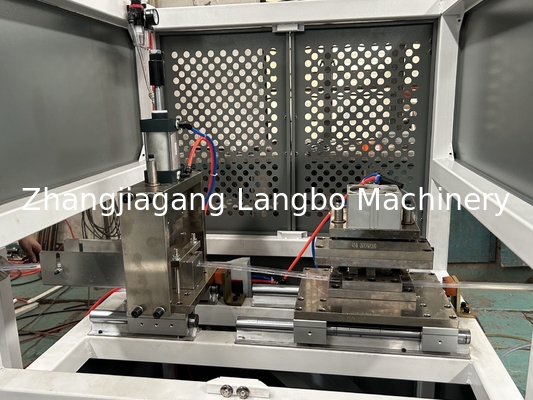

Cutter
It adopts saw cutting method. It is sharp enough to cut the pvc profile without destroying its inner structure.
Stacker
The cut product will lay down on the stacker one by one. And the workers will pack them into a balk. It is useful for carrying and transporting.
