Product Details:
|
| EXTRUDER TYPE: | 51/105 CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 50MM |
|---|---|---|---|
| MOTOR POWER: | 22KW | RAW MATERIAL: | PVC POWDER & ADDITIVES |
| HAUL-OFFS: | TWO CATERPILLAR HAUL-OFFS | CALIBRATION TABLE: | SIX MTERS LONG |
| PACKING METHOD: | WOODEN BOX AND FILM PACKAGE | PROFILE SIZE: | ACCORDING TO CUSTOMERS' DRAWING |
| DELIVERY TIME: | WITHIN 60 DAYS | MOTOR: | SIEMENS MADE IN CHINA |
| SCREW AND BARREL: | BEST QUALITY CHINA BRAND | CUTTER: | SAW CUTTER |
| WARRANTY: | 18 MONTH | AFTER-SALES SERVICE: | ENGINEER INSTALLATION AT SITE |
| CAPACITY: | 150-200KG/H | VACUUM TANK MATERIAL: | SUS304 3MM THICKNESS |
| STACKER: | SIX METERS LENGTH | ||
| Highlight: | 51/105 PVC Profile Extrusion Line,22kw PVC Profile Extrusion Line,Curtain pvc profile extrusion machine |
||

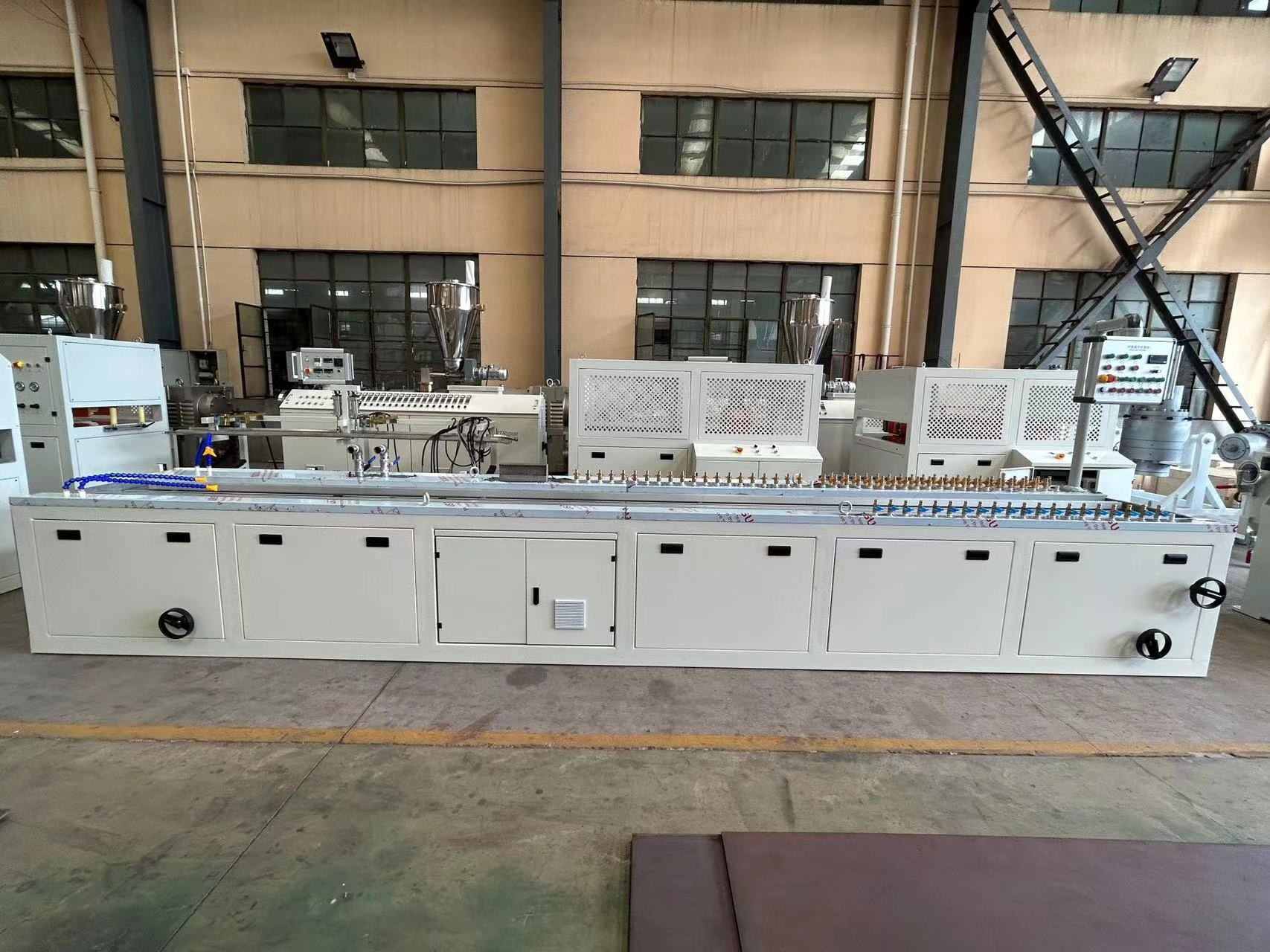

51/105 22kw Curtain PVC Profile Extrusion Line Conical Twin Screw
PVC Profile Extrusion line Description
The PVC profile used solid pvc raw material and additives. With reasonable material formula and delicated mould design, we could produce best profile product with very thin thickness. For this profile extrusion line, we used 51/105 22kw or 37kw extruder with 200-250kg/h capacity. The mould used 3Cr17 material. For the machine line, we assign engineers to customers' site commissioning and training. The delivery time of the complete extrusion line is about 60 days. When it is finished, we will arrange trial test at our factory and invite customer checking at site. The warranty of our extrusion machine is 18 months and lifelong after-sales services. We always cherish every customer and just deliver good quality machine to customers. Our machine price is negotiable and reasonble. If you have any interest, please contact me for further discussion.
Design details:

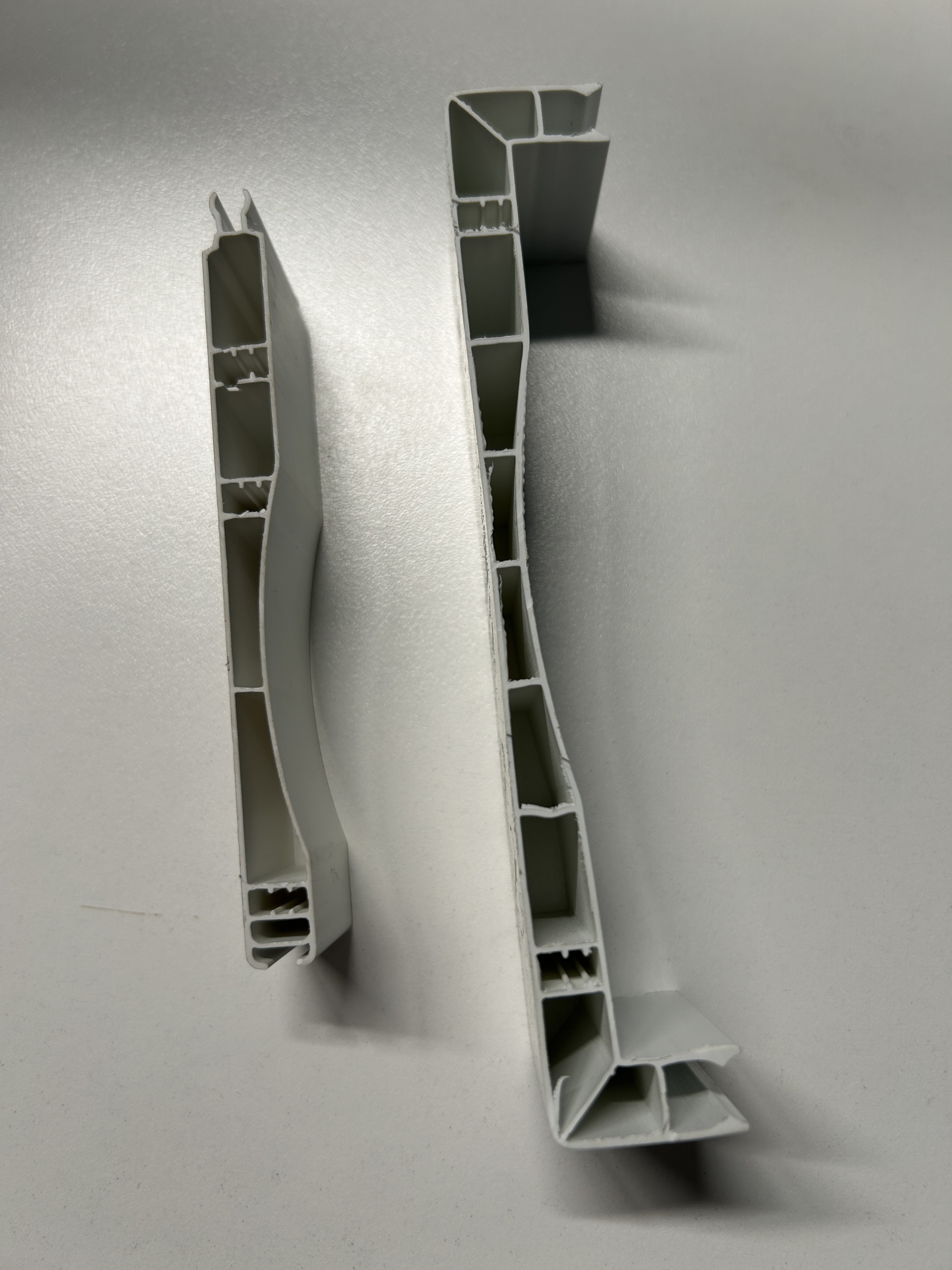

For this pvc curtain profile extrusion line, our customers want to produce a special-shaped profile. So we choose SJSZ51/105 22kw extruder. The extruder is controlled by buttons. It has goodquality inverter and electrical contractors. The mould is specially processed in order to keep the profile having good performance. Our calibration table is 8 meters long. All the connection parts for the calibration table is 3mm SUS304. Our haul-offs rubber has special curvatures ensuring the pulling force of the profile. When trial running of this line, our machine extrudes perfect profile.
Specifications
| Model | LB180 | LB240 | LB300 | LB600 |
| Max width of products(mm) | 180 | 240 | 300 | 600 |
| Screw Model | SJ55/110 | SJ65/132 | SJ65/132 | SJ80/156 |
| Motor power | 22KW | 37KW | 37KW | 55KW |
| Cooling Water(m3/h) | 5 | 7 | 7 | 10 |
| Compressor(m3/h) | 0.2 | 0.3 | 0.3 | 0.4 |
| Total length(m) | 18m | 22m | 22m | 25m |
Product detail

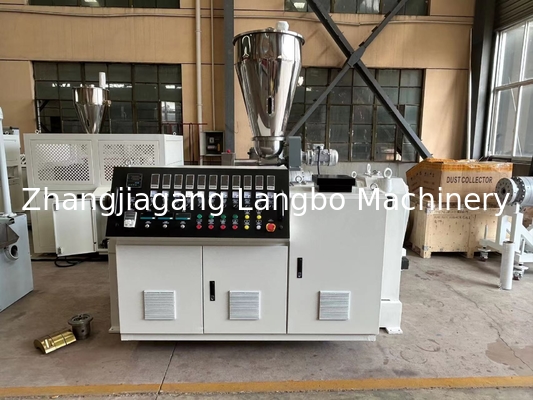

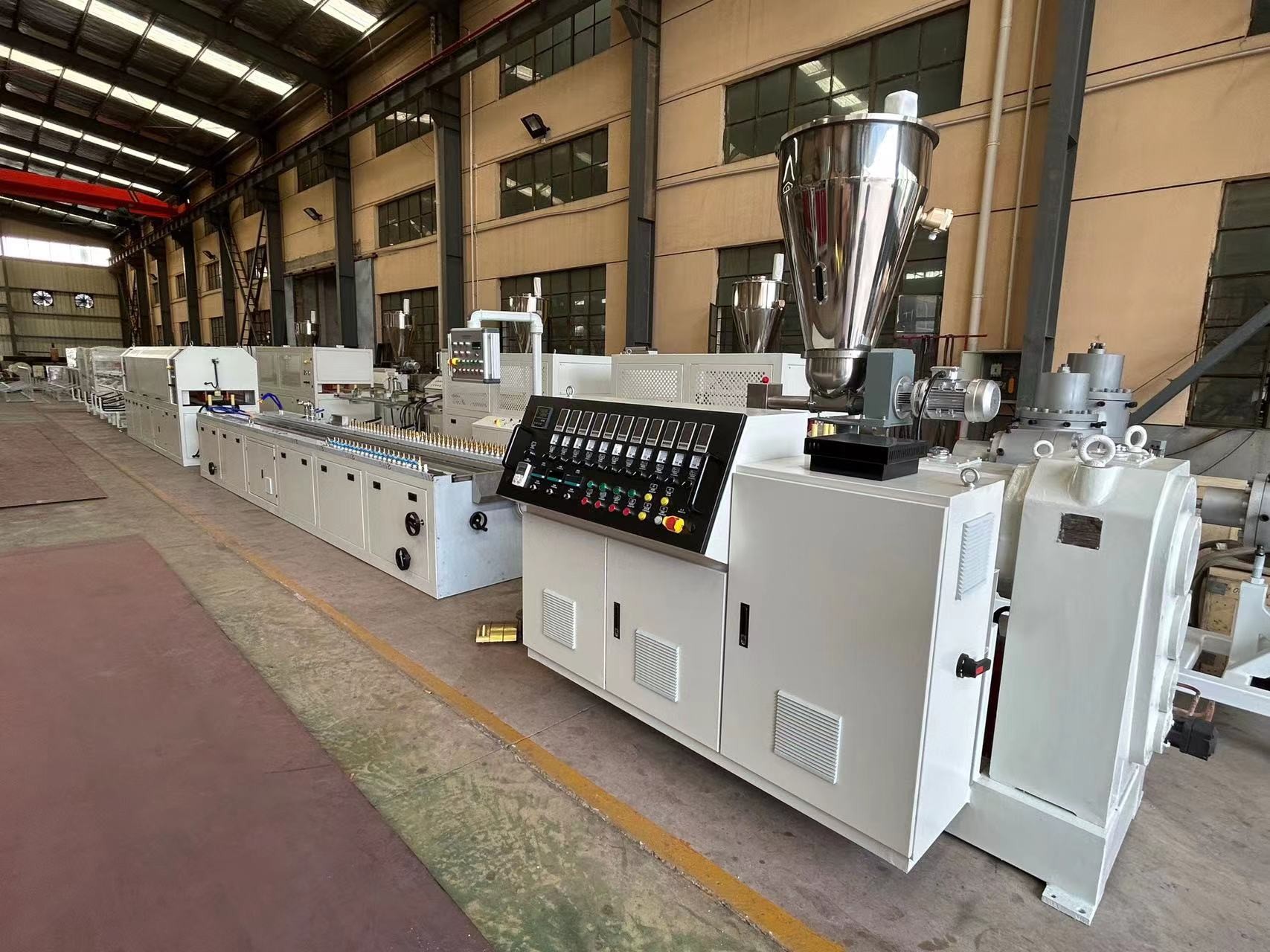

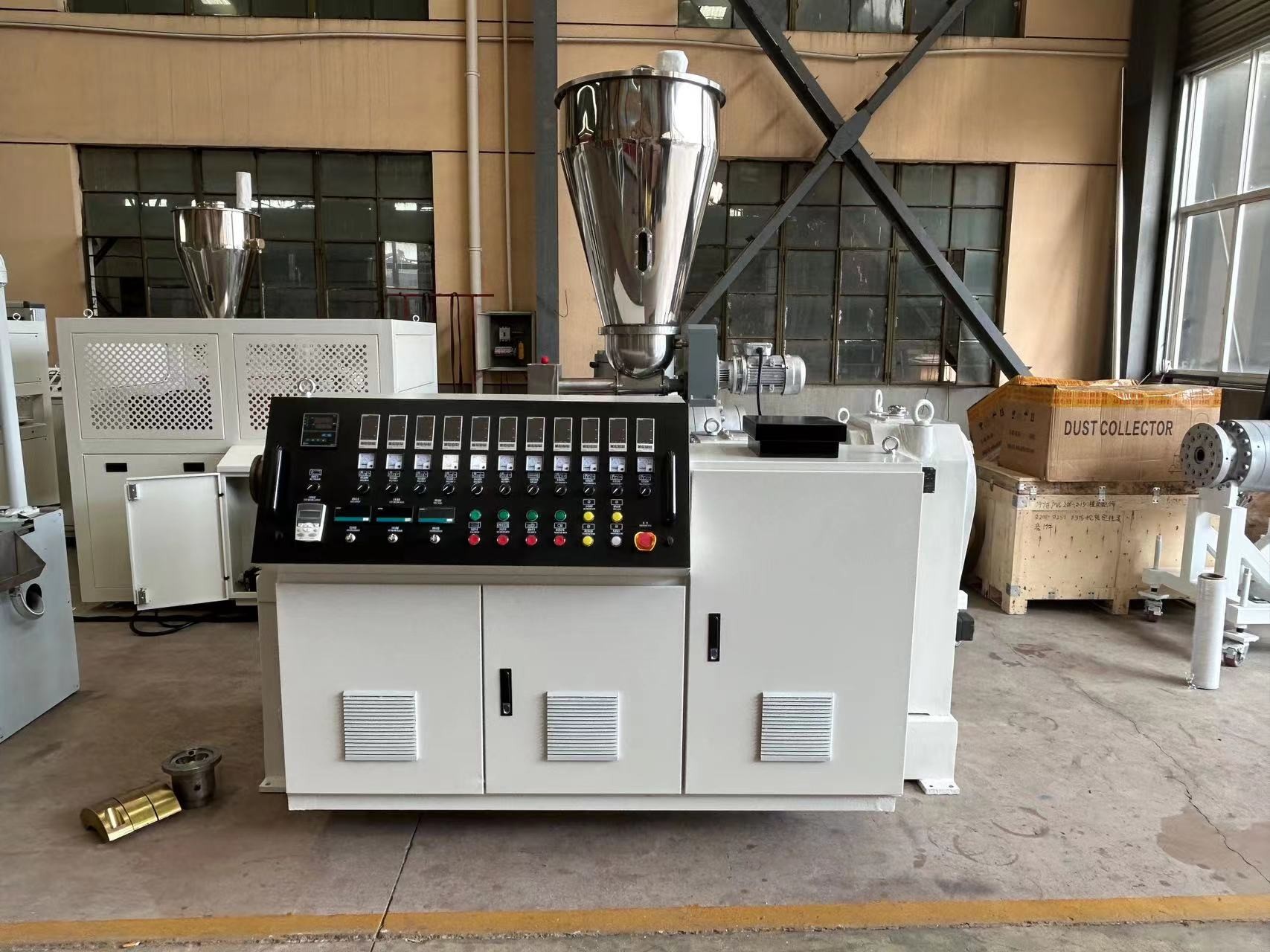

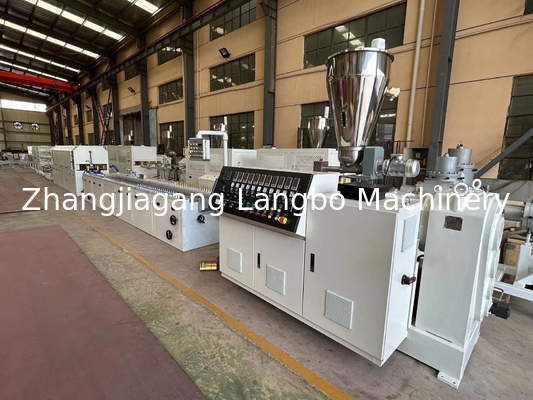

Conical Twin Screw Extruder
The screws are specifically designed and manufactured for the processing of dry pvc powder blend. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency. The permanent magnet synchronous motor provide high energy efficiency for the extruder. Equipped with PLC control system, it realized controlling the whole production line in the one site.
Mould
Our mould is processed by 40Gr forging and coated hard chromium on surface. The material of whole Vacuum calibrating sleeves is copper

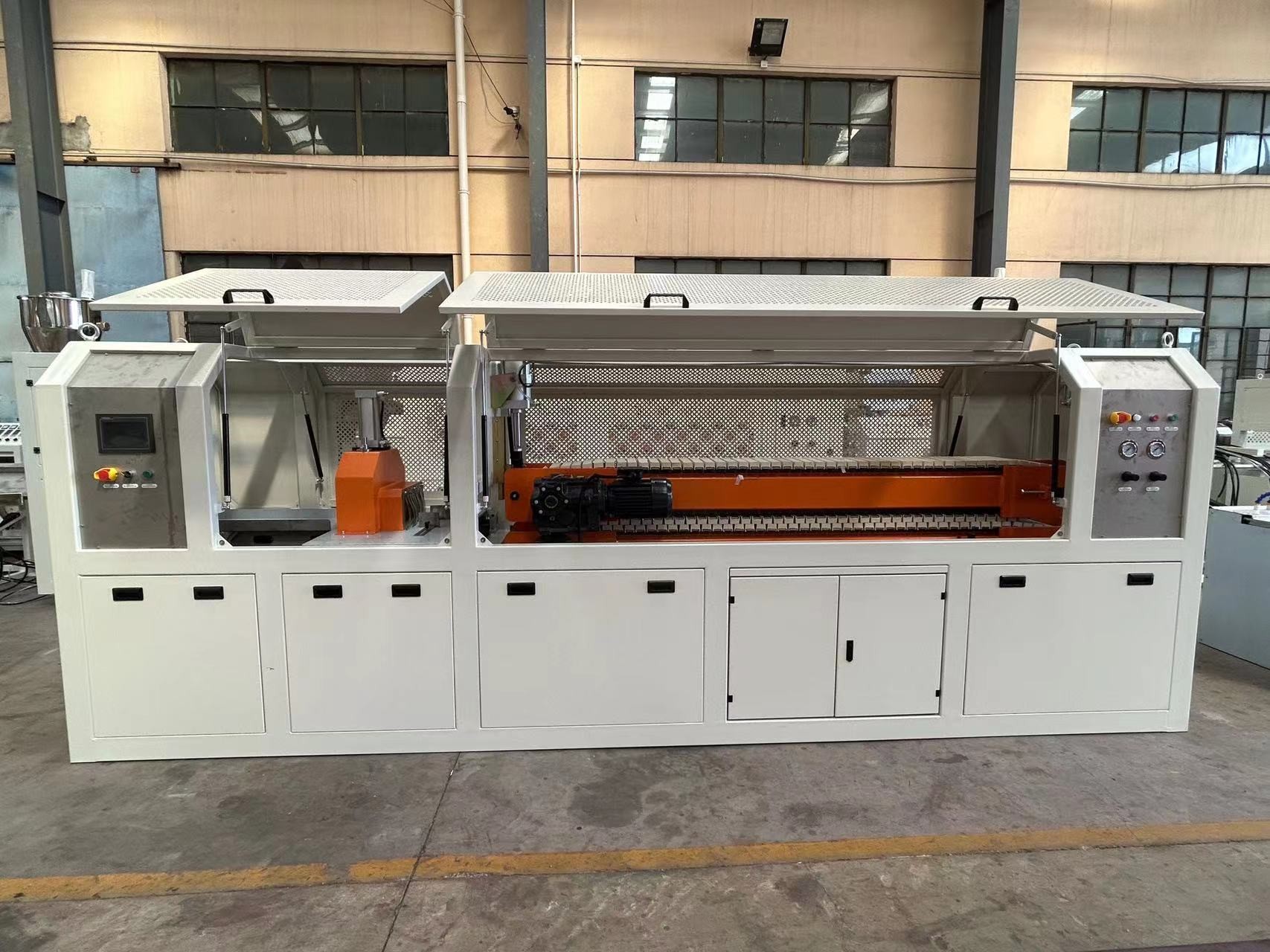

Calibration table
The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system. With precious layout of water pumps and vacuum calibrator, the PVC profile will be rapidly shaping and cooling. Enough length of the calibration table ensures the shaping of the PVC profile
Haul-off
The force distribution along each caterpillars has sufficient hauling force. We offer good-quality rubber for the haul-off machine. The pneumatic pressure is conducive to the easy adjustment and product protection.
Cutter
It adopts saw cutting method. It is sharp enough to cut the pvc profile without destroying its inner structure.
Stacker
The cut product will lay down on the stacker one by one. And the workers will pack them into a balk. It is useful for carrying and transporting.
