Underground Twin Screw Pvc Pipe Extrusion Line / Production Line

1 SET
MOQ
USD EUR
Price
Underground Twin Screw Pvc Pipe Extrusion Line / Production Line
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
PIPE DIAMETER: 50-250
EXTRUDER'S POWER: 37KW
COLOUR: WHITE ORANGE BLUE CUSTOMIZED
PIPE NUMBERS: ONE PIPE
RAW MATERIAL: PVC POWDER & ADDITIVES
APPLICATION: WATER SUPPLY PIPE
Voltage: 380V 50Hz Or Customized
Automatic Grade: Full-automatic
Screw Design: Twin Screw And Barrel
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support
Warranty: 18 Months
Inverter: ABB
Color: Customizable
Raw Material: PVC Powder
Motor: SIEMENS Brand
Contactor: SIEMENS
Packing: Flim And Wooden Box
Extruder Model: 65/132
Highlight:

Underground pvc pipe extrusion line

,

Twin Screw pvc pipe extrusion line

,

Twin Screw pvc pipe production line
Basic Infomation
Place of Origin: JIANGSU, ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-250
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 30 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
LB Machinery offers complete production lines for PVC/UPVC pipe manufacturing ranging from 16mm to 800mm diameters. This versatile extrusion line produces pipes with various diameters and wall thicknesses for electrical conduit, agricultural, and construction plumbing applications.
Production Process

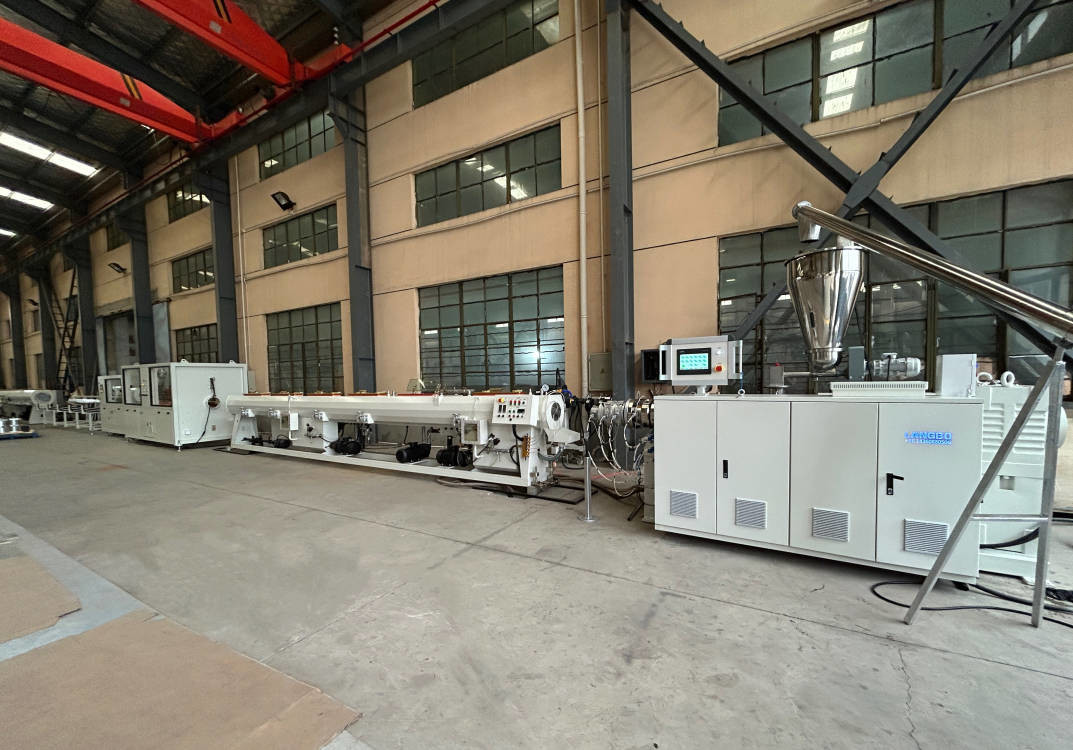

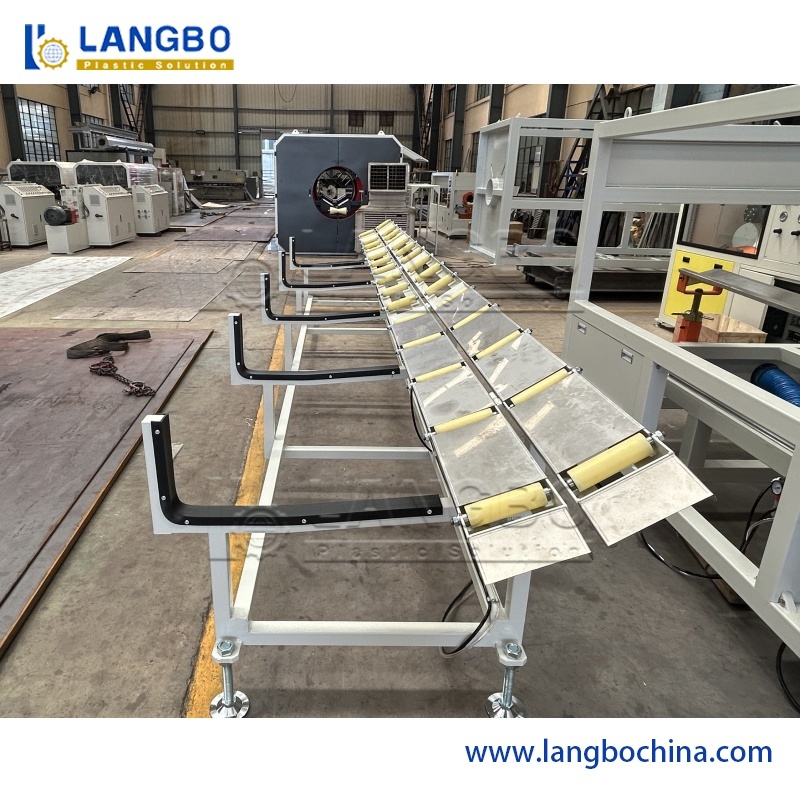

PVC powder + additive → mixing → material feeder → twin screw extruder → mould and calibrator → vacuum forming machine → spraying cooling machine → haul-off machine → cutting machine → discharge rack or pipe belling machine
Technical Specifications
Model LB160 LB250 LB315 LB630 LB800
Pipe Range (mm) 50-160mm 75-250mm 110-315mm 315-630mm 500-800mm
Screw Model SJ65/132 SJ80/156 SJ92/188 SJ92/188 SJ92/188
Motor Power 37KW 55KW 90KW 110KW 132KW
Output 250kg 350kg 550kg 600kg 700kg
Key Components
Mixer
Our specially designed mixer reduces raw material self-friction, improving energy utilization efficiency. Features vacuum suction loading with low noise operation and dust-free working conditions.

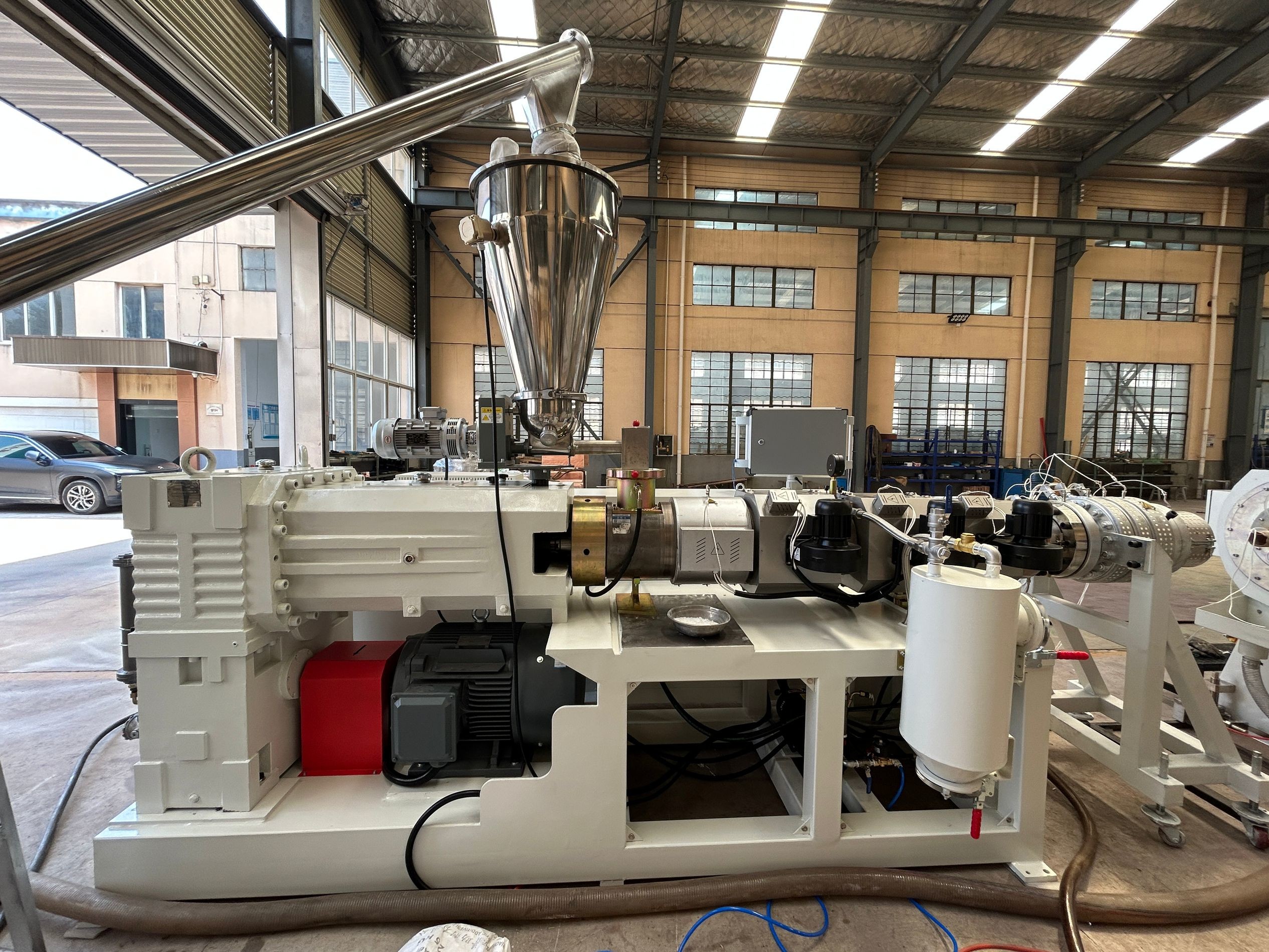

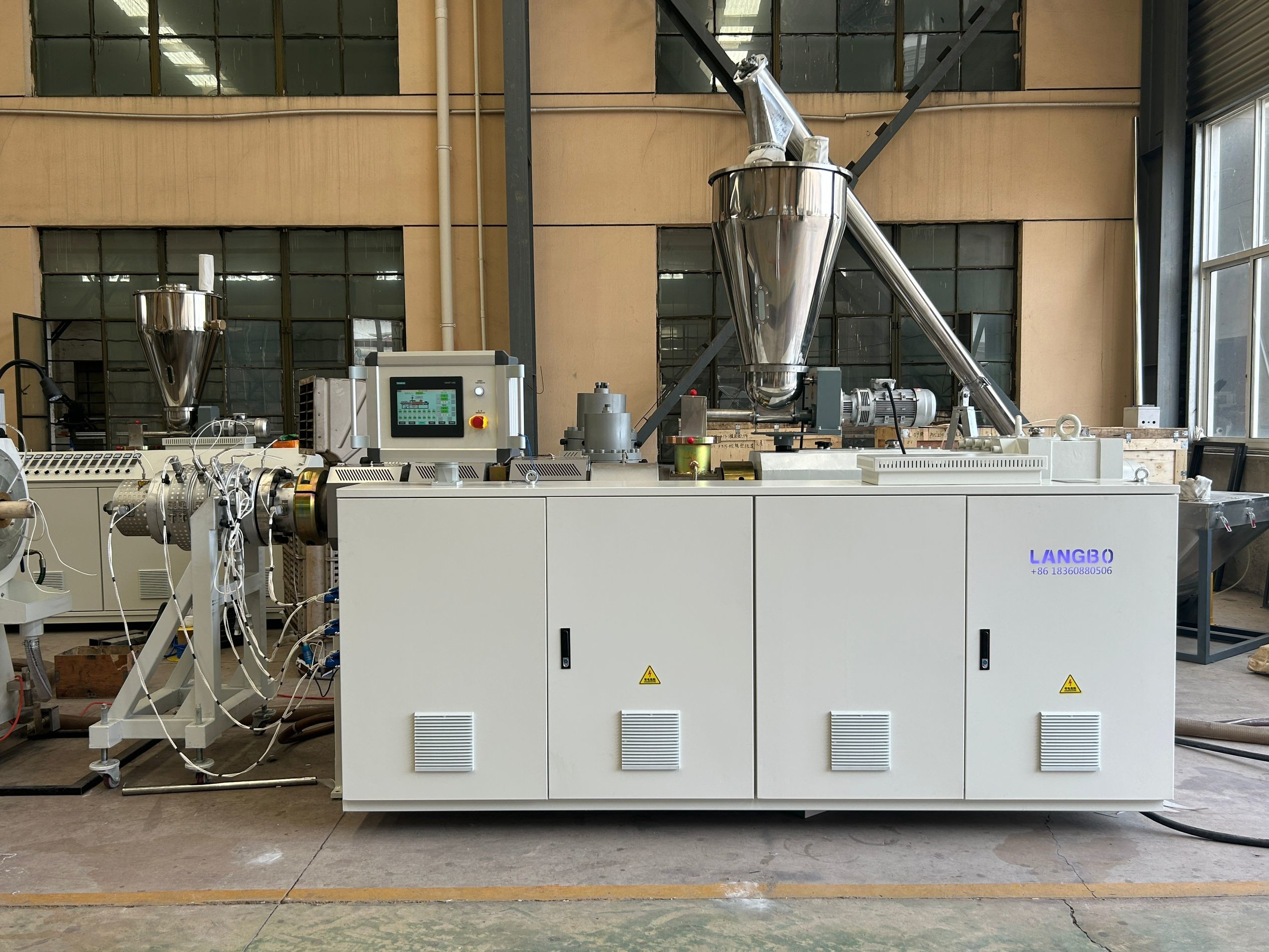

Twin Screw Extruder
Crafted with top-brand components to ensure production stability, efficiency, and machine durability. The conical twin screw extruder design accommodates raw material characteristics, ensuring homogeneous mixture, superior plastification, and optimal conveying efficiency.

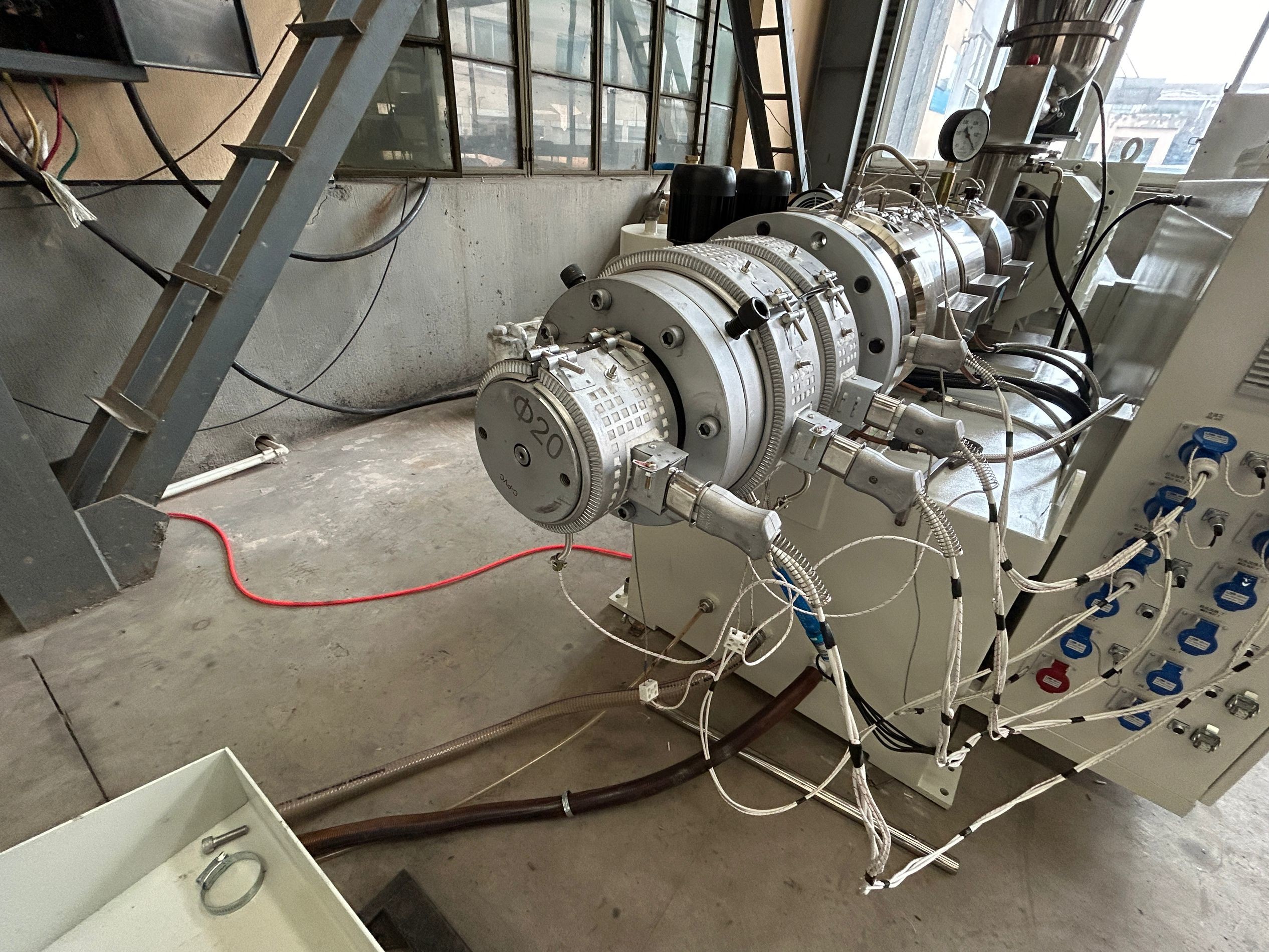

Vacuum Calibration & Cooling
The vacuum calibration tank features a two-chamber structure with vacuum calibration and cooling sections. Both vacuum and spraying cooling tanks utilize stainless 304 steel construction. The advanced vacuum system ensures precise pipe sizing accuracy.

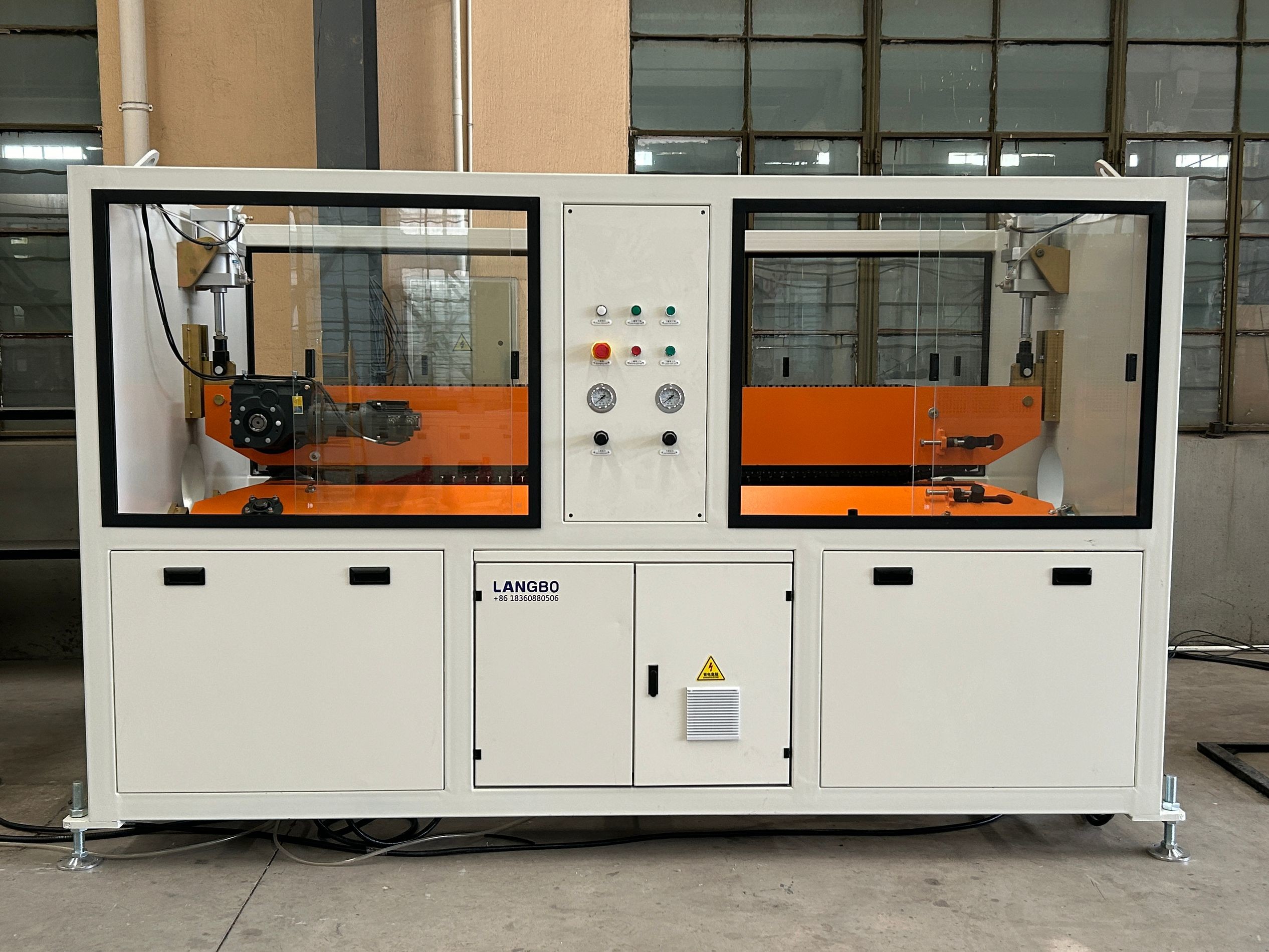

Haul-off Unit
Equipped with three crawler tracks to ensure stable and steady pipe movement. The haul-off units offer customizable hauling modes based on specific production requirements through general control adjustments.

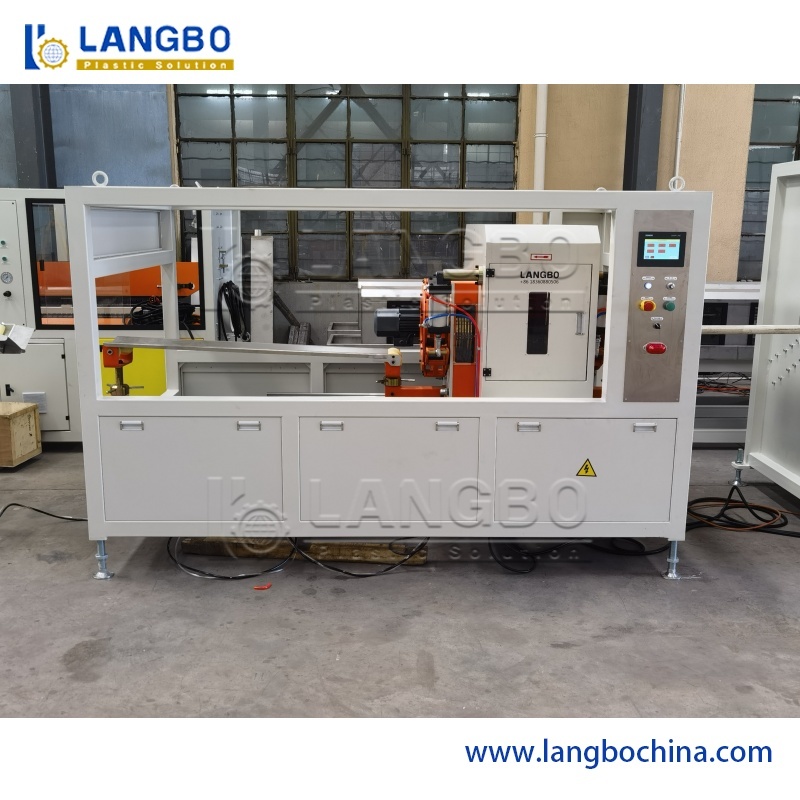

Cutting Unit
High-accuracy encoder ensures precise and stable cutting lengths. With PLC control system, cutting operations can be performed manually according to specific application requirements.
Service & Support
  • Factory machine testing available for customer inspection
  • Comprehensive documentation including technical specifications, installation & operating manuals, drawings, and electrical diagrams
  • On-site engineer support for installation and worker training upon request
  • Spare parts availability with 12-month warranty coverage
  • Lifetime technical support for all machinery
Underground Twin Screw Pvc Pipe Extrusion Line / Production Line 0 Underground Twin Screw Pvc Pipe Extrusion Line / Production Line 1 Underground Twin Screw Pvc Pipe Extrusion Line / Production Line 2 Underground Twin Screw Pvc Pipe Extrusion Line / Production Line 3 Underground Twin Screw Pvc Pipe Extrusion Line / Production Line 4
