PE HDPE LDPE PPR single screw plastic extruder Water Gas Oil Supply Pipe Tube Extrusion Production Line
Product Details
| Production Name: | PPR Glassfiber PPR Pipe Production Machine | Pipe Size: | 20-110mm; 3 Layer |
|---|---|---|---|
| Extruder Capacity: | 350kgs/h For Inner &outer +180kgs/h Middle GF | Die Head: | 3 Layer Co-extrusion With Two Extruders |
| Production Speed: | 12m/min; 20m/min; 28m/min | Control System: | PLC With Remote Control System |
| Warranty: | 2 Years | Screw And Barrel: | Single Screw |
| Extruder Model: | 6533 | ||
| Highlight |
PE single screw plastic extruder,HDPE single screw plastic extruder,LDPE single screw extruder |
||
Product Description
PE HDPE LDPE PPR Plastic Water Gas Oil Supply Pipe Tube Extrusion Production Line Single Screw Extruder
APPLICATIONS OF MULTI-LAYER PIPE PRODUCTION LINE
Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.
For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.
TECHNICAL PARAMETERS:
Pipe diameter(mm) 50,75,90,110,160 75,90,110,160,200,250
Extruder(for middle layer) 65/132 80/156
Extruder (for outer& inner layer) 65/132 or 55/120 65/132
Length of vacuum tank(mm) 6000 6000

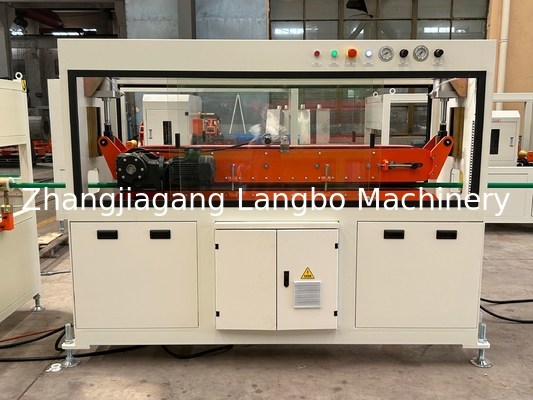

Haul-offs machine 3claw 3claw

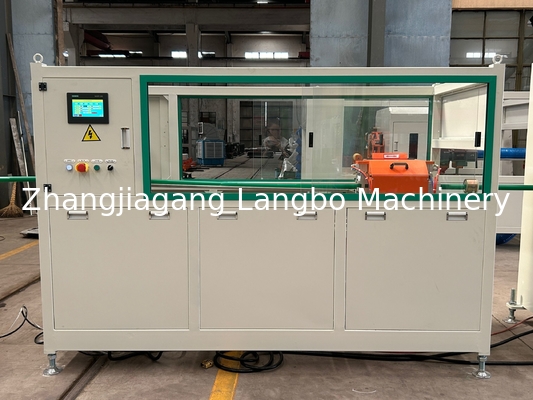

Cutting machine planetary cutting planetary cutting
SCOPE OF APPLICATION
1,Cold and hot drinking water pipe system
2,Industrial fluid transportation system
3,Feeding piping system in seaside facilities
4,Air-conditioning system
5,Agricultural irrigation system
6,Transportation internal piping system
