Wood Plastic PVC WPC Door Frame Production Line Saw Cutter And 400kg/h Output Capacity
Product Details
| EXTRUDER TYPE: | CONICAL TWIN SCREW EXTRUDER | MOTOR DRIVE: | 75KW |
|---|---|---|---|
| RAW MATERIAL: | PP/PE And Wood Pellets & ADDITIVES | OUTPUT CAPACITY: | 400KG/H |
| PROCESSING METHOD: | EMBOSSING | WARRANTY: | 12 MONTHS |
| HAUL-OFF: | TWO HAUL-OFF | CUTTER: | SAW CUTTER |
| MOTOR: | SIRMENS BEIDE | GEARBOX: | FAMOUS CHINESE BRAND |
| Highlight |
PVC WPC Door Frame Production Line,Wood Plastic Door Frame Production Line,400kg/h WPC Profile Extrusion Line |
||
Product Description
Hot Sale Wood Plastic PVC WPC Door Frame Production Line
Short Description:

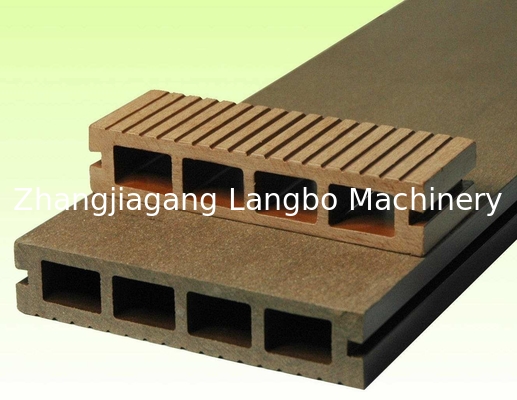

The wpc profile has two kinds. One is pvc profile + lamination machine. One is PP/PE +wood powder. The raw material different, the layout of the whole extrusion line differ. Recent years, as the wood powder price rising, more and more manufacture produces pvc profile and laminate different film on it. By this way, the cost of the product has decreased and more situation can use. The pvc type wpc is mainly used as decoration. The PP/PE type wpc is mainly used as wpc floor.
Specifications:
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 110 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 92 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
Essential details:
Place of Origin:Jiangsu, China (Mainland) Brand Name: Langbo
Plastic Type: PVC/PP/PE Production Capacity (kg/h): 200-400
Machine Type: Extrusion Line Max.Production Capacity (kg/h): 600-800
Voltage: 380V,3Phase,50HZ(customerized) Power (kW):15-110kw
Warranty:1 years Key Selling Points:High quality

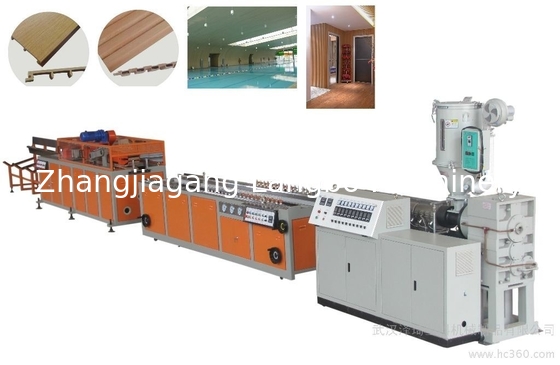

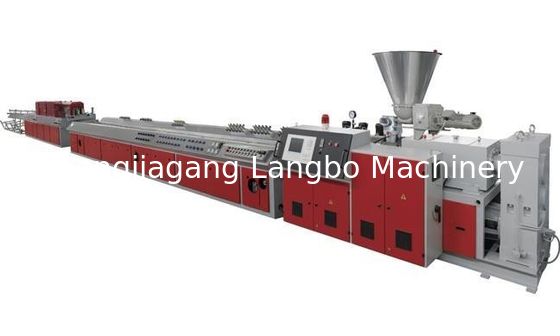

Extrusion lines for WPC profile:
With LANGBO MACHINERY polywood technology, it is possible to obtain WPC profiles composed of natural fiber up to 80%, with features that make them better than wood in terms of reliability, performance and production costs. LANGBO MACHINERY also produces systems for the manufacture of WPC granules, which in turn can be transformed in finished product through molding or extrusion.
LANGBO MACHINERY builds profile extrusion machine lines suitable for the production of WPC granules with high-quality mechanical features, starting from renewable raw materials selected for environmental protection. These lines are fully customisable and highly efficient at any production output, thanks to the innovative extruders and the wide range of modular accessories. Ease of use and time saving for maintenance and cleaning are always our goals during the study and design of our granulation lines.
