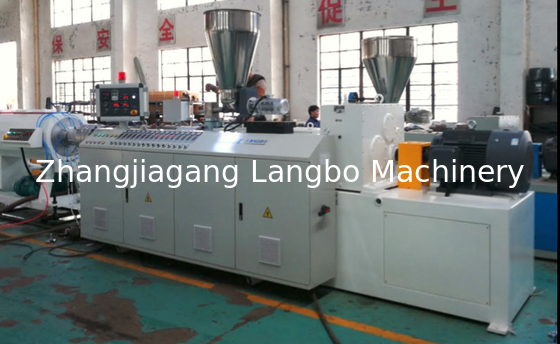

PVC Pipe Making Machine Production Line
Complete production line for PVC/UPVC pipe manufacturing ranging from 16mm to 800mm diameter. This versatile system produces pipes for electrical conduit, agricultural, and construction plumbing applications with different diameters and wall thickness specifications.
Applications
The produced UPVC pipes are used for electrical conduit, water supply, sewage systems, house decoration, chemical transportation, and gas distribution lines. These pipes feature high strength, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety, and cost-effective maintenance.
Production Process
- PVC powder + additive mixing
- Material feeding
- Twin screw extrusion
- Mould and calibration
- Vacuum and cooling tank
- Spray cooling machine
- Haul-off machine
- Cutting machine
- Discharge rack or pipe belling machine
Technical Specifications
| Model |
Pipe Diameter (mm) |
Extruder Model |
Motor Power (KW) |
| LB-32F | 16-32 (Four Pipe) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (Double Pipe) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (Double Pipe) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (Double Pipe) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (Double Pipe) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (Double Pipe) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (Double Pipe) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (Double Pipe) | SJSZ65/132 | 37 AC |
Key Components
Mixer: Specially designed to reduce raw material self-friction, improving energy utilization efficiency. Features vacuum suction load with low noise and dust-free operation.

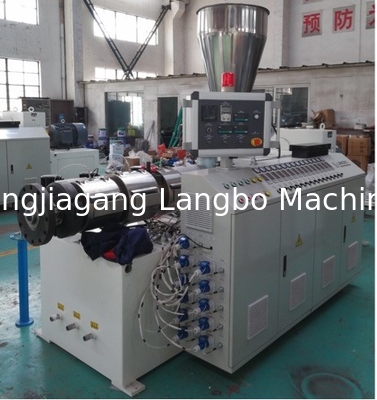

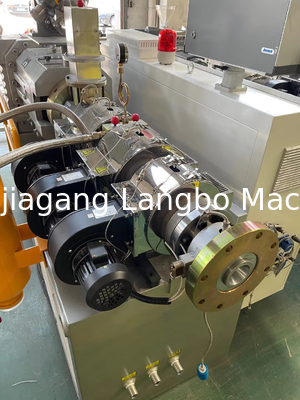

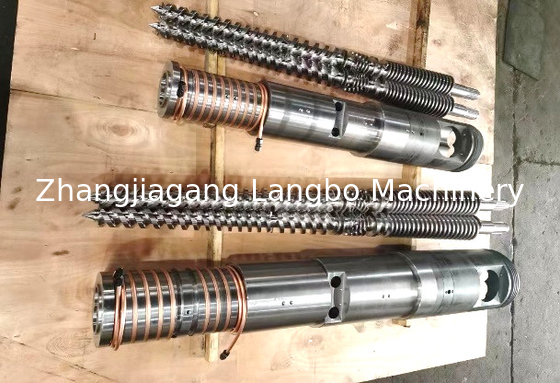

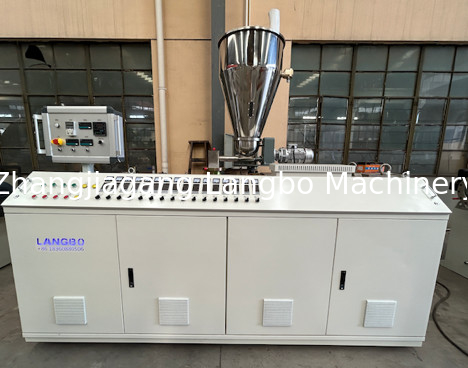

Twin Screw Extruder: Crafted with top brand components for production stability, efficiency, and durability. Conical twin screw design ensures homogeneous mixture, better plastification, and conveying efficiency.

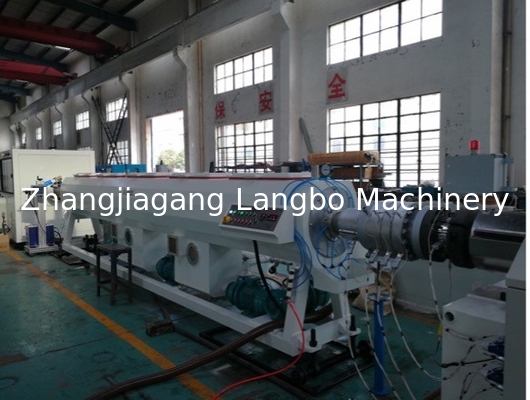

Vacuum Calibration & Cooling: Two-chamber structure with vacuum calibration and cooling parts. Constructed with stainless 304 steel for excellent vacuum system ensuring precise pipe sizing.

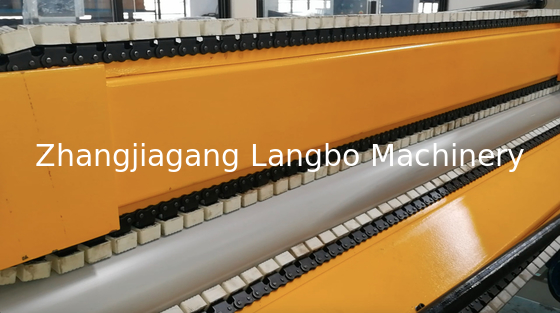

Haul-off Unit: Three crawler tracks ensure stable pipe running. Adjustable hauling models based on specific production requirements through general control.

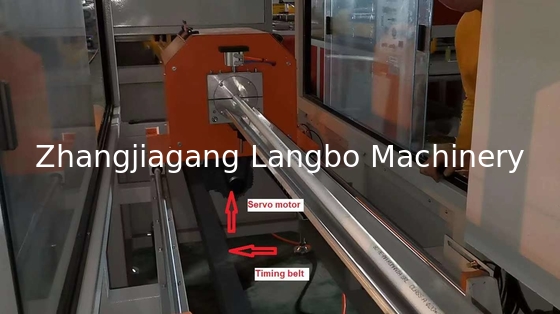

Cutting Unit: High-accuracy encoder ensures precise and stable cutting length. PLC control system with manual operation capability for specific applications.
Technical Features
- Easy grinding of all Hard & Soft PVC materials into powder
- Dust collector effectively reduces dust pollution
- Main fan discharge reduces operator labor intensity
- Accessible host door cover for maintenance and cutter replacement
- Water and wind double cooling system prevents overheating
- Adjustable powder mesh (15-100 mesh)
- Easy installation and maintenance with accessible cleaning
- Well-known brand components including Siemens motors for long-term operation
- Wide range of optional accessories for customized solutions
Delivery Information
- Delivery: 30 days after order confirmation
- Warranty: 12 months
- Payment: T/T 30% advance, 70% before delivery
- Packing: Standard export wooden case
Our Services
- One year guarantee for entire machine
- 24 hours technical support
- Overseas installation & commissioning by our engineers
- Post-warranty maintenance guidance and spare parts at competitive prices
- Operator training services
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province near Shanghai and Wuxi. Factory visits are welcome and pick-up service is available for nearby visitors.
How to build trust with Langbo?
We provide working videos demonstrating machine performance in various countries and offer customer-focused technical suggestions. Factory visits allow direct assessment of our plastic extrusion capabilities.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. Shipping costs fluctuate and we can help customers obtain current pricing or arrange their own shipping agent.
What happens after order confirmation?
Configuration confirmation → Proforma invoice signing → 30% prepayment → Test running → Machine condition confirmation → 70% payment → Delivery preparation → Shipping → On-site commissioning → Operator training → Handover confirmation → One year guarantee → Lifetime technical support.
What payment methods do you accept?
T/T, D/P, Letter of Credit, and cash transactions.
How do you guarantee machine quality?
We provide one-year guarantee and lifetime technical support. Customers can inspect machines during test running, and we immediately address any optimization needs.
Do you have CE Certification?
Yes, both our extrusion machines and plastic recycling machines are CE certified.
What is the typical delivery time?
Usually 45 days, with exact delivery time specified in the contract based on project requirements.
Contact Information:
Email: sales@langbochina.com
WhatsApp: +86 15962377824
For new plant installations, contact us for detailed solutions, machine layout, and technical installation guidance.
