800-1200mm Three Layer Large Diameter PVC Pipe Making Machine Plastic Sewage Pipe Extrusion Production Line

Brand Name: LB
Model Number: LB-32
Place of Origin: ZHANGJIAGANG, JIANGSU
Certification: CE ISO9001
Minimum Order Quantity: 1 SET
Price: USD EUR
Supply Ability: 15 SETS PER MONTH
Tags

pvc pipe production line

plastic tube making machine

plastic pipe extrusion line

Product Details

PIPE DIAMETER: 75-250 EXTRUDER'S POWER: 55KW
COLOUR: CUSTOMIZED PIPE UMBERS: DOUBLE PIPE
RAW MATERIAL: PVC POWDER & ADDITIVES APPLICATION: WATER SUPPLY PIPE
Voltage: 380V 50Hz Or Customized Automatic Grade: Full-automatically
Screw Design: Twin Screw And Barrel After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support
Warranty: 18 Months Inverter: ABB
Color: Customizable Raw Material: PVC Powder
Motor: Brand Contactor: OR SCHNIDER
Screw And Barrel: Conical Twin Screw Extruder Screw Diameter: 65/132
Pipe Application: Water Supply Packages: Film And Boxes
Payment: T/T, L/C, Western Union Delivery Time: 60 Days
Highlight

Three layer PVC Pipe Making Machine

,

800-1200mm PVC Pipe Making Machine

,

Plastic Sewage Pipe Extrusion Production Line

Product Description

800-1200mm Three Layer Large Diameter PVC Pipe Making Machine
Complete plastic sewage pipe extrusion production line for manufacturing PVC/UPVC pipes ranging from 16mm to 800mm diameter.
Product Overview
This comprehensive PVC pipe production line is designed for manufacturing UPVC electrical conduit pipes, water supply pipes, and sewage pipes with various diameters and wall thicknesses. Ideal for agricultural, construction, and plumbing applications.
Applications
The produced UPVC pipes are widely used for electrical conduit systems, water supply networks, sewage systems, house decoration, chemical transportation, and gas distribution lines. These pipes feature high strength, excellent chemical resistance, durability, thermal stability, and are non-toxic and cost-effective.
Production Process
  • PVC powder + additive mixing
  • Material feeding
  • Twin screw extrusion
  • Mould and calibration
  • Vacuum and cooling
  • Spray cooling
  • Haul-off process
  • Precision cutting
  • Discharge rack or pipe belling
Technical Specifications
MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC
Key Components
Mixer: Specially designed to reduce raw material self-friction, improving energy efficiency with vacuum suction load, low noise, and dust-free operation.

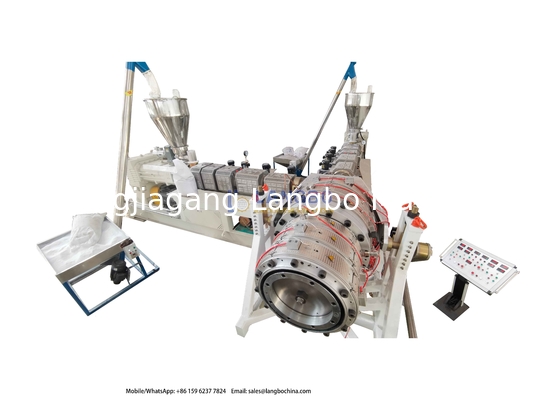

Twin Screw Extruder: Crafted with top-brand components for production stability and efficiency, featuring conical twin screw design for homogeneous mixture and better plastification.

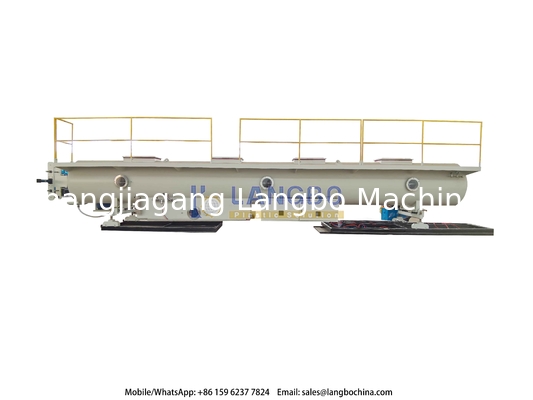

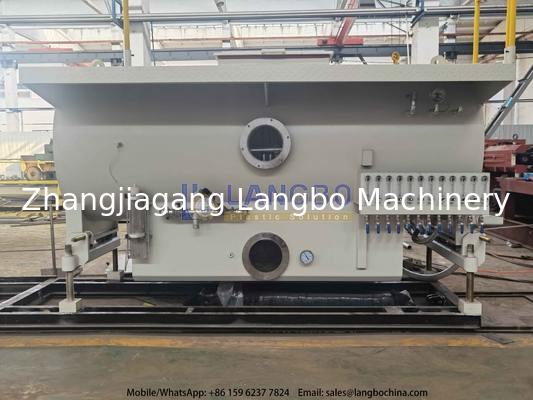

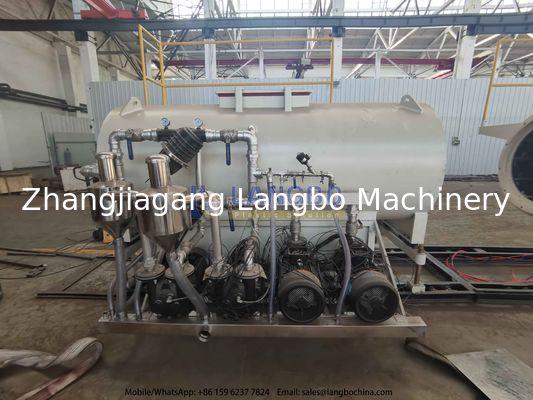

Vacuum Calibration & Cooling: Two-chamber structure with stainless 304 steel construction, ensuring precise pipe sizing with excellent vacuum systems.

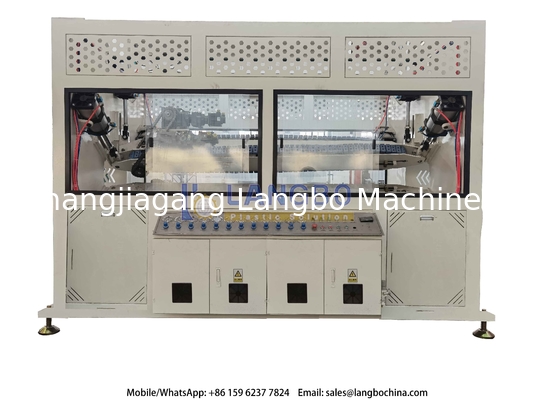

Haul-off Unit: Crawler track system for stable pipe running with customizable hauling models through general control adjustment.
Cutting Unit: High-accuracy encoder for precise cutting length with PLC control system and manual operation capability.
Technical Features
  • Easy grinding of all Hard & Soft PVC materials into powder
  • Integrated dust collector for reduced pollution
  • Automatic discharging reduces operator labor intensity
  • Accessible door cover for easy maintenance and cutter replacement
  • Water and wind double cooling system prevents overheating
  • Adjustable powder mesh (15-100mesh)
  • Easy installation and maintenance with door-access cleaning
  • motors and premium brand accessories for long-term reliability
  • Wide range of optional accessories for customized solutions
Delivery & Support
Delivery: 30 days after order confirmation
Warranty: 12 months comprehensive coverage
Payment: T/T 30% advance, 70% before delivery
Packing: Standard export wooden cases
Service Commitment
  • One-year guarantee for entire machine
  • 24/7 technical support
  • Overseas installation and commissioning services
  • Post-warranty maintenance guidance and affordable spare parts
  • Comprehensive operator training programs
PVC Pipe Making Machine Production Line Overview Twin Screw Extruder Machine Detail Vacuum Calibration and Cooling System Haul-off Unit with Crawler Track System Precision Cutting Unit Operation Completed PVC Pipe Production Samples
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province, near Shanghai and Wuxi. Factory visits are welcome and pick-up service is available for nearby visitors.
How to build trust with Langbo?
We provide working videos from installations worldwide and customer-focused technical support. For offline verification, factory visits allow direct assessment of our plastic extrusion capabilities.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. Shipping costs to destination ports fluctuate and can be provided separately. Customers may choose their own shipping agents.
What happens after order confirmation?
Configuration confirmation → Proforma invoice signing → 30% prepayment → Test running (on-site or video) → Machine condition confirmation → 70% payment → Delivery preparation → Shipping → On-site commissioning → Operator training → Handover confirmation → One-year guarantee begins.
What payment methods are accepted?
T/T, D/P, Letter of Credit, and cash transactions.
How is machine quality guaranteed?
One-year warranty with lifetime technical support. Customers can inspect machines during test running, and optimization requests are implemented immediately.
Do you have CE Certification?
Yes, both our extrusion machines and plastic recycling equipment are CE certified.
What is the typical delivery time?
Approximately 45 days, with exact timing specified in the contract based on project requirements.
Contact for Technical Layout
For new plant planning, contact us to receive detailed machine line solutions and layout specifications with technical installation guidance.
Email: sales@langbochina.com
WhatsApp: +86 159 6237 7824

Product Highlights

800-1200mm Three Layer Large Diameter PVC Pipe Making Machine Complete plastic sewage pipe extrusion production line for manufacturing PVC/UPVC pipes ranging from 16mm to 800mm diameter. Product Overview This comprehensive PVC pipe production line is designed for manufacturing UPVC electrical ...
