PVC/UPVC/CPVC Pipe Extrusion Line for Electrical Conduit & Water Supply
Complete production line for manufacturing PVC/UPVC pipes ranging from 16mm to 800mm diameter, designed for electrical conduit, agricultural, and construction plumbing applications.
Applications
The produced UPVC pipes are widely used for electrical conduit, water supply, sewage systems, house decoration, chemical transportation, and gas distribution lines. These pipes feature high strength, excellent chemical resistance, durability, thermal stability, non-toxic safety, and cost-effectiveness.
Production Process
- PVC powder + additive mixing
- Material feeding
- Twin screw extrusion

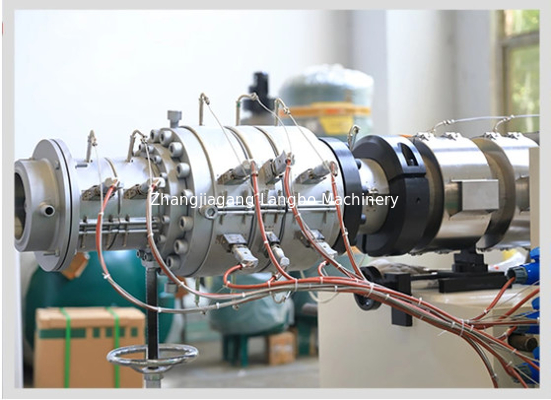

- Moulding and calibration
- Vacuum and cooling
- Spray cooling
- Haul-off process
- Cutting to length
- Discharge rack or pipe belling
Technical Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F |
16-32 (FOUR PIPE) |
SJSZ65/132 |
37 AC |
| LB-32E |
16-32 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-32W |
16-32 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-40E |
16-40 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-40W |
16-40 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-50E |
16-50 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-50W |
16-50 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-63W |
16-63 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
Key Components
Mixer
Features reduced raw material self-friction for improved energy efficiency. Vacuum suction load ensures low noise and dust-free operation.

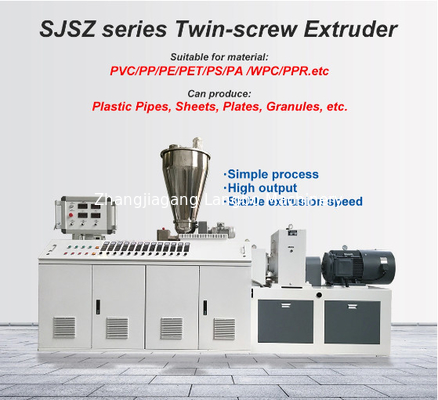

Twin Screw Extruder
Crafted with top brand components for production stability and durability. Conical twin screw design ensures homogeneous mixture, better plastification, and conveying efficiency.

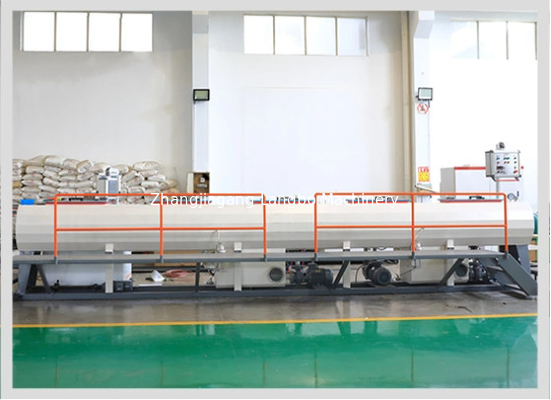

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling parts. Constructed from stainless 304 steel with excellent vacuum system for precise pipe sizing.

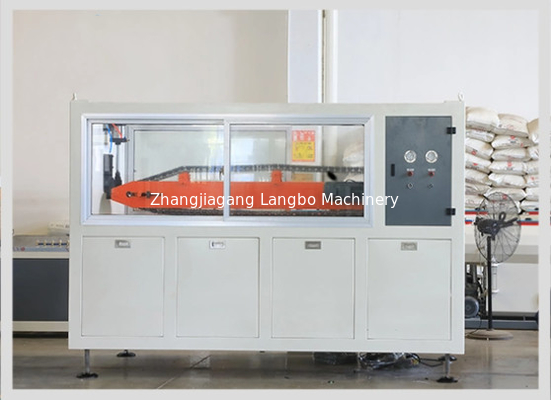

Haul-off Unit
Three crawler tracks ensure stable pipe running. Adjustable hauling models based on specific production requirements.

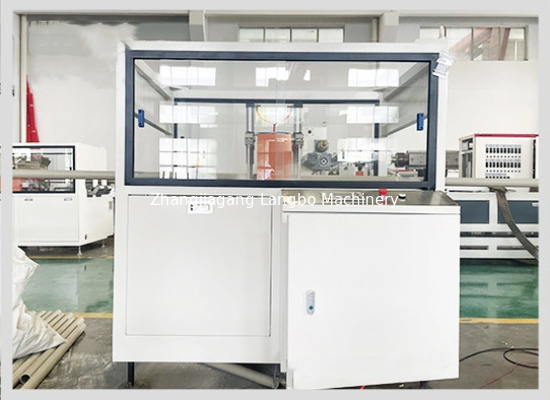

Cutting Unit
High-accuracy encoder ensures precise and stable cutting length. PLC control system with manual operation capability.
Technical Features
- Easy grinding of all Hard & Soft PVC materials into powder
- Dust collector for reduced pollution

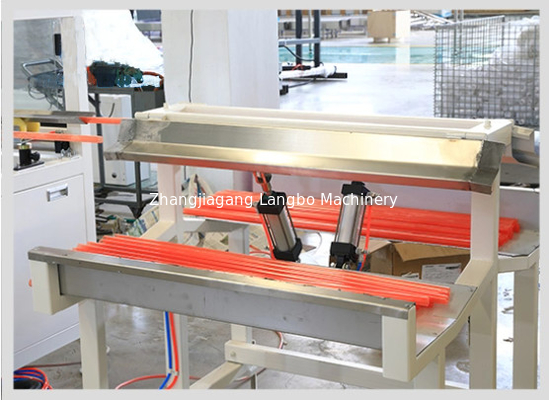

- Automatic discharging reduces labor intensity
- Accessible door cover for easy maintenance and cutter replacement
- Water and wind double cooling system prevents overheating
- Adjustable powder mesh (15-100 mesh)
- Easy installation and maintenance with accessible cleaning
- Well-known brand accessories including Siemens motors
- Wide range of optional accessories for customized solutions
Delivery & Service Information
Delivery: 30 days after order confirmation
Warranty: 12 months
Payment: T/T 30% in advance, 70% before delivery
Packing: Standard export wooden case
Our Service Commitment
- One-year guarantee for entire machine
- 24-hour technical support
- Overseas installation & commissioning services
- Post-warranty maintenance guidance and spare parts
- Comprehensive operator training services

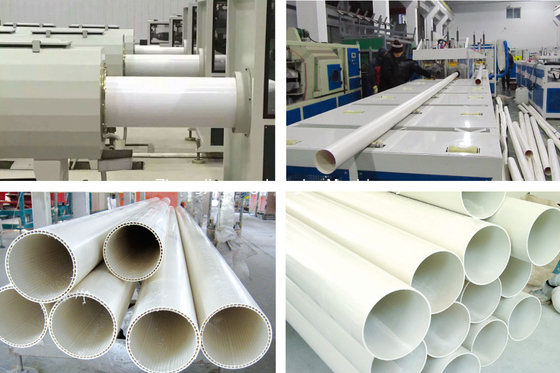

Product Images
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province, close to Shanghai and Wuxi. Factory visits are welcome and pick-up service is available for nearby visitors.
How to build trust with Langbo?
We provide working videos demonstrating machine performance in various countries and offer customer-focused technical solutions. Factory visits allow direct assessment of our plastic extrusion capabilities.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. Shipping costs vary by carrier and timing. We assist customers in obtaining current shipping prices and can include them in the quotation if requested.
What happens after order confirmation?
Configuration confirmation → Proforma invoice signing → 30% prepayment → Test running (on-site or video) → Machine condition confirmation → 70% payment → Delivery preparation → Shipping → On-site commissioning → Operator training → Handover confirmation → One-year guarantee → Lifetime technical support.
What payment methods do you accept?
T/T, D/P, Letter of Credit, and cash transactions.
How do you guarantee machine quality?
We provide one-year guarantee and lifetime technical support. Customers can inspect machines during in-house test running, and any optimization requirements are addressed immediately.
Do you have CE Certification?
Yes, both our extrusion machines and plastic recycling machines are CE certified.
What is the typical delivery time?
Approximately 45 days, with exact timing specified in the contract based on project requirements.
