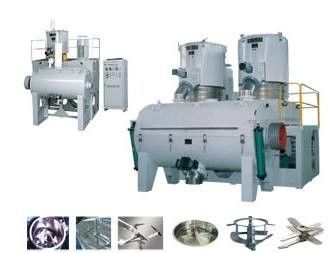

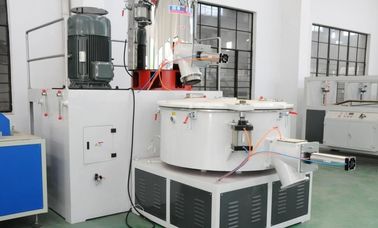

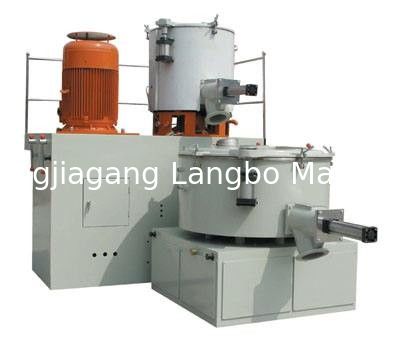

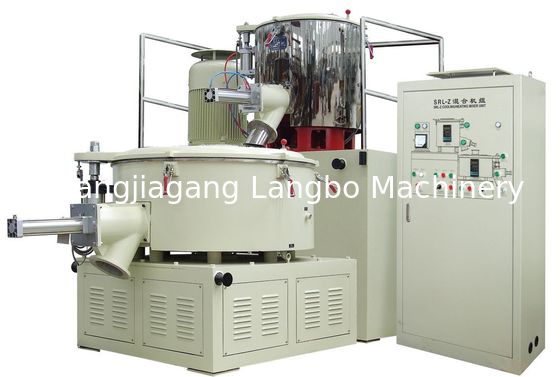

Powder Mixing Dosing Plastic Mixer Equipment Raw Material Weighing Central Feeding System PVC Automatic Compounding Production Line for High Capacity
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| Voltage: | Customized | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SHR-PVC Heating Mixer | Power(W): | SRL 500/1000L |
| Highlight |
PVC Automatic Compounding Production Line,High Capacity Automatic Compounding Production Line |
||
Product Description
- Versatile application for mixing and drying processes in plastic, rubber, chemical industries, and laboratory settings
- Double-sealed lid design for enhanced containment
- Self-friction heating mechanism for efficient thermal management
- Heat conduction oil and insulation cotton for temperature retention in hot mixer operations
- Dual discharge control: temperature automatic and manual operation modes

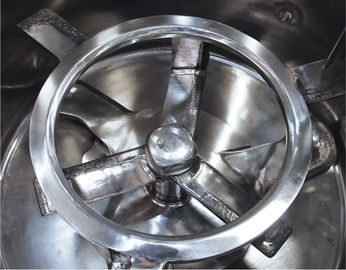

- Stainless steel paddles precision-engineered with dynamic and static balance testing
- Premium brand electrical components for reliable performance
- Optional frequency inverter available upon request
| Item | Name | Thermal Mixer | Cold Mixer | |
|---|---|---|---|---|
| 1 | Total Volume | 200L | 500L | |
| 2 | Effective Volume | 150L | 375L | |
| 3 | Impeller Number | 3 | 1 | |
| 4 | Impeller Speed | 475/980 r/min | 80 r/min | |
| 5 | Heating Methods | Self-friction | ||
| 6 | Cooling Methods | Cooling Water | ||
| 7 | Cooling Water Pressure | > 0.03Mpa | ||
| 8 | Cooling Temperature | 40-60 ℃ | ||
| 9 | Cooling Water Temperature | 0-15 ℃ | ||
| 10 | Mixing Time | 8-12 min/pot | 10-12 min/pot | |
| 11 | Power | 30/42kw | 7.5kw | |
| 12 | Rotation Rate | 730/1470 r/min | 1440 r/min | |
| 13 | Barrel Body & Bottom Material | Stainless Steel | ||
| 14 | Pot Cover & Three Links | Aluminum | ||
| 15 | Blades | Stainless Steel Precision Casting with Static & Dynamic Balance Testing | ||
| 16 | Temperature Table | Japan OMRON | ||
| 17 | Electrical Components | Delixi | ||
| 18 | Total Weight | 3000kg | ||
| 19 | Dimensions | 2680*2150*2270mm | ||
- Comprehensive equipment recommendations with auxiliary equipment planning and budgeting assistance
- Prompt response to inquiries within 48 hours with efficient problem resolution
- On-site training opportunities for customer personnel at our facility
- Complete technical documentation and electrical component drawings provided in both Chinese and English
- Professional engineering support available for installation and machine testing at customer locations
Product Highlights
High-Capacity PVC Automatic Compounding Production Line Complete powder mixing, dosing, and weighing system for plastic raw materials with central feeding capabilities designed for high-volume PVC compounding operations. SRL500/1000L Plastic PVC Mixer Machine Features Versatile application for ...
