Automatic Electrical Water Supply Plastic PVC Pipe Making Extrusion Socketing Belling Machine
Product Details
| Pipe Diameter: | 16~630mm | Capacity: | 120~800kg/h |
|---|---|---|---|
| Delivery Time: | 45days | Install Power: | 37~600kw |
| Extruder: | Single Screw Extruder | Socket Type: | U Or R Socket |
| Processed Pipe: | PVC Pipe | Warranty: | 2 Years |
| Packing: | Film Packages | Oven: | Two Heating Ovens |
| Heating Method: | Light Heating | ||
| Highlight |
PVC Pipe Belling Machine,Automatic Pipe Belling Machine,Plastic Pipe Belling Machine |
||
Product Description
Automatic Electrical Water Supply Plastic PVC Pipe Making Extrusion Socketing Belling Machine

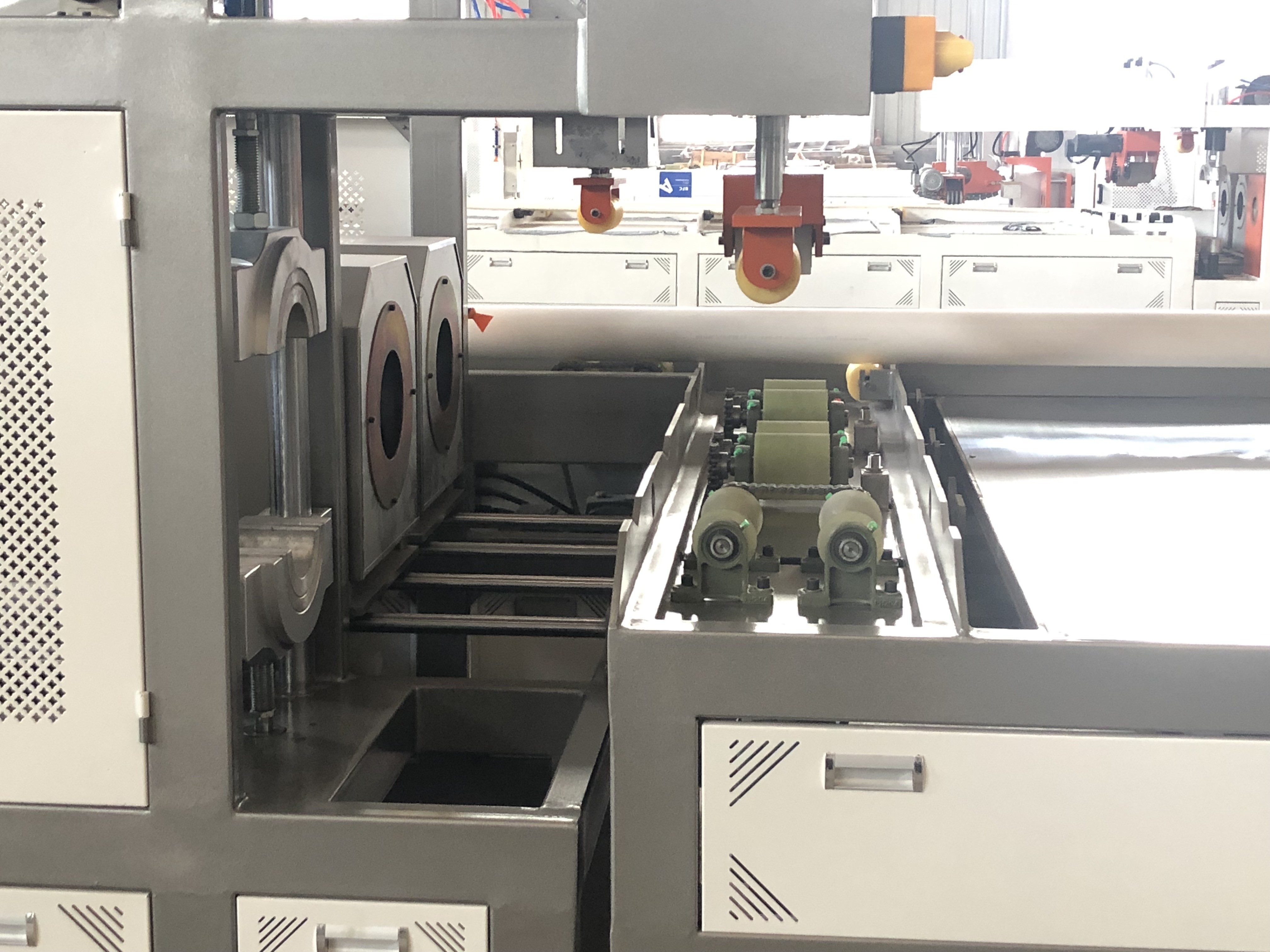

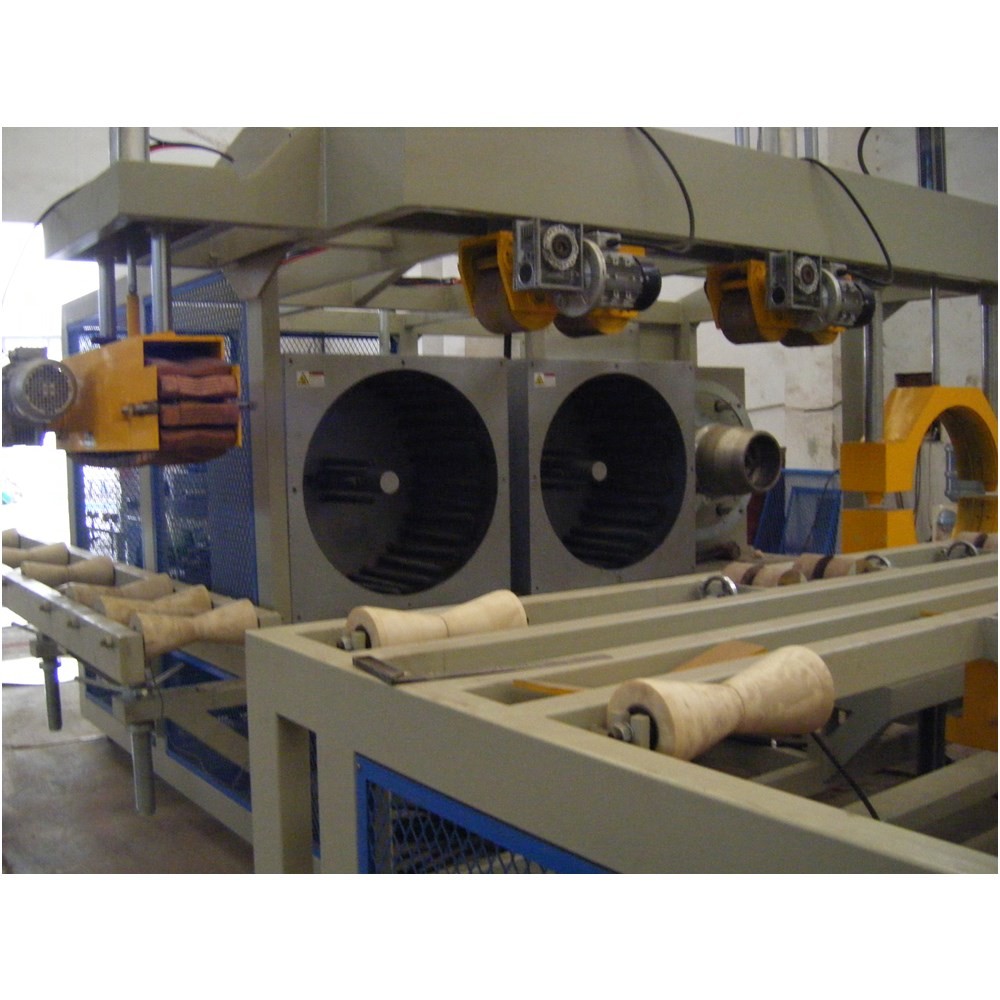

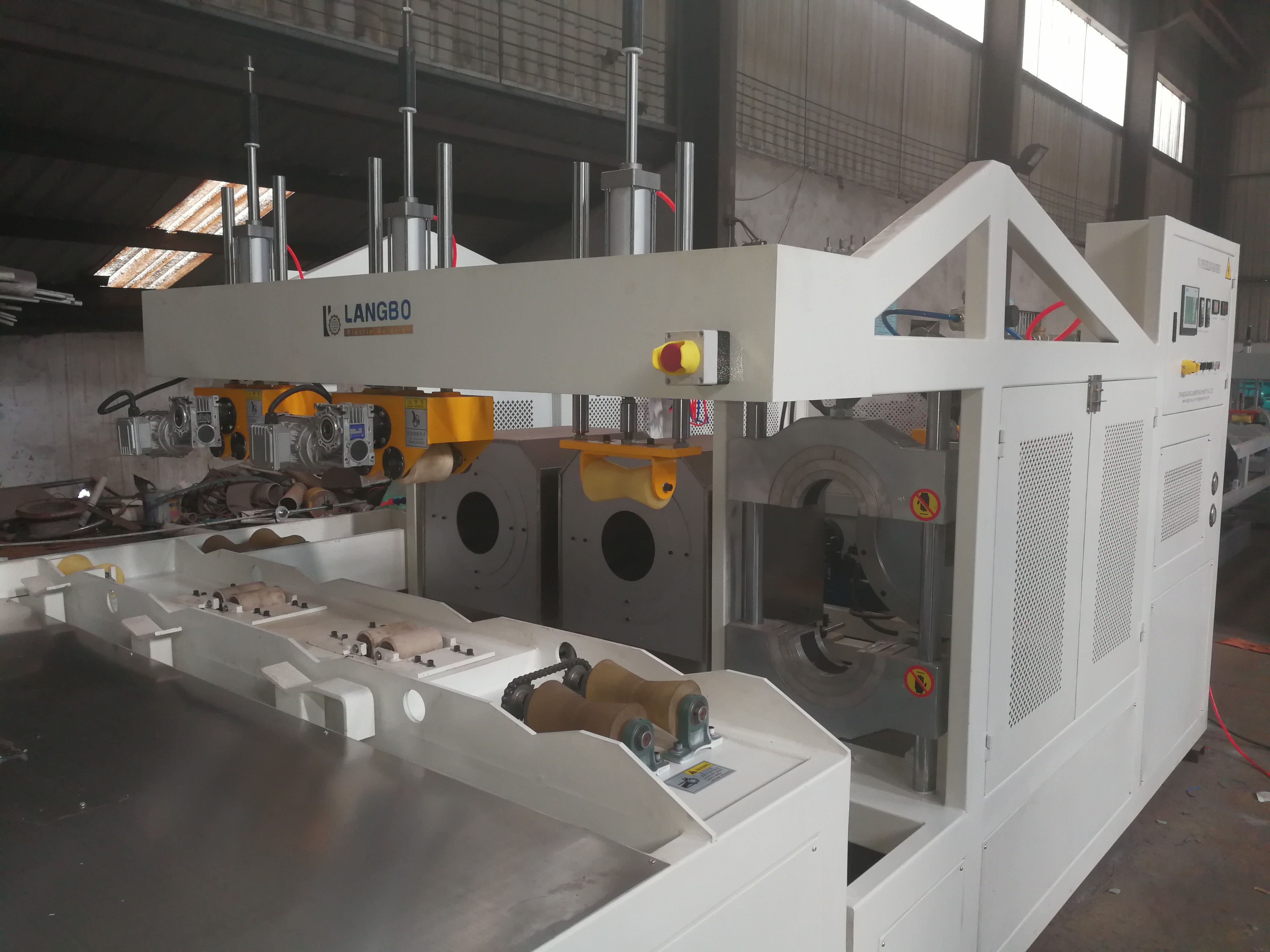

Plastic Pipe Auto Belling Machine
The belling machine is the optional part of the pipe production line. It can manufacture the socket end of pipes with types of “U”, “R” and rectangular. The belling process should be done in the belling room with vacuum shaping inside core of belling mould and water cooling outside the pipe in order to get the precise socket.
Features
This belling machines can socket PP and PVC pipes in the range of 20mm up to 400mm.
- We offer ABB Touch screen and PLC control system which is more easy-operation.
- Special Internal heating system using inferred heaters will provide homogenous heat inside the pipe.
- We use Hydraulic system for socketing of pipe which make the socketing process faster and much reliable and pneumatic systems are used in moving components.
- The machine has portable holder sending the pipe to the two tanks for heating and belling.
- It has conversion switches of expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type) in control panel, so it is very convenient to choose the way of tube expansion, with strong craft adaptability.
Specifications
| MODEL | Pipe diameter (mm) |
Belling way | Cooling way | Socket shape | Control way |
| SGK-40 | 16-40 (double) | Pneumatic | Blowing air | “U” | Automatic/Manual |
| SGK-200 | 50 -200 | Hydraulic | Water | “U”/“R”/”Rectangular” | Automatic/Manual |
| SGK-250 | 50 -250 | Hydraulic | Water | “U”/“R”/”Rectangular” | Automatic/Manual |
| SGK-400 | 160-400 | Hydraulic | Water | “U”/“R”/”Rectangular” | Automatic/Manual |
| SGK-500 | 200-500 | Hydraulic | Water | “U”/“R”/”Rectangular” | Automatic/Manual |
| SGK-630 | 315-630 | Hydraulic | Water | “U”/“R”/”Rectangular” | Automat |
Product Description
Our Service:
After the machine is finished before delivery, we will notice the cutomer to check the trial. Machine arrives in customer'sfactory, if need, we will send the engineer to install the machine, debug the machine and train the worker.
Company Introduction:
ZHANGJIAGANG LANGBO MACHINERY CO., LTD locates in Zhangjiagang city, which takes 2 hours by car from Shanghai & 40minutes from WUXI airport.
Our company is mainly supply various kinds of plastic machinery, such as plastic washing recycling machines, plastic granulating machine, plastic pipe extrusion machine and related auxiliary equipments. Based on more than 20 years experience and constant efforts in this field, we have gained much experience and professional technology on the solutions from technical design to extrusion manufacturing.
What we can promise is to offer customers high quality machines at competitive prices with positive after-sales service anytime.
