20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line

1 SET
MOQ
20000USD-30000USD
Price
20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Production Name: PPR Glassfiber PPR Pipe Production Machine
Pipe Size: 20-110mm; 3 Layer
Extruder Capacity: 350kgs/h For Inner &outer +180kgs/h Middle GF
Die Head: 3 Layer Co-extrusion With Two Extruders
Production Speed: 12m/min; 20m/min; 28m/min
Control System: SIEMENS PLC With Remote Control System
Warranty: 2 Years
Screw And Barrel: Single Screw
Motor: SIEMENS
Extruder Model: 6533
Packing Method: Wooden And Film Packages
Electrical Components: Siemens Or Schnider
Vacuum Tank: 8 Meters Long
Highlight:

Pert PPR Pipe Extrusion Line

,

HDPE PPR Pipe Extrusion Line

,

110mm PPR Pipe Extrusion Line
Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T,
Supply Ability: 15 SETS PER MONTH
Product Description
20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line
Advanced Multi-Layer Co-Extrusion Technology
This specialized production line utilizes multi-layer co-extrusion technology to manufacture high-performance plastic pipes. The innovative process enables significant raw material cost savings while producing pipes with enhanced functional characteristics.
For cost-effective production, recycled materials can be incorporated as the middle layer in PE thick wall pipes. For hot water supply applications, the line can produce pipes with PP-R layers enhanced by additional structural components such as glass fiber, providing superior performance characteristics.
Production Line Components

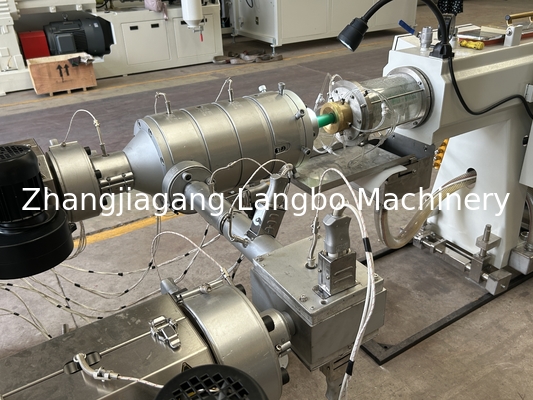

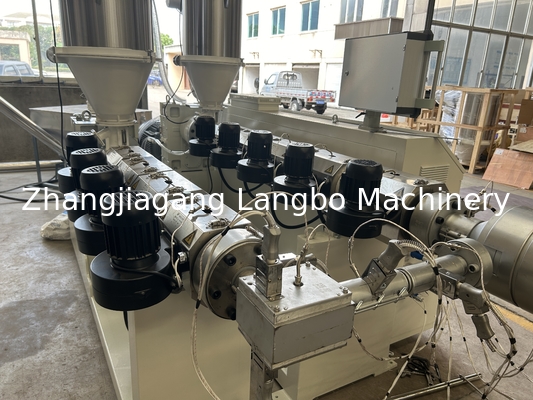

Single Screw Extruder Machine: Engineered with premium brand components to guarantee production stability, operational efficiency, and long-term machine durability.
Specialized Mould Design: Features unique adapter systems for co-extrusion compatibility with dual single extruders. Extended cooling calibrators ensure superior product performance and quality.

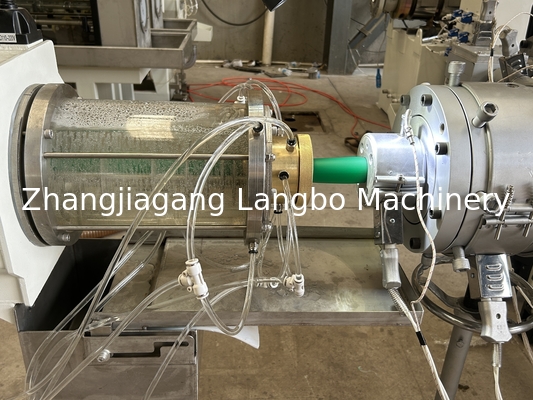

Vacuum Calibration & Cooling System: Dual-chamber construction with vacuum calibration and cooling sections. Constructed from stainless steel 304, the extended 8-meter cooling process ensures precise pipe sizing and optimal surface quality.
Advanced Haul-off Unit: Triple crawler track system provides stable and consistent pipe movement. Customizable hauling configurations adapt to specific production requirements through centralized control systems.

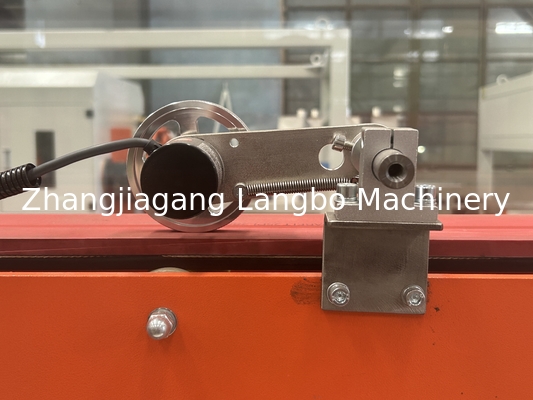

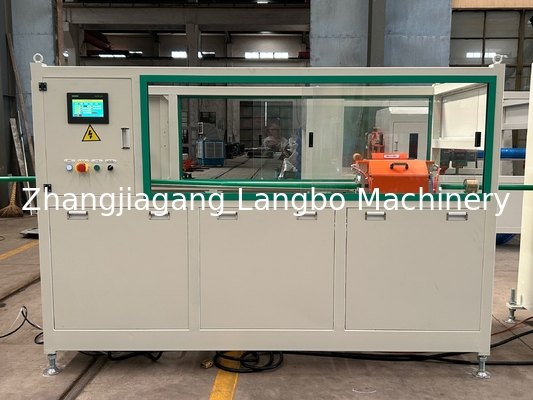

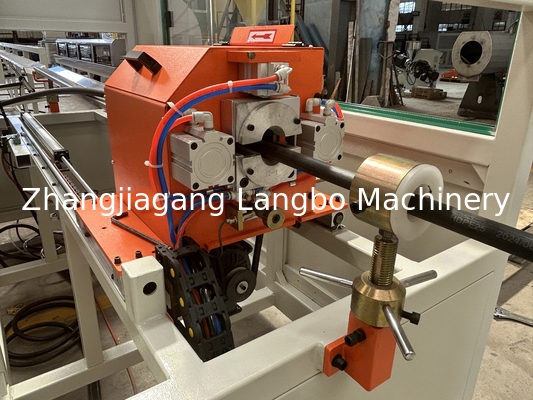

Precision Cutting Unit: High-accuracy encoder technology delivers exact cutting lengths. PLC-controlled system supports manual operation for specific applications. All surfaces utilize stainless steel 304 construction for enhanced corrosion resistance and extended service life.
Application Scope
  • Cold and hot drinking water pipe systems
  • Industrial fluid transportation systems
  • Feeding piping systems in seaside facilities
  • Air-conditioning systems
  • Agricultural irrigation systems
  • Transportation internal piping systems
Production Line Gallery
20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line 0 20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line 1 20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line 2 20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line 3 20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line 4 20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line 5 20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line 6 20-110mm HDPE PPR Pert Hot Water Supply And Drain Plastic Pipe Extrusion Production Line 7
