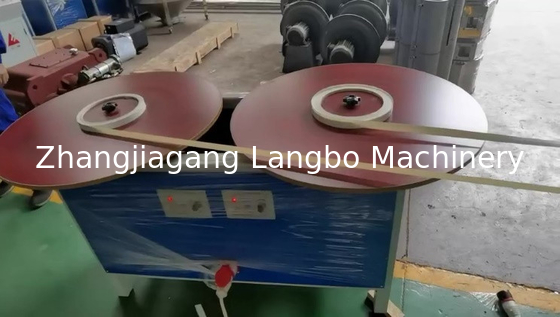

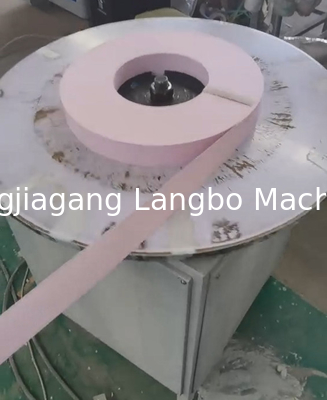

PVC Edge Banding Tapes Extrusion Production Making Machine Sheet Type PVC Edge Banding Tape Sheet Making Machine with Slitting MachineTapes Extrusion Line Extruder Machine
Product Details
| EXTRUDER TYPE: | 51/105 CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 50MM |
|---|---|---|---|
| MOTOR POWER: | 22KW | RAW MATERIAL: | PVC POWDER & ADDITIVES |
| HAUL-OFFS: | TWO HAUL-OFFS | CALIBRATION TABLE: | SIX MTERS LONG |
| PACKING METHOD: | WOODEN BOX AND FILM PACKAGE | PROFILE SIZE: | ACCORDING TO CUSTOMERS' DRAWING |
| DELIVERY TIME: | WITHIN 60 DAYS | MOTOR: | MADE IN CHINA |
| SCREW AND BARREL: | BEST QUALITY CHINA BRAND | CUTTER: | SAW CUTTER |
| WARRANTY: | 2 YEARS | AFTER-SALES SERVICE: | ENGINEER INSTALLATION AT SITE |
| CAPACITY: | 150-200KG/H | VACUUM TANK MATERIAL: | SUS304 3MM THICKNESS |
| STACKER: | FOUR METERS LENGTH | ||
| Highlight |
PVC Edge Banding Tapes Extrusion Machine,PVC Edge Banding Tapes Extrusion Line |
||
Product Description
- Digital PLC control or manual temperature control meter for extruder temperature system
- Easy operation with reliable performance
- High extrusion efficiency
- Easy maintenance design
| Model | YF120 | YF180 |
|---|---|---|
| Max. Product Width (mm) | 200 | 300 |
| Max. Product Height (mm) | 6 | 10 |
| Extruder Model | SNJZ51/105 | SNJZ65/132 |
| Vacuum Pump | No | No |
| Water Pump | 1.1kw | 1.1kw |
| Haul-off Motor | 1.1kw | 1.5kw |
| Component | Features |
|---|---|
| Feeder | Feeds material into extruder |

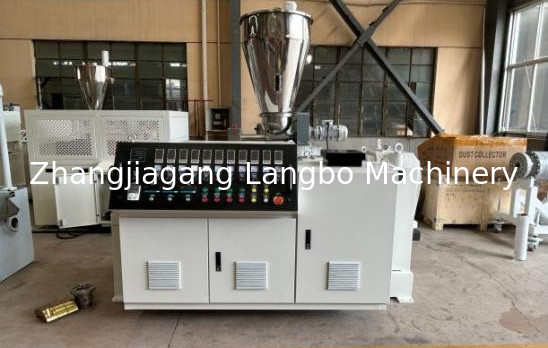

| Extruder | World famous brand electrical components (, Schneider, ABB); High torque gearbox with NSK/SKF bearings; /WEG original motor; Bimetallic screw and barrel; Intelligent PLC controlling system |

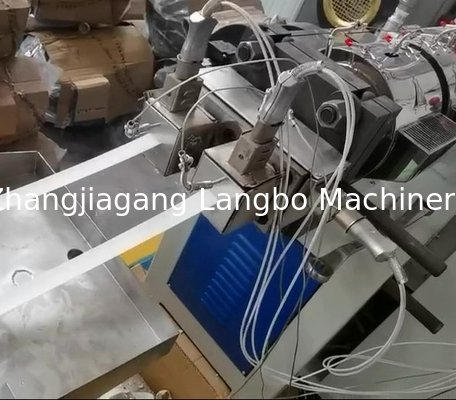

| Die Head | 3Cr13/3Cr17 material; Complete set includes extrusion die head, calibrator and cooling tank; Suitable for single, co-extrusion, foam imitation marble profile |

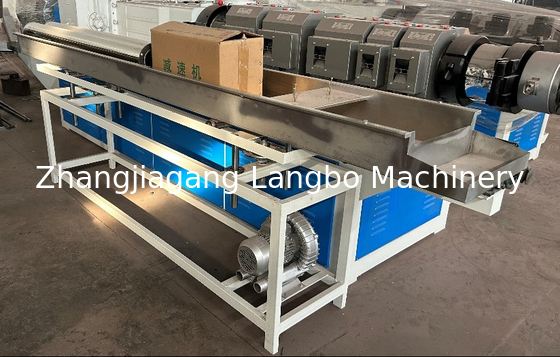

| Cooling Table | Includes full set of vacuum and water pump; Width: 240mm; Length: 6000mm; Independent operation panel |

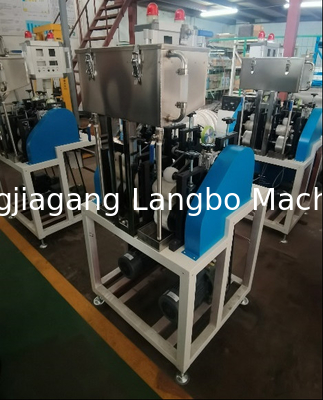

| Haul Off | Upper/lower crawler track driven separately; Speed control by inverter; Fast change type pads; Aluminum install plate |
| Cutter | Lifting saw cutter with double station dust collection system; Synchronous driving by air cylinder or servo motor control |
| Stacker | Stainless steel 304 as touching material; Discharge driving by air cylinder |
| Hot Stamping Machine | Decorative pattern and film protection of product surface |
| Parts | No. | Name | Brand |
|---|---|---|---|
| Screw and Barrel | 1 | Design | German design |
| 2 | Main Materials | 38CrMoALA | |
| 3 | Screw Heating | Silicon oil heating | |
| 4 | Barrel Heater | Cast aluminum heater | |
| 5 | Barrel Vacuum System | Vacuum exhausting system | |
| Driving Parts | 1 | Main Motor | Brand |
| 2 | Gear Box | Top brand in China | |
| Electric Parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schneider brand | |
| 3 | Relay | Schneider brand | |
| 4 | Breaker | Delixi brand | |
| 5 | Temperature Meter | RKC brand | |
| 6 | Hauling Motor | Densen brand | |
| 7 | Hauling Gear Box | Hard surface gear box | |
| 8 | Vacuum Pump | Yvhuang brand | |
| 9 | Water Pump | Yvhuang brand | |
| 10 | Cutting Motor | brand | |
| 11 | PLC | Schneider brand | |
| Mechanical Parts | CNC machines ensure precision of mechanical parts | ||
| Protection System | Complete protection system including: Current overload protection, Torque overload protection, Oil path blocking alarm, Vacuum overload alarm | ||
- Configuration confirmation
- Signing of Proforma invoice
- 30% pre-payment for production start
- Test running with customer on-site or video connection
- Machine condition confirmation
- 70% payment for delivery preparation
- Delivery date confirmation
- Shipping to customer
- On-site commissioning
- Training in machine operation and maintenance
- Handover confirmation
- One year guarantee
- Whole lifecycle service and technical support
Product Highlights

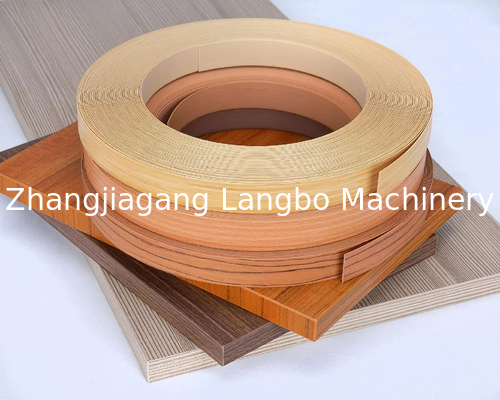

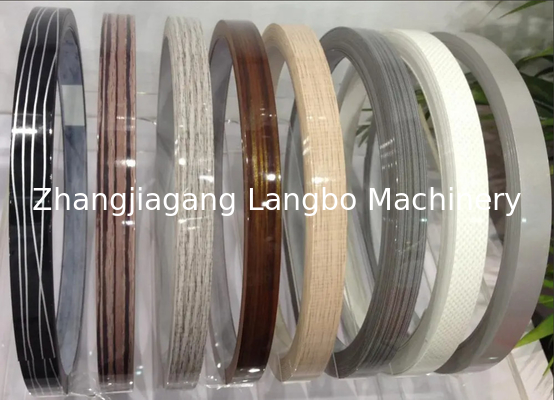

PVC Edge Banding Tapes Extrusion Production Line Complete sheet type PVC edge banding tape manufacturing system with integrated slitting machine for furniture, kitchen utensils, appliances, and laboratory cabinet decoration applications. Production Process Material → Heating Cooling Mixer → Material ...
