High Speed Advanced PVC Conduit Pipe Extrusion Machine
Complete production line for PVC/UPVC pipe manufacturing ranging from 16mm to 800mm diameter. Ideal for electrical conduit, agricultural, and construction plumbing applications.
Applications
UPVC pipes produced by this machine are used for electrical conduit, water supply, sewage systems, house decoration, chemical transportation, and gas distribution lines. Features include high strength, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety, and cost-effectiveness.
Production Process

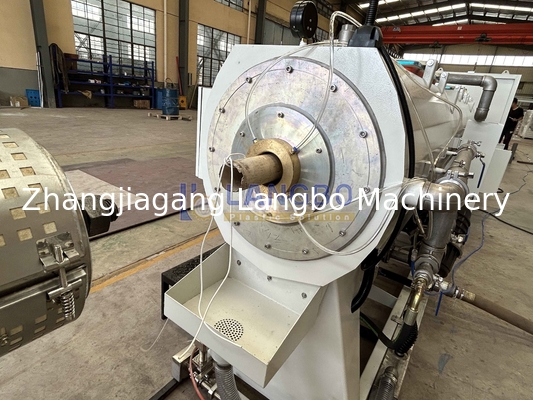

PVC powder + additive → mixing → material feeder → twin screw extruder → mould and calibrator → vacuum and cooling tank → spraying cooling machine → haul-off machine → cutting machine → discharge rack or pipe belling machine
Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Machine Components
Mixer
Features reduced raw material self-friction for improved energy efficiency. Vacuum suction load ensures low noise and dust-free operation.

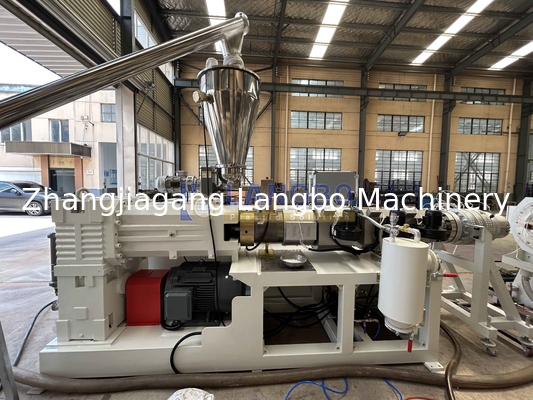

Twin Screw Extruder Machine

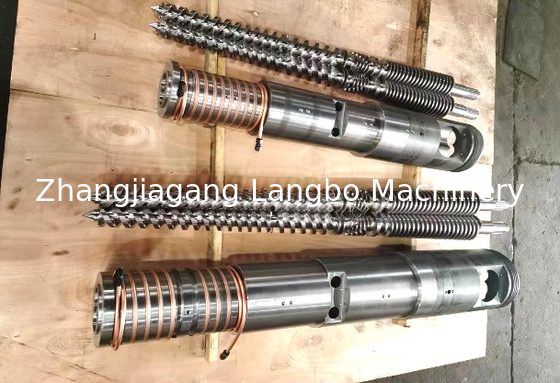

Crafted with top brand components for production stability and durability. Conical twin screw design ensures homogeneous mixture, better plastification, and conveying efficiency.

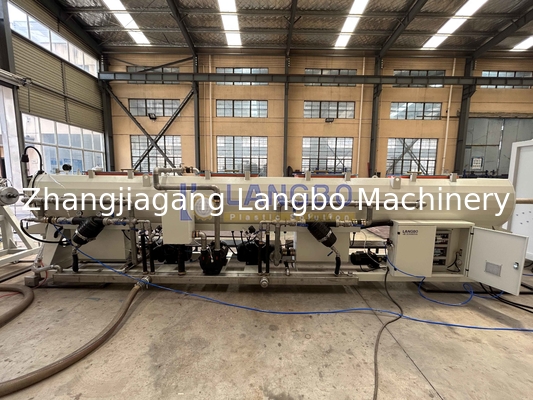

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling parts. Constructed from stainless 304 steel with excellent vacuum system for precise pipe sizing.
Haul-off Unit
Three crawler track system ensures stable pipe running. Adjustable hauling models based on specific production requirements.

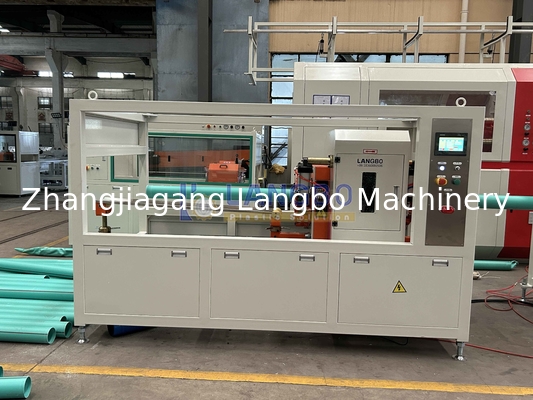

Cutting Unit
High accuracy encoder for precise cutting length. PLC control system with manual operation capability for specific applications.
Technical Features
- Easy grinding of all Hard & Soft PVC materials into powder
- Dust collector effectively reduces pollution
- Reduced labor intensity with automated discharging
- Easy maintenance with accessible door cover for cutter replacement
- Water and wind double cooling system prevents overheating
- Adjustable powder mesh (15-100mesh)
- Easy installation and maintenance with accessible cleaning
- Well-known brand accessories including Siemens motors
- Wide range of optional accessories for customized solutions
Delivery Information
Delivery: 30 days after order
Warranty: 12 months
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case
Our Service
One year guarantee for entire machine
24 hours technical support
Overseas installation & commissioning services
Maintenance guidance and spare parts provision
Comprehensive operator training services
Frequently Asked Questions
Are you a trading company or factory? Can I visit your factory?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province. Factory visits are welcome with pick-up service available.
How to build trust with Langbo?
We provide working videos and customer-focused technical suggestions. Factory visits allow face-to-face discussions about our plastic extrusion expertise.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. We assist customers with current shipping prices and options.
What happens after order confirmation?
Configuration confirmation → Proforma invoice → 30% payment → Test running → Machine confirmation → 70% payment → Delivery preparation → Shipping → Commissioning → Training → Handover → One year guarantee → Lifetime support
What payment methods do you accept?
T/T, D/P, Letter of Credit, Cash transaction
How do you guarantee machine quality?
One year guarantee with lifetime technical support. Customers can check machines during in-house test running with immediate optimization.
Do you have CE Certification?
Yes, both our extrusion and recycling machines have CE Certification.
What is the delivery time?
Typically 45 days, with exact timing specified in the contract.
How to get machine area requirements?
Contact us at sales@langbochina.com or WhatsApp: +86 15962377824 for detailed solutions, layouts, and technical guidance.
