Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine

1 SET
MOQ
20000USD-30000USD
Price
Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Production Name: PPR Glassfiber PPR Pipe Production Machine
Pipe Size: 20-110mm; 3 Layer
Extruder Capacity: 350kgs/h For Inner &outer +180kgs/h Middle GF
Die Head: 3 Layer Co-extrusion With Two Extruders
Production Speed: 12m/min; 20m/min; 28m/min
Control System: SIEMENS PLC With Remote Control System
Warranty: 2 Years
Screw And Barrel: Single Screw
Motor: SIEMENS
Extruder Model: 6533
Packing Method: Wooden And Film Packages
Electrical Components: Siemens Or Schnider
Vacuum Tank: 8 Meters Long
Highlight:

Plastic Extruder Making Machine

,

Single Screw PPR Pipe Production Line

,

Single Screw PPR Pipe Extrusion Line
Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T,
Supply Ability: 15 SETS PER MONTH
Product Description
Single Screw PPR Pipe Extrusion Production Line
Advanced plastic extruder making machine for PPR and glass fiber pipe extrusion with multi-layer co-extrusion capabilities.
Production Line Overview
This specialized production line utilizes multi-layer co-extrusion technology to manufacture pipes with enhanced functional features while optimizing raw material costs. The system enables the use of recycled materials in middle layers for cost-effective PE thick wall pipe production, and incorporates additional structural layers including glass fiber for superior hot water supply pipe performance.
Key Components & Features
  • Single Screw Extruder Machine: Built with premium brand components to ensure production stability, efficiency, and long-term machine durability
  • Specialized Mould Design: Features adapter for co-extrusion compatibility with two single extruders, combined with extended cooling calibrator for superior product performance
  • Vacuum Calibration & Cooling System: Two-chamber stainless steel 304 construction with 8-meter extended cooling process for precise pipe sizing and optimal surface quality
  • Advanced Haul-off Unit: Triple crawler track system ensures stable pipe operation with customizable hauling models through general control adjustments
  • Precision Cutting Unit: High-accuracy encoder with PLC control system for stable cutting length, featuring stainless steel 304 construction for corrosion resistance and extended service life
Applications
  • Cold and hot drinking water pipe systems
  • Industrial fluid transportation systems
  • Feeding piping systems in seaside facilities
  • Air-conditioning systems
  • Agricultural irrigation systems
  • Transportation internal piping systems

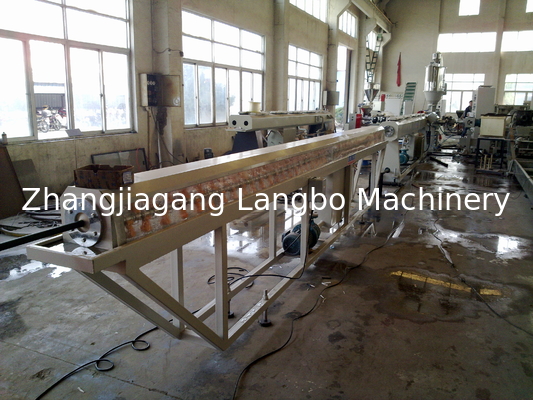

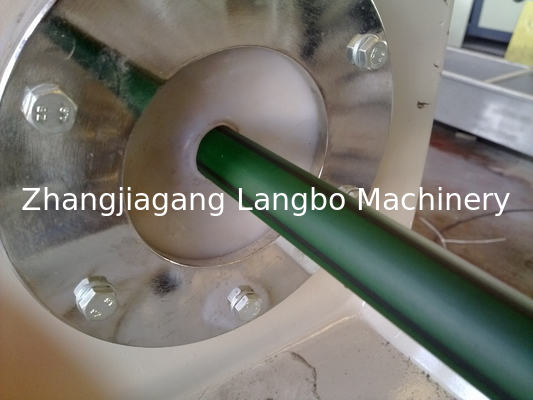

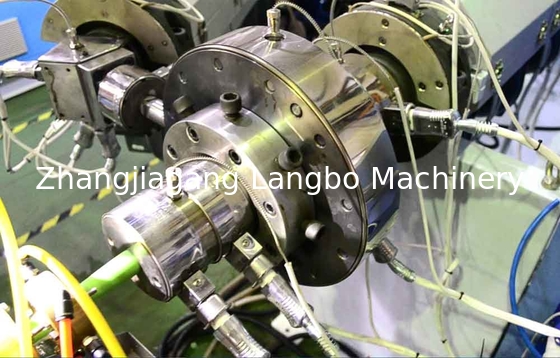

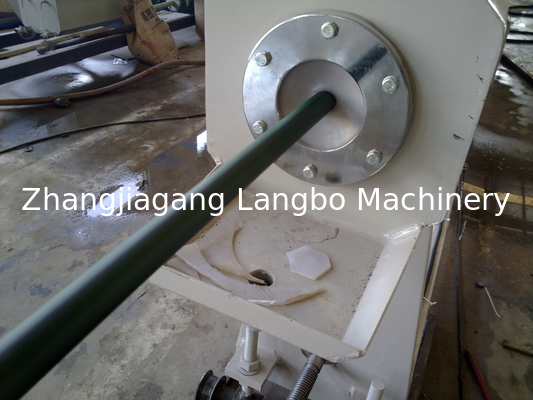

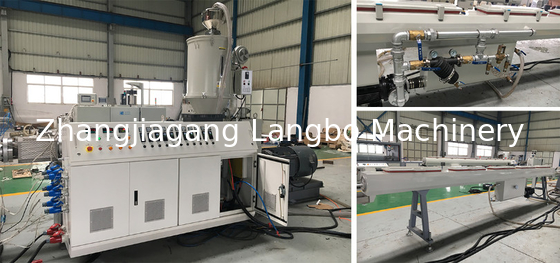

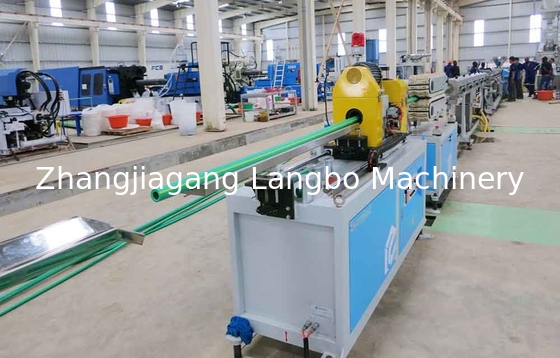

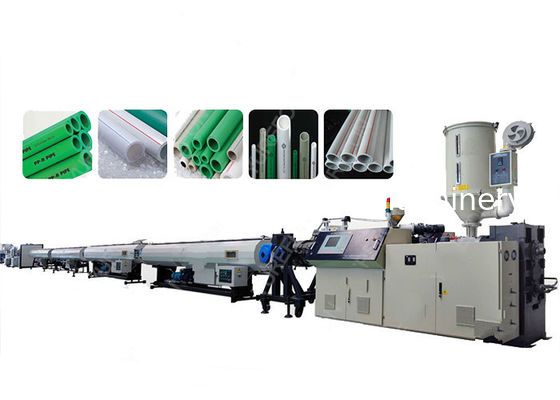

Production Line Images
Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine 0 Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine 1 Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine 2 Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine 3 Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine 4 Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine 5 Single Screw PPR Pipe Extrusion Production Line Plastic Extruder Making Machine PPR Glass Fiber Pipe Extrusion Making Machine 6
