Plastic PPR HDPE PP PE PVC Pipe Extruder Making Extrusion Machine Production Line
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
PVC Pipe Extruder Making Machine,HDPE Pipe Extruder Making Machine,PP Pipe Extruder Making Machine |
||
Product Description
Factory Supply Good Quality Plastic PPR HDPE PP PE PVC Pipe Extruder Making Extrusion Machine Production Line Price
16-90MM Polyethylene Production Line:
For the polyethylene pipe production line, the raw material is PE pellets. We have vacuum sucking loder and hopper dryer to ensure the raw material with the best performance and dry of humidity. For the polyethylene pipe extrusion line, we choose 65/33 55kw extruder ensuring 250-300kg/h output. The mould is 40Cr with copper calibrators. The vacuum tank is 9 meters long and spraying cooling tank is also 9 meters long. The length of the vacuum and cooling tank ensures enough cooling for the produced HDPE pipe. We used best quality nozzles and stainless steel tank. The Saw cutter has servo motor and hydralic to shorten the cutter working circle. We provide 3 engineers commssioning and training at site and lifelong aftersales. If you are interested in the polyethylene pipe extrusion line, please contact me for further information!
Processing Process:

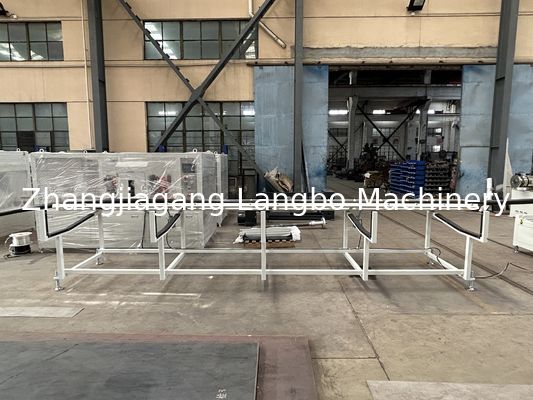

PE granules-material feeder-single screw extruder-mould and calibrator-vacuum forming machine-two-staged spraying cooling machine-haul-off machine-knife cutter-stacker.
Specifications
| Model | LB110 | LB250 | LB315 | LB400 |
| Pipe Range | 20-110mm | 75-250mm | 110-315mm | 180-400mm |
| Screw Model | SJ65 | SJ75 | SJ75 | SJ75 |
| Motor power | 55KW | 90KW | 132KW | 160KW |
| Output | 150kg | 220kg | 400kg | 600kg |
Product details:

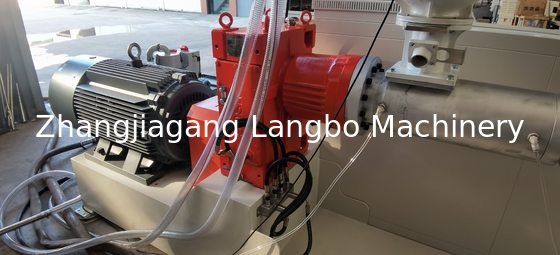

Single screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.
Mould
The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.
It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.

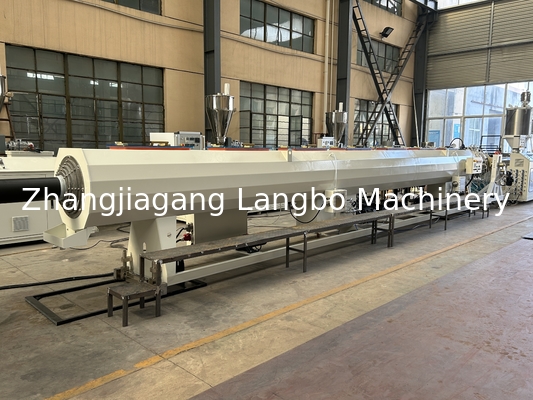

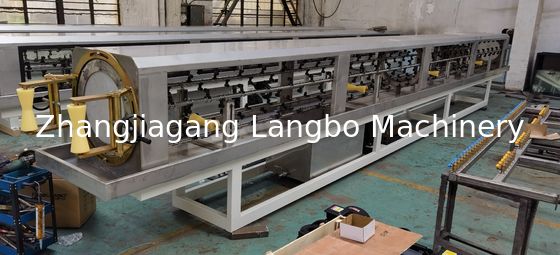

Vacuum and cooling tank
The vacuum calibration tank adopts stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. The holder in first step of the vacuum calibration tank guarantees the pipe shaped and provides extra power for the pipes moving on.

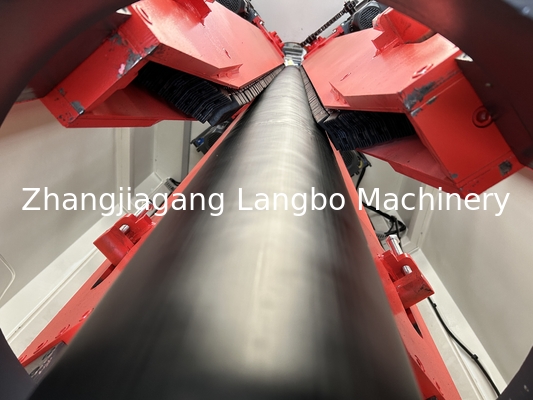

Haul-off Unit
The belt on the haul-off machine ensures produced pipe running stably and steady. utilize a unique mechanism to prevent pipe ovality while our unique belt design assures proper pulling without slippage.

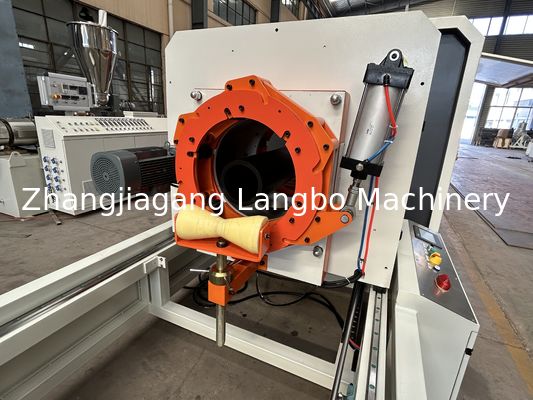

Cutting Unit
We offers two cutting methods including rapid cutter and planetary cutter. In accordance to the
produced pipe material, the cutting way can be switched randomly.
After-sales services:
During the machine production process, we will regularly send photos to report the production status of the equipment. When the machine finished, we will arrange trial test that invite buyer coming to factory to checking the machine. Once the buyer is satisfied with the results of testing, we will order ships and deal the shipping date. All the shipping documents will be responsible by us. Our unified process will save all the problems and do everything for you.
When the machine arrived your factory, we could arrange engineers coming to site to installation, commissioning and training your workers. For the machine, we provide 18 month warranty since the machine shipped. For the guidance of the production, we provide life-long service.
If you have any interest of the HDPE pipe extrusion line, please contact me for more information
