PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line

1 SET
MOQ
20000USD-30000USD
Price
PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Production Name: PPR Glassfiber PPR Pipe Production Machine
Pipe Size: 20-110mm; 3 Layer
Extruder Capacity: 350kgs/h For Inner &outer +180kgs/h Middle GF
Die Head: 3 Layer Co-extrusion With Two Extruders
Production Speed: 12m/min; 20m/min; 28m/min
Control System: SIEMENS PLC With Remote Control System
Warranty: 2 Years
Screw And Barrel: Single Screw
Motor: SIEMENS
Extruder Model: 6533
Packing Method: Wooden And Film Packages
Electrical Components: Siemens Or Schnider
Vacuum Tank: 8 Meters Long
Highlight:

Plastic Water Supply Pipe Production Line

,

PE Water Supply Pipe Production Line

,

HDPE Water Supply Pipe Production Line
Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T,
Supply Ability: 15 SETS PER MONTH
Product Description
PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line
Factory Price PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line
Production Line Overview
Multi-layer pipes are manufactured using co-extrusion pipe line technology. This specialized production process reduces raw material costs while creating pipes with enhanced functional characteristics. For cost-effective production of PE thick wall pipes, recycled materials can be utilized in the middle layer. For hot water supply applications, the production line incorporates PP-R layers along with additional structural layers such as glass fiber, providing superior performance characteristics.
Key Components & Features

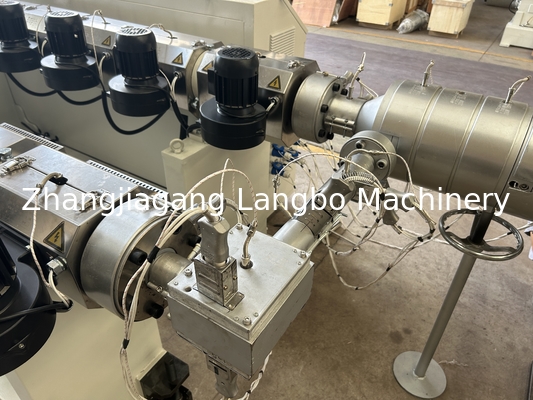

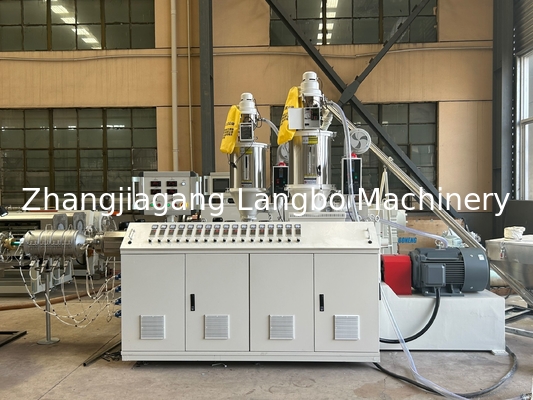

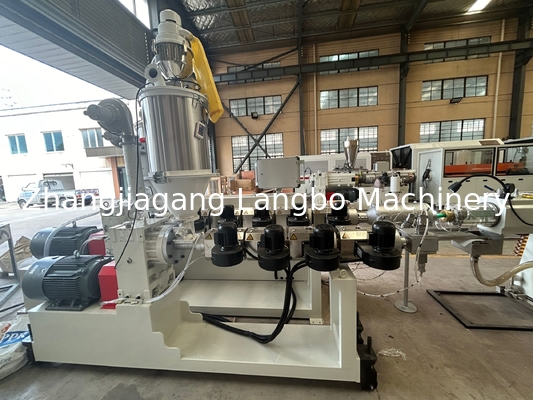

Single Screw Extruder Machine
Manufactured with premium brand components to ensure production stability, operational efficiency, and long-term machine durability.

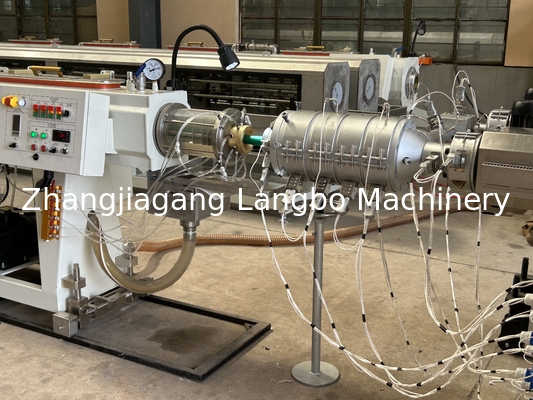

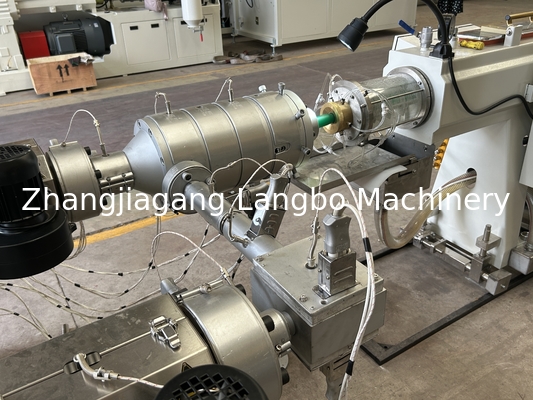

Specialized Mould Design
Features unique mold design with adapters for co-extrusion from two single extruders. Equipped with extended cooling calibrators to enhance product performance and quality.

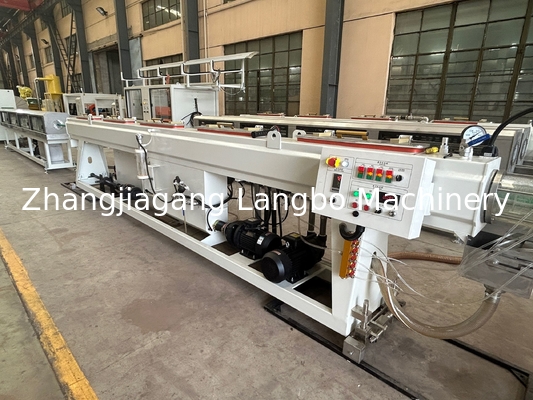

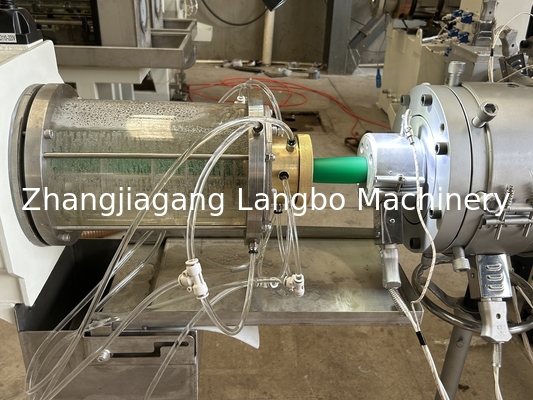

Vacuum Calibration & Cooling System
Two-chamber structure combining vacuum calibration and cooling functions. Constructed with stainless steel 304 for both vacuum and spraying cooling tanks. Extended 8-meter cooling process ensures optimal pipe surface quality and complete cooling of CPVC pipes.
Advanced Haul-off Unit
Triple crawler track system ensures stable and steady pipe movement. Customizable hauling models can be adjusted through general control systems to meet specific production requirements.
Precision Cutting Unit
High-accuracy encoder guarantees precise and consistent cutting lengths. PLC control system enables manual operation for specific applications. All surfaces constructed with stainless steel 304 to withstand corrosive CPVC materials and ensure extended machine lifespan.
Applications
  • Cold and hot drinking water pipe systems
  • Industrial fluid transportation systems
  • Feeding piping systems in seaside facilities
  • Air-conditioning systems
  • Agricultural irrigation systems
  • Transportation internal piping systems
PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line 0 PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line 1 PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line 2 PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line 3 PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line 4 PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line 5 PE HDPE LDPE PPR Plastic Water Supply Pipe Tube Extrusion Production Line 6
