PVC WPC PE Panel Ceiling Profile Decking Production Extrusion Extruding Line

Brand Name: LB
Model Number: LB-1240
Place of Origin: ZHANGJIAGANG
Certification: CE,ISO9001
Minimum Order Quantity: 1 SET
Price: USD,EUR
Supply Ability: 15 SETS PER MONTH
Tags

wpc board production line

wpc profile machine

plastic profile extrusion machine

Product Details

EXTRUDER TYPE: CONICAL TWIN SCREW EXTRUDER MOTOR DRIVE: 75KW
RAW MATERIAL: PP/PE And Wood Pellets & ADDITIVES OUTPUT CAPACITY: 400KG/H
PROCESSING METHOD: EMBOSSING WARRANTY: 12 MONTHS
HAUL-OFF: TWO HAUL-OFF CUTTER: SAW CUTTER
MOTOR: SIRMENS BEIDE GEARBOX: FAMOUS CHINESE BRAND
Highlight

PVC WPC PE Panel Ceiling Profile

,

PE Panel Ceiling Profile Extrusion Line

Product Description

PVC WPC PE Panel Ceiling Profile Decking Production Extrusion Line
This advanced extrusion line specializes in producing WPC (Wood Plastic Composite) profiles for ceiling panels, decking, and various architectural applications. Available in two main configurations: PVC profile with lamination or PP/PE with wood powder composition.
WPC Profile Types
Our extrusion lines support two primary WPC profile variations. The PVC-based profiles are combined with lamination technology for decorative applications, while PP/PE profiles integrated with wood powder are ideal for flooring solutions. The rising cost of wood powder has made PVC lamination an increasingly popular and cost-effective alternative for diverse applications.
Technical Specifications
Model SJZ45 SJZ51 SJZ65 SJZ80 SJZ92
Screw diameter (mm) 45/100 51/105 65/132 80/156 92/188
Screw rotation speed (r/min) 4-45.5 1-30 1-34.7 1-36.9 1-32.9
Effective screw length (mm) 1000 1050 1430 1800 2520
Main motor power (kW) 15 22 37 55 110
Barrel heating power (kW) 12 18 24 36 48
Capacity (kg/h) 92 110 250 380 520
Central height (mm) 1000 1000 1000 1000 1000
Net Weight (kg) 3000 3200 5000 6500 7500
Essential Details
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Langbo
Plastic Type
PVC/PP/PE
Production Capacity
200-400 kg/h
Machine Type
Extrusion Line
Max Production Capacity
600-800 kg/h
Voltage
380V, 3Phase, 50HZ (customizable)
Power
15-110 kW
Warranty
1 year
Key Selling Points
High Quality
Advanced WPC Profile Extrusion Technology
Langbo Machinery's polywood technology enables production of WPC profiles containing up to 80% natural fiber content. These profiles offer superior reliability, performance, and cost-effectiveness compared to traditional wood products. Our comprehensive systems also include WPC granule manufacturing equipment for subsequent molding or extrusion processes.
We design fully customizable profile extrusion machine lines that produce high-quality WPC granules from environmentally friendly renewable raw materials. Our innovative extruders and modular accessory range ensure high efficiency across all production outputs. Ease of operation, maintenance, and cleaning are central to our machine design philosophy.
Production Line Images

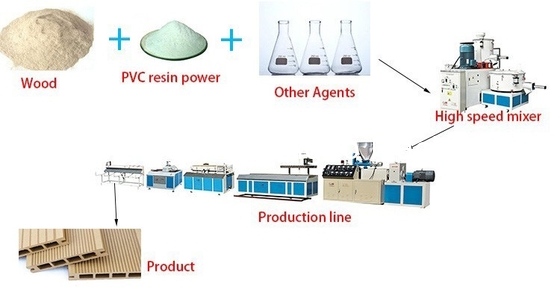

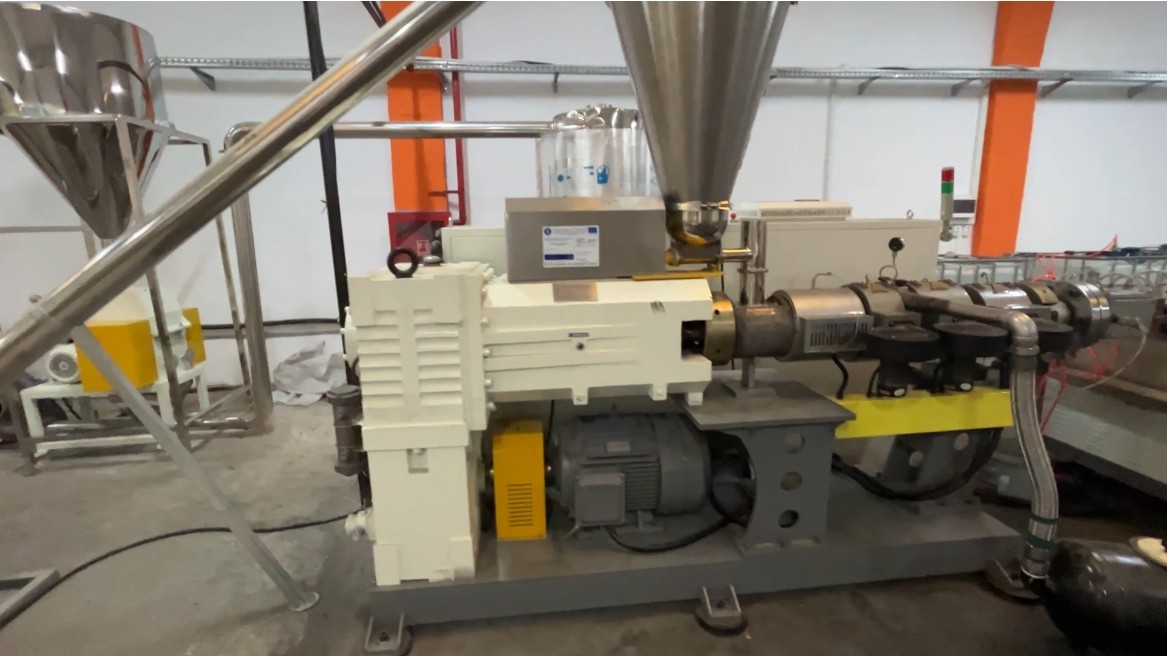

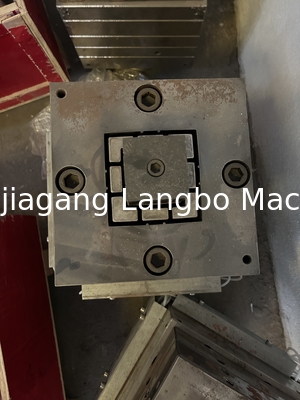

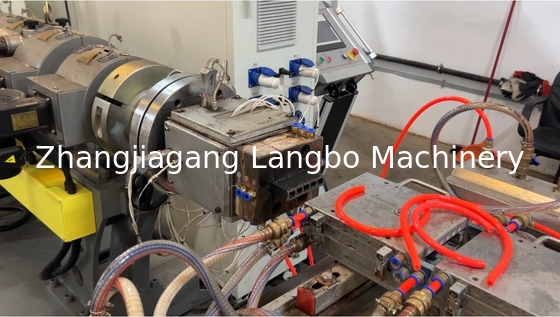

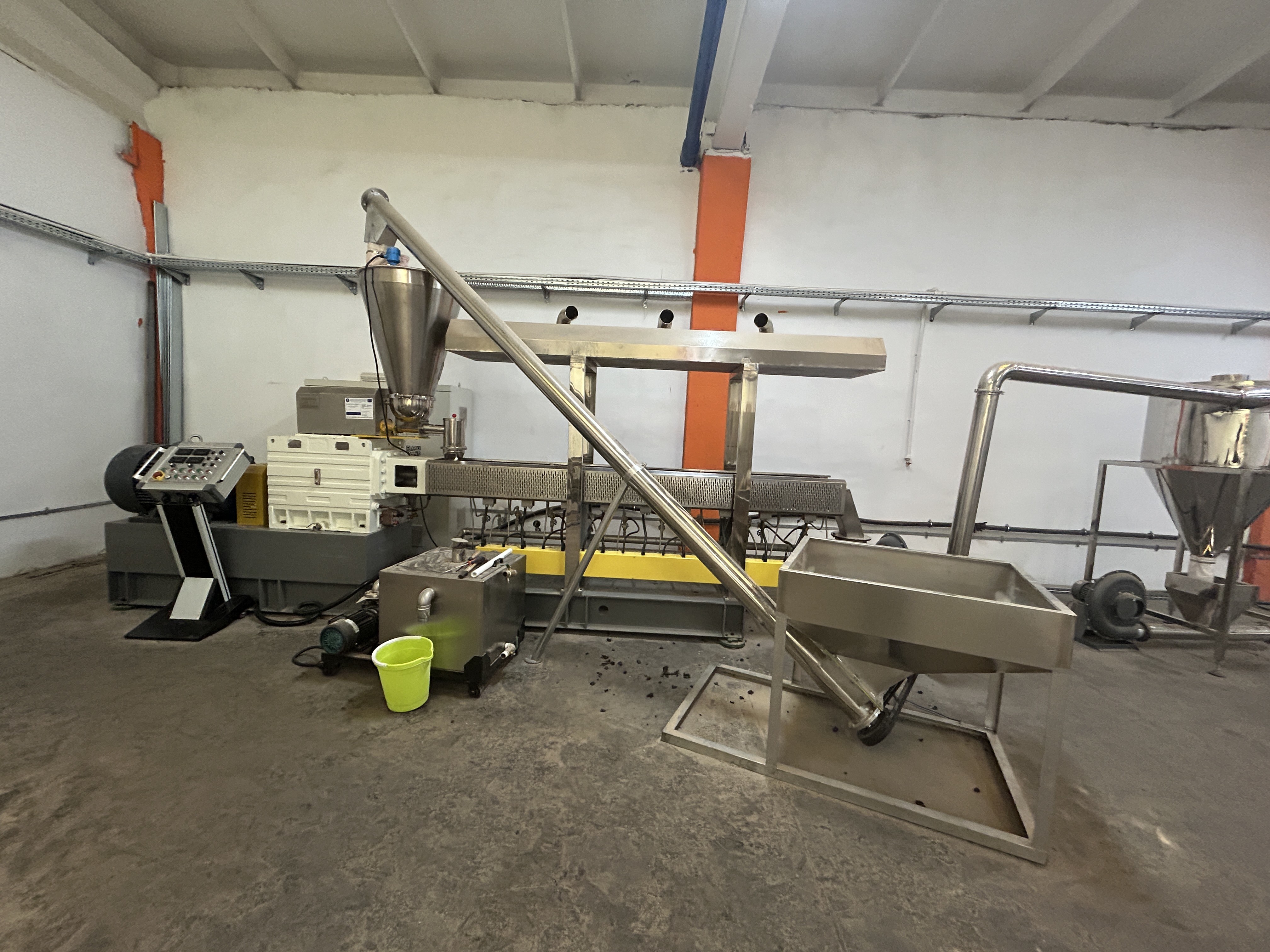

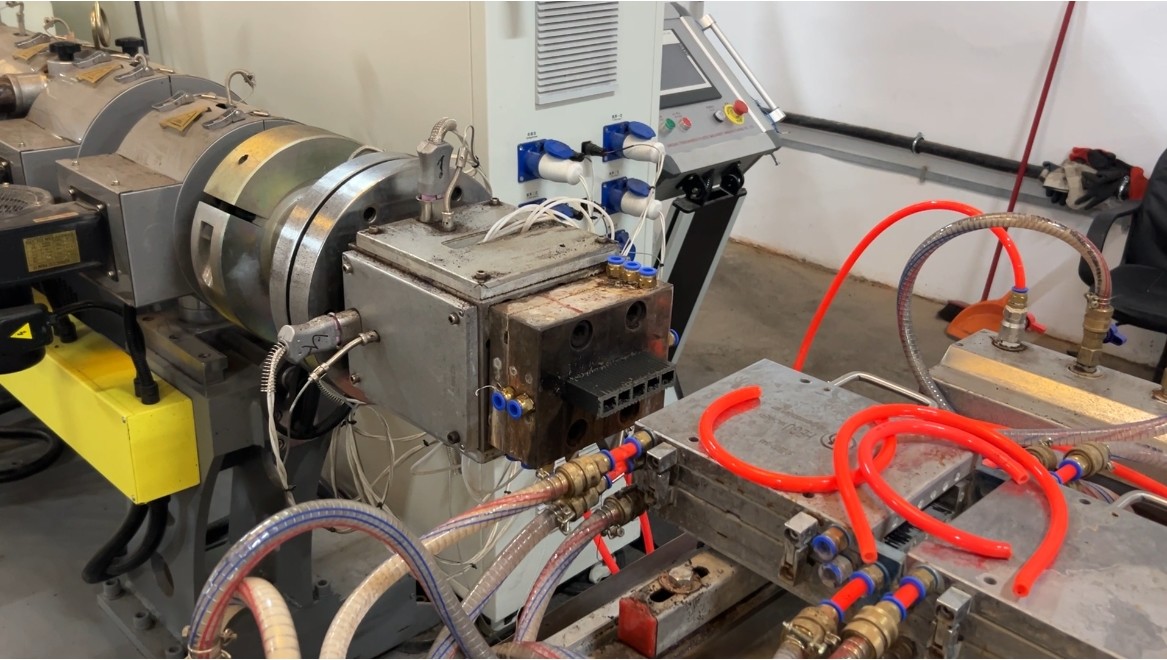

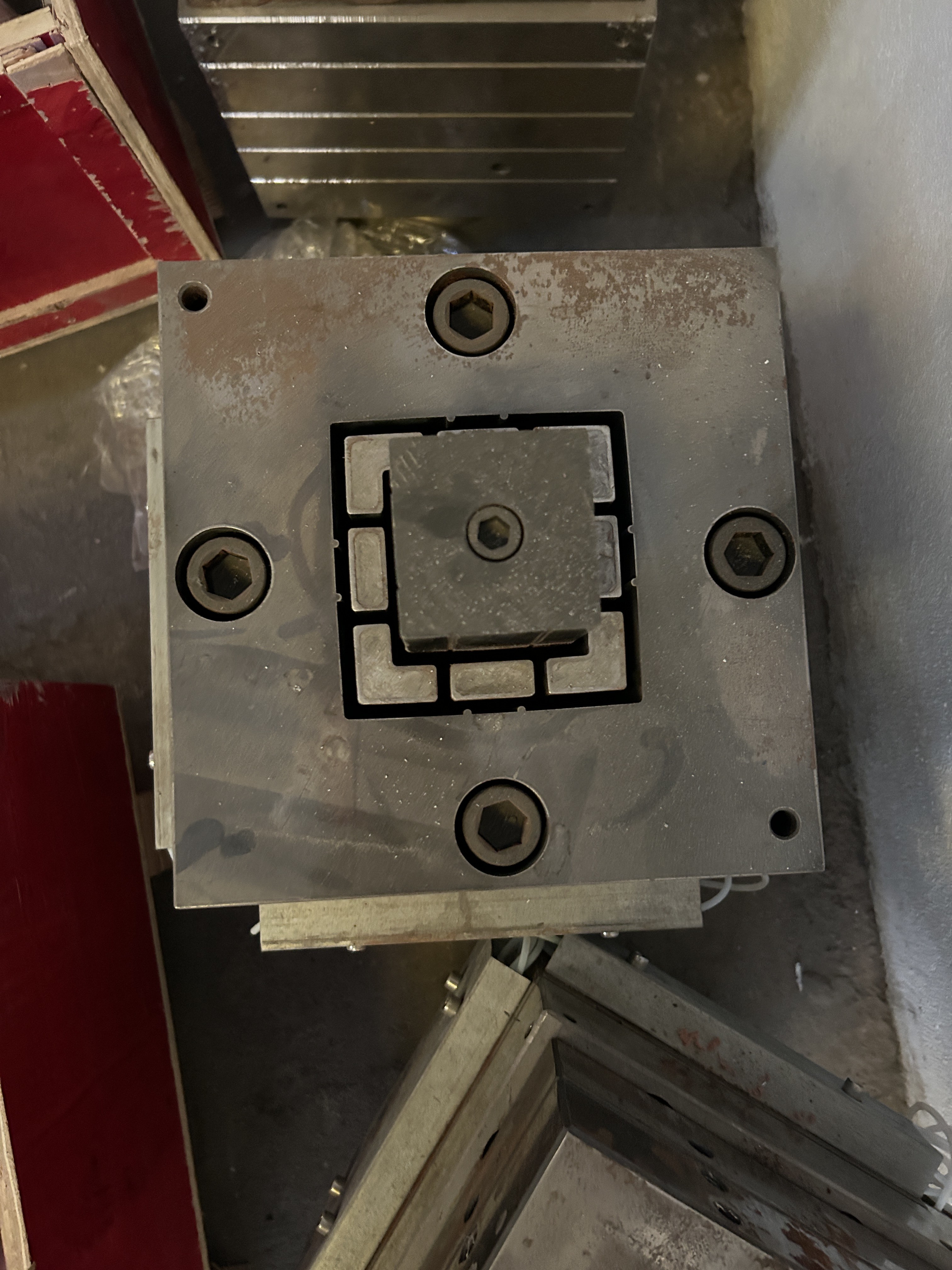

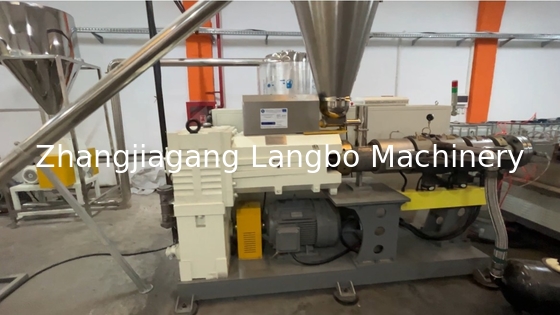

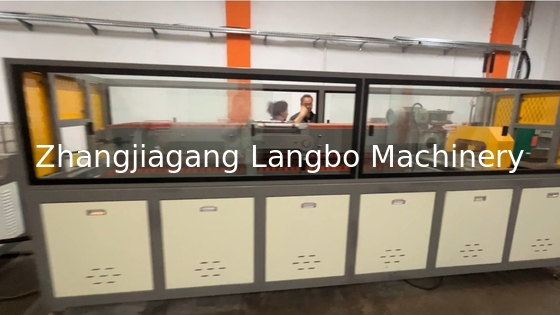

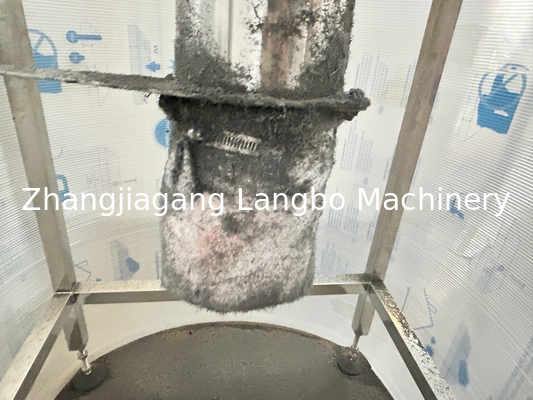

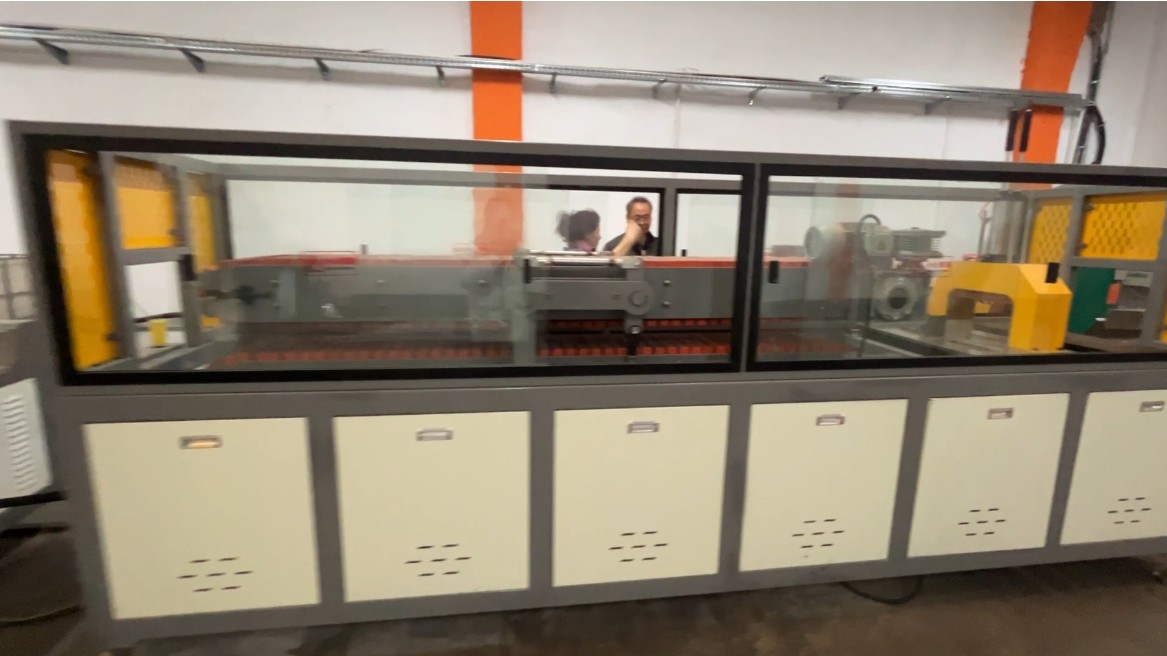

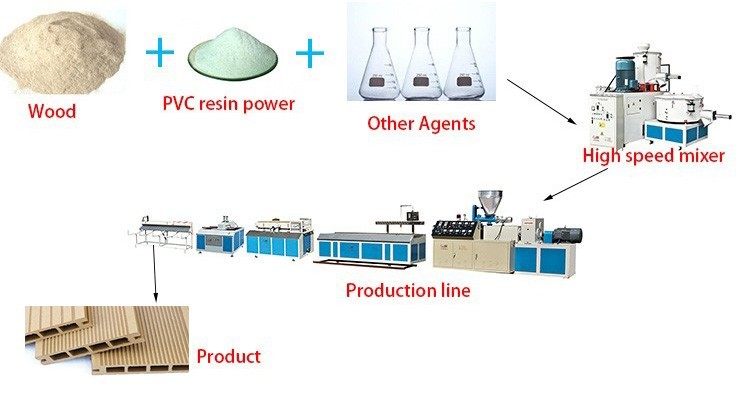

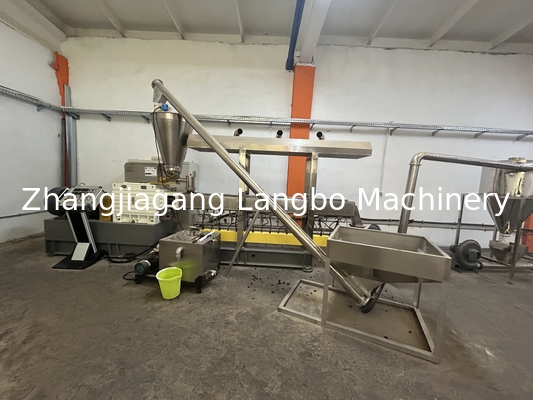

PVC WPC PE extrusion line overview Extrusion line control system WPC profile production process Extrusion machinery components Finished WPC profiles Extrusion line installation

Product Highlights

PVC WPC PE Panel Ceiling Profile Decking Production Extrusion Line This advanced extrusion line specializes in producing WPC (Wood Plastic Composite) profiles for ceiling panels, decking, and various architectural applications. Available in two main configurations: PVC profile with lamination or PP...
