High Speed PVC Plastic Hose Tube Making Machine Production Line
Complete PVC/UPVC Pipe Production Line Made in China
This advanced PVC pipe making machine production line offers complete manufacturing solutions for PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is designed for producing pipes with various diameters and wall thicknesses for electrical conduit, agricultural, and construction plumbing applications.
Applications
The produced UPVC pipes are widely used in electrical conduit systems, water supply networks, sewage systems, house decoration, chemical transportation, and gas distribution lines. These pipes feature high strength and rigidity, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety properties, and cost-effective maintenance.
Production Process
- PVC powder + additive mixing
- Material feeding
- Twin screw extrusion
- Moulding and calibration
- Vacuum and cooling
- Spray cooling
- Haul-off process
- Precision cutting
- Discharge rack or pipe belling
Technical Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Key Components
Mixer
Features specialized design that reduces raw material self-friction, improving energy utilization efficiency. Includes vacuum suction load with low noise and dust-free operation.
Twin Screw Extruder
Crafted with top-brand components for production stability, efficiency, and durability. Conical twin screw design ensures homogeneous mixture, superior plastification, and efficient material conveying.

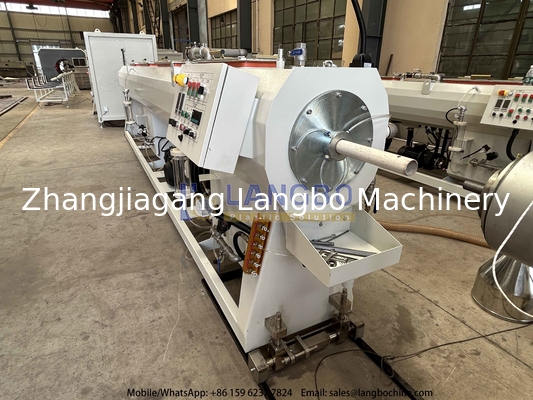

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling sections. Constructed with stainless 304 steel for both vacuum and spray cooling tanks. Advanced vacuum system ensures precise pipe sizing.

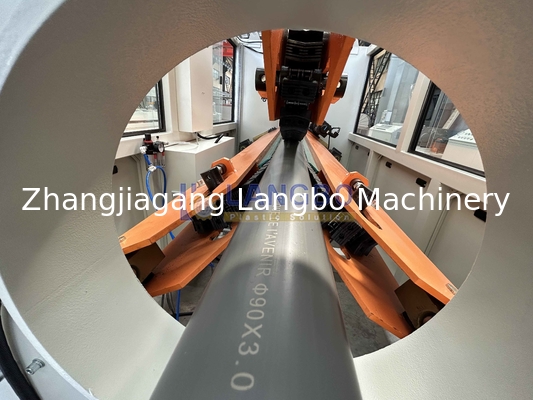

Haul-off Unit
Three crawler track system ensures stable pipe operation. Customizable hauling models with adjustable general control to meet specific production requirements.

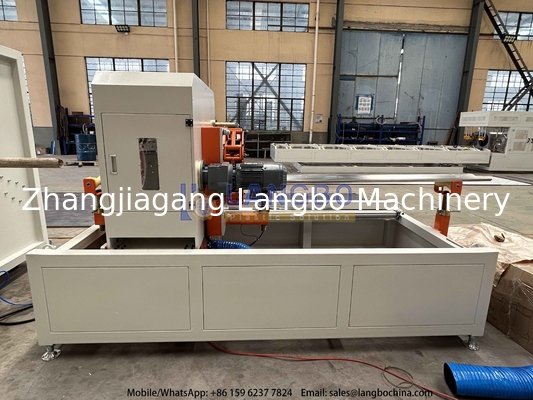

Cutting Unit
High-accuracy encoder provides precise and stable cutting lengths. PLC control system supports both automated and manual cutting operations.
Technical Features
- Easy grinding of hard and soft PVC materials into powder
- Integrated dust collector for reduced pollution
- Automated discharging reduces operator labor intensity
- Accessible host door cover for easy maintenance and cutter replacement
- Water and wind dual cooling system prevents component overheating
- Adjustable powder mesh (15-100 mesh)
- Easy installation and maintenance with accessible cleaning
- Siemens motors and premium brand components for long-term reliability
- Comprehensive optional accessories for customized solutions
Delivery & Payment
Delivery: 30 days after order confirmation
Warranty: 12 months
Payment: T/T 30% advance, 70% before delivery
Packing: Standard export wooden cases
Service Support
- One-year comprehensive machine guarantee
- 24/7 technical support availability
- Overseas installation and commissioning services
- Post-warranty maintenance guidance and affordable spare parts
- Comprehensive operator training programs
Product Gallery
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province, near Shanghai and Wuxi. Factory visits are welcome and pick-up service is available for nearby visitors.
How to build trust with Langbo?
We provide working videos demonstrating machine performance in various countries and offer customer-focused technical solutions. Factory visits allow direct assessment of our plastic extrusion expertise.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. Shipping costs to destination ports fluctuate based on carrier and timing. We assist customers in obtaining current shipping rates.
Order Process After Confirmation
Configuration confirmation → Proforma invoice signing → 30% prepayment → Test running (on-site or video) → Machine condition confirmation → 70% payment → Delivery preparation → Shipping → On-site commissioning → Operator training → Handover confirmation → One-year guarantee → Lifetime technical support
Payment Methods
T/T, D/P, Letter of Credit, Cash transactions
Quality Assurance
One-year guarantee with lifetime technical support. Customers can inspect machines during test running, with immediate optimization of any identified issues.
CE Certification
Yes, both our extrusion and plastic recycling machines hold CE Certification.
Delivery Timeline
Typically 45 days from order confirmation, with exact timing specified in the contract.
